Modern construction and renovation projects increasingly require concealed installation systems to maintain clean interior finishes and well-organized building infrastructure. Electrical wiring, plumbing pipes, and service conduits are often embedded within walls or floors rather than being left exposed. This approach not only enhances the overall appearance of buildings but also helps protect critical installations from damage and environmental exposure.
Creating these concealed pathways requires precise grooves in masonry surfaces, which can be difficult to achieve using traditional tools. This is where wall chaser machines, also known as groove cutters, become essential equipment for installation professionals. Designed to cut straight channels in materials such as brick, concrete, cement blocks, and plaster walls, these machines allow electricians, plumbers, and technicians to install cables, conduits, and pipes neatly before finishing the wall surface. Contractors working across construction sites in the UAE can explore suitable tools through the Ideal Power Tools' groove cutters and wall chaser collection, which includes machines built for both standard installation tasks and heavy-duty groove cutting applications.
What Is a Wall Chaser Machine?
A wall chaser machine is a specialized power tool designed to cut grooves or channels in walls and floors, mainly in masonry materials such as brick, concrete, cement blocks, and plaster surfaces. These grooves are typically created to install concealed building services such as electrical conduits, plumbing pipes, communication cables, or air-conditioning lines. By embedding these installations inside the structure, contractors can maintain a cleaner and more organized finish while protecting the systems from external damage.
Wall chasers are engineered specifically for this type of work. Most machines operate using two parallel cutting blades that simultaneously cut two straight lines into the wall surface. After the cuts are made, the material between them can be removed, forming a neat and consistent channel that can accommodate wiring or piping. This method ensures that the groove remains uniform in both width and depth, which is essential for professional installation work.
Traditionally, grooves were created manually using tools such as hammers and chisels. While this method can still be used for small tasks, it is slow and often results in uneven channels that require additional finishing work. Wall chaser machines significantly improve this process by allowing contractors to complete groove cutting quickly, accurately, and with minimal surface damage.
Compared with traditional manual methods, wall chasers offer several advantages:
- Faster groove cutting and installation preparation
- Straight and uniform channels for professional results
- Controlled cutting depth for precise installations
- Reduced structural damage to surrounding surfaces
- Improved efficiency on construction and renovation sites
Wall chaser machines are therefore widely used by professionals in construction, electrical installation, plumbing, HVAC, and renovation projects. Their ability to produce clean and consistent grooves makes them an essential tool for modern installation work.
Common Applications of Wall Chaser Machines
Wall chasers are used in a variety of construction and installation tasks where accurate channel cutting is required.
| Application | Description |
|---|---|
| Electrical installation | Creating channels for concealed wiring and conduits |
| Plumbing installation | Cutting grooves for water supply and drainage pipes |
| HVAC systems | Preparing channels for air-conditioning pipes and cables |
| Renovation work | Modifying existing walls for new installations |
| Flooring preparation | Cutting grooves in floors for service pipes or wiring |
These applications make wall chasers particularly useful for electricians, plumbers, contractors, renovation specialists, and installation technicians.
Wall Chaser vs Angle Grinder for Wall Grooving
In some construction and renovation projects, contractors may use angle grinders to cut grooves in walls when a dedicated groove cutter is not available. Angle grinders are highly versatile tools commonly used for cutting metal, grinding surfaces, and general fabrication tasks.
As explained in the Ideal Power Tools guide on angle, die, and bench grinders, grinders are primarily designed for cutting and grinding applications rather than creating installation channels in masonry. A wall chaser machine, however, is specifically designed for groove cutting. It uses parallel cutting blades to produce straight and uniform channels that can accommodate electrical conduits, plumbing pipes, or other building services.
When using an angle grinder for this task, the operator often needs multiple passes to achieve the required groove width and depth, which can be slower and less precise. The key differences between these tools are summarized below:
| Feature | Wall Chaser | Angle Grinder |
|---|---|---|
| Primary purpose | Designed for groove cutting | General-purpose cutting and grinding |
| Groove accuracy | High precision parallel grooves | Lower accuracy |
| Depth control | Adjustable groove depth | Limited depth control |
| Efficiency | Faster groove cutting | Requires multiple passes |
| Result | Clean and uniform grooves | Rougher finish |
While angle grinders remain essential tools for many workshop and construction tasks, wall chasers offer a more efficient and precise solution when the job requires clean and consistent installation channels in walls or floors.
Key Features to Consider When Choosing a Wall Chaser
Selecting the right wall chaser depends on a few important technical features that affect cutting performance and suitability for different installation tasks.
- Motor Power: Determines the cutting strength of the machine. Professional wall chasers typically range from 1500 W to 3000 W, suitable for masonry cutting tasks.
- Blade Diameter: Influences the depth of the groove. Common blade sizes are around 110 mm to 135 mm, used for electrical and plumbing channels.
- Maximum Cutting Capacity: Indicates the maximum groove depth and width the machine can achieve, which should match the size of the conduit or pipe being installed.
- No-Load Speed: Higher motor speeds help the machine cut smoothly and efficiently through masonry surfaces.
- Adjustable Depth Control: Allows users to set the groove depth according to installation requirements.
- Safety and Durability Features: Features such as double insulation and robust construction improve reliability and operator safety on construction sites.
Considering these features helps professionals choose a wall chaser that meets the power, cutting capacity, and precision requirements of their project.

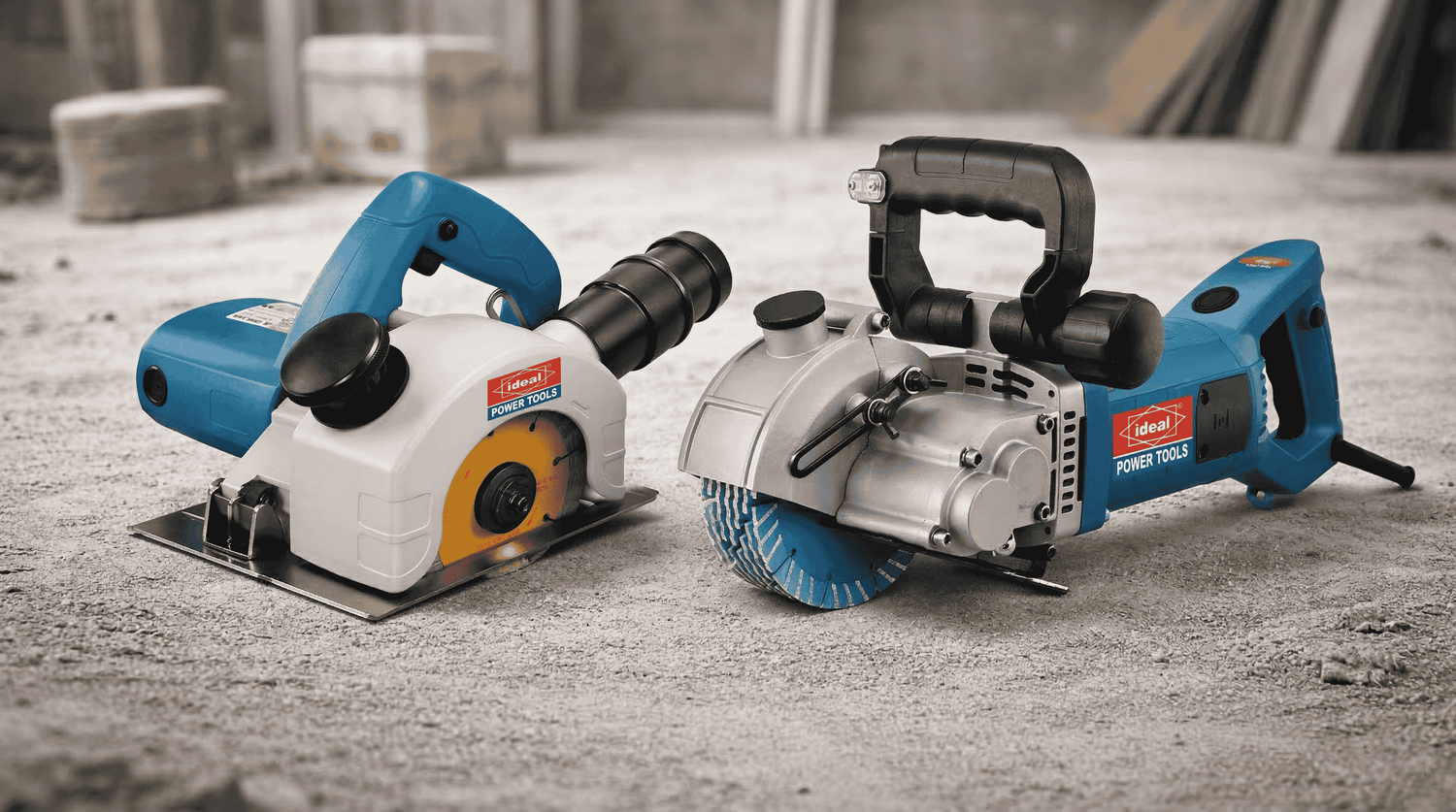

Ideal Power Tools Wall Chaser Machines
Ideal Power Tools currently offers two groove cutter models designed for professional installation work: ID GC110 and ID GC135 Electric Groove Cutters and Wall Chaser Machines.
ID GC110 Electric Groove Cutter & Wall Chaser Machine
The ID GC110 Electric Groove Cutter and Wall Chaser Machine is designed for precision groove cutting in walls and floors. Its compact design and high cutting speed make it suitable for professionals who require efficient channel preparation for electrical and plumbing installations.
Powered by a 1600-watt motor, the machine operates at 10800 revolutions per minute, enabling fast and efficient cutting in masonry surfaces.
Key Specifications
| Specification | Details |
|---|---|
| Rated Power Input | 1600 W |
| No-Load Speed | 10800 r/min |
| Blade Diameter | 110 mm |
| Rated Voltage | 220–240 V |
| Rated Frequency | 50 / 60 Hz |
| Net Weight | 4.1 kg |
The ID GC110 is built to deliver high-speed cutting performance, allowing installers to create clean grooves quickly and efficiently. It features adjustable depth settings that help users control the groove depth accurately according to installation requirements.
The machine is also constructed with heavy-duty components to withstand demanding job-site conditions, while double insulation enhances electrical safety during operation. To support convenient operation and maintenance, the machine is supplied with essential accessories including a guidebook, open-end wrench, socket wrench, and an auto-stop carbon set.
Best For:
- Electrical wiring channels
- Plumbing installations
- Renovation and retrofit work
- Flooring preparation and tile installation
Ideal Power Tools wall chaser machine designed for precise groove cutting in walls and floors for electrical, plumbing, and concealed installation work.
Watch how a wall chaser machine works and how it creates precise grooves for electrical and plumbing installations.
ID GC135 Electric Groove Cutter & Wall Chaser Machine
The ID GC135 Electric Groove Cutter and Wall Chaser Machine is designed for heavy-duty groove cutting applications in construction and installation work. Equipped with a powerful 3000-watt motor and a larger blade capacity, this machine is well suited for demanding environments where deeper and wider channels are required.
The machine operates at 5000 revolutions per minute and supports a maximum blade diameter of 135 mm, allowing installers to cut grooves efficiently in thick masonry surfaces.
Key Specifications
| Specification | Details |
|---|---|
| Rated Power Input | 3000 W |
| No-Load Speed | 5000 r/min |
| Blade Diameter | 135 mm |
| Voltage | 220–240 V |
| Frequency | 50 / 60 Hz |
| Net Weight | 7.15 kg |
The ID GC135 is engineered to handle demanding groove cutting tasks with its high-performance motor and strong cutting capability. It features adjustable depth control, enabling operators to customize the groove depth according to installation requirements.
For improved usability on job sites, the machine also includes a built-in job light, which helps operators maintain visibility when working in dimly lit areas. Additional features such as double insulation for enhanced electrical safety and a soft-start function for smoother startup further improve the reliability and user experience of the machine.
The machine is supplied with a set of essential accessories including seven cutting blades, a guide book, a spanner, and an auto-stop carbon set, allowing professionals to begin work immediately and maintain the tool easily.
Best For:
- Deep groove cutting for plumbing installations
- Electrical conduit installations in thick walls
- Construction and renovation projects
- Heavy-duty installation tasks
Ideal Power Tools ID GC135 wall chaser machine designed for heavy-duty groove cutting in masonry surfaces for electrical conduits and plumbing installations.
Watch the Ideal Power Tools ID GC135 Electric Groove Cutter and Wall Chaser Machine in action as it cuts precise and clean grooves in masonry for electrical and plumbing installations.
Safety Tips for Using Wall Chasers
Wall chasers operate at high speeds and should always be used with proper safety precautions.
Important safety practices include:
- Wear protective goggles and dust protection
- Inspect blades before operation
- Maintain proper grip and tool stability
- Avoid excessive cutting pressure
- Perform regular maintenance checks
Following these precautions helps ensure both operator safety and longer tool life.
Frequently Asked Questions
What is a wall chaser machine used for?
A wall chaser machine is used to cut grooves in walls and floors so that electrical wiring, plumbing pipes, and service conduits can be installed inside the structure.
Can wall chasers cut concrete?
Yes. Wall chasers can cut materials such as brick, concrete, cement blocks, and plaster when equipped with suitable cutting blades.
Who uses wall chaser machines?
Wall chasers are commonly used by electricians, plumbers, construction contractors, HVAC technicians, and renovation professionals.
What is the difference between ID GC110 and ID GC135?
The ID GC110 Electric Groove Cutters and Wall Chaser Machine is designed for standard installation tasks and offers a compact design with a 1600 W motor, while the ID GC135 Electric Groove Cutters and Wall Chaser Machine provides higher power, larger blade capacity, and deeper cutting capability for heavy-duty applications.
Conclusion
Wall chaser machines have become an essential tool for modern construction and installation work, helping you create clean and precise grooves quickly and efficiently for concealed wiring, plumbing systems, and other building services. Using the right groove cutter not only improves installation accuracy but also saves valuable time and effort on the job site.
If you are working on electrical installations, plumbing systems, or renovation projects, choosing a reliable wall chaser can make a significant difference in your productivity and the quality of your work. With powerful motors, adjustable cutting control, and durable construction, Ideal Power Tools wall chasers are designed to support professionals who need consistent performance in demanding environments.
You can explore the available models in the Ideal Power Tools professional wall chaser collection to find the right machine that fits your installation requirements and helps you complete your projects more efficiently.
