Professional Wall Chasing Performance — Built for the Demands of the Job Site

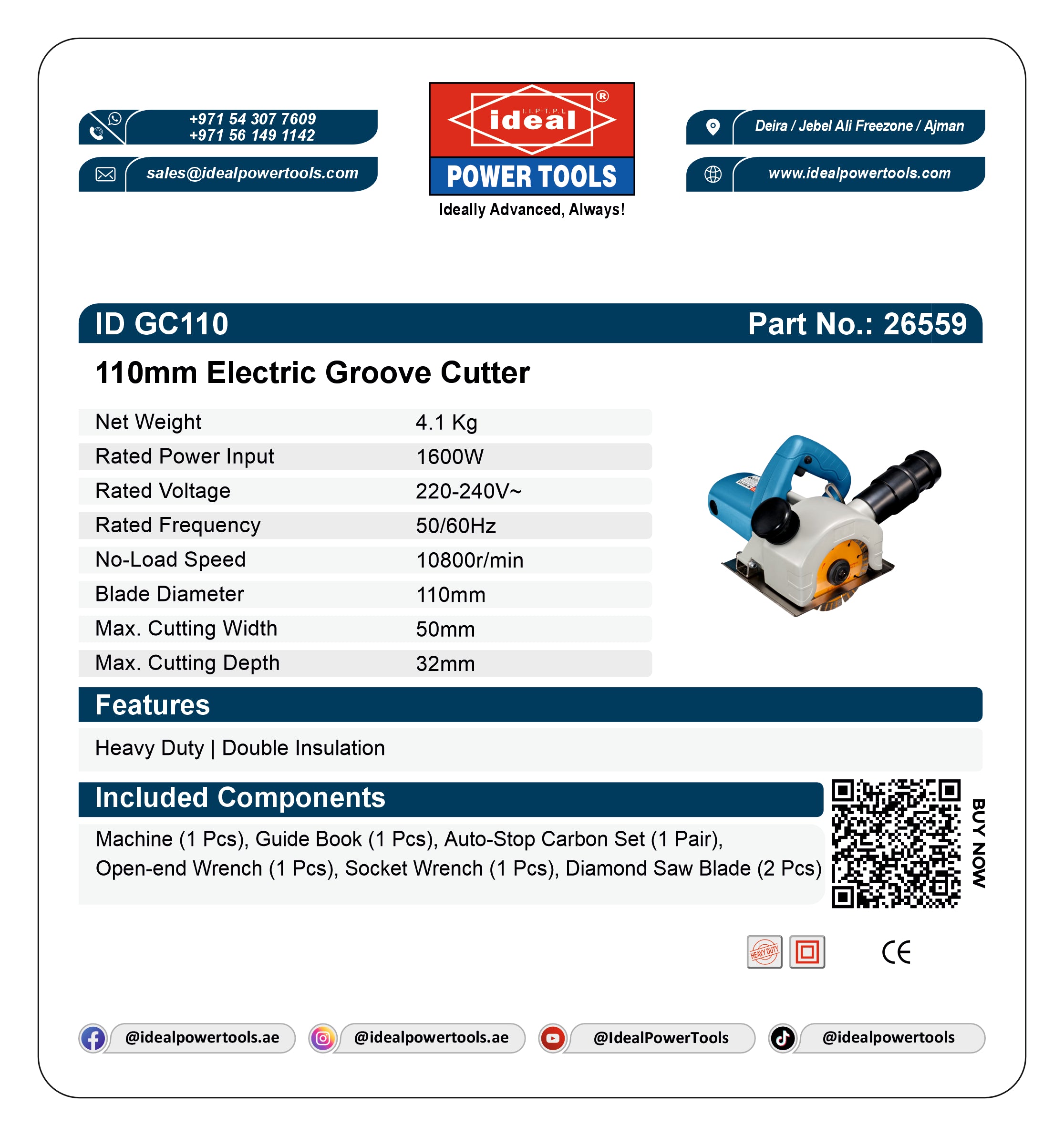

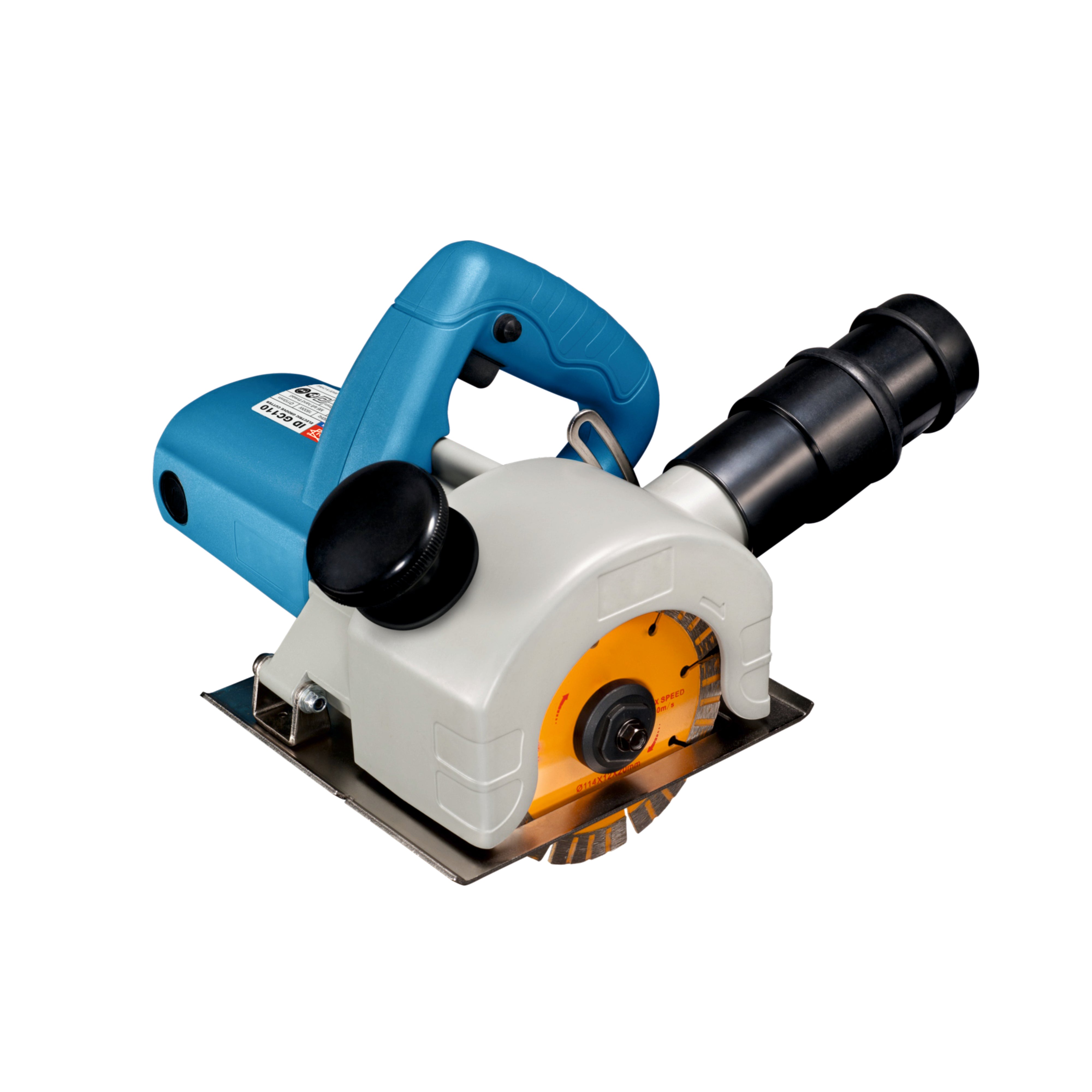

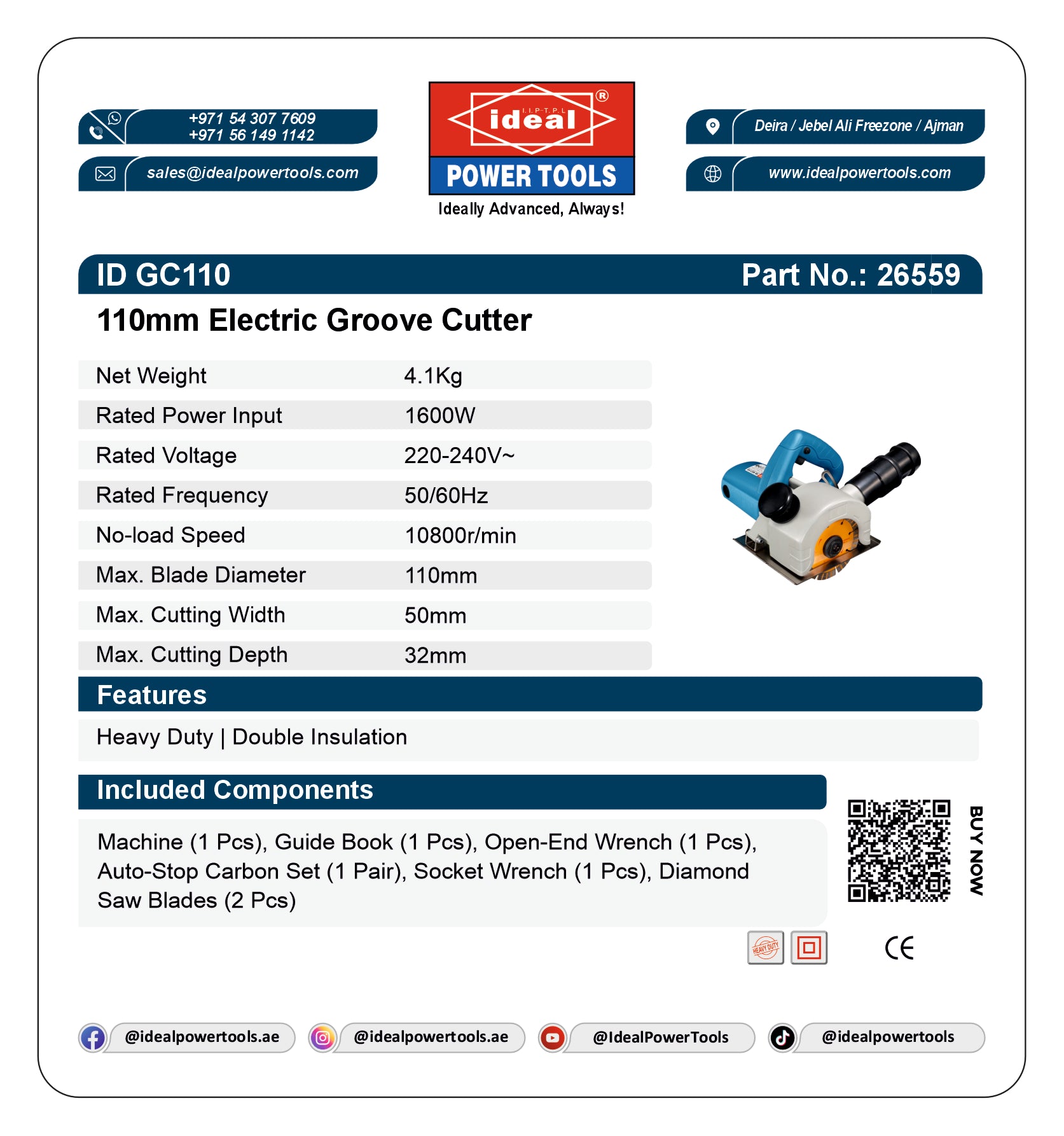

The ID GC110 Electric Groove Cutter and Wall Chaser Machine is a professional-grade 1600W wall chasing machine engineered for precise, clean groove cutting in walls and floors. Powered at 220–240V with a no-load speed of 10,800 r/min and a maximum blade diameter of 110mm, this machine delivers the accuracy and control demanded by construction, plumbing, and electrical professionals. Supplied with a Type G British 3-Pin plug, it is ready for use across GCC and UK markets straight out of the box.
| Key Features | Perfect For |
|---|---|
|
|
- 1600W Rated Power Input — this high-output motor sustains consistent cutting torque through dense concrete, brick, and block, making it suitable for extended professional use without thermal shutdown or performance drop-off.
- 10,800 r/min No-Load Speed with 50/60Hz Compatibility — the wide frequency range (50/60Hz) ensures the GC110 operates at full rated speed across GCC, UK, and European power supplies, giving contractors a single tool that travels across markets without performance compromise.
- 110mm Maximum Blade Diameter for Versatile Groove Profiles — the large blade capacity allows the use of standard and wide-kerf diamond blades, enabling groove widths and depths suited to both single-cable conduit runs and larger-diameter pipe chasing applications.
- Double Insulation Safety Construction — the GC110 is built to Class II electrical safety standards, meaning all live electrical components are physically separated from the tool's outer housing. This eliminates the need for a grounded power supply and provides a critical layer of protection in damp or dusty site conditions.
- Auto-Stop Carbon Brush Set for Extended Machine Life — the included auto-stop carbon set is a precision wear component that automatically cuts power to the motor the moment the brushes reach their service limit. This prevents costly armature damage and gives the operator a clear signal for maintenance, significantly extending the working life of the machine.
- Lightweight 4.1kg Body with Full Accessory Kit — at just 4.1kg net weight, the GC110 is manageable for overhead and vertical wall work. The machine ships complete with a Guide Book, Open-End Wrench, and Socket Wrench, providing everything needed to mount blades and begin cutting immediately upon delivery.
- Type G British 3-Pin Plug — GCC & UK Ready — the machine is supplied with a Type G plug as standard, making it immediately compatible with UAE, Saudi Arabia, UK, and other Type G socket markets without the need for adapters or rewiring.
The ID GC110 carries Double Insulation (Class II) certification, confirming compliance with international electrical safety standards for power tools. The package includes the machine (1 pc), a Guide Book (1 pc), an Auto-Stop Carbon Set (1 pair), an Open-End Wrench (1 pc), and a Socket Wrench (1 pc) — providing a complete, job-site-ready kit from day one.
General Purchase & Comparison Queries
What plug type does the ID GC110 come with, and which countries is it compatible with?
The ID GC110 is supplied with a Type G British 3-Pin plug as standard. This makes it immediately compatible with the UAE, Saudi Arabia, Qatar, Bahrain, Oman, Kuwait, the United Kingdom, and other Type G socket markets — no adapter or rewiring required. The machine also supports both 50Hz and 60Hz power frequencies, ensuring full rated performance across all these regions.
How does the ID GC110 compare to a standard angle grinder for wall chasing?
Unlike a standard angle grinder, the ID GC110 is a dedicated wall chaser designed specifically for cutting parallel grooves in walls and floors. It features a guided depth-control system and is optimised for use with diamond blades up to 110mm, delivering far more precise, consistent groove profiles than an angle grinder. For professional conduit and pipe chasing work, a dedicated wall chaser like the GC110 significantly reduces rework and improves finish quality.
Is the ID GC110 suitable for both professional contractors and serious DIY users?
Yes. The GC110's 1600W motor, 4.1kg lightweight body, and full accessory kit make it accessible for advanced DIY users tackling renovation projects, while its heavy-duty construction, auto-stop carbon brush protection, and double insulation safety rating meet the demands of professional contractors on active construction sites. It is a versatile tool suited to anyone requiring reliable, repeatable groove cutting in masonry or concrete.
Product-Specific and Usage Queries
What is the maximum blade diameter the GC110 accepts, and what blade types are recommended?
The ID GC110 accepts blades up to a maximum diameter of 110mm. For best results on masonry, brick, and concrete, segmented diamond blades are recommended as they provide fast, clean cuts with minimal heat build-up. The included Open-End Wrench and Socket Wrench allow for quick blade changes on site without additional tooling.
What does the auto-stop carbon set do, and when should it be replaced?
The auto-stop carbon set consists of carbon brushes that conduct electricity to the motor's rotating armature. When the brushes wear down to their service limit, the auto-stop mechanism automatically cuts power to the motor, preventing the worn brush from damaging the armature — a repair that would otherwise be costly. The machine ships with one pair of auto-stop carbon brushes included. Replacement is required once the auto-stop triggers, and compatible replacement brushes should be sourced to match the GC110 specification.
Can the GC110 be used on floors as well as walls?
Yes. The ID GC110 is designed for groove cutting in both walls and floors. It is commonly used for cutting channels in floor screeds and concrete slabs for underfloor heating pipes, electrical conduit, and expansion joints. The machine's guided depth control and 10,800 r/min cutting speed ensure clean, accurate grooves regardless of orientation.
Problem/Solution-Oriented Queries
The machine stopped working mid-cut — what should I check first?
If the GC110 stops unexpectedly during use, the most likely cause is the auto-stop carbon brush mechanism activating, which means the carbon brushes have reached the end of their service life. This is a normal, protective function — not a fault. Switch off the machine, disconnect from power, and inspect the carbon brushes. If they are worn to the auto-stop limit, replace the carbon brush set with a compatible pair before resuming work. If the brushes appear intact, check that the power supply is stable and the blade is not jammed or overloaded.
The groove is not cutting to a consistent depth — how do I fix this?
Inconsistent groove depth is typically caused by incorrect depth guide adjustment, a worn or damaged blade, or uneven pressure during cutting. First, verify that the depth guide is securely locked at the desired setting. Next, inspect the diamond blade for wear, cracks, or segment loss — a damaged blade will not cut evenly and should be replaced immediately. Finally, apply steady, consistent forward pressure without forcing the machine; let the blade speed do the work. Forcing the cut increases blade wear and reduces groove accuracy.
Is the GC110 safe to use in dusty or damp construction environments?
The GC110's Double Insulation (Class II) construction provides a critical safety advantage in challenging site conditions. Because all live electrical components are fully isolated from the outer casing, the risk of electric shock from incidental contact with moisture or conductive dust is significantly reduced compared to single-insulated tools. However, the machine should not be submerged or used in standing water. For dusty environments, connecting to a compatible dust extraction system is strongly recommended to protect both the operator and the machine's internal components.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-Stop Carbon Set (1 Pair), Open-End Wrench (1 Pcs), Socket Wrench (1 Pcs)
