IDU WR-B8 BRUSHLESS PLUNGE CORDLESS ROUTER MACHINE [CORDLESS KIT - (INC. 4.0A-20V BATTERY {IDU BT20-4A} + 2.4V STANDARD CHARGER {IDU CH60-2A}) G-240V] - 28886
Chat with us
Choose options

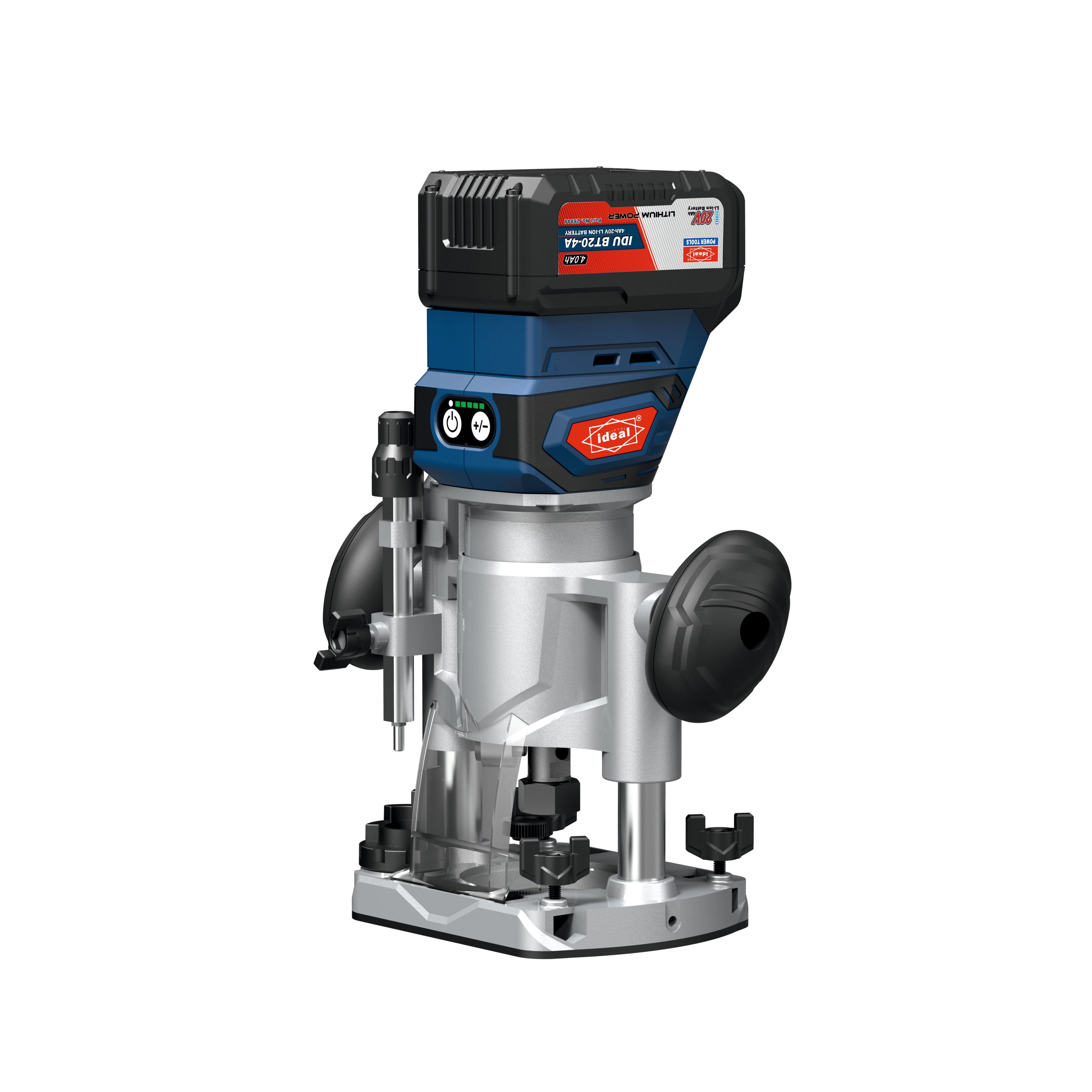

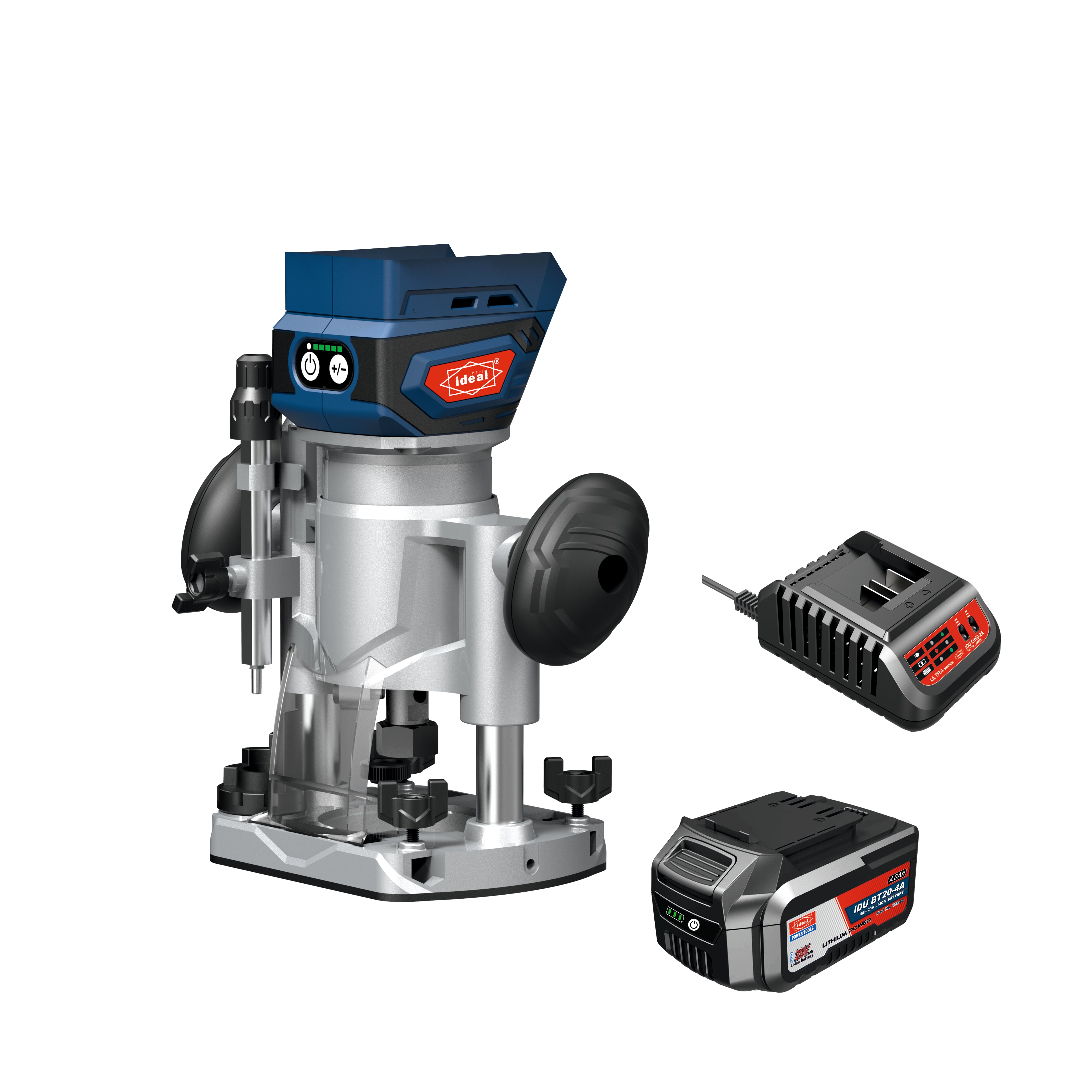

The IDU WR-B8 Brushless Plunge Cordless Router Machine is a professional-grade, 20V Li-Ion cordless router engineered for precision woodworking, cabinetry, and furniture making. Powered by a high-efficiency brushless motor delivering 12,000–30,000 RPM, this 2-in-1 plunge and fixed-base router combines cordless freedom with the power and control demanded by trade professionals and serious DIY craftsmen. The kit includes a 4.0Ah 20V Li-Ion battery (IDU BT20-4A) and a 2.4A standard charger (IDU CH60-2A) fitted with a Type G (British 3-Pin) plug for 220–240V operation.
| Key Features | Perfect For |
|
|
Professional Cordless Routing Power — Engineered for Precision, Built to Last
- High-Efficiency Brushless Motor with Variable Speed Control: The IDU WR-B8 is driven by a premium brushless motor that eliminates friction-based energy loss, channelling more power directly into cutting torque. The variable speed trigger provides seamless adjustment across a 12,000 to 30,000 RPM range, allowing the operator to match spindle speed precisely to the bit type, material density, and desired finish quality — from slow, controlled passes on dense hardwood to high-speed profiling on MDF and softwood.
- Dual Cylinder Plunge Mechanism with Micro-Adjustable Depth Stop: The heavy-duty dual cylinder smooth plunge base ensures perfectly parallel, wobble-free plunge strokes on every pass. The micro-adjustable depth stop turret combined with the fast-locking lever allows craftsmen to set, lock, and repeat routing depths with absolute consistency — critical for mortising, inlay work, and multi-pass grooving operations where depth accuracy directly impacts joint quality.
- 2-in-1 Convertible Motor Housing — Plunge Router and Fixed-Base Trim Router: The removable motor unit housing is engineered for rapid base conversion, transforming the WR-B8 from a full-size plunge router into a lightweight fixed-base trim router in seconds. This dual-function design eliminates the need for two separate tools, making it an exceptionally cost-effective solution for workshops and site carpenters who require both plunge and trim routing capability from a single cordless platform.
- Dual Collet System — 6mm and 8mm Compatibility: Supplied with precision-machined 6mm and 8mm collet sleeves, the WR-B8 accommodates the full spectrum of industry-standard router bits — from fine profiling and V-groove bits to large-diameter flush-trim and pattern bits. The maximum collet size of 8mm ensures compatibility with the majority of professional-grade woodworking bit sets available in the GCC and European markets, maximising the tool's versatility across routing disciplines.
- Ergonomic Dual Soft-Grip Handles with Low Centre of Gravity: The wide-set dual ergonomic soft-grip handles are positioned to deliver an exceptionally low centre of gravity, providing the operator with superior balance and handling control when executing complex edge profiles, freehand routing, circle cutting, or template-guided operations. Reduced vibration transmission through the soft-grip material minimises operator fatigue during extended routing sessions.
- Integrated Dust Extraction with Clear Acrylic Shroud: The purpose-designed dust collection shroud — fabricated from clear acrylic for unobstructed line-of-sight visibility — connects directly to standard workshop vacuum systems via the integrated extraction port. Dust is captured at the cutting source, maintaining a clean working surface, protecting the operator's airways, and significantly improving routing accuracy by keeping the cut line visible at all times.

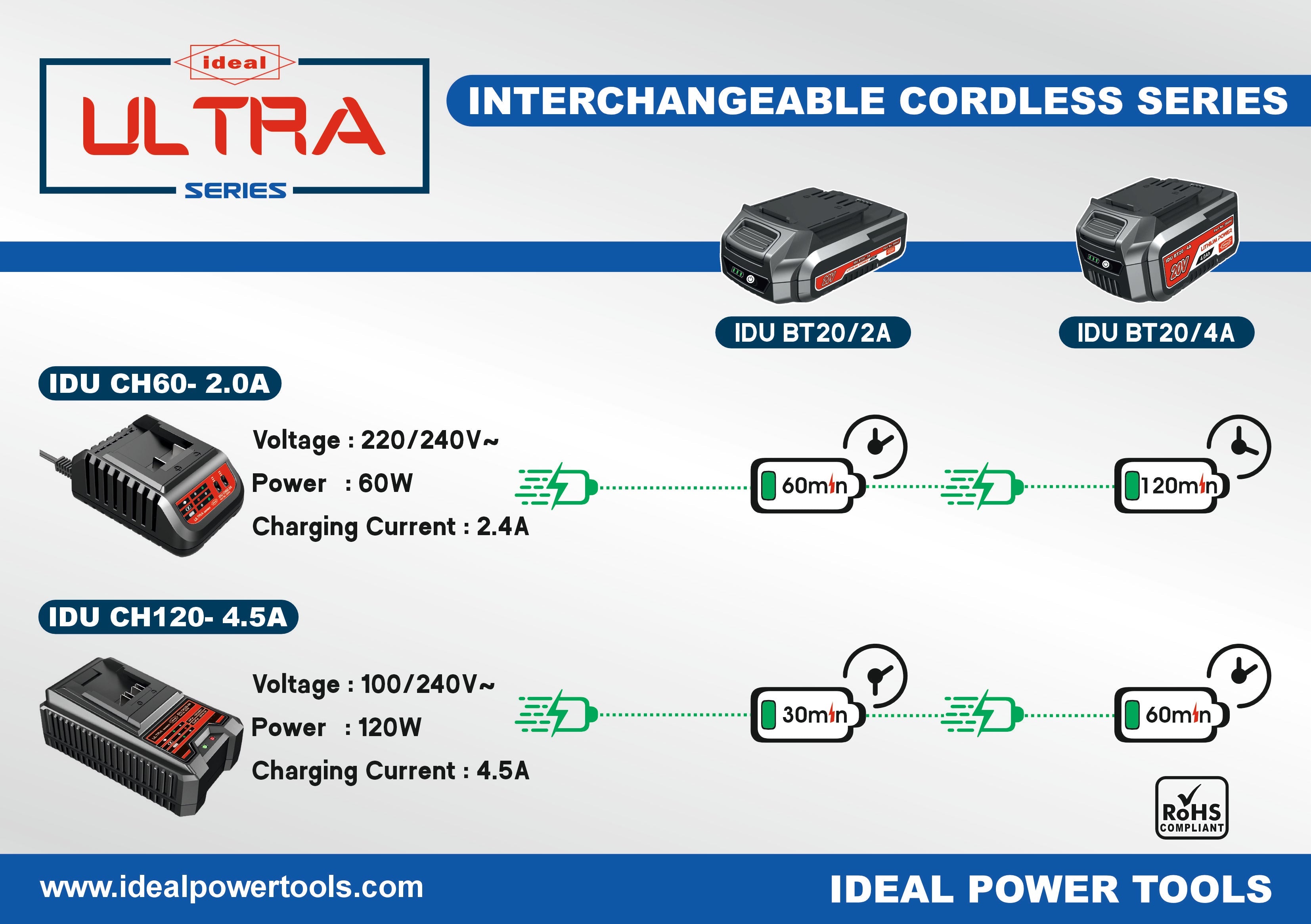

- 4.0Ah 20V Li-Ion Battery with LED Power Indicator: The included IDU BT20-4A 4,000mAh 20V Lithium-Ion battery delivers sustained high-current output for demanding routing applications without voltage sag. The integrated LED battery level indicator provides real-time charge status at a glance, eliminating unexpected mid-job shutdowns. The battery is fully compatible with the IDU 20V cordless platform, enabling cross-tool sharing across the IDU range.

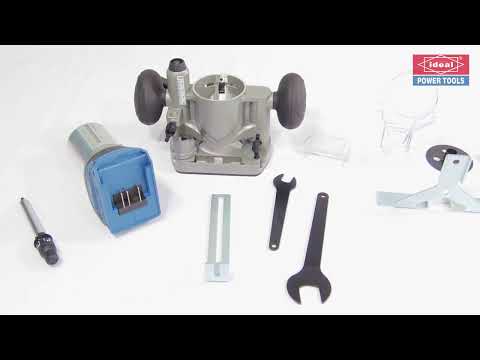

This kit is supplied complete with the machine, a 6mm collet, an 8mm collet, a dust collector set, a spanner, a straight guide, a guide holder, a template guide, a guide book, the IDU BT20-4A 4.0Ah 20V Li-Ion battery, and the IDU CH60-2A 2.0A standard charger. The IDU WR-B8 carries CE certification (comprehensive machine safety test), CB certification (international comprehensive machine test), and RoHS certification (raw materials compliance test), confirming full conformity with European and international safety and environmental standards. The charger is rated for 220–240V~ / 50–60Hz and is supplied with a Type G British 3-Pin plug.
General Purchase & Comparison Queries
What is included in the IDU WR-B8 Cordless Router Kit?
The IDU WR-B8 is sold as a complete cordless kit. It includes the router machine, a 4.0Ah 20V Li-Ion battery (IDU BT20-4A), a 2.0A standard charger (IDU CH60-2A) with a Type G British 3-Pin plug, 6mm and 8mm collet sleeves, a dust collector set, a straight guide, a guide holder, a template guide, a spanner, and a guide book. Everything required to begin routing immediately upon delivery is included in the box.
Is the IDU WR-B8 compatible with other IDU 20V batteries?
Yes. The IDU WR-B8 operates on the IDU 20V Li-Ion battery platform, meaning it is fully compatible with any IDU 20V battery across the range. The included IDU BT20-4A 4.0Ah battery provides extended runtime for demanding routing tasks, but any IDU 20V battery can be used interchangeably, making it easy to integrate the WR-B8 into an existing IDU cordless tool collection.
What is the difference between a plunge router and a fixed-base trim router, and can the WR-B8 do both?
A plunge router allows the operator to lower the spinning bit vertically into the workpiece mid-cut — essential for mortising, inlay pockets, and stopped grooves. A fixed-base trim router holds the bit at a set depth and is ideal for edge profiling, laminate trimming, and light decorative work. The IDU WR-B8 is a 2-in-1 convertible machine: the motor unit detaches from the plunge base and mounts into a fixed-base configuration (sold separately), giving professionals both capabilities from a single cordless tool.
Product-Specific and Usage Queries
What router bit sizes does the IDU WR-B8 accept?
The IDU WR-B8 is supplied with both a 6mm and an 8mm precision collet sleeve, accommodating the two most widely used shank sizes in professional woodworking. The maximum collet size is 8mm, covering the vast majority of profiling, grooving, flush-trim, and pattern bits available in the market. Simply swap the collet sleeve to switch between shank sizes — no additional adapters are required for standard industry bits.
How does the variable speed control work on the WR-B8?
The IDU WR-B8 features a variable speed trigger that adjusts motor output proportionally to trigger pressure — the harder you squeeze, the faster the brushless motor spins the collet. The speed range spans 12,000 to 30,000 RPM, allowing precise control for different applications: lower speeds for large-diameter bits and dense hardwoods to prevent burning, and higher speeds for fine profiling bits and softwoods or MDF where a clean, fast cut is preferred.
Can I connect the IDU WR-B8 to a dust extractor?
Yes. The IDU WR-B8 features an integrated dust extraction port fitted with a clear acrylic dust collection shroud that connects directly to standard workshop vacuum systems. The shroud captures sawdust at the cutting source, keeping the work surface clean, maintaining clear visibility of the cut line, and significantly reducing airborne dust in the workshop environment. This makes the WR-B8 well-suited for use in enclosed workshops and on finished surfaces where dust contamination is a concern.
Problem/Solution-Oriented Queries
The router bit is burning the wood — what should I do?
Burning is typically caused by running the router at too high a speed for the bit diameter or material, taking too shallow a pass, or using a dull bit. With the IDU WR-B8's variable speed control (12,000–30,000 RPM), reduce the trigger pressure to lower the spindle speed — larger diameter bits and dense hardwoods require slower speeds. Increase the depth of cut slightly to remove more material per pass, and ensure the bit is sharp and clean. A brushless motor maintains consistent torque at lower speeds, so reducing RPM will not cause the motor to bog down.
The plunge depth is inconsistent between passes — how do I fix this?
Inconsistent plunge depth is almost always caused by an improperly set or loose depth stop. On the IDU WR-B8, use the micro-adjustable depth stop turret to set your target depth precisely, then engage the fast-locking lever firmly before each plunge. The dual cylinder plunge mechanism is engineered to eliminate lateral play and ensure the bit travels in a perfectly vertical path — if depth is still varying, check that the collet nut is fully tightened and the bit shank is fully seated in the collet before locking.
The battery charge is depleting faster than expected — what could cause this?
Faster-than-expected battery drain is usually the result of routing at maximum speed continuously, using large-diameter bits that demand high torque, or routing very dense hardwoods. The IDU BT20-4A 4.0Ah battery is rated for sustained high-current output, but runtime will naturally decrease under heavy load. Use the LED battery level indicator to monitor charge status during use. To maximise runtime, match the speed setting to the task — lower RPM settings draw significantly less current. Ensure the battery contacts and charger terminals are clean, and always charge with the supplied IDU CH60-2A charger to maintain battery health.
Machine (1 Pcs), Guide Book (1 Pcs), Collet (6 & 8mm) (1 Pcs), Dust Collector Set (1 Pcs), Spanner (1 Pcs), Straight Guide (1 Pcs), 4A -20V Li-Ion Battery [IDU BT20-4A] (1 Pcs), 2.0A Standard Charger [IDU CH60-2A] (1 Pcs), Guide Holder (1 Pcs), Template Guide (1 Pcs)
