IDP-0678MB F-PROFILE [ALUMINIUM] [14MM] [MATTE BLACK] - 30530
Chat with us
Choose options
Architectural Precision Meets Durable Matte Black Design

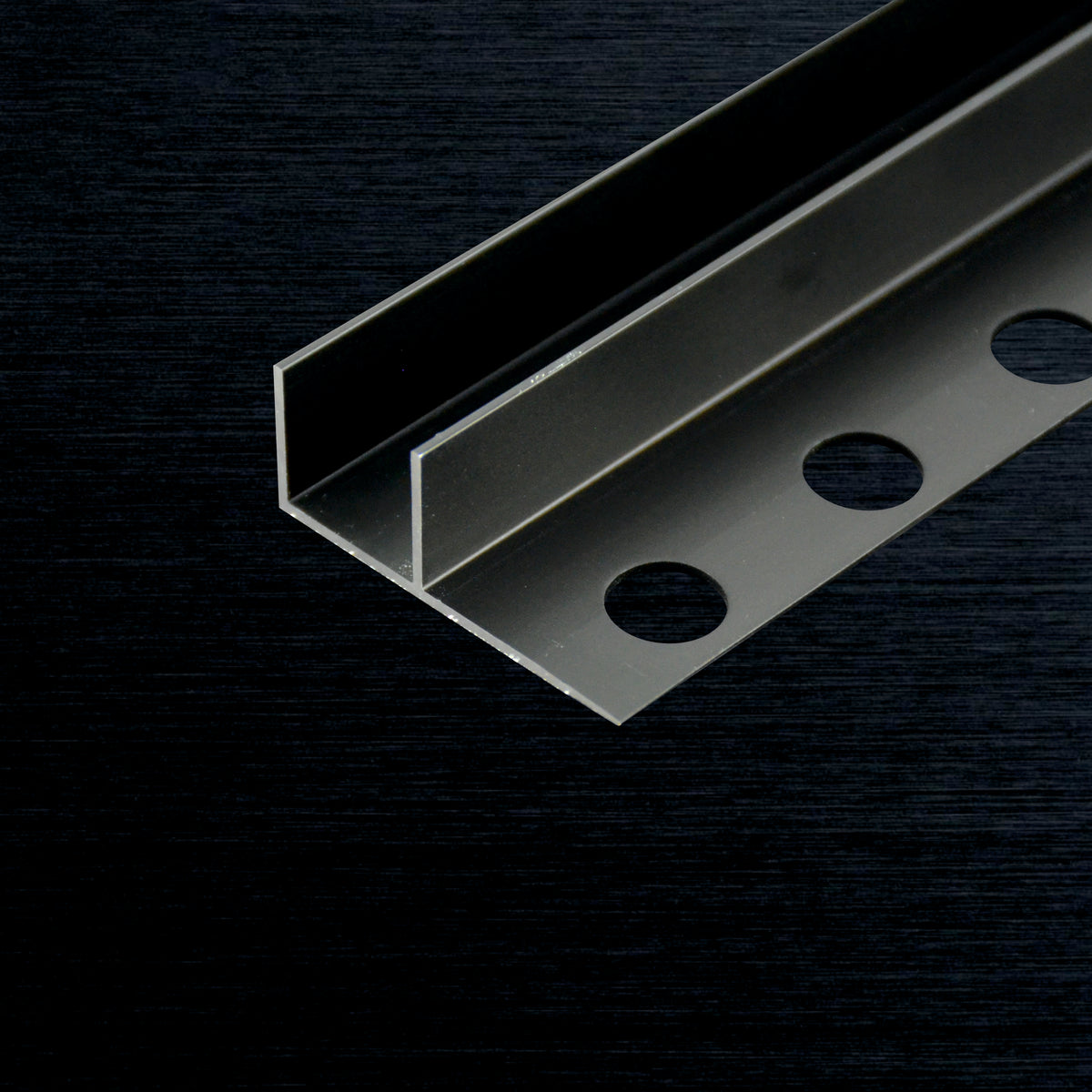

The IDP-0678MB F-Profile is a precision-engineered aluminium architectural trim designed to deliver clean, flush edge terminations for wall cladding, soffit panels, and step edges. Featuring a matte black anodised finish, a perforated anchoring flange, and an overhanging F-leg channel, this 14mm aluminium F-profile conceals fixings while securing panel borders with a weather-resistant, corrosion-proof seal, purpose-built for demanding residential and commercial applications.
| Key Features | Perfect For |
|---|---|
|
|

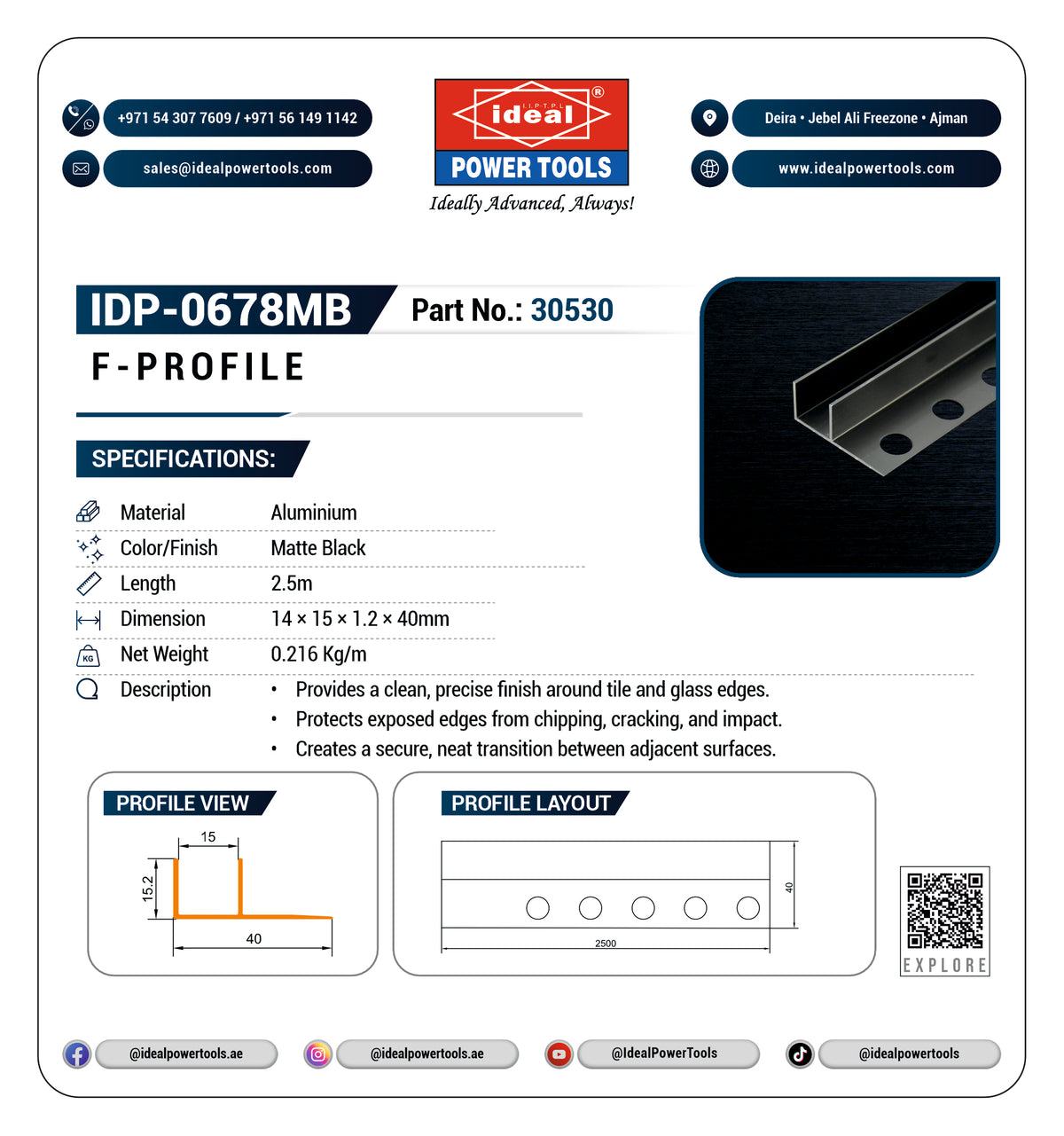

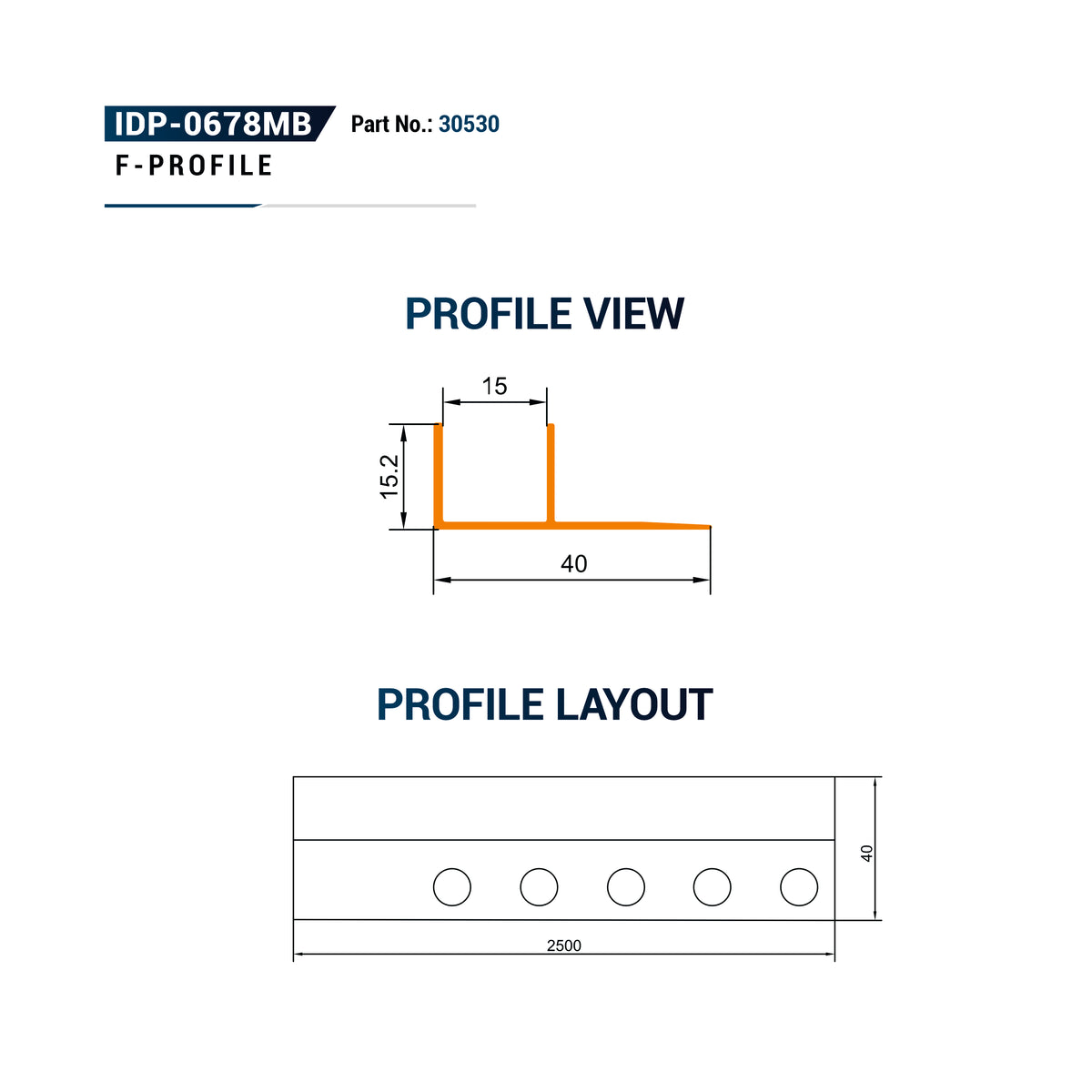

- Heavy-Duty Extruded Aluminium Body: Manufactured from premium-grade extruded aluminium with a cross-section of 14 x 15 x 1.2mm and a net weight of just 0.216 kg, this F-profile delivers exceptional structural integrity without adding unnecessary load to wall assemblies. The aluminium construction ensures it will not bend, warp, or corrode — even in high-humidity or outdoor-facing environments.
- Overhanging F-Leg Channel Design: The hallmark of this profile is its integrated vertical channel wall paired with an extended flat base flange, which frames the raw edge of panels or cladding boards and slides securely over them. This overhanging F-leg locks panel terminations in place and eliminates visible raw edges without the need for exposed surface fasteners, resulting in a seamless, professional finish.
- Perforated Anchoring Flange for Secure Bonding: The flat mounting flange features circular cutouts (perforations) distributed along its length, specifically engineered to allow mechanical adhesive to bond through and beneath tile or panel layers. This dramatically improves pull-out resistance compared to solid flanges, ensuring the profile remains firmly anchored over the full service life of the installation.
- Corner Cap and Structural Gap Concealment: Equally effective as an external corner cap and as a gap-concealment trim, the IDP-0678MB covers expansion joints, rough wall cuts, and board terminations along corner junctions. The result is a clean, flush architectural line with no visible fixings, no exposed substrate, and no requirement for additional filler or caulking at the edge.
- Matte Black Anodised Finish — 2500mm Full Length: The non-reflective matte black coating delivers a high-contrast, contemporary framing edge that complements dark tile, concrete-effect, and monochrome cladding systems. Each profile is supplied at a full 2500mm (2.5 metre) length, minimising joints on standard-height wall installations and reducing on-site cutting time.
Each IDP-0678MB F-Profile is supplied as a single piece (1 Pcs) at 2500mm length, ready for installation.
General Purchase & Comparison Queries
What makes the IDP-0678MB different from a standard aluminium edge trim?
Unlike a basic L-profile or straight edge bead, the IDP-0678MB features a true F-shaped cross-section with an overhanging leg that slides over and conceals the raw edge of a panel or board — not just caps it from the side. The perforated flat flange further distinguishes it by enabling adhesive to bond through the perforation holes, offering a far more secure mechanical fix than a solid-flange equivalent. Combined with the matte black anodised finish, it is purpose-designed for exposed architectural cladding systems where both structural performance and aesthetics are critical.
Is this profile suitable for outdoor and weather-exposed installations?
Yes. The IDP-0678MB is constructed from extruded aluminium, which is inherently corrosion-resistant and will not rust, rot, or degrade when exposed to moisture, UV, or temperature cycling. The matte black anodised coating adds an additional layer of surface protection, making this profile well-suited for exterior wall cladding, soffit panels, and outdoor architectural trim applications in both residential and commercial settings.
What panel or board thickness does the 14mm F-profile accommodate?
The 14mm dimension refers to the depth of the F-leg channel — the internal opening into which the panel or board edge is inserted. This profile is therefore suited to cladding panels, fibre cement boards, or tile substrates up to approximately 12–13mm thick, allowing a snug but manageable fit with standard installation tolerances. Always verify your specific board thickness against the channel depth before ordering.
Product-Specific and Usage Queries
How is the IDP-0678MB installed — does it require screws or adhesive?
The profile is designed for dual-method fixing. The perforated anchoring flange can be mechanically fastened to the wall substrate using screws or nails through the circular cutouts before the panel or tile layer is applied on top, concealing all fixings. Alternatively — or in combination — construction adhesive can be applied through the perforations, bonding the flange directly to the substrate beneath the panel. The overhanging F-leg then secures the panel edge from the front without any visible surface fasteners.
Can this F-profile be used on both internal corners and external wall edges?
The IDP-0678MB is optimised for external wall edges, panel terminations, and step edges — anywhere a panel's raw border needs to be cleanly capped and anchored. It also functions effectively as an external corner cap, covering the junction where two wall faces meet. For internal corners, a dedicated internal corner profile would typically be more appropriate, as the F-profile geometry is engineered for edge and external corner finishing rather than inward-facing intersections.
What is the total length of each profile and how many pieces are included?
Each IDP-0678MB is supplied as a single piece (1 Pcs) at a full length of 2500mm (2.5 metres). This full-length format is ideal for standard wall heights, minimising the number of joins required and reducing on-site cutting and waste. If your project requires coverage over longer spans, simply calculate the total linear metres needed and order accordingly.
Problem/Solution-Oriented Queries
My cladding panels have rough, unfinished edges — will this profile cover them completely?
Yes — concealing raw, unfinished panel edges is precisely what the IDP-0678MB is engineered for. The overhanging F-leg slides over and encapsulates the full depth of the panel edge, hiding any rough cuts, saw marks, or irregular board ends behind a clean, flush matte black trim line. The profile also covers expansion gaps and rough wall cuts at corner terminations, eliminating the need for caulking, putty, or additional filler at the edge.
I'm concerned about the profile detaching over time — how secure is the fix?
The perforated anchoring flange is specifically designed to address long-term adhesion and pull-out resistance. The circular cutouts along the flat flange allow construction adhesive to flow through and cure against the substrate beneath the panel layer, creating a mechanical interlock rather than relying on surface-contact bonding alone. When combined with screw or nail fastening through the same perforations prior to panel installation, the profile is firmly locked in place and extremely resistant to delamination or movement over its service life.
Will the matte black finish chip, fade, or scratch with normal handling?
The matte black anodised coating on the IDP-0678MB is considerably more durable than painted finishes. Anodising is an electrochemical process that integrates the colour into the aluminium surface layer rather than sitting on top of it, making it highly resistant to chipping, peeling, and UV fading. Normal installation handling and on-site cutting are unlikely to compromise the finish. For long-term appearance, avoid abrasive cleaning materials and use a soft cloth with a mild detergent if cleaning is required.
IDP-0678MB F-Profile (1 Pcs)
