IDP-0678AS F-PROFILE [ALUMINIUM] [14MM] [ANODIZED SILVER] - 30529

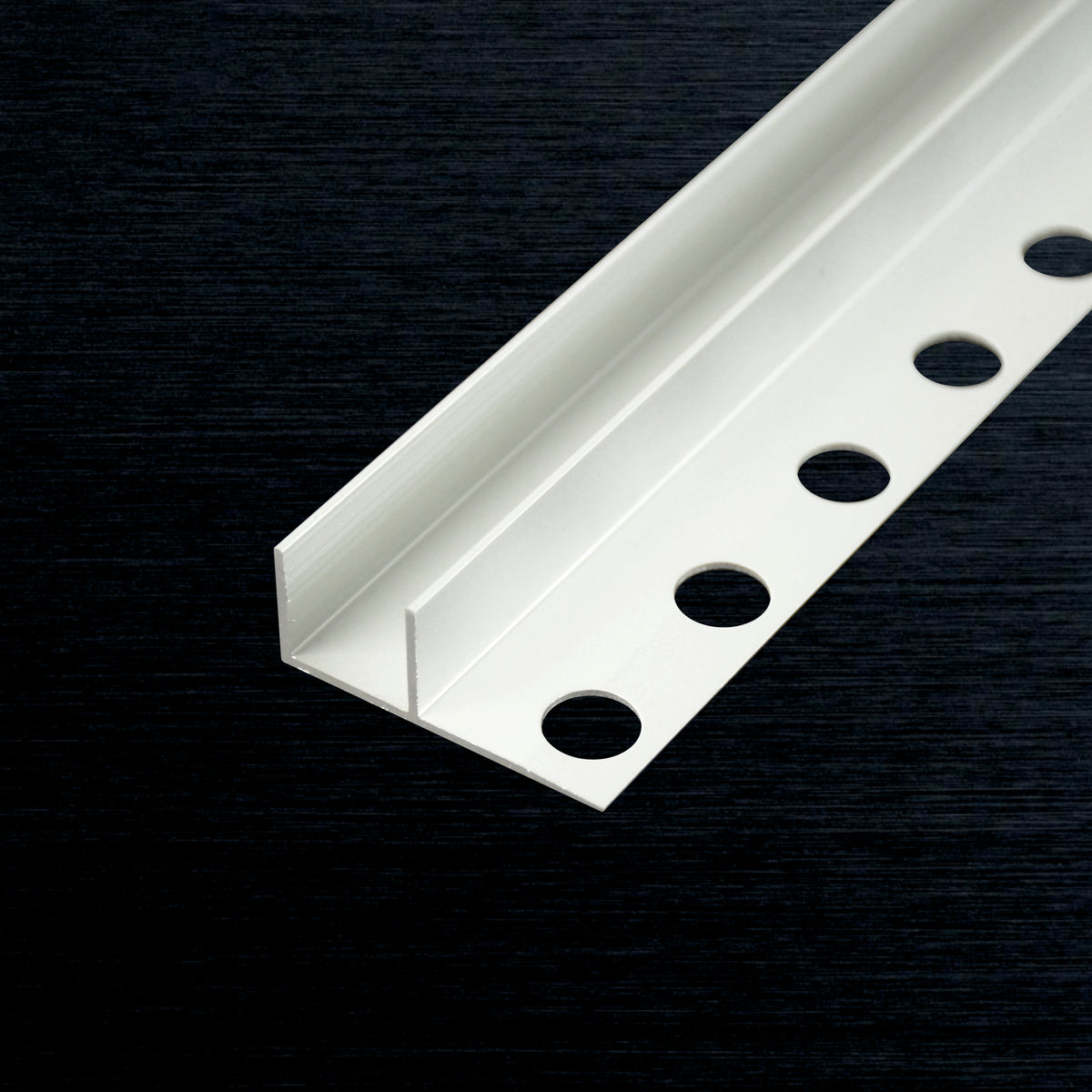

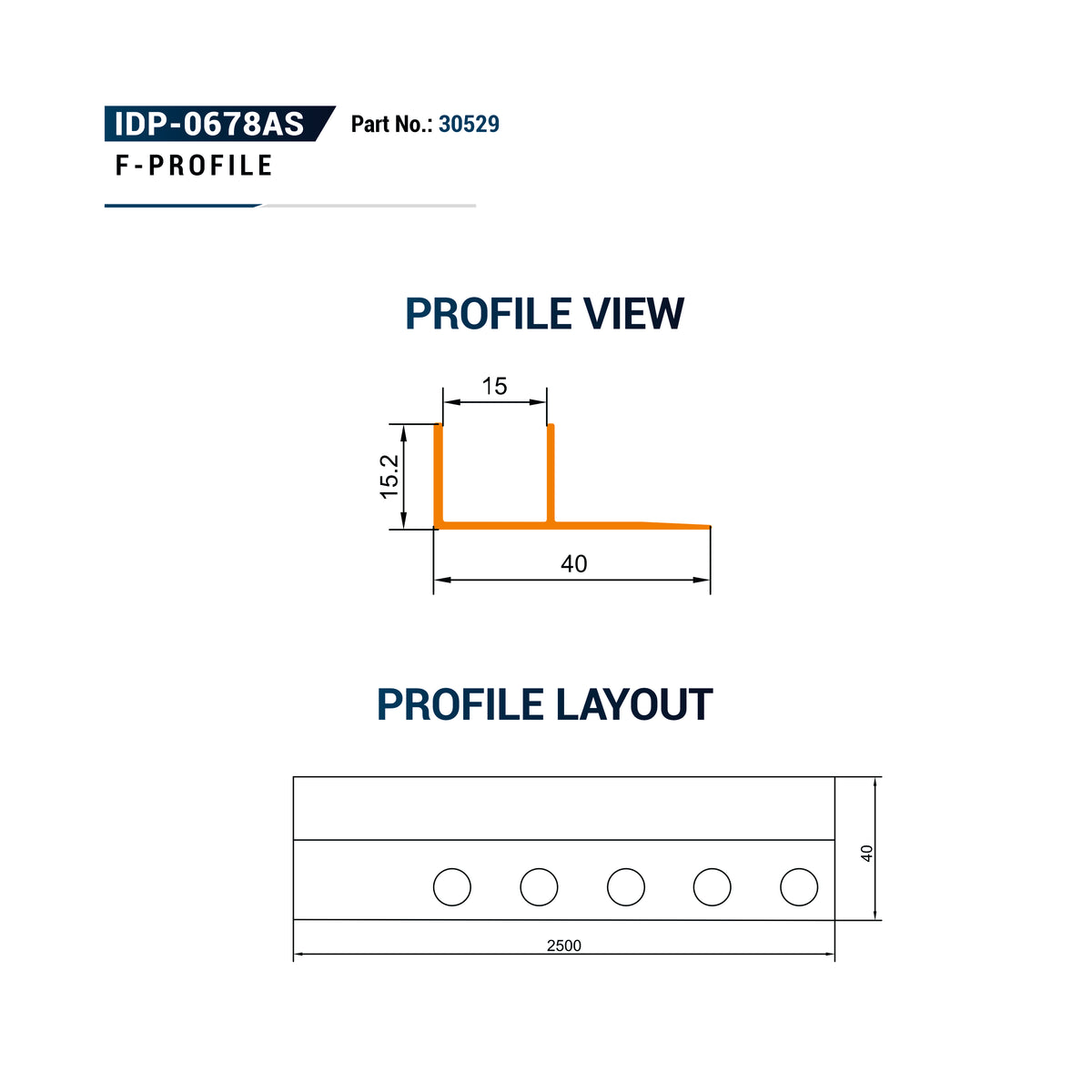

An F-profile (or F-trim) features two parallel horizontal legs extending from a single vertical web, forming an F-shape in cross-section. Unlike an L-profile, which caps only one exposed edge, the F-profile's extended overhanging leg creates a channel that accepts and retains panel or board edges from both sides simultaneously — ideal for concealed mechanical fastening. A J-profile is U-shaped and open on one side for sliding panels in, whereas the IDP-0678AS has a 14 x 15mm cross-section with a flat perforated base flange that bonds to the substrate, making it more rigid and structurally anchored for permanent cladding installations.

Aluminium outperforms PVC in thermal stability, UV resistance, and load-bearing strength — PVC trims can warp, discolour, or become brittle in extreme heat or prolonged sun exposure, which is a critical concern in GCC climates. Compared to steel, aluminium is naturally corrosion-resistant without requiring galvanising or painting, and at 0.216 kg per 2.5m length, it is significantly lighter, reducing installation time and structural load. The anodized silver finish on the IDP-0678AS further enhances surface hardness and resistance to oxidation, offering a maintenance-free solution across coastal and humid environments.

Yes. The IDP-0678AS F-Profile is engineered for versatility across both environments. Its anodized silver coating provides resistance to salt-air oxidation, humidity, cleaning agents, and UV exposure, making it appropriate for exterior facade installations. Indoors, it performs equally well in high-traffic commercial spaces, office fit-outs, and tiled interior walls where a clean, durable edge finish is required. The perforated anchoring flange supports adhesive bonding beneath tile or panel layers, ensuring long-term stability regardless of environment.

The IDP-0678AS has a channel opening of 14mm (as indicated in the profile designation), designed to accept panel or cladding board edges up to that thickness. This makes it compatible with common composite aluminium panels, fibre cement boards, and cladding substrates in the 6mm to 12mm range, with the remaining clearance allowing for adhesive or sealant application within the channel. Always verify your specific board thickness against the profile's internal channel dimensions before installation.

The IDP-0678AS is designed for dual-method fastening using both mechanical screws and adhesive bonding. The flat base flange features circular perforations that allow screws to pass through for mechanical anchoring directly to wall framing or substrate. These same perforations allow adhesive to flow through and grip the surface beneath panel or tile layers. Using both methods simultaneously maximises pull-out resistance and minimises movement — particularly important on external facades or areas subject to thermal expansion or vibration.

Yes. As an extruded aluminium profile, the IDP-0678AS can be cut to any required length on site using standard metal-cutting tools. A mitre saw with a fine-tooth aluminium blade, a jigsaw with a metal-cutting blade, or a hacksaw will produce clean, burr-free cuts. For angled terminations at corners, a mitre saw set to 45° is recommended. After cutting, lightly deburr the cut edge with a fine file or sandpaper to ensure a clean finish and prevent injury during handling. The 2.5-metre standard length minimises waste on most standard room heights and panel run lengths.

Raw panel edges are one of the most common finish failures in cladding installations — they expose the board core, trap moisture, and undermine the overall aesthetic. The IDP-0678AS F-Profile resolves this by sliding its overhanging F-leg channel over the exposed panel edge, fully enclosing and protecting it from moisture ingress, impact damage, and visual imperfection. The anodized silver face presents a clean, architectural line at every termination point, while the perforated flange anchors the trim firmly to the substrate — leaving no visible screws, no raw edges, and no exposed fixing hardware.

The anodized silver finish on the IDP-0678AS produces a neutral, satin-matte silver tone that is widely compatible with mill-finish aluminium composite panels (ACPs), standard silver anodized window frames, and most modern facade systems. However, anodizing tones can vary between manufacturers depending on alloy composition and bath parameters. For critical colour-matched projects, we recommend requesting a physical sample for on-site comparison before full installation. The satin-matte sheen minimises glare and blends naturally with brushed aluminium, grey concrete panels, and composite cladding systems.

Aluminium is inherently corrosion-resistant due to the natural oxide layer that forms on its surface — unlike steel, it does not rust when exposed to moisture. The IDP-0678AS goes further with an anodized coating that integrates a hard, dense oxide layer directly into the aluminium surface through an electrochemical process. This anodic layer significantly enhances resistance to salt-air oxidation, humidity, and alkaline cleaning agents, making the profile well-suited for coastal builds, GCC climates, and any environment with high ambient moisture. Routine cleaning with a mild detergent and water is sufficient to maintain its appearance over its service life.
