IDP-0593 EXPANSION JOINT [ALUMINIUM] [12MM] [MILL FINISH + BLACK SPONGE + GREY GLUE] - 30515
Chat with us
Choose options
Built to Move With Your Structure — Not Against It
Aluminium expansion joint profiles engineered for demanding commercial and industrial environments, the IDP-0593 is a 12mm mill finish expansion joint designed to absorb thermal expansion, contraction, and structural movement across large tiled and concrete floor surfaces. Combining a premium-grade extruded aluminium body with an integrated black sponge core and grey adhesive sealant, this profile actively relieves mechanical stress, preventing surface cracking, tile tenting, and edge lifting in high-load environments. Each unit ships as a 2.5-metre length, ready for direct installation into the tile adhesive bed.
| Key Features | Perfect For |
|
|

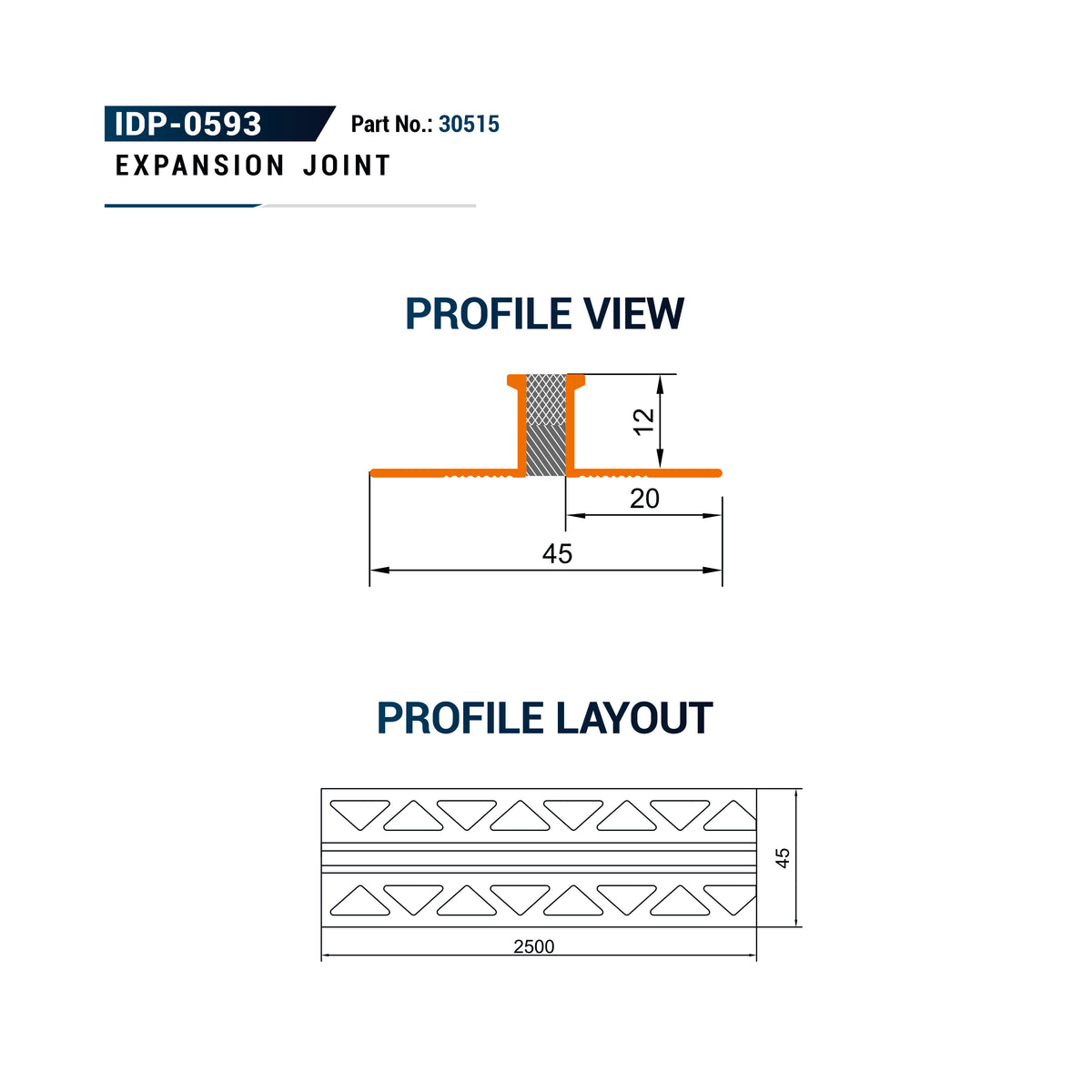

- 12mm joint width, 2500mm length: Each IDP-0593 profile covers a full 2.5 metres per piece and accommodates a 12mm expansion gap — the ideal specification for medium-to-large commercial and industrial floor bays where thermal movement is greatest. The profile's net weight of just 0.1 kg per unit makes handling and on-site positioning straightforward without sacrificing structural rigidity.
- Extruded aluminium construction with industrial mill finish: Fabricated from heavy-duty extruded aluminium, the profile delivers superior resistance to corrosion, surface deformation, and mechanical loading compared to PVC or composite alternatives. The untreated mill finish provides a clean, neutral appearance that integrates seamlessly with industrial and commercial aesthetics — and can be painted or coated on-site if a specific finish is required.
- Stress-relieving black sponge core: The integrated resilient black sponge insert acts as the active movement buffer, compressing and expanding as the substrate shifts due to temperature changes, live load deflection, or long-term settlement. This prevents the transmission of stress forces to tile edges and grout lines, dramatically reducing the risk of cracking, tenting, and tile delamination.
- Grey adhesive sealant for secure bonding: The pre-positioned grey adhesive sealant bonds the profile firmly into the tile adhesive bed during installation, eliminating the need for secondary fixing compounds. The grey colour is chosen to blend with standard cement-based adhesives and grouts, keeping the finished joint visually consistent and professional.

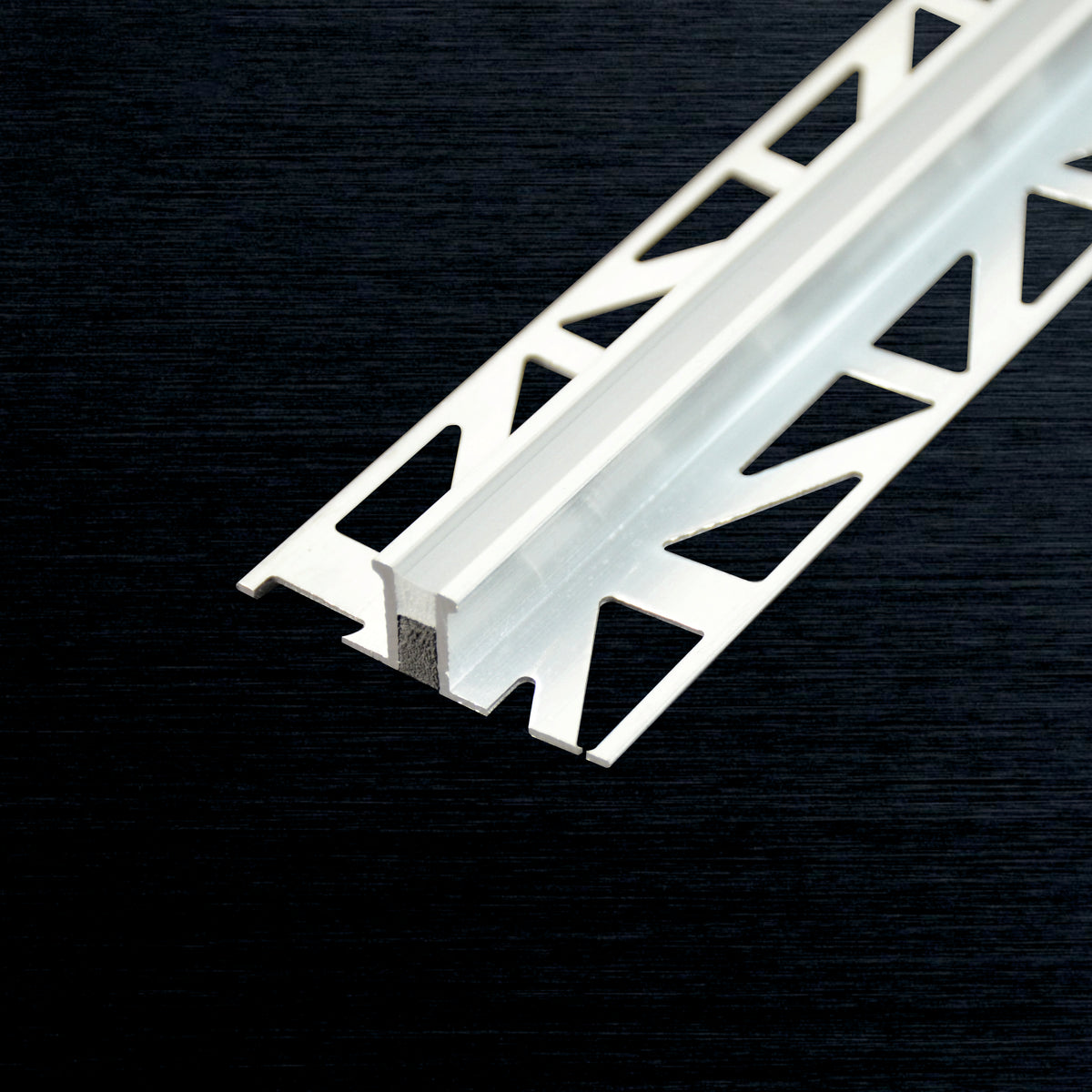

- Perforated wide-base anchoring flanges: The profile's wide perforated base flanges embed directly into the adhesive layer, creating a strong mechanical key that locks the joint in position under lateral pressure, impact loads, and foot traffic. This perforated design also allows adhesive to flow through the flange apertures for maximum pull-out resistance, ensuring the profile remains firmly anchored over the long term without the need for mechanical fasteners.
- Flush, trip-hazard-free surface integration: Engineered to sit perfectly flush with the surface of adjacent tiles, the IDP-0593 creates a smooth, continuous floor plane that supports unrestricted trolley, forklift, and pedestrian traffic. The flush design also eliminates dirt and debris traps, simplifying routine cleaning and complying with safety requirements in public commercial spaces.
The IDP-0593 Expansion Joint is supplied as one piece per unit at 2.5 metres in length. It holds CE certification in compliance with European construction product standards and meets the requirements applicable to architectural aluminium profiles used in commercial flooring applications.
General Purchase & Comparison Queries
What makes the IDP-0593 different from a standard tile trim or edge profile?
Unlike a standard tile trim — which is primarily a decorative edge finisher — the IDP-0593 is a functional expansion joint engineered to actively manage structural movement. It incorporates a resilient black sponge core that compresses and recovers as the substrate expands and contracts, and a grey adhesive sealant for bonding. A basic trim has no movement-absorption capability and will crack or debond under the same conditions where the IDP-0593 performs reliably.
Is 12mm the right joint width for my project?
A 12mm expansion gap is the most common specification for medium-to-large commercial floor bays, including retail malls, warehouses, and open-plan areas exceeding 40–50 square metres. It accommodates the expected range of thermal movement and structural deflection in these environments. For smaller residential rooms or narrower structural joints, a different width may be more appropriate — contact us with your floor area dimensions and substrate type for a recommendation.
How many pieces do I need for my project?
Each IDP-0593 unit is 2500mm (2.5 metres) in length. To calculate your quantity, measure the total linear metres of expansion joints required across your floor plan and divide by 2.5. We recommend ordering 5–10% extra to account for cutting waste at corners and terminations. For large commercial projects, bulk pricing may be available — contact our sales team for a project quote.
Product-Specific and Usage Queries
How is the IDP-0593 installed?
The IDP-0593 is installed directly into the fresh tile adhesive bed before the tiles are laid on either side. Position the profile along the pre-planned expansion gap line with the perforated anchoring flanges pressed firmly into the adhesive. The integrated grey sealant bonds the profile in place as the adhesive cures. No mechanical fasteners are required. Ensure the top of the profile sits flush with the finished tile surface by adjusting the adhesive bed depth accordingly before setting.
Can this profile be used in wet areas such as bathrooms or pool surrounds?
The aluminium body of the IDP-0593 is inherently corrosion-resistant and suitable for damp environments. However, for fully wet or submerged applications — such as pool surrounds, wet rooms, or areas with continuous water exposure — we recommend verifying that the grey adhesive sealant and black sponge core are compatible with your specific waterproofing system. A fully waterproof silicone-sealed expansion joint variant may be more appropriate for those applications. Contact us for guidance.
Can the mill finish aluminium be painted or anodised after installation?
Yes. The untreated mill finish of the IDP-0593 is specifically chosen to provide maximum compatibility with on-site finishing. The bare aluminium surface can be primed and painted with a suitable metal primer and topcoat, or sent for powder coating or anodising prior to installation if a specific colour match is required. Lightly abrade the surface with fine-grit sandpaper before applying any coating to ensure proper adhesion.
Problem/Solution-Oriented Queries
My tiles are cracking near the centre of a large floor — will an expansion joint fix this?
Cracking in the field of a large tiled floor is almost always caused by unrelieved thermal or structural movement in the substrate — a problem the IDP-0593 is specifically engineered to solve. For new installations, incorporating expansion joints at regular intervals (typically every 4–6 metres in each direction) prevents stress from building up to the point of cracking. For existing cracked floors, the damaged tiles and grout must be removed, an expansion gap cut into the substrate, and the IDP-0593 installed before re-tiling. Simply re-grouting over cracks without installing an expansion joint will result in the same cracking recurring.
The expansion joint in my floor is lifting or has come loose — what went wrong?
Expansion joint debonding is most commonly caused by insufficient adhesive coverage under the base flanges, installing the profile over a contaminated or dusty substrate, or using an adhesive with insufficient open time that had begun to skin before the profile was pressed in. The IDP-0593's wide perforated anchoring flanges are designed to maximise bonding area — but they must be pressed firmly into fresh, coverage-rich adhesive for the mechanical key to form correctly. If the profile has lifted, remove it, clean the substrate, apply fresh adhesive, and re-set the profile ensuring full flange contact before the adhesive skins.
Can I cut the IDP-0593 to a shorter length on site?
Yes. The aluminium profile can be cut to any required length on site using a standard mitre saw, hacksaw, or angle grinder fitted with a metal-cutting blade. For clean, accurate cuts — particularly at 45-degree mitre joints at corners — a mitre saw with a fine-tooth aluminium blade is recommended. Deburr the cut end with a fine file before installation to prevent sharp edges. The black sponge core can be trimmed cleanly with a sharp utility knife if it protrudes beyond the cut aluminium.
IDP-0593 Expansion Joint (1 Pcs)
