Precision-Engineered to Frame, Protect, and Elevate Every Tile Edge
The IDP-0361S Square Tile Profile is a precision-extruded aluminium tile trim engineered to deliver clean, geometric finishes on both floor and wall tile edges. Measuring 10 × 12mm with a crisp polished silver box-section face, this 2.5m aluminium edge trim protects fragile ceramic and porcelain tile borders from chipping, impact, and long-term wear, making it an essential component for any professional tiling installation.
| Key Features | Perfect For |
|---|---|
|
|
- Heavy-Duty Extruded Aluminium Body: Manufactured from premium-grade aluminium alloy that resists bending, warping, and corrosion even under sustained heavy foot traffic — delivering a tile edge protection solution built to outlast the installation itself.

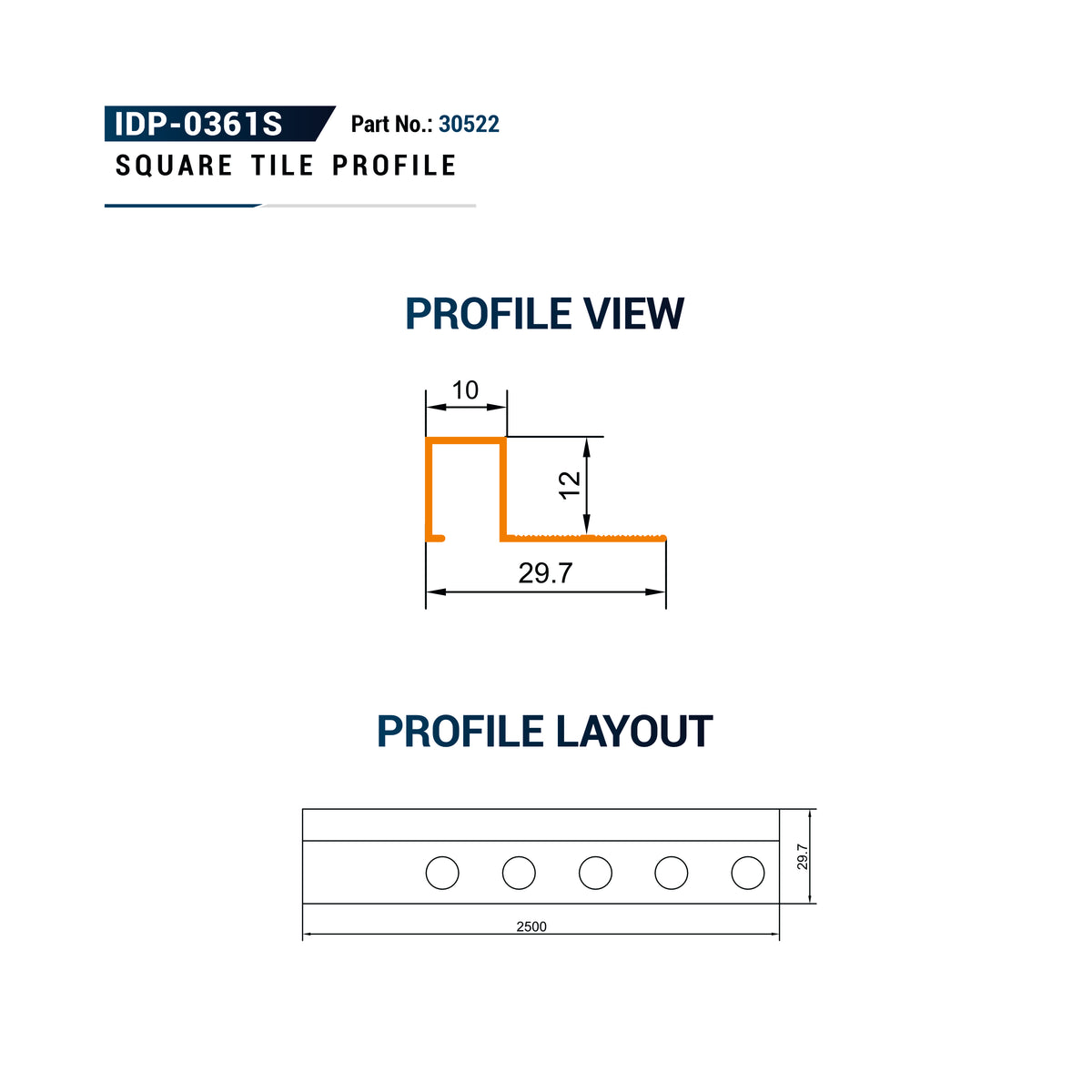

- 10 × 12mm Square Box-Section Profile: The right-angled square face measures 10mm in height and 12mm in width, creating a bold, geometric architectural boundary with a precise 0.9mm wall thickness that sits flush against tile faces without adding excessive bulk.

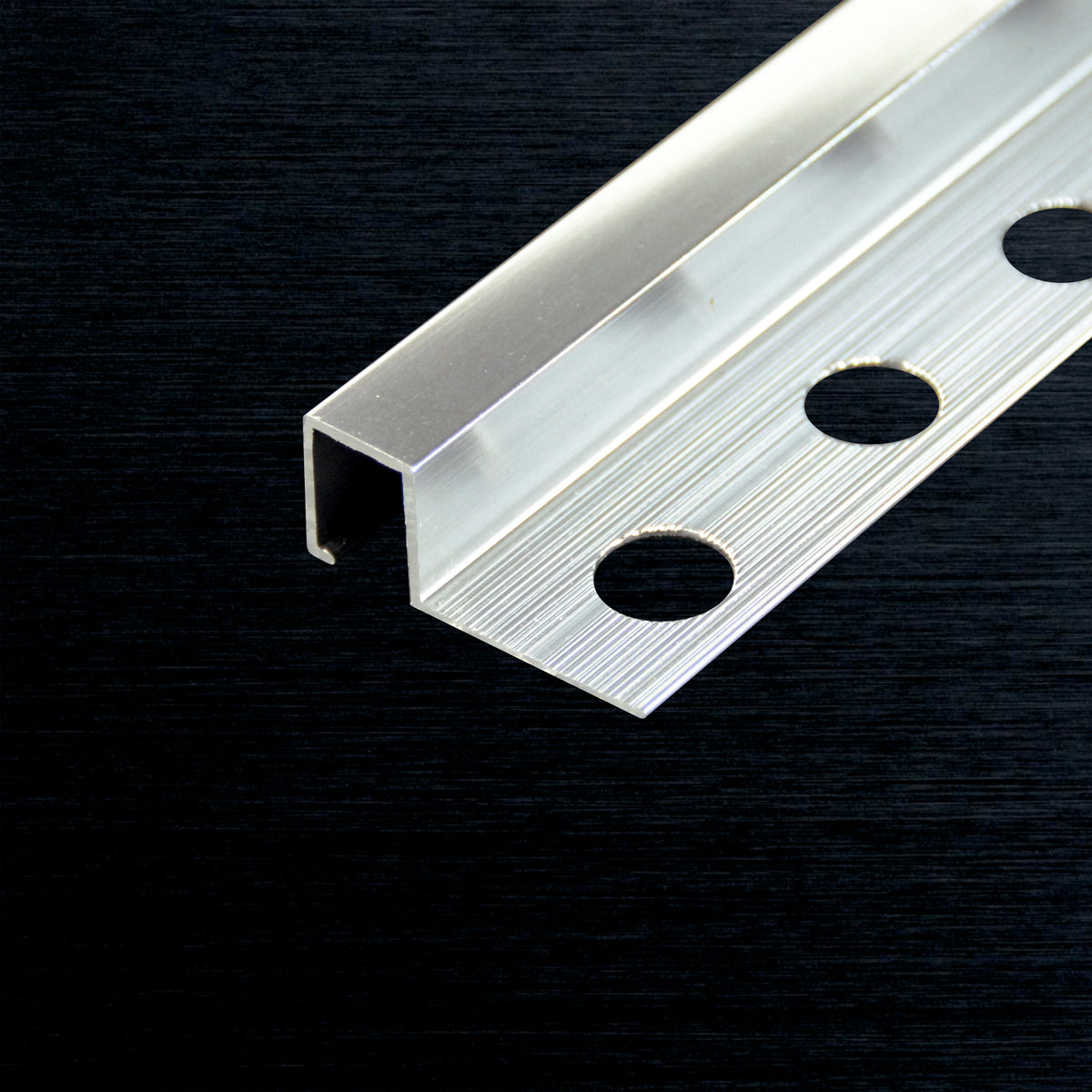

- Textured Anchoring Flange with Perforated Cutouts: The base flange features engineered surface striations and circular perforated openings that allow tile adhesive or mortar to penetrate and mechanically lock the profile in place — ensuring zero movement or lifting over time.
- Polished Silver Decorative Finish: The anodised polished silver surface provides a clean, reflective accent line that complements stainless steel hardware, chrome fixtures, and contemporary neutral palettes — functioning as both a protective trim and a decorative border element or listello strip between tile courses.
- 2.5m Profile Length for Efficient Coverage: Each bar spans 2,500mm, weighing just 0.131kg, reducing on-site cutting labour and material waste while maintaining consistent profile alignment across long runs on floors, walls, stairs, and countertop edges.
- Broad Application Versatility: Suitable for ceramic, porcelain, stone, and glass tiles in both wet and dry environments — including showers, kitchens, retail shopfronts, lobbies, and outdoor-covered tiling projects requiring a polished, professional finish.

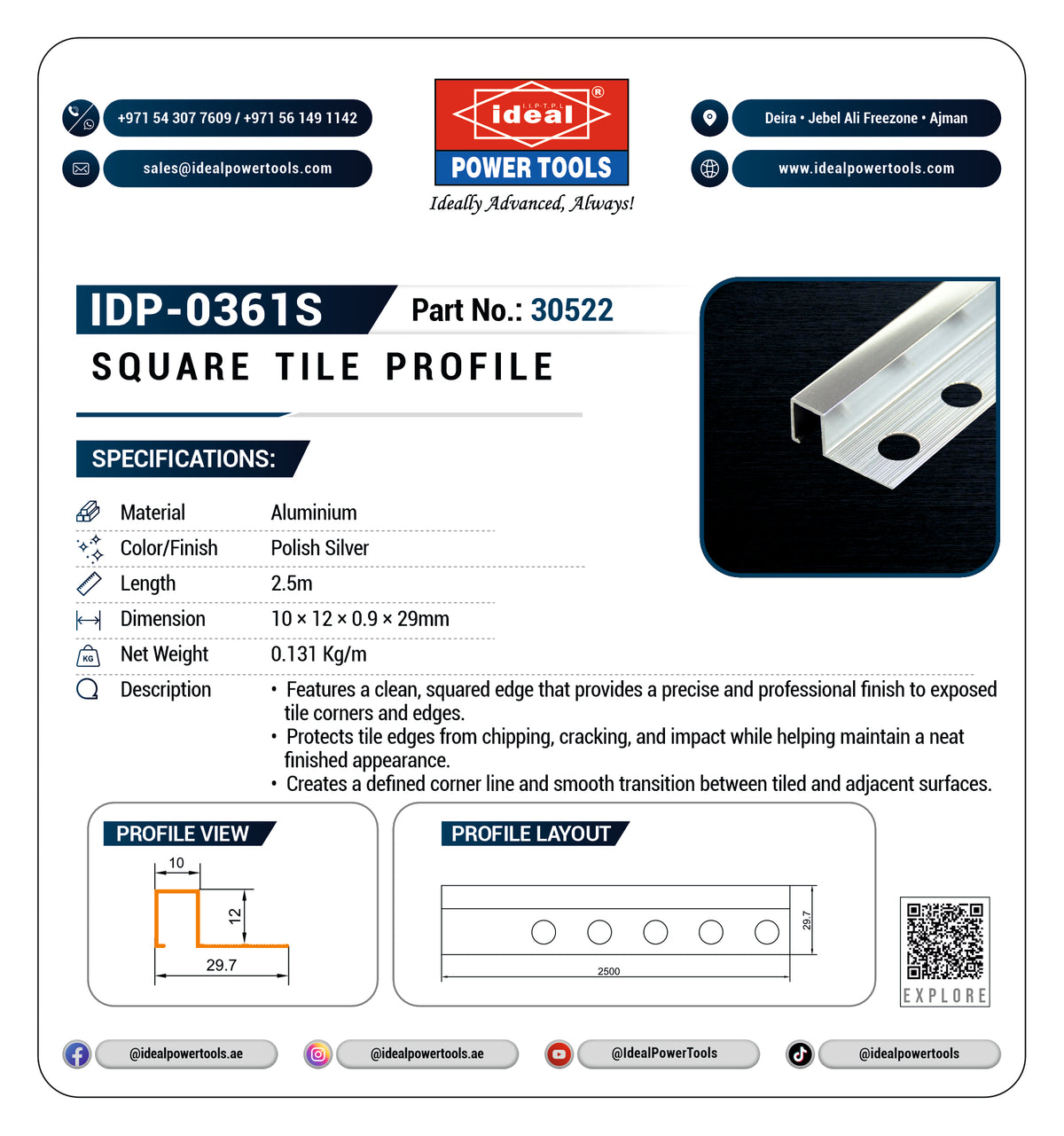

The IDP-0361S Square Tile Profile ships as a single 2.5m bar and is supplied with its polished silver finish factory-applied. This profile meets the dimensional and material standards expected in professional fit-out and construction specifications across residential and commercial sectors.
General Purchase & Comparison Queries
What makes the IDP-0361S different from a standard round or half-round tile trim?
Unlike round-nose or half-round profiles that produce a soft, curved tile edge, the IDP-0361S square tile profile features a flat, right-angled box-section face that creates a sharp, geometric boundary line. This makes it the preferred choice for contemporary, minimalist, and industrial interior styles where precise architectural lines are a design priority. The square profile also provides a larger contact face against the tile edge, offering broader mechanical protection against chipping.
Why choose aluminium over PVC or stainless steel for a tile edge trim?
Aluminium tile trims strike an ideal balance between the three competing materials. Unlike PVC, aluminium does not yellow, warp under UV exposure, or soften in high-temperature environments. Compared to stainless steel, aluminium is significantly lighter — the IDP-0361S weighs only 0.131kg per 2.5m bar — making it easier to handle, cut, and install on site. Aluminium is also naturally corrosion-resistant, meaning the polished silver finish retains its appearance in wet areas such as bathrooms, showers, and kitchens without the risk of rust staining adjacent grout lines.
How many bars do I need to order for my project?
Each IDP-0361S bar provides 2,500mm (2.5 metres) of coverage. To calculate your requirement, measure the total linear metres of exposed tile edges you need to trim, then divide by 2.5 to determine the number of bars required. It is standard practice to add a 10–15% overage to account for diagonal cuts, waste, and on-site adjustments — particularly on staircase nosings, irregular layouts, or rooms with multiple doorway openings.
Product-Specific and Usage Queries
What tile thicknesses is the IDP-0361S compatible with?
The IDP-0361S has a profile height of 10mm, which is designed to accommodate standard ceramic and porcelain tiles in the 8–10mm thickness range when bedded on a typical adhesive layer. For thicker stone tiles (12mm and above), we recommend verifying the combined tile and adhesive bed depth against the profile height before ordering to ensure a flush, seamless fit at the tile face.
Can this profile be used on both floor and wall tile edges?
Yes. The IDP-0361S is fully suitable for both floor and wall tile edge applications. On floors, it functions as a durable transition and edge protection strip at doorways, staircase nosings, and changes in floor material. On walls, it can be used to terminate tile runs neatly at open edges, window reveals, or shower recesses — and also works effectively as a decorative listello border or accent line installed horizontally between tile courses.
How is the IDP-0361S installed — adhesive, screws, or mortar bed?
The IDP-0361S is installed using the standard thin-set mortar or tile adhesive bed method. The base flange — which features fine surface striations and circular perforated cutouts — is pressed into the fresh adhesive bed alongside the tile during installation. The perforations allow mortar to flow through and mechanically key the profile in place, providing a permanent, rigid fixing without screws or separate fasteners. The profile should be positioned so the square face sits flush with or fractionally proud of the tile surface, then adjusted before the adhesive sets.
Problem/Solution-Oriented Queries
The tile edge on my floor is chipping — can the IDP-0361S fix this on an existing installation?
The IDP-0361S is designed as an installation-stage product that is embedded into the adhesive bed during tiling. It is not intended as a retrofit cap for already-laid tiles with exposed or damaged edges. If you have an existing installation with chipping tile edges, the recommended approach is to carefully remove the affected tiles at the perimeter, re-lay them with the IDP-0361S profile bedded into position, and regrout. This ensures the anchoring flange achieves the full mechanical bond required for long-term stability.
Will the polished silver finish clash with matte or brushed hardware in my bathroom?
The polished silver finish of the IDP-0361S has a bright, reflective surface that pairs naturally with chrome taps, polished nickel fixtures, and mirror frames. In bathrooms with matte black or brushed gold hardware, some clients prefer to use the profile as a deliberate contrast accent line — its slim 10mm face means it occupies minimal visual space. If full hardware consistency is a priority, consider selecting an alternative finish from the IDP tile profile range that more closely matches your fixture specification.
Can I cut the IDP-0361S to length on site, and what tools do I need?
Yes. The IDP-0361S aluminium profile can be cut cleanly to any length on site using a mitre saw fitted with a fine-tooth metal-cutting blade, a hacksaw, or an angle grinder with a thin metal disc. For mitre joints at corners, a mitre box or mitre saw set to 45 degrees will produce clean, professional joins. After cutting, lightly deburr the cut end with fine sandpaper or a metal file to remove any sharp edges before installation and to maintain a neat finished appearance at exposed termination points.
