IDP-0361G SQUARE TILE PROFILE [ALUMINIUM] [10 X 12MM] [POLISH GOLD] - 30523
Chat with us
Choose options
Precision-Engineered Gold Trim That Protects, Defines, and Elevates Every Tile Edge
Aluminium square tile profile engineered for architects, tilers, and interior designers who demand a clean, geometric tile edge finish without compromise. The IDP-0361G features a crisp box-section square face in a polished gold finish, delivering both structural edge protection and a premium decorative border accent for wall and floor tile installations. At 10 × 12mm cross-section and a full 2.5-metre run, it is purpose-built for high-traffic residential and commercial tiling projects.
| Key Features | Perfect For |
|
|
- Premium Extruded Aluminium Body (0.9mm wall thickness): The profile body is cold-extruded from high-grade aluminium alloy, producing a uniform 10 × 12 × 0.9mm cross-section that resists bending, warping, and corrosion even under sustained mechanical load. At a net weight of just 0.131 kg per 2.5-metre length, it delivers industrial-grade rigidity without adding dead load to the substrate.

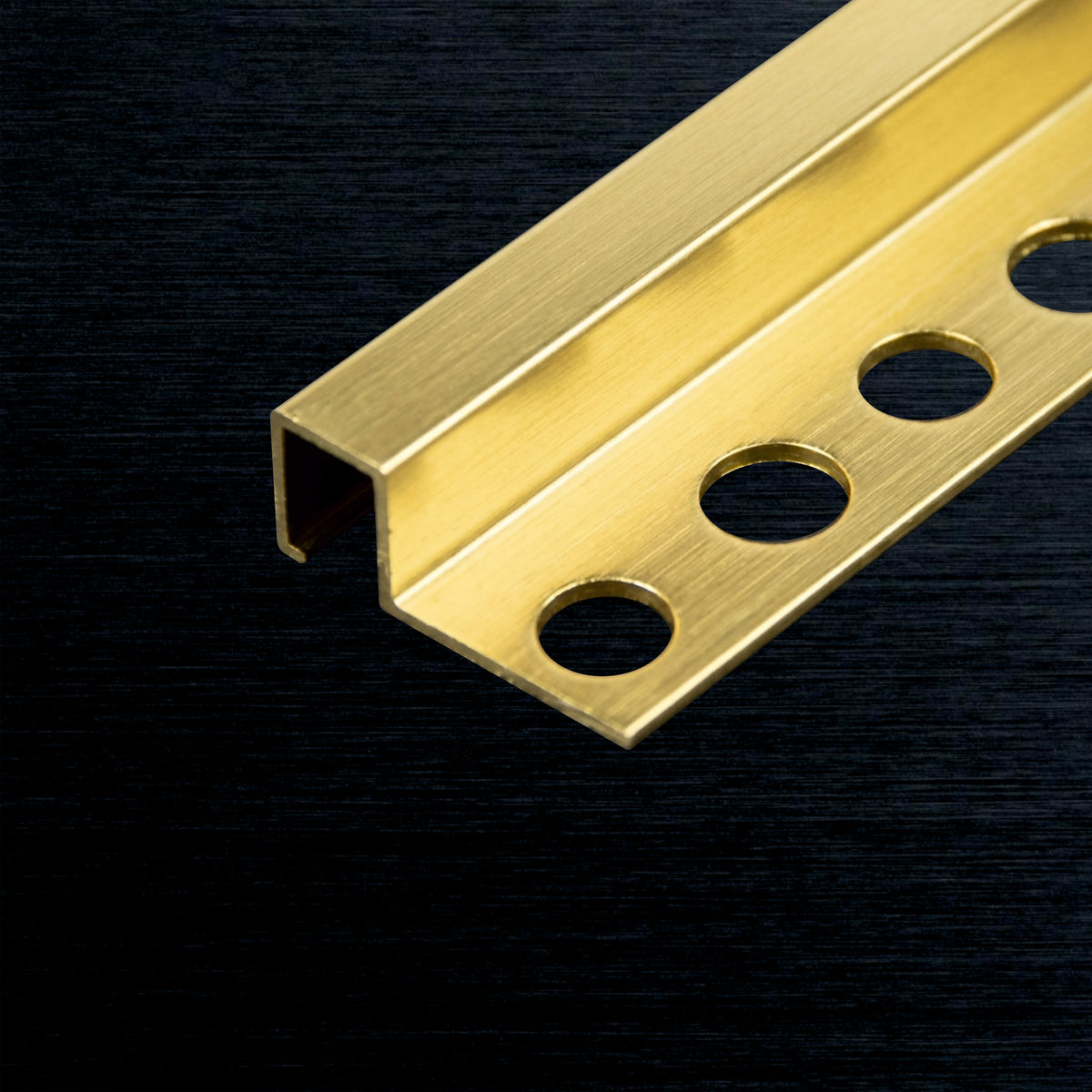

- Square Box-Section Face with Inward Retention Lip: The outer face is machined to a true right-angle geometry, forming a bold, architectural square edge at tile terminations. The inward retention lip secures the tile edge within the profile channel, preventing lateral movement during grouting and ensuring a gap-free, professional junction between the tile face and the profile.
- Textured Perforated Anchoring Flange: The base flange is engineered with fine longitudinal striations and evenly spaced circular perforated cutouts that allow adhesive mortar to penetrate and key into the flange from both sides. This mechanical interlocking bond dramatically increases pull-out resistance compared to smooth flanges, keeping the profile firmly embedded even in wet or thermally cycled environments.
- Impact and Abrasion Protection for Fragile Tile Edges: Ceramic and porcelain tile edges are inherently brittle and highly susceptible to chipping from foot traffic, trolleys, and furniture. The IDP-0361G wraps the tile termination in a continuous aluminium guard that absorbs and deflects impact energy, eliminating edge chipping and micro-cracking over the lifetime of the installation.
- Polished Gold Decorative Finish — Colour Code: Polish Gold: The surface carries a high-shine polished gold luster applied to the visible square face, functioning simultaneously as a structural trim and a luxury decorative accent strip. The finish coordinates with gold-toned sanitary ware, fixtures, and warm-toned stone tiles, making it a first-choice specification for upscale residential bathrooms, hotel lobbies, and premium retail fit-outs.
- 2.5-Metre Run Length for Efficient Installation: Each piece spans a full 2,500 mm, reducing the number of joints required on long continuous runs such as corridor thresholds, kitchen splashback borders, and full-height shower wall frames. Fewer joints means less visible interruption to the gold accent line and faster installation productivity on site.
The IDP-0361G Square Tile Profile is supplied as one piece per unit and carries the SKU reference 30523. It ships ready to install alongside standard ceramic tile adhesive and grey or colour-matched grout, compatible with all common tiling substrates including concrete screeds, cement boards, and plasterboard systems.
General Purchase & Comparison Queries
What is the difference between a square tile profile and a round-edge (bullnose) profile?
A square tile profile like the IDP-0361G presents a flat, right-angled box-section face at the tile termination, creating a sharp, geometric architectural line that suits contemporary and minimalist interior designs. A bullnose or round-edge profile, by contrast, produces a softened, curved edge. The square profile is the preferred specification for modern tile layouts, large-format porcelain slabs, and luxury fit-outs where clean linear definition is a design priority.
Why choose aluminium over PVC or stainless steel for a tile edge profile?
Aluminium offers the best balance of weight, corrosion resistance, and machinability. It is significantly lighter than stainless steel (net weight 0.131 kg per 2.5 m), making it easier to cut and handle on site, while being far more rigid and impact-resistant than PVC. Unlike PVC, aluminium will not discolour or become brittle with UV exposure or heat. Unlike untreated steel, aluminium naturally forms a protective oxide layer, making the IDP-0361G ideal for wet areas such as bathrooms, kitchens, and external covered terraces.
How many pieces do I need for my project?
Each IDP-0361G piece covers a 2,500 mm (2.5 metre) run. To calculate quantity, measure the total linear metres of tile edge or border you need to trim, divide by 2.5, and round up to the nearest whole number. For example, a 10-metre shower wall perimeter requires 4 pieces. We recommend ordering one additional piece as a cutting allowance for mitred corners and end cuts.
Product-Specific and Usage Queries
What is the exact cross-section of the IDP-0361G and how does it sit against the tile?

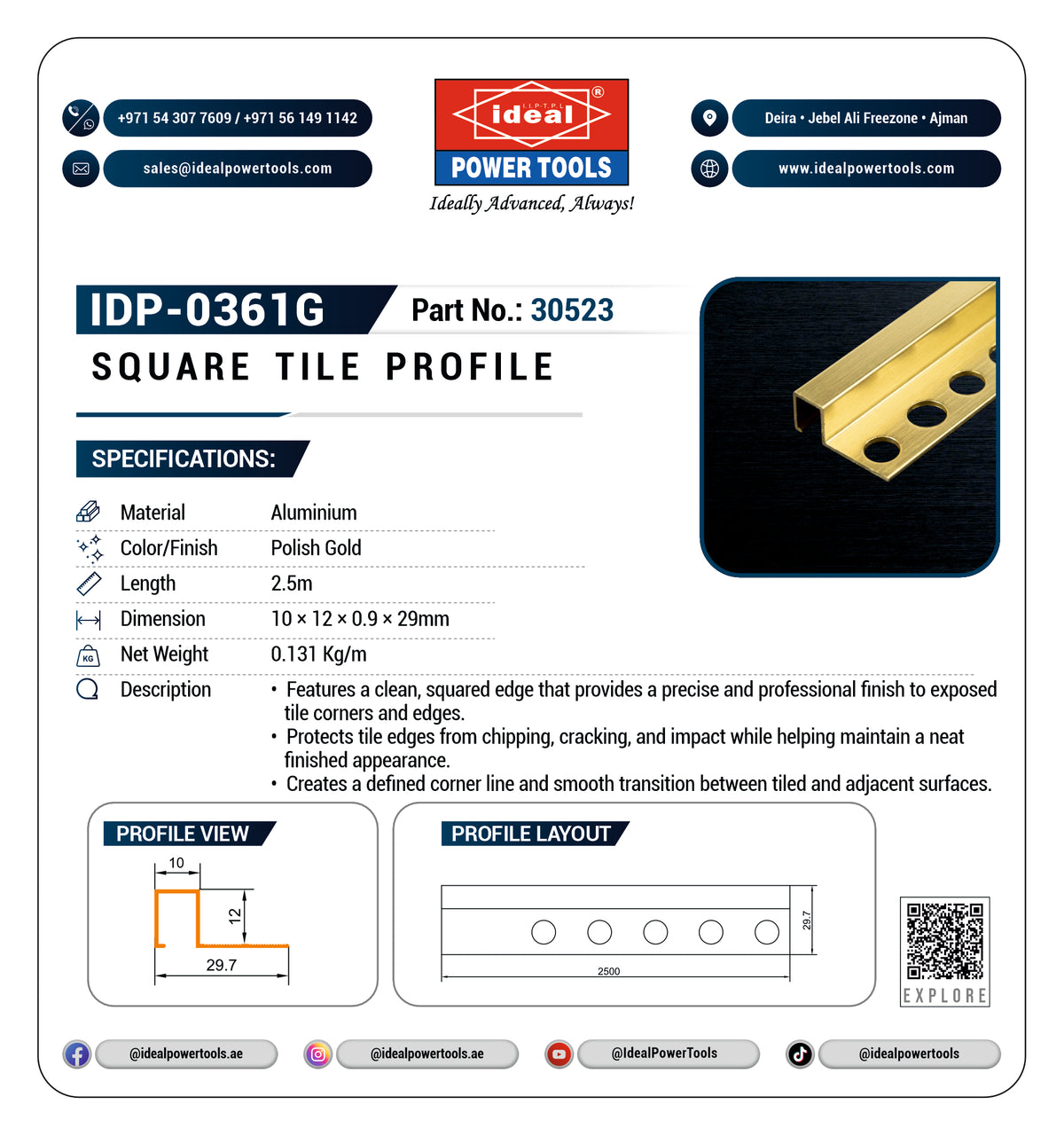

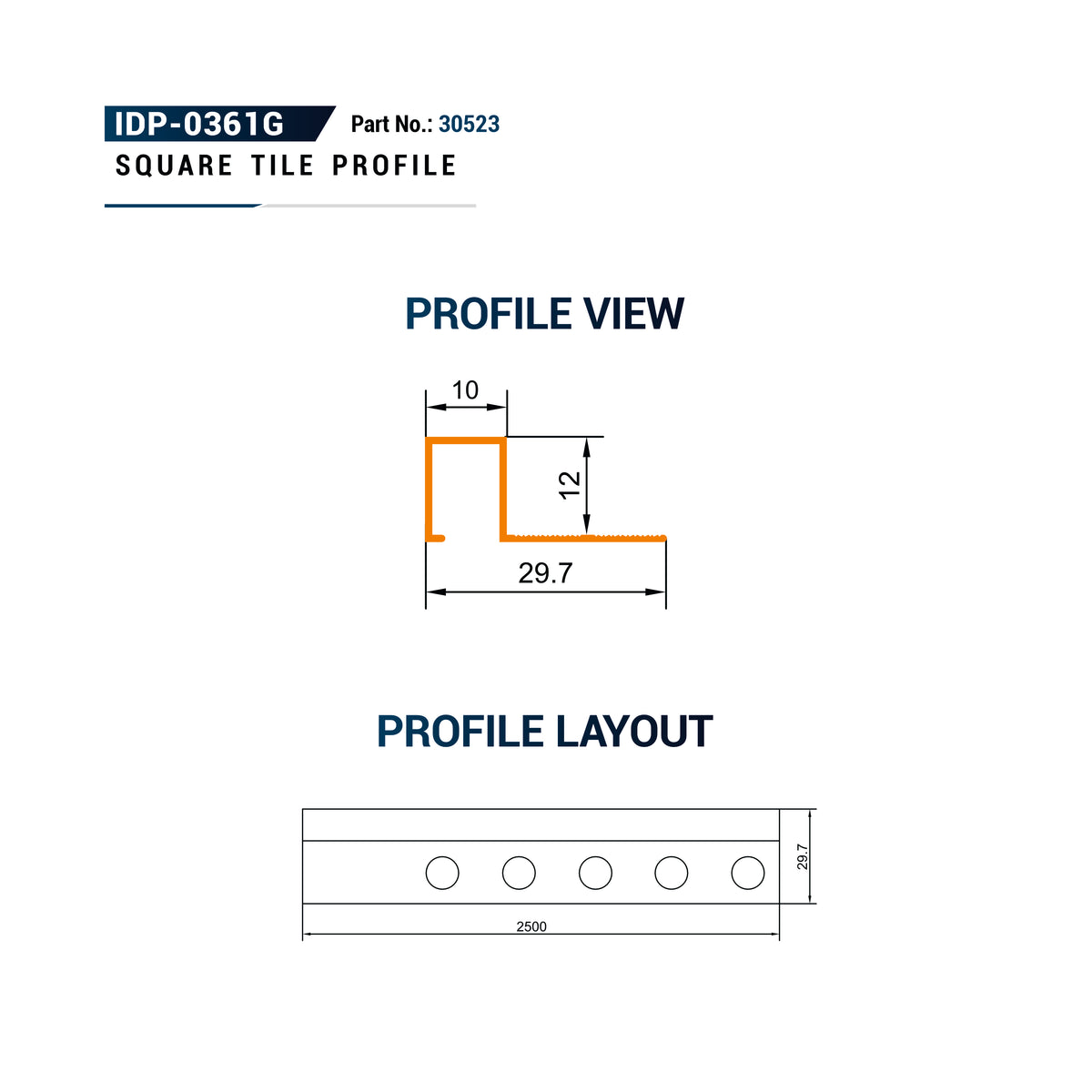

The IDP-0361G has a 10 mm visible height × 12 mm base width × 0.9 mm wall thickness cross-section. The 12 mm base flange is embedded into the tile adhesive bed alongside the tile, while the 10 mm square face stands proud at the tile surface level, forming a continuous gold-finished geometric border. The inward retention lip on the inner channel accepts tile thicknesses typical of standard ceramic and porcelain wall and floor tiles (generally 6–12 mm), ensuring a snug, rattle-free fit.
Can the IDP-0361G be used as a decorative border strip between two tile fields?
Yes. In addition to its primary function as a tile edge termination profile, the IDP-0361G is widely used as a decorative listello accent strip between two horizontal courses of wall tiles or between floor tile fields of different colours or formats. The polished gold square face creates a bold linear accent that separates tile zones, adds visual depth, and introduces a premium metallic detail without requiring expensive inlay tiles.
How is the profile cut for internal and external corners?
The IDP-0361G aluminium body can be cut cleanly with a fine-toothed metal hacksaw, an angle grinder with a thin cutting disc, or a mitre saw fitted with a non-ferrous metal blade. For external corners, both pieces are mitred at 45° and butted together. For internal corners, one piece is cut square and the adjacent piece is mitred to meet it. After cutting, lightly deburr the cut edge with fine emery paper to prevent the gold finish from snagging grout or sealant during installation.
Problem/Solution-Oriented Queries
The profile is lifting away from the wall — what went wrong and how do I fix it?
Profile lift is almost always caused by insufficient adhesive contact on the perforated anchoring flange. Ensure the flange is fully bedded into a fresh, notch-trowelled adhesive layer before setting the adjacent tile; the perforations must be filled with mortar to activate the mechanical key. If the profile has already lifted and the adhesive has cured, remove it carefully, clean the flange of old adhesive, re-bed it with fresh tile adhesive, and use masking tape to hold it in position until the adhesive achieves initial set (typically 2–4 hours).
The polished gold finish is showing fine scratches after installation — how do I protect it?
Fine scratches on the polished gold surface during installation are typically caused by abrasive grout or cleaning agents dragged across the face. During grouting, apply a strip of low-tack painter's tape along the profile face to shield it. Once grouting is complete, remove the tape before the grout fully hardens. For routine maintenance, clean with a soft microfibre cloth and a pH-neutral cleaner — avoid scouring pads, bleach-based products, or acidic tile cleaners that can dull or pit the gold finish over time.
IDP-0361G Square Tile Profile (1 Pcs)
