Engineered for Precision — Built to Endure High-Traffic Tile Edges

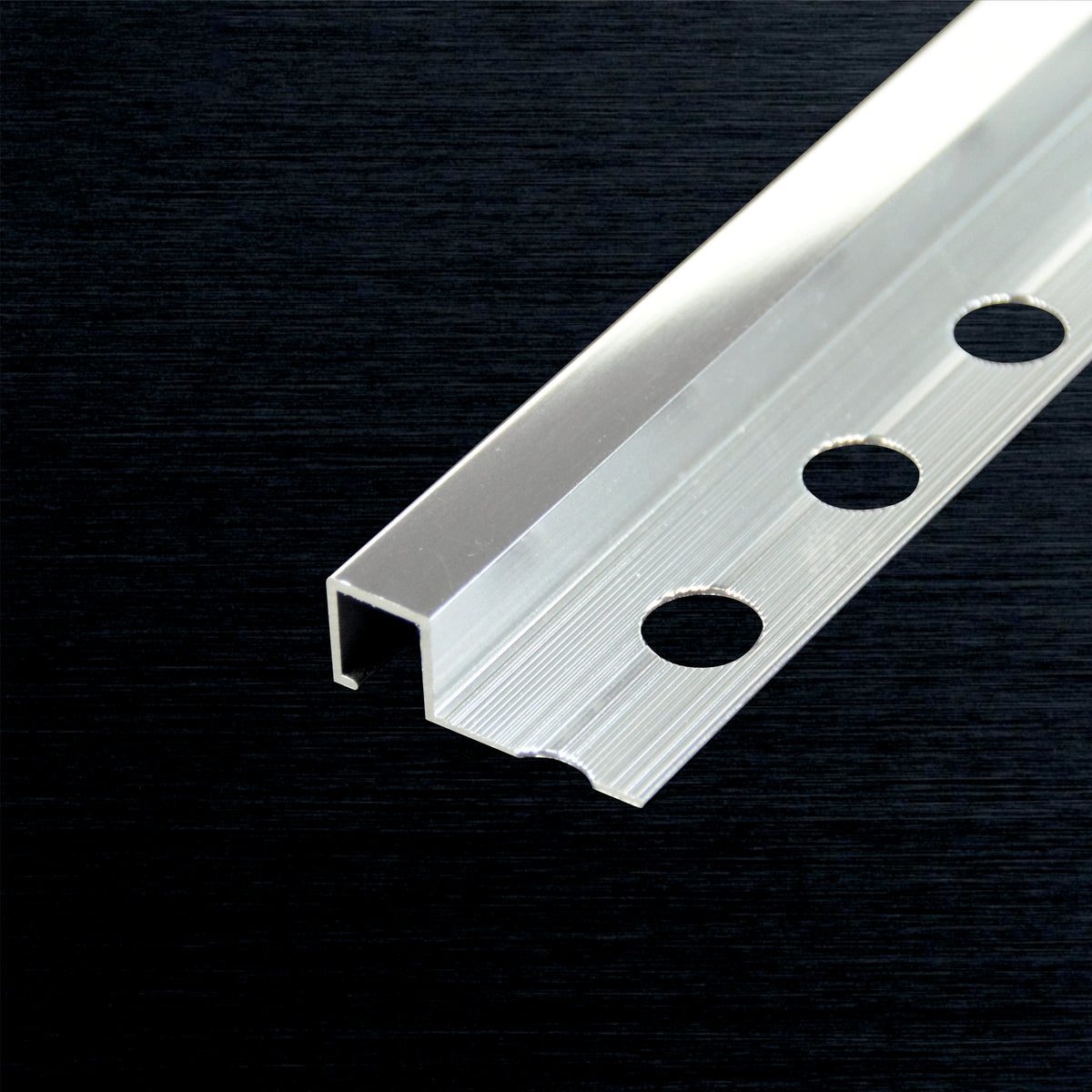

The IDP-0359S Square Tile Profile is a precision-engineered aluminium tile trim in a sleek 10 x 10mm box-section profile, finished in a refined Polish Silver anodised coat. Designed to deliver clean geometric tile edge protection across floor and wall applications, this 2.5-metre trim strip combines industrial-grade durability with a sharp architectural aesthetic, making it the definitive choice for professional tile installations in residential and commercial environments.
| Key Features | Perfect For |
|---|---|
|
|
- Heavy-Duty Extruded Aluminium Body: Manufactured from premium-grade extruded aluminium alloy, the IDP-0359S is engineered to withstand sustained mechanical stress, heavy foot traffic, and daily abrasion without bending, warping, or corroding — ensuring the tile edge remains protected and structurally sound over the long term.

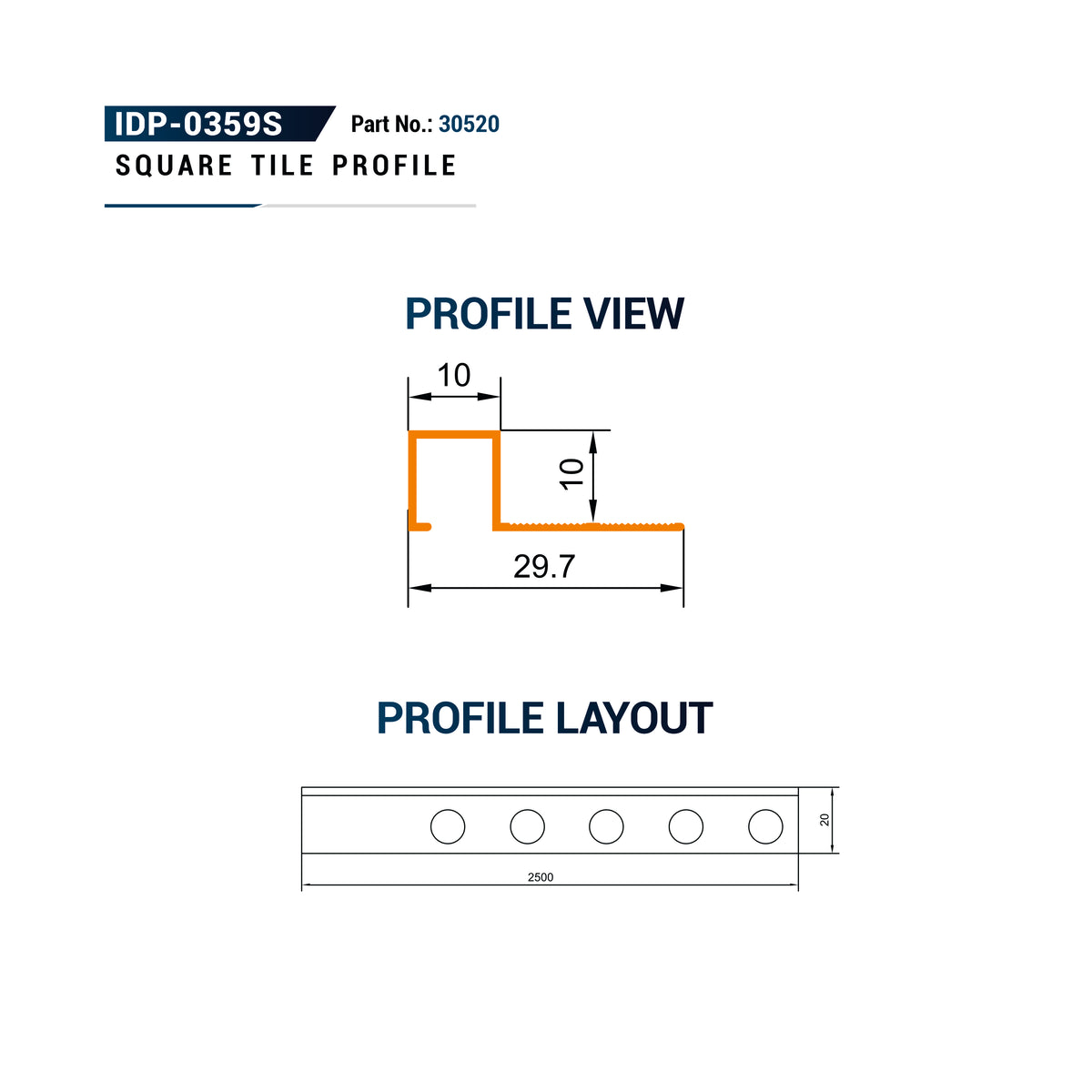

- Crisp 10 x 10mm Square Box-Section Profile: The right-angled, 10 x 10mm square face creates a bold, geometric frame at tile terminations with a total cross-section of 10 x 10 x 0.9mm, delivering a clean architectural boundary that elevates the finished appearance of any tiling project.
- Textured Anchoring Flange with Perforated Mortar Cutouts: The base flange features fine surface striations and circular perforated cutouts engineered for maximum mechanical mortar adhesion — ensuring the profile is bonded securely into the tile bed and eliminates the risk of delamination or profile shift over time.
- Full-Length 2.5-Metre Strip for Efficient Coverage: Each strip spans 2,500mm (2.5 metres) in length with a net weight of 0.121 kg, minimising joins on long tile runs and reducing installation waste — making it equally efficient for small residential bathrooms and large-format commercial floor installations.
- Polish Silver Anodised Finish for Contemporary Interiors: The Polish Silver surface treatment delivers a lustrous, corrosion-resistant finish that complements stainless steel hardware, chrome fixtures, and light-toned contemporary tiles, while also providing a durable outer layer that resists scuffs, staining, and oxidation in humid environments.
- Dual-Function as Edge Protector and Decorative Accent: Beyond functional tile edge guarding, the IDP-0359S doubles as a decorative listello strip or border accent between tile courses on feature walls and floors, allowing designers and installers to introduce clean metallic lines into the tiling composition without additional materials.
The IDP-0359S Square Tile Profile is supplied as a single piece per pack, and each unit ships ready for installation with no additional components required.
General Purchase & Comparison Queries
What makes the IDP-0359S different from a standard rounded tile trim?
Unlike rounded or bullnose tile trims that create a curved edge, the IDP-0359S features a square 10 x 10mm box-section profile with a right-angled outer face. This delivers a sharper, more geometric architectural boundary that is particularly suited to modern, minimalist interior designs. The square profile also allows the trim to double as a decorative listello accent strip between tile courses — a function that rounded trims cannot perform as cleanly.
Is this tile profile suitable for both floors and walls?
Yes. The IDP-0359S aluminium tile profile is engineered for versatile use across both floor and wall tile installations. Its textured anchoring flange with perforated mortar cutouts ensures a strong mechanical bond in tile adhesive beds on both horizontal and vertical surfaces. The Polish Silver anodised finish also provides corrosion resistance, making it suitable for humid environments such as bathrooms and kitchens on walls, as well as high-traffic floor edges in hallways and commercial spaces.
How many strips do I need for my project and how long is each piece?
Each IDP-0359S strip measures 2,500mm (2.5 metres) in length. To calculate the quantity required, measure the total linear run of tile edges you need to trim and divide by 2.5. It is advisable to add 10% overage for cutting waste and mitred corners. The slim 0.9mm wall thickness and lightweight 0.121 kg net weight per strip make it easy to cut with a fine-tooth metal saw or an angle grinder with an aluminium-rated disc.
Product-Specific and Usage Queries
How is the IDP-0359S installed — does it require adhesive or screws?
The IDP-0359S is installed using the thin-set or tile adhesive method. The profile's perforated and striated anchoring flange is bedded directly into the tile adhesive layer before the adjacent tile is laid. The mortar fills the cutouts and striations, creating a strong mechanical bond that holds the profile firmly in place once cured — no screws, rivets, or secondary adhesives are required. Ensure the profile is level and plumb before the adhesive sets, and leave the required grout joint between the trim face and the tile edge for a clean finish.
Can this profile be used as a decorative border strip between two tile sections?
Yes. The crisp square face and Polish Silver finish of the IDP-0359S make it well suited for use as a decorative metallic listello or border accent between contrasting tile courses on feature walls or floor inlays. By embedding the profile horizontally between two tile rows rather than at a terminal edge, installers can introduce a clean geometric metallic line that breaks up large tile fields and adds visual depth to the installation — a technique widely used in contemporary hospitality and residential interior design.
What tile thicknesses is this profile compatible with?
The IDP-0359S has a 10mm height, which accommodates standard ceramic and porcelain tiles ranging from approximately 6mm to 10mm in thickness (including the adhesive bed). For thicker large-format tiles or stone slabs, it is advisable to verify that the tile thickness plus adhesive layer does not exceed the 10mm profile height to ensure the tile face and profile face finish flush. If your tiles are thicker, consider selecting a profile with a taller face height from the IDP range.
Problem/Solution-Oriented Queries
The tile edges in my hallway keep chipping — will this profile prevent further damage?
Yes. Exposed tile edges in high-traffic areas like hallways are highly vulnerable to impact chipping and corner spalling from foot traffic, furniture movement, and cleaning equipment. The IDP-0359S aluminium square tile profile encases and shields the vulnerable tile edge behind a heavy-duty extruded aluminium face that absorbs impact energy before it reaches the ceramic or porcelain. Once properly installed in the adhesive bed, the profile acts as a permanent mechanical edge guard that prevents further chipping and eliminates the need for costly tile replacement.
Will the Polish Silver finish tarnish or corrode in a bathroom environment?
No. The Polish Silver finish on the IDP-0359S is an anodised aluminium surface treatment, not a paint or plated coating. Anodising electrochemically converts the aluminium surface into a hard, porous aluminium oxide layer that is permanently bonded to the base metal — it cannot peel, flake, or be washed away. This makes it highly resistant to humidity, steam, mild chemical cleaners, and prolonged moisture exposure in bathroom and kitchen environments. Routine cleaning with a damp cloth and a pH-neutral cleaner is all that is required to maintain the finish over its service life.
My profile is lifting away from the tile bed after installation — what went wrong?
Profile delamination after installation is typically caused by one of three issues: insufficient adhesive coverage on the anchoring flange, using an adhesive with inadequate open time that skinned over before the profile was set, or foot traffic or mechanical load applied before the adhesive had fully cured. To prevent this, ensure the tile adhesive is applied with a notched trowel at the correct coverage, press the perforated anchoring flange firmly into the wet adhesive bed so mortar fills the cutouts, and allow a minimum of 24 hours curing time before any load is applied. If the profile has already lifted, re-bed it using a flexible tile adhesive rated for the specific substrate.
IDP-0359S Square Tile Profile (1 Pcs)
