IDP-0359G SQUARE TILE PROFILE [ALUMINIUM] [10 X 10MM] [POLISH GOLD] - 30521
Chat with us
Choose options
Precision-Engineered Aluminium Tile Trim That Elevates Every Edge

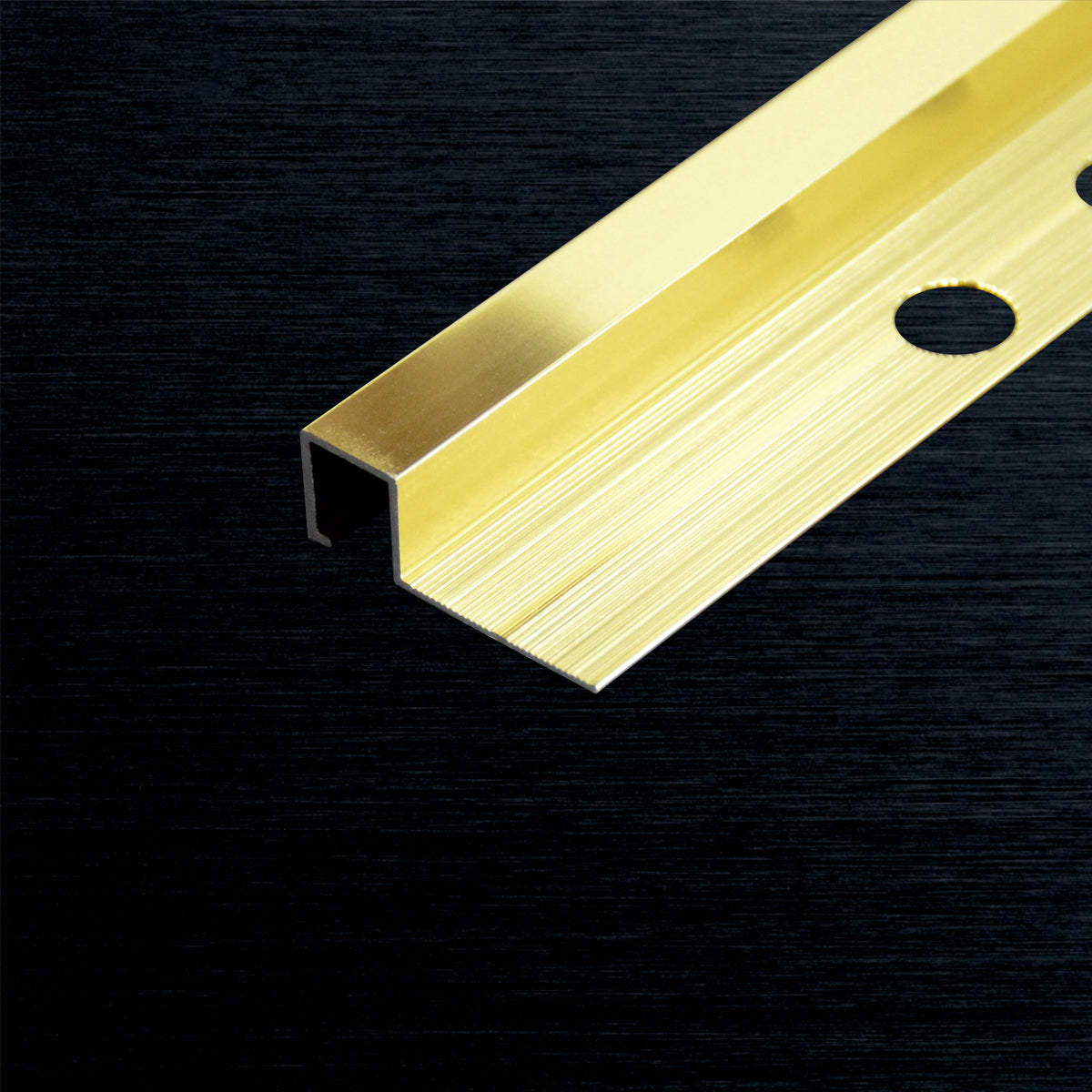

The IDP-0359G Square Tile Profile is a premium 10 x 10mm extruded aluminium trim finished in a luxurious Polish Gold luster, engineered to deliver razor-sharp tile edge protection and decorative border definition across floors and walls. Spanning 2.5 metres in length and weighing just 0.121 kg, this box-section tile trim combines structural rigidity with an elegant geometric aesthetic, making it the go-to choice for architects, tilers, and interior fit-out contractors who demand long-lasting, premium tile edge solutions.
| Key Features | Perfect For |
|
|

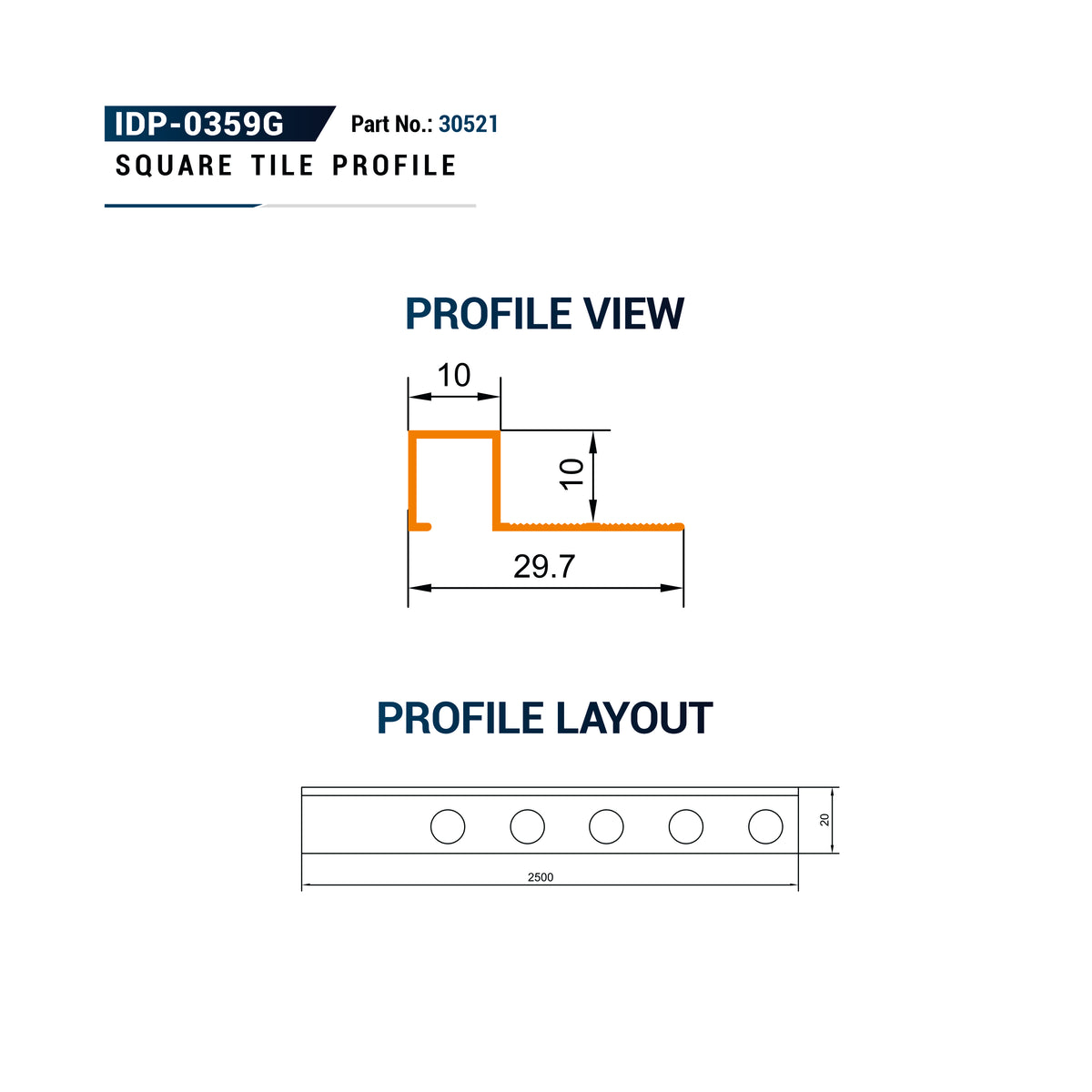

- Premium Extruded Aluminium Body (10 x 10mm, 0.9mm wall, 2500mm length): Manufactured from high-grade aluminium alloy using precision extrusion, this square tile profile maintains its exact 10 x 10mm box-section geometry across the full 2.5m bar length. The 0.9mm wall thickness delivers outstanding rigidity without adding unnecessary weight (net weight: 0.121 kg), making it easy to handle on-site while offering structural protection at tile terminations subject to trolleys, foot traffic, and heavy rolling loads.
- Right-Angled Square Face with Geometric Retention Lip: Unlike rounded bullnose profiles, the crisp square outer face of this trim creates a bold, architectural boundary line at tile edges. The integrated inward-facing retention lip locks securely against the tile face during installation, preventing lifting or lateral movement once the adhesive cures, and ensuring a tight, professional reveal line that complements both large-format and mosaic tile layouts.
- Textured Anchoring Flange with Perforated Cutouts: The base flange features engineered surface striations and circular perforated cutouts that significantly increase the mechanical key between the profile and the tile adhesive or mortar bed. This anchoring system eliminates the need for supplementary adhesives, ensuring the trim stays firmly embedded even in wet areas, underfloor-heated substrates, or high-vibration commercial environments.
- Polished Gold Finish — Corrosion-Resistant and UV-Stable: The Polish Gold anodised-effect surface treatment delivers a warm, high-shine luster that pairs beautifully with marble, travertine, cream, beige, and neutral-tone tiles. The finish is resistant to household cleaning chemicals, moisture, and UV exposure, meaning it retains its premium appearance in bathrooms, kitchens, and outdoor-covered areas without tarnishing, peeling, or fading over time.
- Dual Function — Structural Edge Guard and Decorative Accent Strip: This profile does double duty: it physically shields fragile ceramic and porcelain tile edges against chipping, cracking, and mechanical abrasion caused by direct impact, while simultaneously acting as a decorative listello or border accent between tile fields on walls and floors. A single profile SKU therefore replaces both a purely protective trim and a separate decorative insert, reducing material costs and installation complexity.
- Versatile Application Across Residential and Commercial Settings: Rated for heavy foot traffic and high-use environments, the IDP-0359G is suitable for residential bathrooms, kitchens, and living areas as well as demanding commercial sites including hotel lobbies, airport concourses, retail showrooms, and office fit-outs. Its neutral Gold colourway and clean square geometry integrate seamlessly with contemporary, transitional, and luxury interior design schemes.
Each IDP-0359G Square Tile Profile is supplied as a single 2500mm bar and comes complete with the aluminium trim piece ready for immediate installation, with no additional accessories required for standard embedded mortar-bed applications.
General Purchase & Comparison Queries
What makes the IDP-0359G different from a standard bullnose or round-edge tile trim?
Unlike bullnose or pencil-round profiles that taper to a curved edge, the IDP-0359G features a true square 10 x 10mm box section with a crisp, right-angled outer face. This creates a sharper, more architectural boundary line at tile terminations — ideal for contemporary and minimalist interiors where clean geometry is essential. The square face also doubles as a decorative listello accent strip, giving you structural edge protection and decorative value in a single profile.
Why choose aluminium over PVC or stainless steel tile trim for this application?
Extruded aluminium offers an optimal balance of weight, rigidity, and corrosion resistance that PVC cannot match under heavy mechanical load, while being significantly more cost-effective and easier to cut than stainless steel. The IDP-0359G's aluminium body will not bend under trolley impact, will not discolour from household chemicals, and will not rust in wet areas — making it the preferred choice for both residential bathrooms and high-traffic commercial floors.
How many bars do I need to order for my project?
Each IDP-0359G bar is 2500mm (2.5 metres) long. To calculate your requirement, measure the total linear metres of tile edge or border you need to trim, then divide by 2.5 and round up to the nearest whole number. We recommend adding 10–15% wastage for cuts and corner mitres. For example, a 10-metre run would require a minimum of 4 bars, plus 1 additional bar for cutting allowance.
Product-Specific and Usage Queries
How is the IDP-0359G installed — does it require special adhesive or fixings?
The profile is installed using a standard embedded mortar-bed or tile adhesive method. The base flange — which features fine surface striations and circular perforated cutouts — is pressed into the fresh adhesive bed before laying the adjacent tile, ensuring a strong mechanical bond without any additional fixings or specialist adhesives. For wall applications, use a rapid-set or non-slump tile adhesive to hold the profile in position while the adhesive cures. No drilling or mechanical fasteners are required for standard installations.
Can the Polish Gold finish withstand wet areas such as bathrooms and shower enclosures?
Yes. The Polish Gold surface treatment on the IDP-0359G is moisture-resistant and will not tarnish, peel, or corrode when used in wet areas including bathrooms, shower enclosures, and kitchen splashbacks. The underlying aluminium alloy substrate is inherently corrosion-resistant, and the finish is stable against common household cleaning products. For prolonged submersion or pool environments, please consult our technical team for site-specific advice.
What tile thickness is compatible with the 10 x 10mm profile height?
The 10mm profile height is designed to align flush with tiles up to approximately 8–10mm thick when installed in a standard adhesive bed (typically 3–5mm depth). For thicker large-format tiles (12mm+), a taller profile from our range may be required to achieve a flush finish. Always dry-fit the profile against your tile thickness before committing to adhesive to confirm the reveal height meets your specification.
Problem/Solution-Oriented Queries
The profile seems to lift away from the wall after installation — what causes this and how can I prevent it?
Lifting is most commonly caused by insufficient adhesive contact on the base flange or using a slow-set adhesive on a vertical surface. To prevent this, ensure the flange is fully embedded into a combed, full-coverage adhesive bed with no voids behind the perforated cutouts. On walls, use a rapid-set non-slump tile adhesive and support the profile with masking tape across the face until the adhesive achieves initial set (typically 30–60 minutes). Avoid disturbing the profile during the curing window.
The Polish Gold finish appears scratched after cutting — how do I restore the edge appearance?
Cutting aluminium trim with a fine-tooth metal or mitre saw blade minimises burring and scratch marks on the finish. If the cut end is visible (e.g. at an internal corner), use a fine metal file or 400-grit wet-and-dry paper to deburr the edge, then apply a small amount of gold touch-up paint or clear lacquer to seal the exposed aluminium substrate. For hidden cuts behind grout or sealant, no touch-up is necessary as the end will not be visible once the installation is grouted.
There is a visible gap between the tile face and the profile lip — how do I achieve a tight fit?
A gap between the tile face and the profile's retention lip is usually caused by uneven adhesive thickness or a substrate that is not level. Before installation, ensure the substrate is flat to within 3mm over 2 metres using a straightedge. Apply a consistent adhesive bed depth across both the tile and the profile flange zone, and press the profile firmly against the tile edge while the adhesive is still workable. Any remaining hairline gap after curing can be filled with a colour-matched silicone sealant for a clean, watertight finish.
IDP-0359G Square Tile Profile (1 Pcs)
