Professional-Grade Floor Movement Control — Built for Surfaces That Cannot Afford to Fail

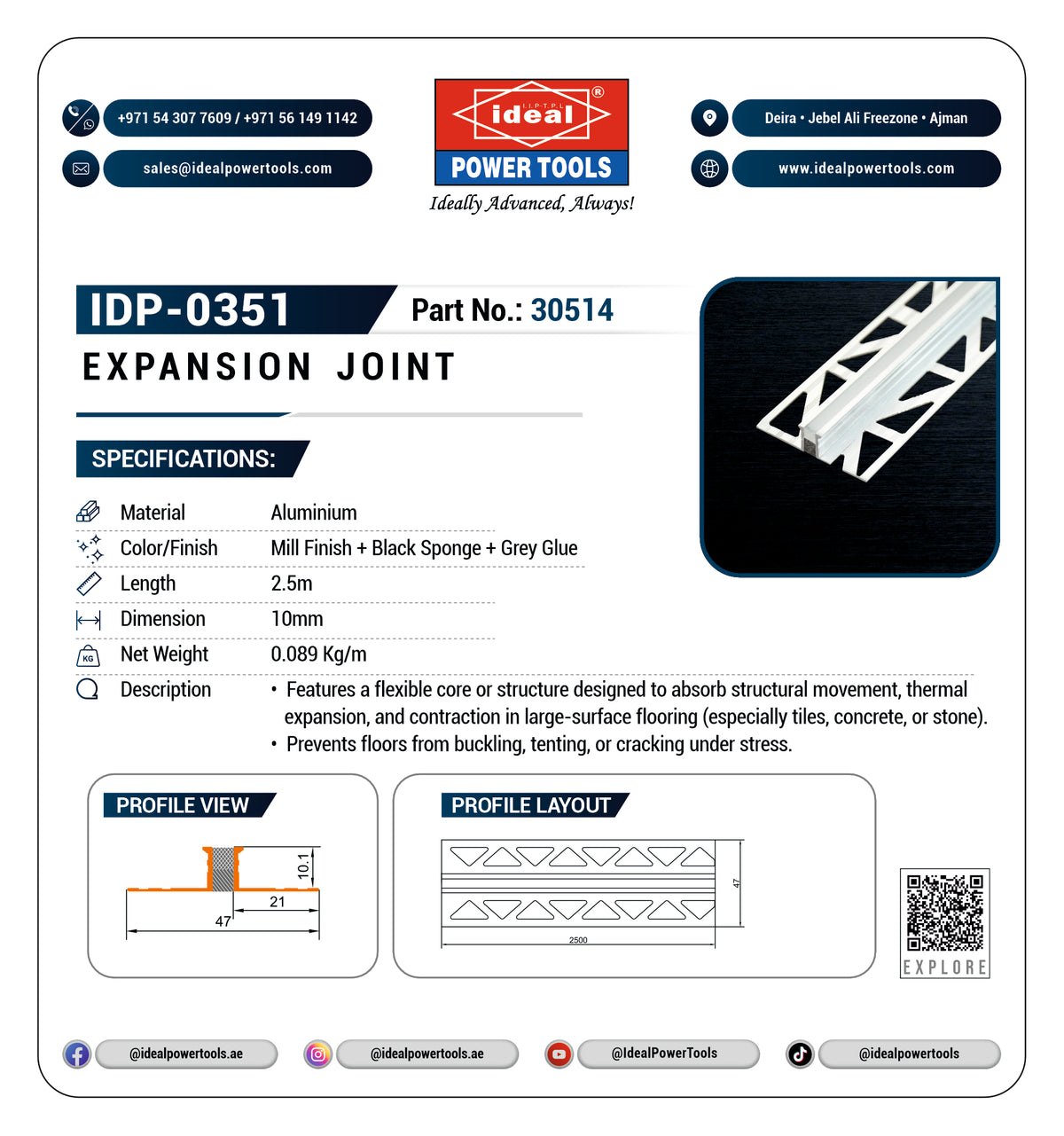

The IDP-0351 Aluminium Expansion Joint is a professional-grade floor expansion joint profile engineered to manage structural movement, thermal expansion, and contraction across large tiled and concrete floor surfaces. Constructed from extruded aluminium with an integrated black sponge core and grey adhesive sealant, this 10mm expansion joint delivers reliable stress relief, edge protection, and a flush finish in demanding commercial and industrial flooring applications. At 2500mm (2.5m) in length with a net weight of just 0.089 kg, it offers maximum coverage with minimal material load.
| Key Features | Perfect For |
|---|---|
|
|
- Extruded Aluminium Body — 10mm Width, 2500mm Length: Precision-extruded from premium-grade aluminium alloy, the IDP-0351 is dimensioned at 10mm width and 2.5 metres in length, making it ideal for spanning standard tile joint intervals across large floor fields. Its lightweight profile at 0.089 kg net weight simplifies handling and installation without compromising structural integrity under heavy foot and mechanical traffic loads.
- Stress-Relieving Black Sponge Core: At the heart of this aluminium expansion joint profile is a resilient black sponge insert that acts as a compressible buffer between adjoining floor sections. It continuously absorbs and releases tension caused by thermal expansion, substrate contraction, and building settlement, preventing the accumulated stress that leads to tile cracking, tenting, and grout line failure over time.
- Grey Adhesive Sealant for Positive Bonding: The inclusion of a grey adhesive sealant ensures the joint cavity is sealed against moisture ingress while maintaining a firm, flexible bond to the surrounding tile adhesive bed. This multi-component design — aluminium body, sponge core, and sealant — functions as a complete movement management system rather than a simple cover strip.

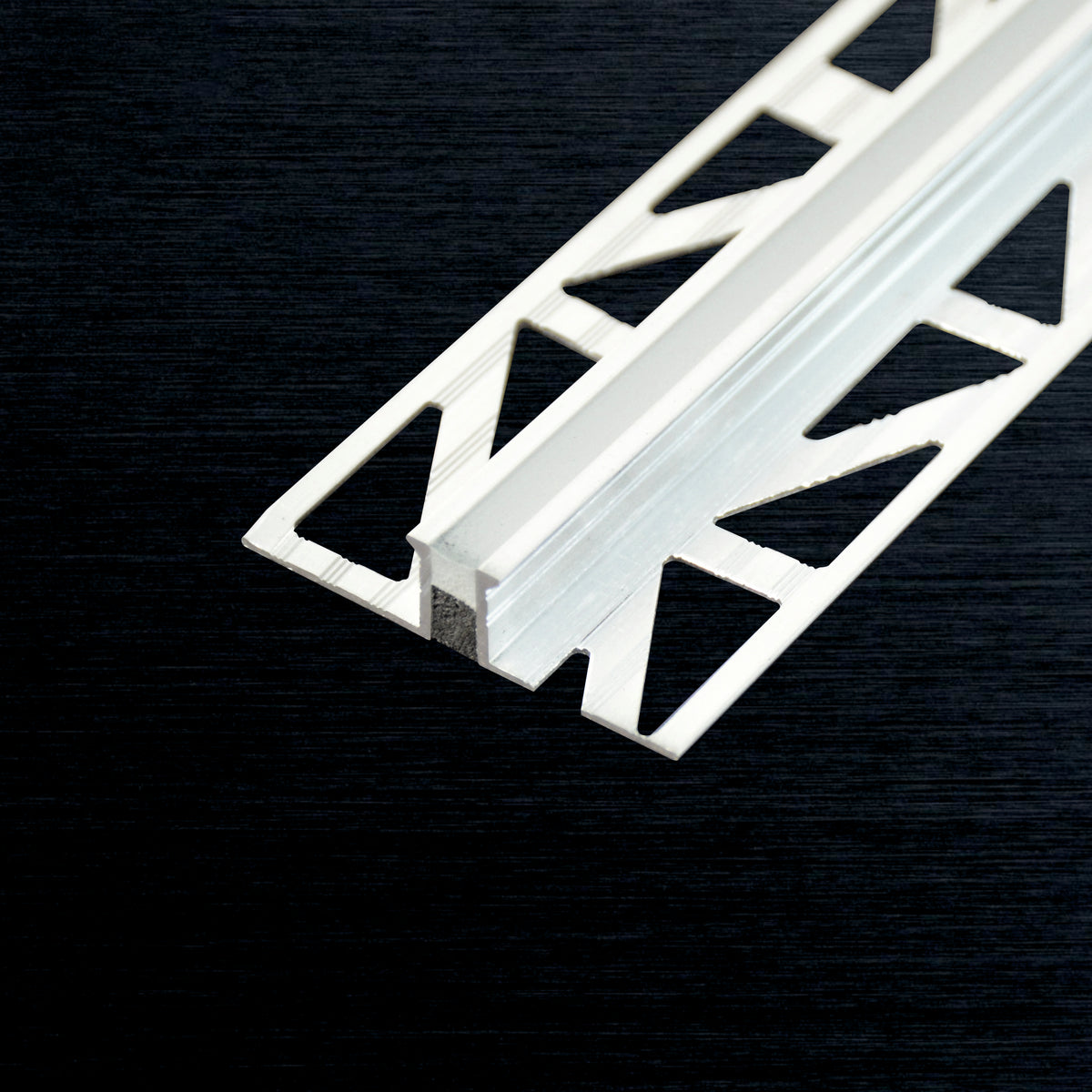

- Perforated Anchoring Legs for Mechanical Stability: The profile's wide perforated base flanges embed directly into the tile adhesive during installation, creating a strong mechanical lock that prevents lateral shifting or lifting. This anchoring system eliminates reliance on surface adhesives alone, ensuring the joint remains stable and flush even under sustained dynamic loading in commercial environments.
- Mill Finish Surface for Industrial Integration: The untreated aluminium mill finish delivers a clean, neutral metallic appearance that integrates naturally into industrial and commercial tile schemes. It is fully compatible with subsequent surface treatments including anodising or painting, giving specifiers the flexibility to match the joint profile to bespoke project aesthetics without surface preparation issues.
- Flush Installation Eliminates Hazards and Simplifies Maintenance: Designed to sit level with adjacent tile surfaces, the IDP-0351 creates a seamless transition across the joint without raised edges or recessed channels that trap dirt. This flush profile is critical in high-traffic public spaces where trip hazards must be eliminated under building safety codes, and where rapid, effective floor cleaning is a daily operational requirement.
The IDP-0351 Expansion Joint is supplied as a complete, ready-to-install unit. Each pack includes one full-length IDP-0351 Expansion Joint profile at 2500mm, pre-assembled with the black sponge core and grey adhesive sealant, requiring no additional components for standard installation.
General Purchase & Comparison Queries
What makes the IDP-0351 different from a standard tile trim or edging profile?
Unlike a standard tile trim or edge profile, the IDP-0351 is a true expansion joint profile — a multi-component system designed to actively manage floor movement. It incorporates a resilient black sponge core that compresses and expands with the substrate, and a grey adhesive sealant that seals the joint cavity against moisture. A basic trim is passive and decorative; this profile is a structural flooring component engineered to prevent tile cracking, tenting, and grout failure across large floor fields.
Is this expansion joint suitable for both commercial and residential flooring projects?
Yes. The IDP-0351 is engineered for demanding commercial and industrial environments — including shopping malls, warehouses, airports, and production facilities — but is equally appropriate for large open-plan residential spaces where wide tile spans are subject to seasonal thermal movement. Its heavy-duty extruded aluminium construction and flush surface profile make it over-specified for light residential use, which in practice means significantly extended service life in domestic applications.
What length does each unit cover and can joints be connected end-to-end?
Each IDP-0351 unit is 2500mm (2.5 metres) in length, which is a standard run length for most commercial floor joint intervals. For runs exceeding 2.5 metres, profiles can be installed end-to-end in sequence. It is recommended to maintain consistent joint alignment and gap continuity between sections to preserve the movement-absorbing function of the overall joint system. Cut ends should be clean and square using an aluminium-rated mitre saw or fine-tooth hacksaw.
Product-Specific and Usage Queries
How is the IDP-0351 installed — does it require special tools or adhesives?
The IDP-0351 is installed during the tiling process, not as an afterthought. The profile's perforated base flanges are embedded directly into the fresh tile adhesive bed before tiles are laid on either side. The flanges key mechanically into the adhesive, creating a firm lock without separate fixings. The grey adhesive sealant pre-applied within the joint assists bonding and sealing simultaneously. No specialised tools are required beyond standard tiling equipment; however, a spirit level is recommended to ensure the profile sits flush with the final tile surface height.
What joint width does this profile accommodate and what tile thickness is it compatible with?

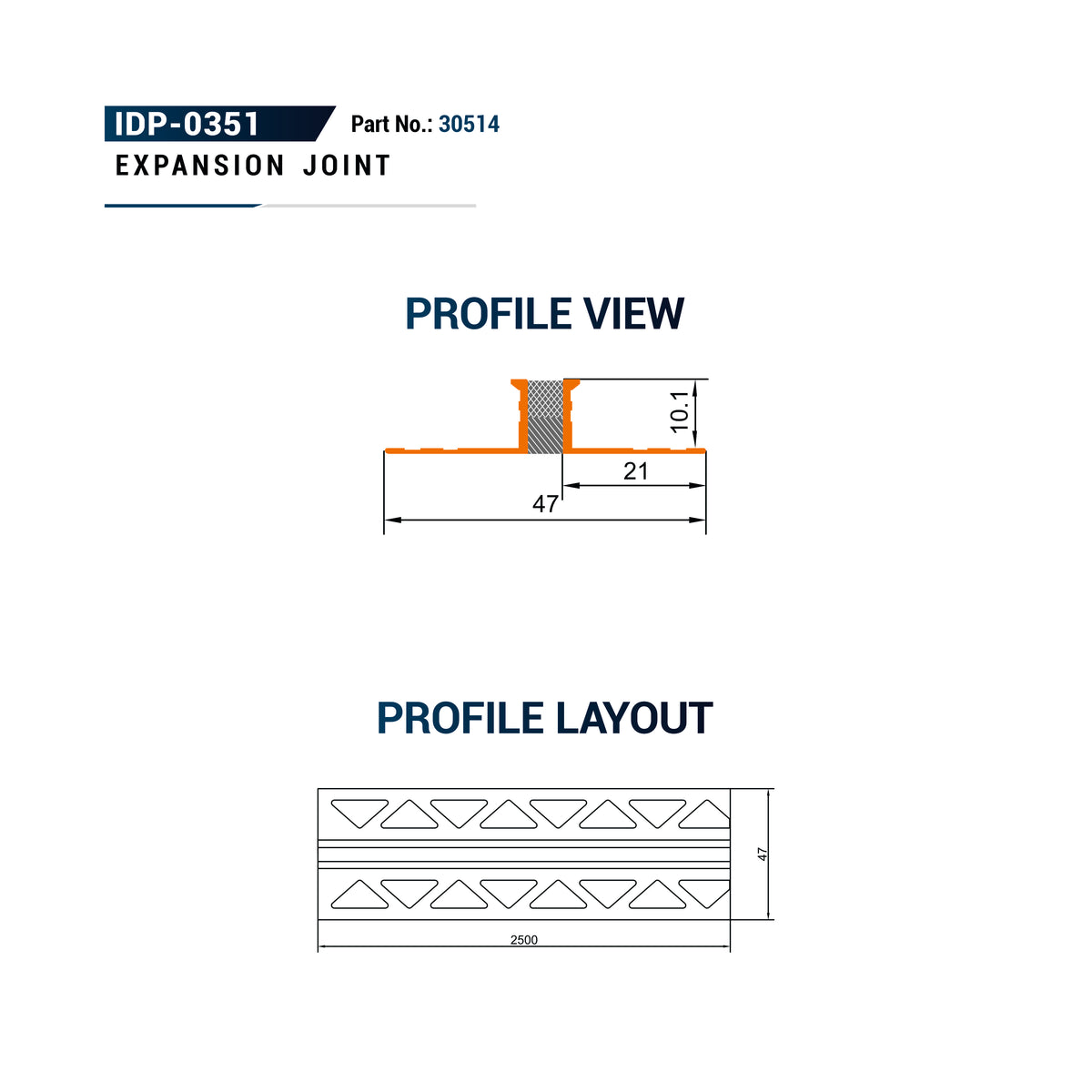

The IDP-0351 is designed for a 10mm expansion joint gap, which is the width of the compressible sponge core and the nominal profile dimension. This 10mm width is widely specified in large-format tile layouts in commercial environments where movement joints are typically positioned every 4–6 metres of floor area. The profile is compatible with a broad range of tile thicknesses as the flange depth accommodates standard adhesive bed depths used with ceramic, porcelain, and natural stone tiles.
Can the mill finish aluminium be painted or anodised after installation?
Yes. The untreated mill finish of the IDP-0351 is an ideal base for post-installation surface treatments. The raw aluminium surface accepts anodising, powder coating, and compatible metal primers for painting without requiring extensive surface preparation. This flexibility makes it suitable for projects where the joint profile must be colour-matched to tile, grout, or interior design specifications. It is advisable to mask the sponge core during any spray or brush application to prevent coating material from impairing the compressibility of the flexible insert.
Problem/Solution-Oriented Queries
My floor tiles are cracking along a straight line — can this expansion joint prevent recurrence?
Linear cracking along a consistent path is a classic indicator of accumulated substrate stress with no relief point — the floor has no expansion joint where one is needed, and the tile layer is absorbing all movement until it fails. Installing the IDP-0351 at the affected joint line (after removing and repairing the damaged tiles) provides a dedicated stress-relief channel. The black sponge core continuously absorbs thermal and structural movement, preventing that stress from transferring into the tile body or grout line. Correct joint placement — typically every 4–6 metres and at all changes of substrate or direction — is essential for preventing recurrence across the wider floor field.
Will this profile create a trip hazard or collect dirt in high-traffic areas?
No. The IDP-0351 is specifically designed for a flush installation — when correctly bedded into the adhesive at the right height, the top face of the aluminium profile sits level with the surrounding tile surface. There is no raised lip or recessed channel to catch foot traffic or accumulate debris. The smooth mill finish aluminium surface is easily cleaned with standard floor mops and cleaning equipment. In environments with strict health and safety or disability access requirements, this flush profile is the correct specification choice over surface-mounted cover strips that introduce a level change.
Is the IDP-0351 suitable for wet areas such as commercial kitchens or covered outdoor terraces?
The extruded aluminium body of the IDP-0351 is inherently corrosion-resistant and performs reliably in intermittently wet environments such as covered terraces, commercial kitchen service areas, and washdown zones. The grey adhesive sealant within the joint assists in preventing moisture from tracking beneath the floor finish through the joint cavity. For fully submerged or continuously wet applications — such as swimming pool surrounds or shower floors — a profile with a dedicated waterproof membrane integration should be specified. In standard wet commercial floor environments, the IDP-0351 is an appropriate and durable choice.
IDP-0351 Expansion Joint (1 Pcs)
