Professional-Grade Edge Protection Built to Last in Every Installation

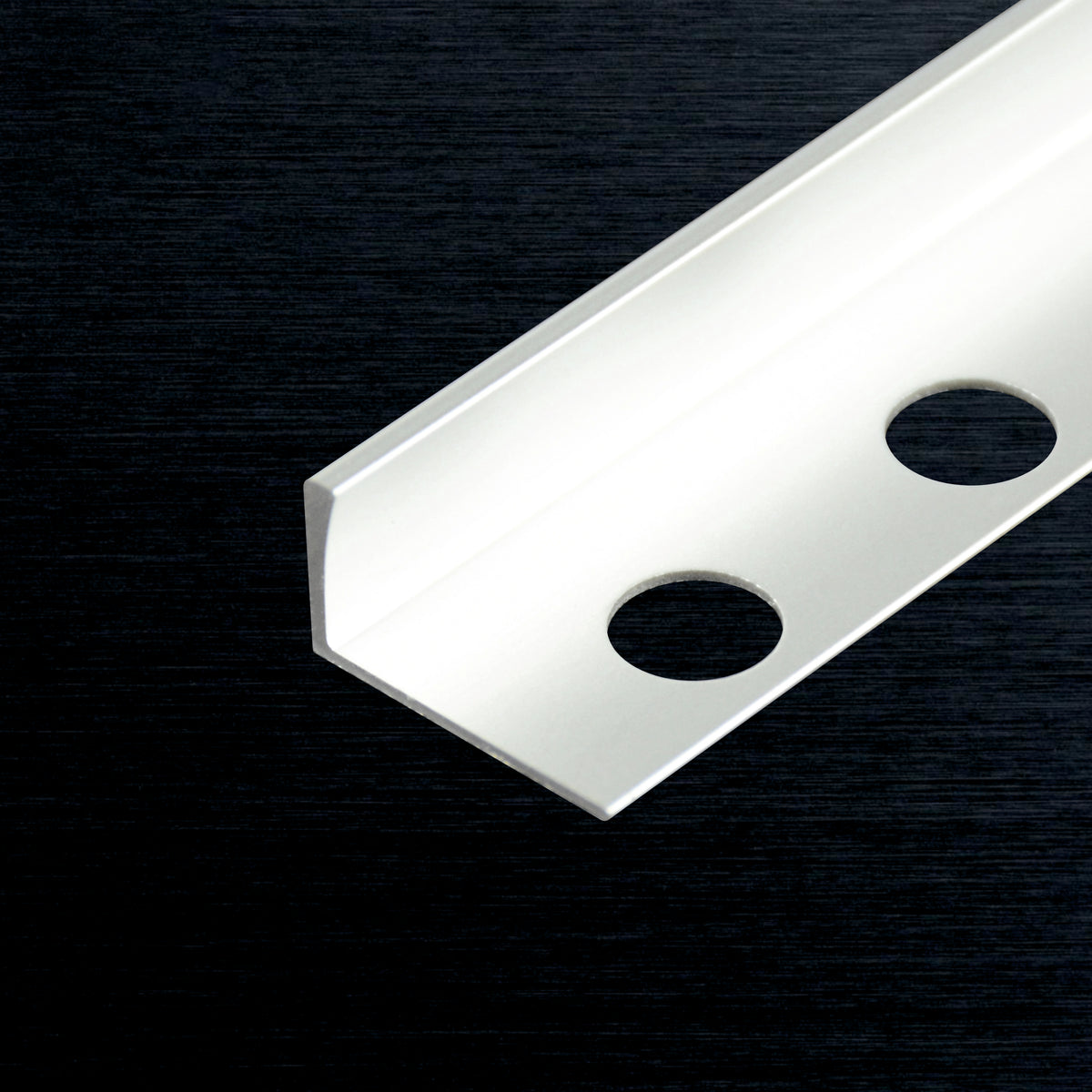

The IDP-0327AS L-Profile Aluminium Trim is a precision-engineered, anodized silver aluminium edge trim designed to deliver clean, professional termination for floor tiles, wall cladding, and countertop borders. Measuring 12mm in height over a 2.5-metre length, this heavy-duty aluminium L-profile secures raw material edges against chipping, fraying, and cracking while providing a sharp, minimal 90-degree finishing line across demanding residential and commercial installations.
| Key Features | Perfect For |
|
|
- Heavy-Duty Extruded Aluminium Body: Manufactured from premium-grade extruded aluminium, the IDP-0327AS withstands sustained high foot traffic, lateral impact, and daily wear without bending, warping, or corroding — making it a long-term investment for both residential and commercial environments.
- Precision 90-Degree L-Shape Profile — 12mm x 2500mm: The exact 12mm vertical lip height combined with the full 2500mm (2.5-metre) length delivers consistent, sharp edge coverage for tiles, natural stone, hardwood, and laminate installations, ensuring a tight, gap-free border line every time.
- Anodized Silver Satin-Matte Finish for Lasting Aesthetics: The electrochemically applied anodized silver coating penetrates deep into the aluminium substrate, providing far superior resistance to scratches, surface wear, UV exposure, and oxidation compared to standard painted finishes — retaining its clean, contemporary appearance for years.
- Perforated Flat Base Flange for Secure Anchoring: The flat mounting flange features evenly spaced circular perforations that allow tile adhesive, grout, or mortar to grip firmly, eliminating movement, lifting, and edge separation — critical for installations in wet areas and high-use corridors.
- Low-Profile Edge Chip Guard for Tile Protection: By absorbing lateral impact stress at the tile perimeter, the L-profile prevents common tile edge failures — including chipping, cracking, and premature deterioration — extending the life of the entire flooring or cladding system.

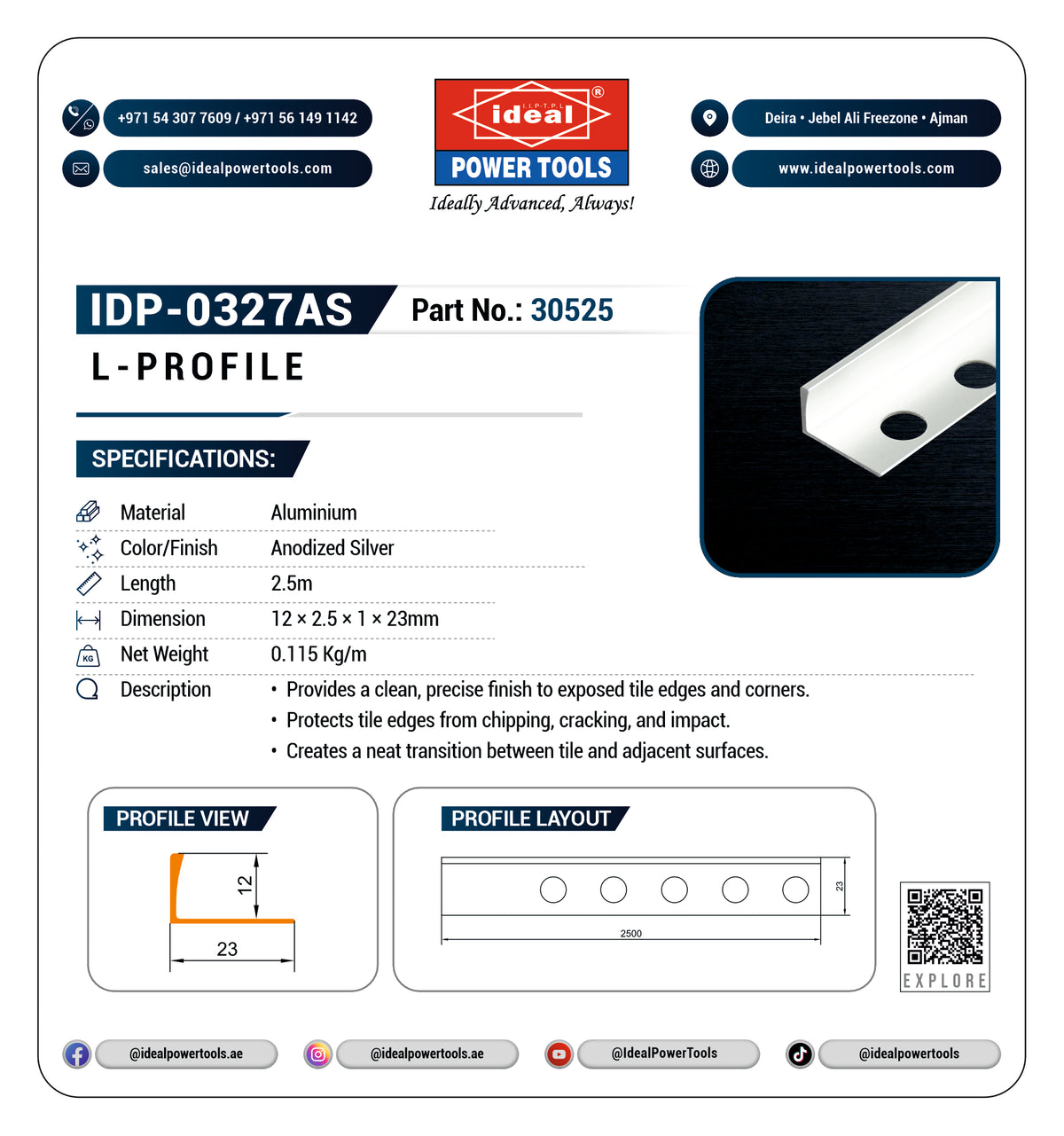

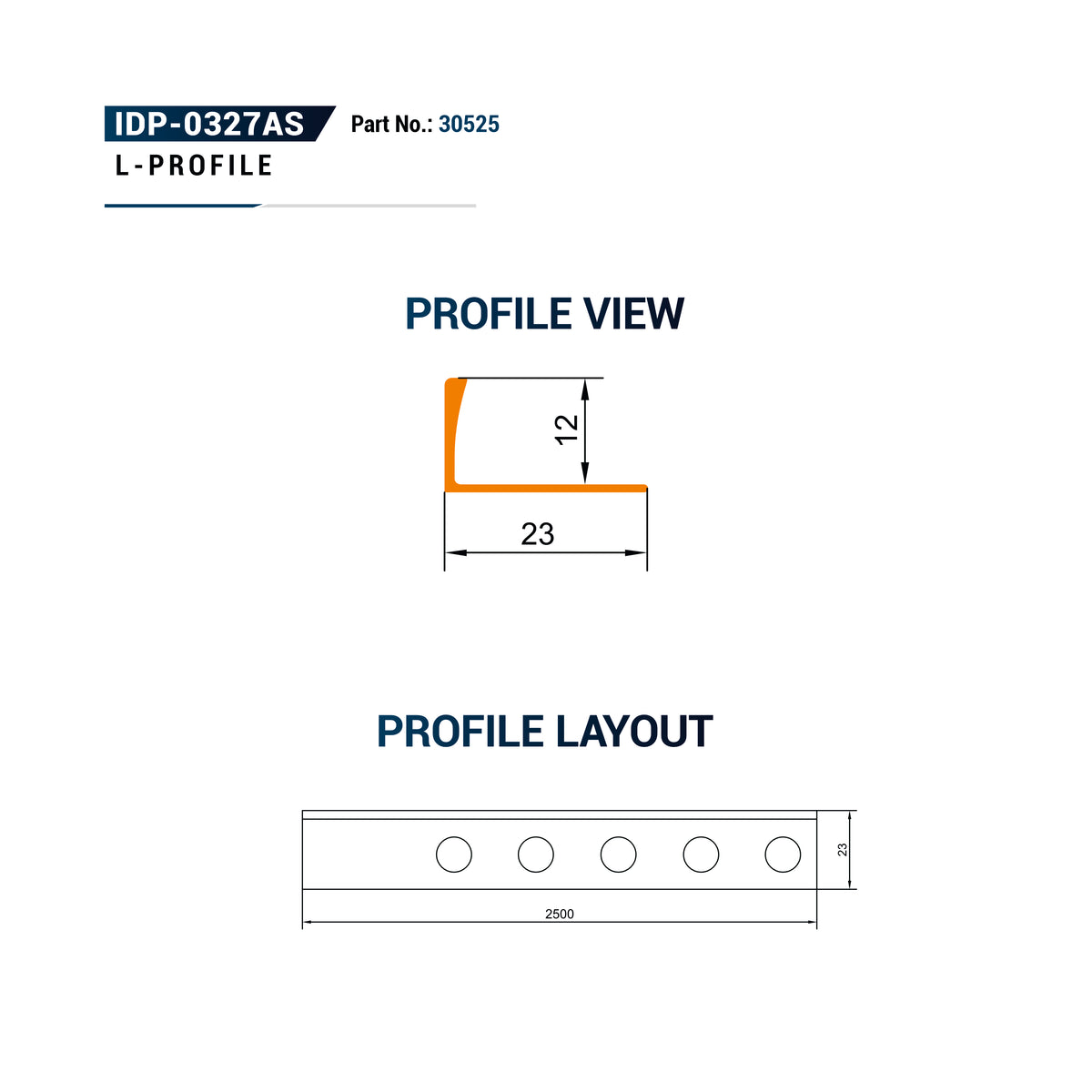

- Compact Dimensions for Versatile Integration: With a slim cross-section of 12 × 2.5 × 1 × 23mm and a net weight of just 0.115 kg per piece, the profile integrates seamlessly into existing tile substrates without adding bulk, maintaining flush transitions between adjacent floor coverings of varying heights.
The IDP-0327AS is supplied as a single 2.5-metre piece and each package includes one IDP-0327AS L-Profile, ready for immediate installation.
General Purchase & Comparison Queries
What makes the IDP-0327AS different from a standard PVC edge trim?
Unlike standard PVC edge trims, the IDP-0327AS is made from extruded aluminium — a structurally superior material that resists bending, impact deformation, and heat warping. Its anodized silver finish is chemically bonded to the metal surface, meaning it will not peel, flake, or discolour over time the way painted or vinyl-coated alternatives do. For high-traffic or commercial environments, aluminium profiles consistently outperform plastic alternatives in both longevity and load-bearing performance.
Is this profile suitable for both wall and floor applications?
Yes. The IDP-0327AS L-profile is engineered for multi-surface application, covering floor tile perimeters, wall cladding borders, backsplash edges, and countertop terminations. Its 12mm vertical lip is sized to cover the exposed edges of standard tile thicknesses commonly used in both horizontal and vertical installations, making it one of the most versatile aluminium trims in this range.
How many pieces do I need for my project?
Each unit of the IDP-0327AS is 2500mm (2.5 metres) in length. To calculate the quantity required, measure the total linear edge length you need to cover in millimetres and divide by 2500. It is recommended to add 10–15% overage to account for corner cuts, waste, and alignment adjustments — particularly for projects with diagonal tile patterns or multiple transitions.
Product-Specific and Usage Queries
How is the IDP-0327AS installed?
Installation is straightforward. The perforated flat base flange is embedded into the tile adhesive or mortar bed before the tiles are set. The flange's circular perforations allow the adhesive to pass through and grip securely, locking the profile in place. The 12mm vertical lip then stands upright against the exposed tile edge, holding it firmly while creating the finished border. No additional fixings are typically required when installed with a suitable tile adhesive.
What tile thickness is the 12mm profile compatible with?
The 12mm vertical lip height of the IDP-0327AS is designed to accommodate tiles with a finished face height (including adhesive bed) of up to approximately 10–12mm. This covers the majority of standard ceramic, porcelain, natural stone, and engineered stone tiles used in residential and light commercial applications. For thicker tiles (above 12mm), a larger profile from the IDP range should be selected.
Will the anodized silver finish match my existing fixtures?
The anodized silver finish produces a neutral, satin-matte metallic appearance that complements a wide range of interior styles — from contemporary minimalist to industrial and Scandinavian aesthetics. It pairs naturally with stainless steel fixtures, brushed chrome hardware, and light grey or white tile schemes. Because the colour is achieved through anodization rather than paint, it maintains consistent tone and will not fade or chip under normal conditions.
Problem/Solution-Oriented Queries
My tile edges keep chipping at the perimeter — can this profile prevent that?
Yes. The primary function of the IDP-0327AS as an edge chip guard is to absorb the lateral impact stress that causes exposed tile edges to chip and crack. By encasing the raw tile edge within the aluminium L-profile's vertical lip, the tile perimeter is shielded from foot traffic impact, vacuum cleaner edges, furniture legs, and other common impact sources. This significantly extends the lifespan of the tiled surface and eliminates the need for costly edge repairs.
The profile I installed is lifting at the edges — what went wrong?
Lifting is almost always caused by insufficient adhesive coverage on the base flange during installation, or by using an adhesive type incompatible with aluminium. Ensure the flange is fully embedded in fresh tile adhesive with coverage across all perforations, and use a flexible, polymer-modified tile adhesive rated for metal profiles. Avoid installing on dusty, oily, or previously sealed substrates without proper surface preparation, as these will significantly reduce bond strength.
Can this profile be used in wet areas such as showers or bathrooms?
Yes. The anodized aluminium construction of the IDP-0327AS offers excellent resistance to moisture and humidity, making it suitable for use in bathrooms, wet rooms, and kitchen splashback areas. The anodized layer acts as a sealed barrier against oxidation and corrosion. For full waterproofing performance in shower enclosures, ensure the perimeter grout joint between the profile and tile is filled with a flexible silicone sealant rated for wet area use.
IDP-0327AS L-Profile (1 Pcs)
