IDP-014-12HP TILE CORNER [SS SQUARE] [10 X 12 X 0.6MM] [POLISH] - 30535
Chat with us
Choose options
Professional-Grade Tile Edge Protection with a Polished Finish That Lasts

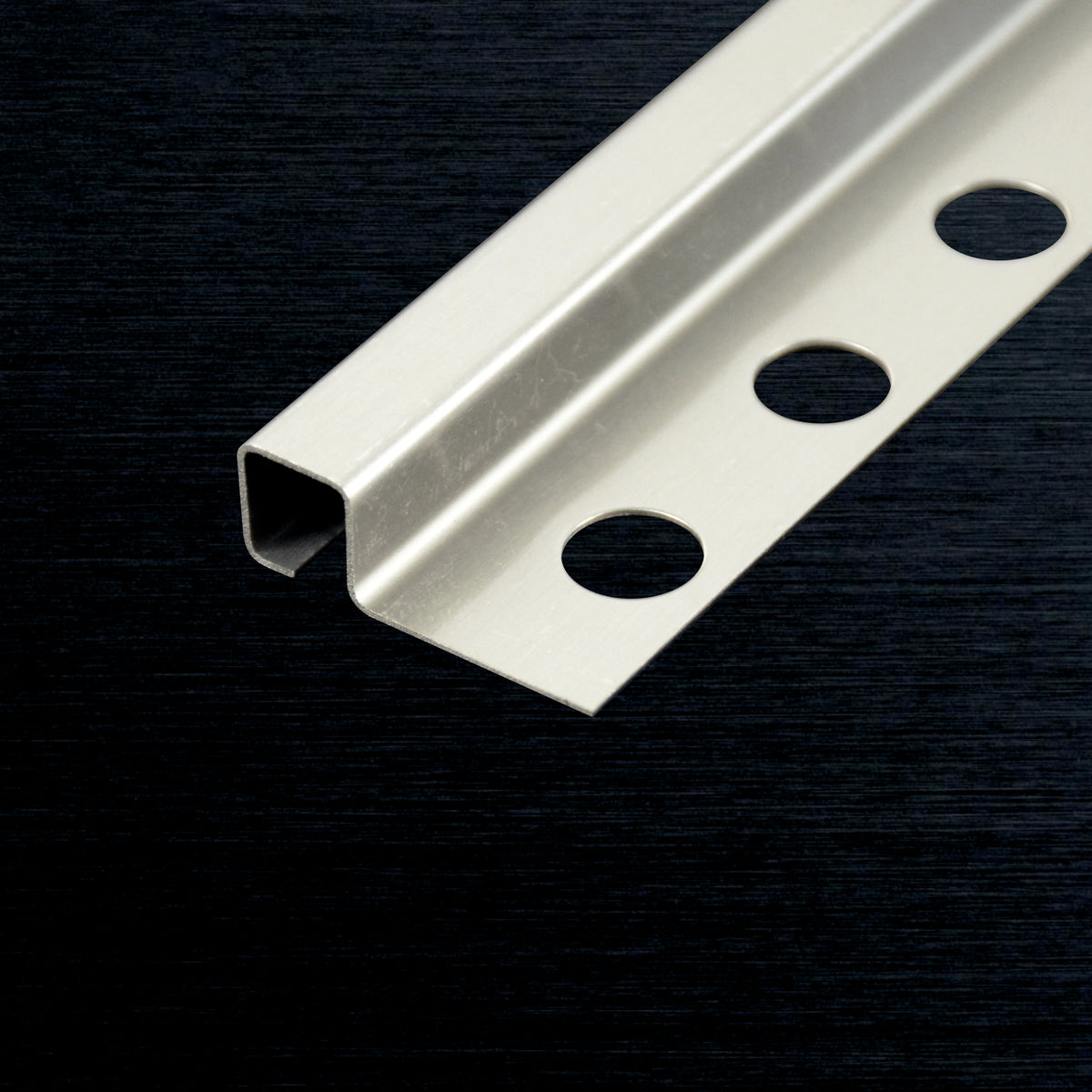

The IDP-014-12HP Tile Corner Profile is a precision-engineered SS304 stainless steel finishing trim designed to enclose, seal, and cap tile edges at internal and external wall corners. With a mirror-polish silver finish, perforated base flange, and a clean square geometric edge, this tile corner trim delivers a professional, low-maintenance result across residential and commercial tile installations.
| Key Features | Perfect For |
|
|
- SS304 Stainless Steel Construction: Formed from high-grade SS304 stainless steel with a net weight of just 0.262 kg, this profile offers outstanding corrosion resistance and superior mechanical strength — making it suitable for moisture-rich environments including bathrooms, wet rooms, and kitchen splashbacks where lesser materials would rust or degrade.

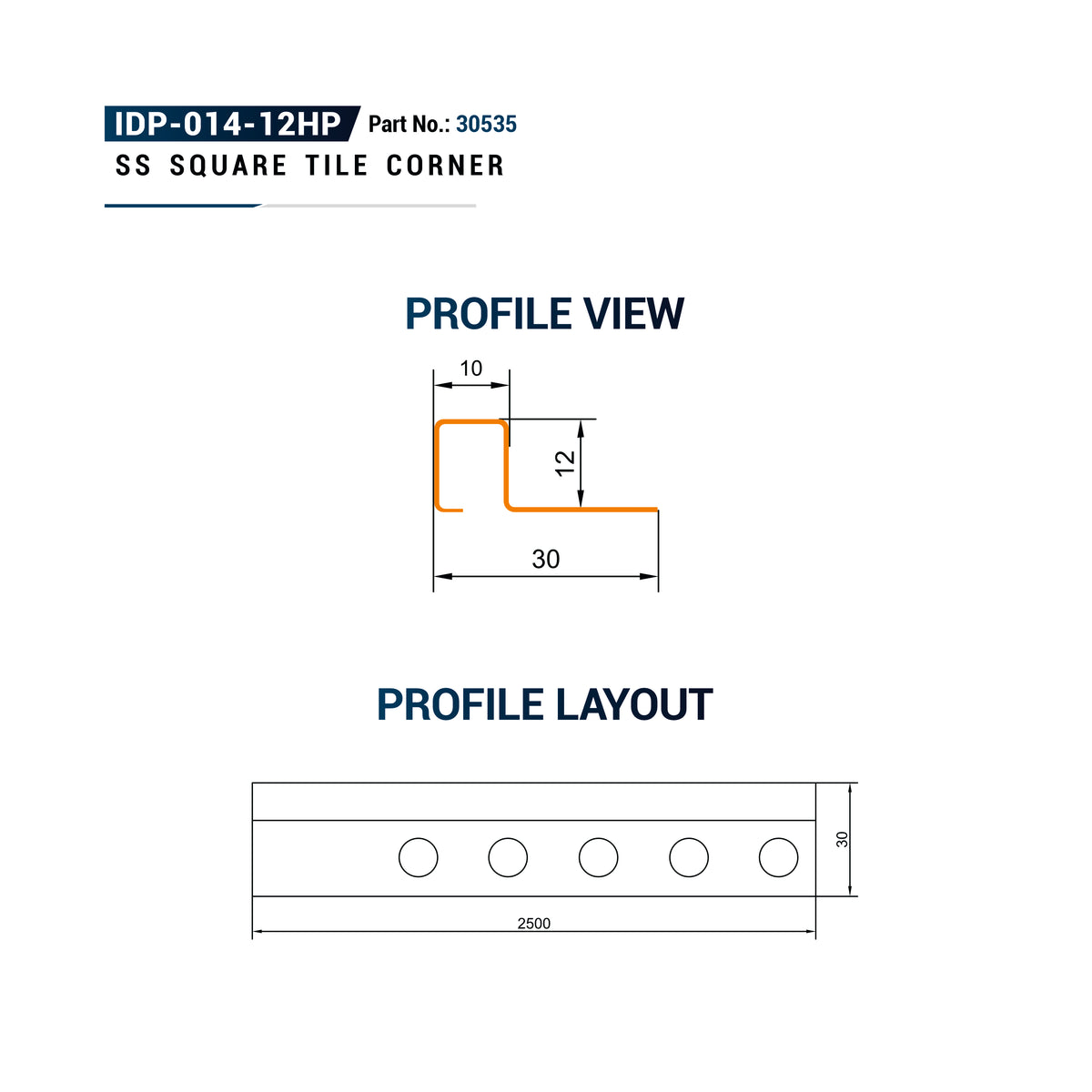

- High-Polish Mirror Finish (10 x 12 x 0.6mm): The 0.6mm gauge face is finished to a mirror-like polished silver surface that reflects light along tile boundaries, elevating the perceived quality of any installation. The slim 10mm face width sits flush against tile without visually overwhelming the design, while the 12mm anchoring leg locks the profile firmly into the substrate.
- Geometric Square Edge Profile: Features a clean right-angled square face with a precision-bent inward bottom lip that frames tile terminations with modern architectural accuracy. This boxed-edge geometry is ideal for contemporary design schemes where sharp, defined lines are a deliberate aesthetic choice.
- Perforated Base Flange for Mechanical Key: The flat anchoring leg is engineered with circular cutout perforations that allow thin-set mortar or tile adhesive to key through the flange during installation. This mechanical bond dramatically reduces the risk of profile delamination over time, particularly in high-humidity or thermally cyclic environments.
- 2500mm Full-Length Bar (2.5m): At a full 2.5 metre length per bar, this tile corner trim minimises the number of joints required across long tile runs — a critical factor in commercial and luxury residential settings where a seamless, uninterrupted trim line is essential to the finish quality. The lightweight 0.262 kg weight simplifies handling and cutting on site.
- Edge Protection and Chip Prevention: Beyond aesthetics, this profile acts as a structural corner guard, absorbing impact at vulnerable tile edges and preventing chipping, cracking, and moisture ingress at unglazed tile terminations. It conceals the raw cut edge of the tile while simultaneously protecting it from mechanical damage in high-traffic zones.
This tile corner profile is supplied as one piece per unit (IDP-014-12HP, 2500mm length) and is manufactured to meet the quality standards expected in premium specification builds.
General Purchase & Comparison Queries
What material is the IDP-014-12HP Tile Corner made from, and why does it matter?
The IDP-014-12HP is manufactured from SS304 stainless steel — a food-grade, marine-grade alloy renowned for its corrosion resistance, mechanical toughness, and long service life. Unlike aluminium or plastic tile trims, SS304 will not rust, oxidise, or discolour in wet environments such as showers, bathrooms, or commercial kitchens, making it a premium, future-proof choice for any tile finishing project.
How does a square edge tile corner profile differ from a round edge or pencil trim?
A square (SS Square) profile features a flat, right-angled face that creates a sharp, architectural tile termination — ideal for modern, minimalist, and contemporary interior design. A round or pencil trim has a curved face that softens the edge. The square geometry of the IDP-014-12HP aligns with current design trends in luxury residential and commercial interiors where clean, defined lines are preferred.
What length does each bar come in, and how many do I need for my project?
Each IDP-014-12HP bar is 2500mm (2.5 metres) in length. To calculate quantity, measure the total linear length of all tile corners requiring trim, then divide by 2.5. We recommend adding 10% to your total to account for mitred cuts at corners and any wastage. The full-length bar minimises visible joints for a cleaner, more professional result.
Product-Specific and Usage Queries
How is the IDP-014-12HP Tile Corner installed?
The profile is installed by embedding the perforated base flange into the tile adhesive or thin-set mortar bed before laying the tile. The circular cutouts in the flange allow the adhesive to key through, creating a strong mechanical bond. The tile is then butted up against the square face of the profile. The 10mm face width and 12mm anchoring leg dimensions are calibrated to work with standard tile thicknesses. No additional fixings are required when properly bedded.
Can this tile corner profile be used in wet areas like showers and bathrooms?
Yes. The SS304 stainless steel composition makes the IDP-014-12HP fully suitable for continuous wet area use including showers, steam rooms, swimming pool surrounds, and external facade applications. SS304 resists chlorine, soap, and common bathroom cleaning agents without pitting or discolouration, ensuring the high-polish mirror finish is maintained long-term.
What tile thicknesses is this profile compatible with?
The IDP-014-12HP features a 0.6mm gauge face with a 10mm face height and 12mm anchoring leg. It is designed to accommodate standard wall tile thicknesses typically ranging from 6mm to 12mm when bedded in adhesive. For thicker format tiles such as large-format porcelain slabs, please verify the tile thickness against the profile dimensions prior to installation or consult your tile contractor.
Problem/Solution-Oriented Queries
My tile edges keep chipping at the corners — will this profile solve the problem?
Yes. The IDP-014-12HP is specifically engineered as a corner guard and edge protector. By enclosing the raw, unglazed tile edge within the stainless steel profile, it absorbs impact energy that would otherwise cause chipping or cracking. The rigid SS304 body deflects knocks and mechanical stress away from the tile edge, significantly extending the life of the installation in high-traffic areas.
The grout at my tile corners keeps cracking and allowing moisture in — can a tile corner trim fix this?
Grout cracking at internal and external tile corners is typically caused by differential movement between wall substrates. Replacing grout-only corners with the IDP-014-12HP eliminates the grout joint entirely at the tile termination, sealing the edge under a continuous stainless steel face. This prevents moisture ingress at the corner, removes the crack-prone grout line, and delivers a durable, watertight finish that requires no regrouting.
The raw cut edge of my tile is visible and unsightly — how does this profile help?
The IDP-014-12HP is designed precisely to conceal unglazed, cut tile edges. The square face of the profile sits proud of the tile surface, covering the raw edge entirely and presenting a clean, finished high-polish stainless steel border in its place. This is particularly important for large-format porcelain and ceramic tiles where the cut edge is noticeably rough or a different colour to the glazed face.

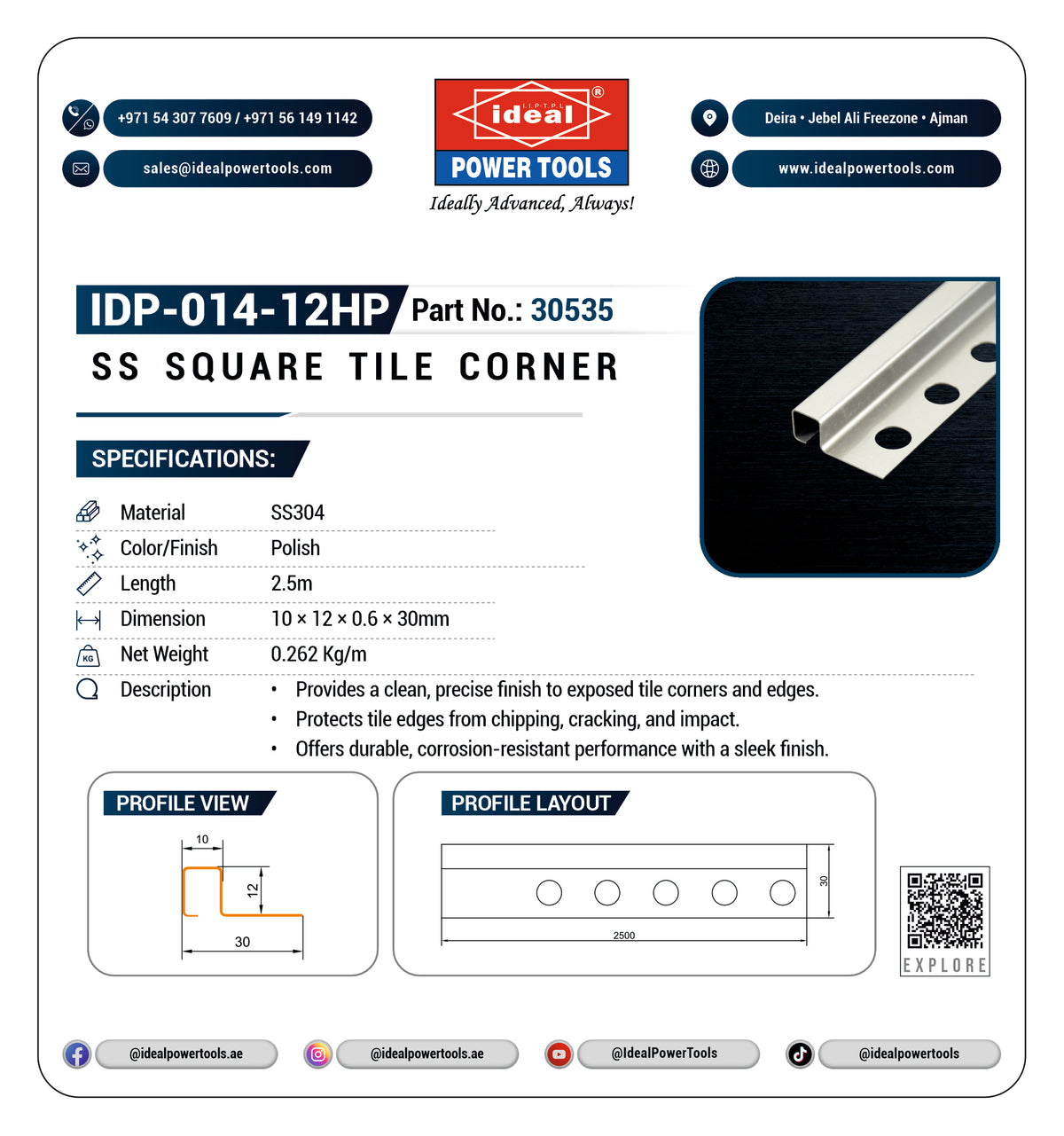

IDP-014-12HP Tile Corner (1 Pcs)
