IDP-014-12HB TILE CORNER [SS SQUARE] [10 X 12 X 0.6MM] [BRUSHED] - 30536
Chat with us
Choose options
Precision-Engineered Corner Protection for Flawless Tile Installations

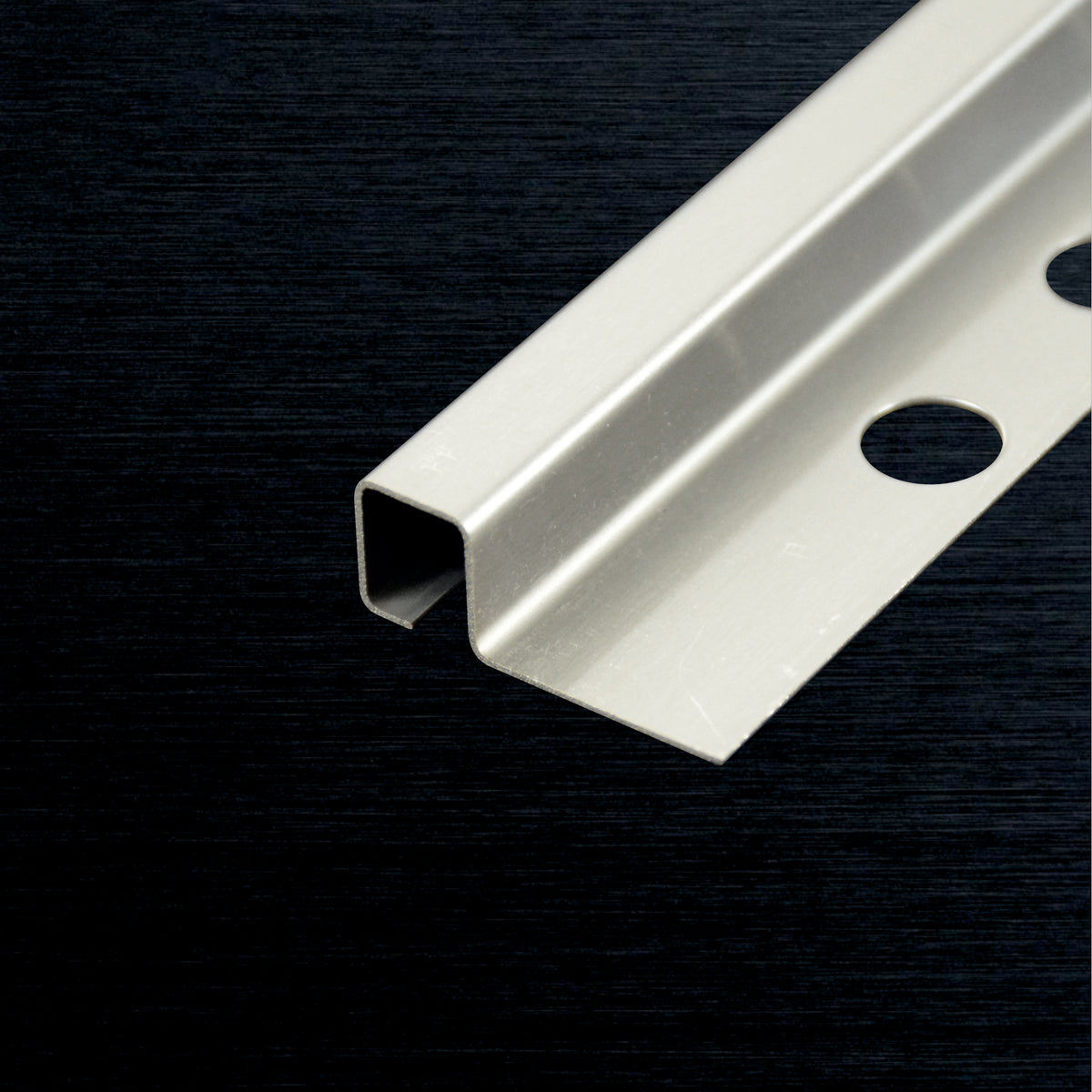

The IDP-014-12HB Tile Corner Profile is a precision-engineered stainless steel SS304 finishing trim designed to seal, protect, and elegantly cap exposed tile edges at internal and external wall corners. With a brushed hairline silver finish, a geometric square-edge profile, and a perforated anchoring flange, this 2.5 m tile edge trim delivers a clean, low-maintenance architectural finish that elevates any tiling installation, from luxury residential bathrooms to high-traffic commercial feature walls.
| Key Features | Perfect For |
|---|---|
|
|
- High-Grade SS304 Stainless Steel Body: Manufactured from Grade 304 stainless steel, this tile corner profile delivers outstanding mechanical strength and corrosion resistance, making it suitable for wet areas, humid environments, and outdoor-facing wall cladding where moisture exposure is a constant concern.

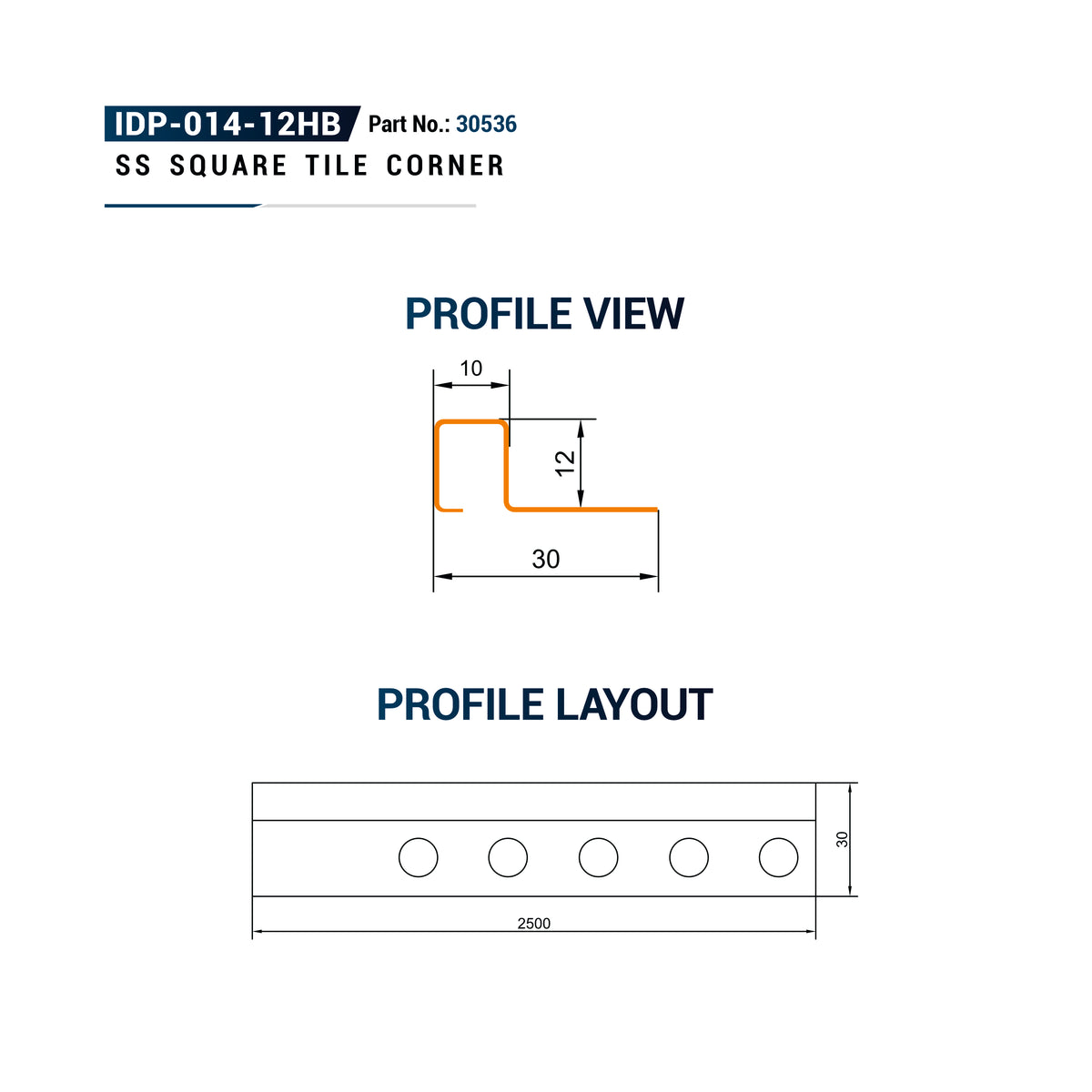

- Geometric Boxed Square-Edge Profile (10 x 12 x 0.6 mm): The clean right-angled square face with an inward bottom lip frames tile terminations with architectural precision, creating a sharp, modern border that complements both contemporary and transitional interior design styles.
- Perforated Base Flange for Maximum Adhesion: The flat anchoring leg features circular cutout perforations engineered to allow thin-set mortar or tile adhesive to key through securely, ensuring a strong mechanical bond between the trim and substrate and preventing delamination over time.
- Brushed Hairline Silver Finish — Low-Glare and Low-Maintenance: The refined linear grain brushed finish resists fingerprints and minor surface scratches, maintaining its contemporary architectural appearance with minimal upkeep — a particularly important quality in hospitality and high-traffic commercial environments.
- Full 2.5 m Length with Lightweight Profile (0.262 kg): At 2500 mm in length and only 0.262 kg net weight, each strip covers generous runs of tile edging with minimal joins, reducing installation time and grout-line interruptions for a cleaner, more seamless visual result.
- Versatile Decorative Accent Strip: Beyond corner protection, this profile functions as a crisp decorative border strip between floor tiles, wall cladding panels, or transition zones — adding a refined metallic accent line that elevates the overall tile scheme without overpowering the design.
- Impact and Chip Protection for Vulnerable Tile Edges: The profile physically shields delicate unglazed tile borders from high-impact damage caused by foot traffic, furniture contact, or cleaning equipment in commercial settings, extending the service life of the tile installation.
The IDP-014-12HB is supplied as a single piece at 2,500 mm in length. No specific regulatory certifications apply to this architectural finishing trim, and the package includes one IDP-014-12HB Tile Corner Profile strip ready for installation.
General Purchase & Comparison Queries
What material is the IDP-014-12HB Tile Corner Profile made from?
The IDP-014-12HB is manufactured from SS304 Grade stainless steel — one of the most widely specified grades in architectural finishing applications. Grade 304 stainless steel offers an optimal balance of corrosion resistance, mechanical strength, and formability, making it suitable for wet areas such as bathrooms, kitchens, and outdoor wall cladding where long-term moisture exposure is expected.
How does this tile corner trim compare to aluminum alternatives?
Unlike aluminum tile trims, the IDP-014-12HB SS304 stainless steel profile provides significantly superior corrosion resistance in high-humidity and salt-air environments. Stainless steel also offers greater surface hardness and impact resistance, which means the brushed finish is less prone to denting or scratching under daily use. For luxury residential or commercial installations where longevity and aesthetics are both priorities, SS304 is the preferred specification.
What length does one strip cover, and can it be cut to size?
Each IDP-014-12HB profile is supplied at a standard length of 2,500 mm (2.5 metres). This generous length minimizes the number of joins required across a tiled surface, producing a cleaner finish. The 0.6 mm wall thickness and SS304 composition allow the profile to be cut cleanly with a fine-tooth metal saw or angle grinder fitted with a stainless steel disc, enabling precise on-site sizing to match any installation requirement.
Product-Specific and Usage Queries
How is the IDP-014-12HB installed alongside wall tiles?
The profile is embedded into the tile bed during installation. The perforated base flange — featuring circular cutouts along the flat anchoring leg — is pressed into the thin-set mortar or tile adhesive before tiles are laid. The adhesive keys through the perforations, creating a strong mechanical bond that locks the trim in place. The square-edge face then protrudes to cap the tile edge, while the inward bottom lip grips the tile face for a flush, secure termination.
What tile thicknesses is the 10 x 12 mm profile compatible with?
The 10 x 12 mm cross-section of the IDP-014-12HB is designed to accommodate standard ceramic, porcelain, and natural stone tiles commonly ranging from 6 mm to 10 mm in thickness, including typical rectified porcelain tiles used in modern bathrooms and feature walls. For thicker format tiles or large-format slabs, we recommend verifying the tile thickness against the profile's inward lip depth before installation to ensure a flush, even cap.
Can this profile be used on external or outdoor wall corners?
Yes. The SS304 stainless steel construction makes the IDP-014-12HB suitable for semi-exposed outdoor environments such as covered balconies, exterior feature walls under eaves, and outdoor kitchen or BBQ area tiling. However, for fully exposed coastal or marine environments with direct saltwater spray, SS316 grade is typically recommended for maximum long-term corrosion resistance. In standard outdoor urban environments, SS304 performs reliably over many years.
Problem/Solution-Oriented Queries
My tile edges are chipping at wall corners — will this trim fix the problem?
Yes. The IDP-014-12HB is specifically engineered to protect vulnerable unglazed tile edges from impact damage. By physically capping the exposed tile border with a heavy-duty SS304 stainless steel profile, the trim absorbs contact forces that would otherwise chip or crack the tile edge. It also hides any existing unglazed or rough-cut tile borders, delivering a clean, finished appearance even where tile cuts are imperfect.
Will the brushed finish show scratches or fingerprints over time?
The brushed hairline silver finish of the IDP-014-12HB is specifically chosen for its practicality in high-touch environments. The linear grain texture effectively disguises minor surface marks and light scratches that would be highly visible on a polished or mirror finish. Routine cleaning with a damp cloth or mild stainless steel cleaner is sufficient to maintain its contemporary, low-glare appearance without the need for any specialist treatments or polishing.
The trim is not sitting flush with my tiles — what should I check?
If the IDP-014-12HB is not sitting flush, the most common causes are tile bed height inconsistency or incorrect mortar depth beneath the base flange. Ensure the flange is fully bedded into the adhesive before laying adjacent tiles, and that the tile surface aligns with the top face of the 10 mm square-edge profile. Also confirm that the tile thickness being used is compatible with the 12 mm profile depth. Using a spirit level along the trim during installation helps guarantee a straight, even run across the full 2,500 mm length.
IDP-014-12HB Tile Corner (1 Pcs)
