IDP-014-10HP TILE CORNER [SS SQUARE] [10 X 10 X 0.6MM] [POLISH] - 30533
Chat with us
Choose options
Precision-Engineered Corner Protection with a Polished Professional Finish

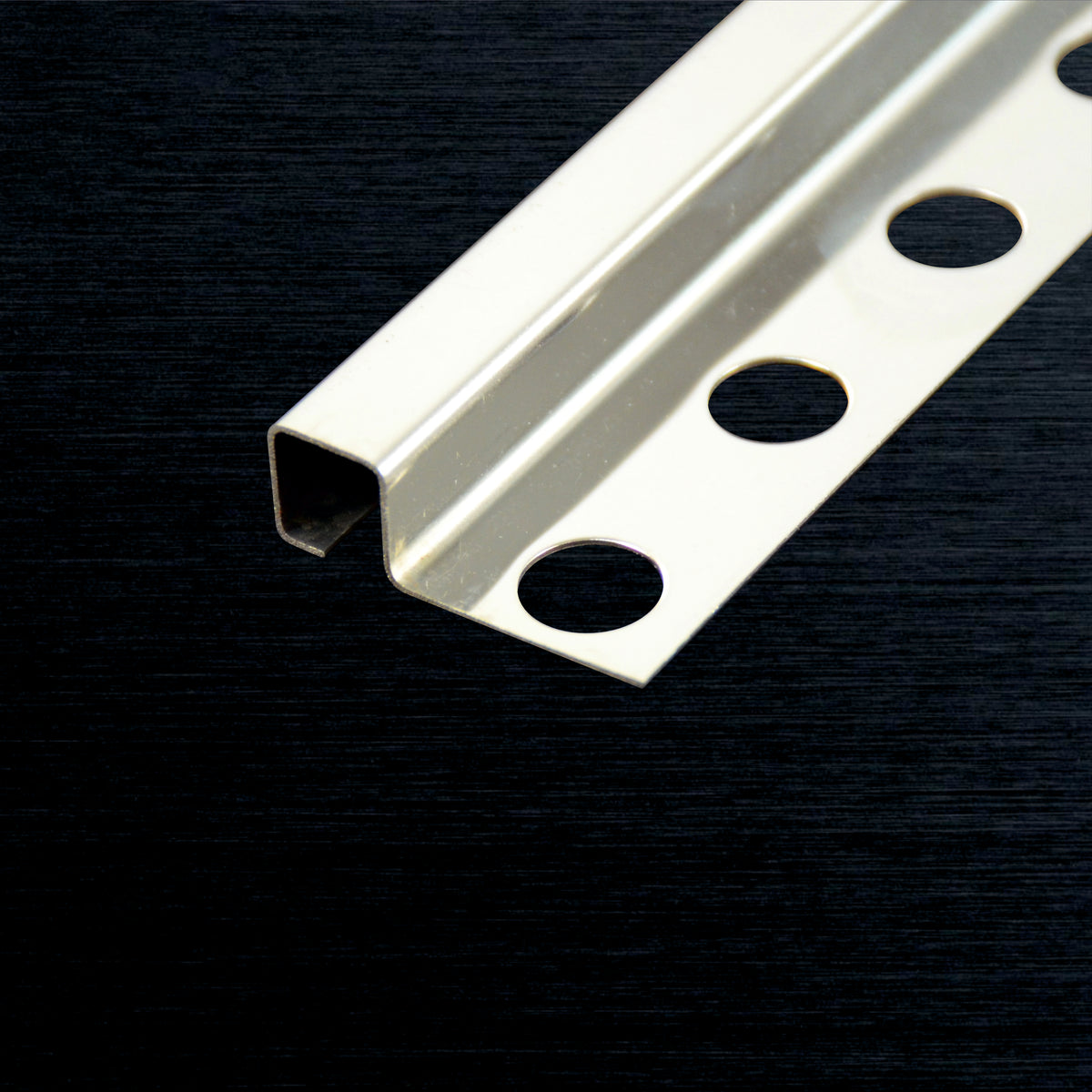

The IDP-014-10HP Tile Corner SS Square Profile is a precision-engineered stainless steel tile edge trim crafted from SS304 grade steel to deliver long-lasting corrosion resistance, structural integrity, and a mirror-polished finish. Measuring 10 x 10 x 0.6mm in a 2.5m length, this square tile corner trim seals, caps, and protects tile borders at both internal and external wall junctions, making it the definitive choice for high-end residential and commercial tile installations.
| Key Features | Perfect For |
|---|---|
|
|
- SS304 Grade Stainless Steel Body: Formed entirely from high-grade SS304 stainless steel with a net weight of 0.226 kg per unit, this profile delivers superior mechanical strength, outstanding corrosion resistance, and enduring dimensional stability — ideal for wet areas, humid environments, and spaces subject to heavy daily use.
- Geometric Square-Edge Profile (10 x 10 x 0.6mm): The clean, right-angled square face geometry with a 0.6mm wall thickness provides a crisp, architectural tile termination that sits flush with the tile face, eliminating unsightly raw or unglazed tile edges at corners and delivering a seamless, contemporary finish.
- Perforated Flat Anchoring Flange: The base leg features strategically positioned circular cutouts that allow thin-set mortar or tile adhesive to key through the flange and cure around it, creating a mechanical bond that locks the trim firmly in position without relying solely on surface adhesion — significantly reducing the risk of lifting or delamination over time.
- High-Polish Mirror Silver Finish: The surface carries a precision mirror-polished silver treatment that reflects light to create an upscale, decorative accent line across tile junctions, feature walls, or floor-to-wall transitions, complementing both neutral palettes and bold tile designs in luxury interiors.
- Heavy-Duty Edge and Corner Protection: Designed to absorb and deflect impact at vulnerable tile borders, this trim actively prevents chipping, cracking, and moisture ingress at exposed tile edges — guarding the integrity of the tile installation against everyday wear, cleaning equipment impact, and trolley or furniture contact in commercial environments.

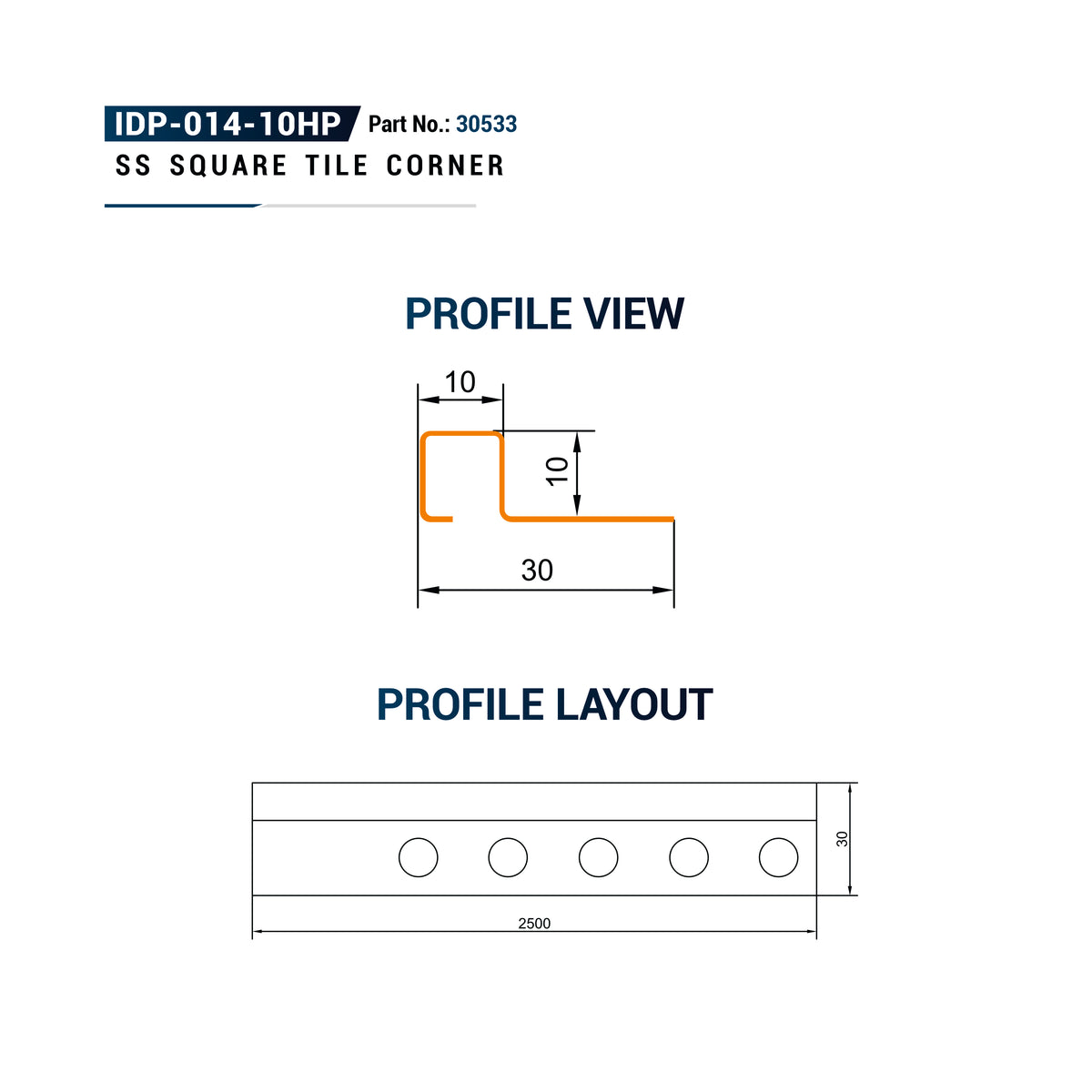

- 2.5m Continuous Length for Seamless Runs: Each piece spans a full 2,500mm (2.5 metres) with profile dimensions of 10 x 10 x 0.6 x 30mm, allowing long, uninterrupted runs with fewer joints — essential for achieving a clean, professional result on full-height feature walls, floor skirting transitions, and large-format tile installations.
The IDP-014-10HP Tile Corner comes supplied as a single piece (1 Pcs) and is manufactured to exacting standards, ensuring consistent dimensional accuracy, surface quality, and material grade across every unit.
General Purchase & Comparison Queries
What material is the IDP-014-10HP Tile Corner made from?
The IDP-014-10HP is manufactured from SS304 grade stainless steel, one of the most widely specified alloys in architectural trim applications. SS304 offers a well-balanced combination of tensile strength, corrosion resistance, and surface finish quality, making it suitable for wet areas, coastal environments, and high-humidity commercial spaces where inferior metals would corrode or stain over time.
How does this square profile differ from a round or pencil tile edge trim?
Unlike round-nose or pencil profiles that create a curved, softened edge, the IDP-014-10HP features a geometric right-angled square face that produces a sharp, architectural corner termination. This makes it the preferred choice for contemporary and minimalist interior designs where clean lines, precision, and a flush tile finish are essential. The square geometry also provides a larger surface contact area at the corner, enhancing structural protection of the tile edge.
What length does each piece come in, and is it sold in packs?
Each IDP-014-10HP Tile Corner is supplied as one piece (1 Pcs) at a continuous length of 2,500mm (2.5 metres). The full 2.5m run allows installers to cover long wall heights and large tile runs with minimal joints, which is critical for achieving a professional, uninterrupted finish. If your project requires multiple lengths, simply order the corresponding quantity of pieces.
Product-Specific and Usage Queries
How is the IDP-014-10HP installed during tiling?
The IDP-014-10HP is installed by embedding the perforated flat base flange directly into the tile adhesive or thin-set mortar bed before the wall tiles are set. The circular cutouts along the flange allow the mortar to key through and cure around the profile, forming a mechanical bond that secures the trim in position. The square face then sits proud of the substrate to align flush with the tile face, providing a clean edge that conceals the raw, unglazed tile cut at the corner.
Can this tile corner profile be used on both internal and external wall corners?
Yes. The IDP-014-10HP is engineered for use on both internal and external wall corners. On external corners, it protects the exposed tile edge from chipping and impact. On internal corners, it creates a neat, sealed junction between two tile surfaces, preventing moisture and dirt from accumulating in the grout joint. Its SS304 stainless steel construction ensures it maintains structural integrity regardless of corner orientation or moisture exposure level.
What tile thickness range is this profile compatible with?
The IDP-014-10HP has a profile face dimension of 10 x 10mm with a 0.6mm wall thickness, making it compatible with standard wall tile thicknesses commonly ranging from 6mm to 12mm. The profile depth accommodates the tile face plus the adhesive bed, ensuring the trim sits flush and level with the finished tile surface. For unusually thick tiles or double-layer installations, we recommend verifying the tile-plus-adhesive stack height against the profile dimensions before ordering.
Problem/Solution-Oriented Queries
My tile edges are chipping at wall corners — will this profile prevent that?
Yes. Tile chipping at corners is almost always caused by exposed, unprotected tile edges that are vulnerable to direct impact. The IDP-014-10HP is specifically designed to cap and enclose the tile border, placing the hardened SS304 stainless steel face directly in the impact zone instead of the tile itself. Once installed, the metal trim absorbs and deflects impact energy, virtually eliminating edge chipping and extending the service life of your tile installation significantly.
Will this stainless steel tile trim rust or discolour in wet areas like bathrooms or showers?
SS304 stainless steel is highly resistant to rust and corrosion in standard wet area conditions, including bathrooms, showers, and kitchen splashbacks. The mirror-polished surface further reduces surface porosity, making it harder for mineral deposits, soap scum, and moisture to adhere. In coastal or chlorinated environments, routine cleaning with a mild, non-abrasive cleaner is recommended to maintain the high-polish finish and prevent surface contamination over time.
The trim is not sitting flush with my tiles — what could be the cause?
If the IDP-014-10HP is not sitting flush, the most common causes are an uneven or excessively thick mortar bed beneath the base flange, or tiles that are thicker than the profile depth allows. Ensure the adhesive bed is applied at a consistent, controlled depth before pressing the flange in. The flange should be fully bedded with the square face aligned to the planned tile face level. Using a straight edge or spirit level during installation ensures the profile remains plumb and flush across its full 2.5m length.
IDP-014-10HP Tile Corner (1 Pcs)
