IDP-014-10HB TILE CORNER [SS SQUARE] [10 X 10 X 0.6MM] [BRUSHED] - 30534
Chat with us
Choose options
Architectural Precision in Every Corner — Where Durability Meets Design
The IDP-014-10HB Tile Corner Profile is a precision-engineered stainless steel SS304 finishing trim designed to cleanly enclose and protect tile edges at internal and external wall corners. With a sleek brushed hairline silver finish, a 10 x 10 x 0.6 mm square profile, and a full 2500 mm (2.5 m) length, it delivers a durable, low-maintenance border that elevates any tile installation from standard to architectural-grade.
| Key Features | Perfect For |
|---|---|
|
|
- SS304 Grade Stainless Steel Body: Fabricated from high-grade SS304 stainless steel, this tile corner profile delivers superior mechanical strength and outstanding corrosion resistance, making it fully suited for humid environments such as bathrooms, wet rooms, and exterior cladding applications where lesser metals would oxidize or degrade over time.

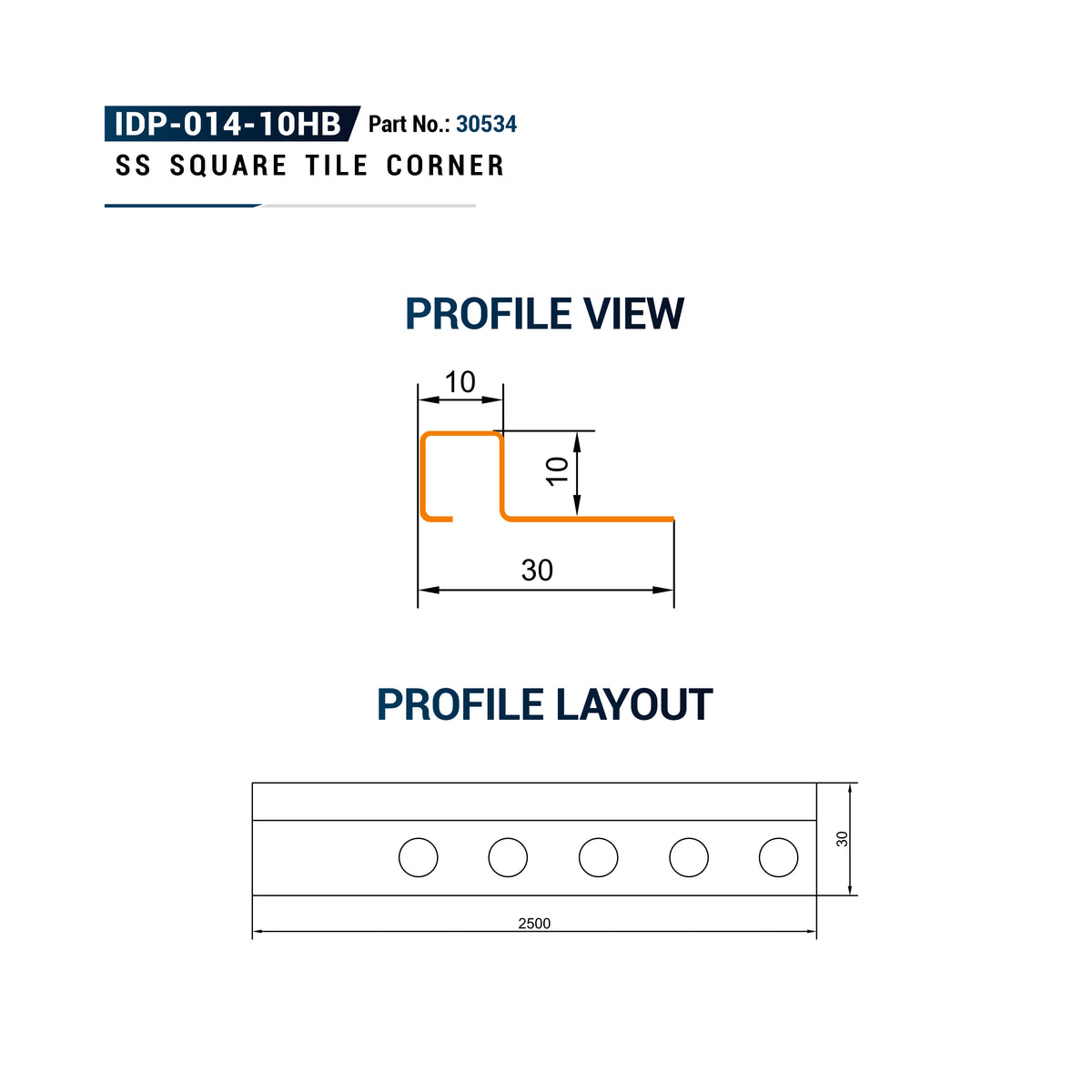

- Precision Square 10 x 10 mm Profile at 0.6 mm Thickness: The clean, right-angled square face geometry creates a sharp, modern termination line for tile borders. At just 0.6 mm wall thickness, the profile sits flush against tiled surfaces without creating unsightly bulges, ensuring a seamless, contractor-grade finish on both wall and floor tile junctions.

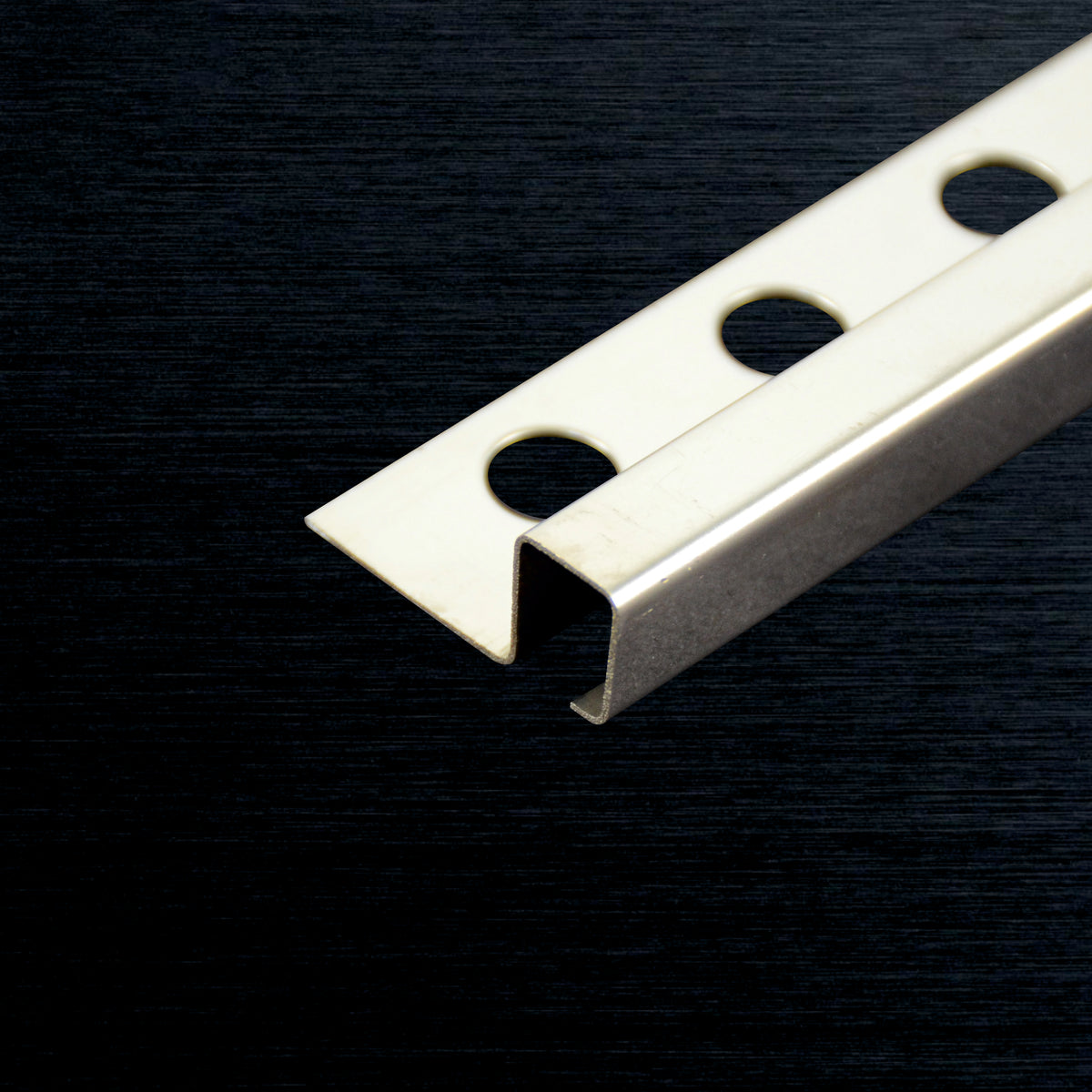

- Perforated Base Flange for Maximum Adhesion: The flat anchoring leg is engineered with circular cutout perforations that allow thin-set mortar or tile adhesive to key through and lock the profile firmly in place. This mechanical bonding system eliminates the risk of delamination under thermal cycling or structural movement, ensuring the trim remains permanently anchored.
- Brushed Hairline Silver Finish — Low-Glare Architectural Appeal: The surface treatment features a refined linear brushed grain that diffuses direct light, preventing harsh reflections under spotlighting or natural light. This contemporary brushed silver aesthetic pairs effortlessly with marble, porcelain, ceramic, and stone tiles in both warm and cool colour palettes.
- Full 2500 mm (2.5 m) Strip Length — Versatile and Efficient: Supplied in a 2.5-metre continuous length and weighing just 0.226 kg, the profile is lightweight enough for easy handling and cutting on-site while providing enough length to cover standard floor-to-ceiling corner runs in one piece, minimising joints and improving the overall visual continuity of the installation.
- Corner Impact Protection for Tile Edges: The boxed square face acts as a physical barrier between the exposed, unglazed tile edge and everyday foot traffic, furniture impact, and cleaning tools — preventing chipping, cracking, and moisture ingress at the most vulnerable point of any tiled surface.
- Dual Function — Structural Trim and Decorative Accent Strip: Beyond corner protection, the IDP-014-10HB functions as a crisp decorative border line that can be used to visually separate tile zones, frame niches, define shower enclosure boundaries, or create contrast bands between differently coloured tile fields on feature walls.
This tile corner profile is supplied as a single piece (1 Pcs) of the IDP-014-10HB trim and is suitable for installation by professional tilers and competent DIY enthusiasts using standard tile adhesive and grout techniques.
General Purchase & Comparison Queries
What material is the IDP-014-10HB tile corner profile made from?
The IDP-014-10HB is manufactured from SS304 grade stainless steel — a premium, food-safe alloy widely recognised for its superior corrosion resistance and mechanical strength. Unlike aluminium or PVC alternatives, SS304 will not corrode, warp, or discolour in high-humidity environments such as bathrooms, wet rooms, or exterior tiling applications, making it the preferred choice for long-lasting, professional-grade tile installations.
How does this square profile compare to a round-nose or pencil-edge tile trim?
The IDP-014-10HB features a geometric boxed square edge, which produces a sharp, right-angled termination line at tile corners — a distinctly modern and architectural aesthetic. Round-nose or pencil-edge trims deliver a softer, more traditional profile. The square profile is preferred in contemporary minimalist, industrial, and luxury interior design schemes where clean lines and precise geometry are a priority. It also provides a wider impact-bearing face at the corner, offering greater mechanical protection for the tile edge.
What length does each piece come in, and can it be cut to size on-site?
Each IDP-014-10HB tile corner profile is supplied in a 2500 mm (2.5 metre) length, which is sufficient to cover standard floor-to-ceiling wall corners in a single continuous piece, eliminating mid-run joints. The profile can be easily cut to any required length on-site using a fine-tooth metal hacksaw, angle grinder with a thin cutting disc, or a mitre saw fitted with a metal-cutting blade. Always deburr cut ends before installation to ensure a clean finish.
Product-Specific and Usage Queries
How is the IDP-014-10HB installed — does it require special adhesive?
The profile is installed using standard tile adhesive or thin-set mortar — no specialist products are required. The perforated base flange is the key installation feature: the circular cutouts along the anchoring leg allow the adhesive to key through and form a mechanical lock with the profile, ensuring it remains firmly bonded even under thermal movement or vibration. Apply adhesive to the wall, press the flange firmly into position, and bed your tiles up to the square face of the profile. Finish with matching or contrasting grout along the profile edge for a watertight seal.
Is the brushed finish on this profile scratch-resistant and easy to clean?
Yes. The brushed hairline silver finish on the IDP-014-10HB is a mechanical surface treatment applied directly to the SS304 stainless steel substrate, meaning there is no coating or plating that can chip or peel. The linear grain pattern also has the practical advantage of concealing minor surface micro-scratches that occur during routine cleaning, keeping the profile looking well-maintained over time. For cleaning, a damp cloth with a mild non-abrasive detergent is sufficient — avoid harsh chlorine-based cleaners which can attack the passive layer of stainless steel in the long term.
What tile thickness is compatible with this 10 x 10 mm profile?
The 10 mm face height of the IDP-014-10HB is designed to accommodate tiles in the 6 mm to 10 mm thickness range, which covers the majority of standard ceramic, porcelain, and natural stone wall tiles. For thicker tiles (such as 12–15 mm large-format slabs), a taller profile variant would be recommended to ensure the tile edge is fully enclosed. Always confirm tile thickness before selecting your trim profile to ensure the face height provides complete coverage of the unglazed tile edge.
Problem/Solution-Oriented Queries
My tile corners keep chipping — will this profile prevent that?
Yes. Tile edge chipping at corners is one of the most common problems in tiled installations and almost always occurs when the unglazed, unprotected tile edge is left exposed. The IDP-014-10HB completely encloses the tile edge behind its solid SS304 stainless steel square face, absorbing impact energy from foot traffic, cleaning equipment, and accidental knocks before it can reach the brittle tile material. Once installed, the metal face becomes the primary contact point at the corner — protecting the tile edge indefinitely and eliminating the need for costly tile replacement due to corner damage.
I am concerned about rust or staining around the trim in my wet room — is SS304 suitable?
SS304 stainless steel is specifically engineered for use in wet and high-humidity environments. It contains a minimum of 18% chromium, which forms a self-repairing passive oxide layer on the surface that provides continuous protection against moisture, cleaning chemicals, and organic staining. In standard residential wet room conditions, SS304 will not rust, stain, or corrode under normal use. For extreme marine or coastal environments with high salt concentrations, SS316 may be specified — but for indoor wet rooms, bathrooms, and commercial kitchens, SS304 is the industry-standard specification.
The trim is installed but there is a visible gap between the profile and my tile — how do I fix this?
A visible gap between the tile face and the trim profile is typically caused by one of three issues: the adhesive bed not being built up sufficiently before the profile was set, the tile not being pressed firmly enough into the adhesive while the profile was still wet, or slight surface irregularity in the substrate. To resolve this on an existing installation, fill the gap with a colour-matched flexible sealant or grout, pressing it firmly into the joint and smoothing flush with a damp finger or grout tool. For future installations, ensure the adhesive is applied at a consistent bed depth and use temporary tile wedges to hold the profile in position while the adhesive cures to prevent movement.
IDP-014-10HB Tile Corner (1 Pcs)
