IDP-0130MB U-CHANNEL [ALUMINIUM] [10 X 10MM] [MATTE BLACK] - 30528
Chat with us
Choose options
Precision-Engineered Edge Protection with a Bold Matte Black Statement

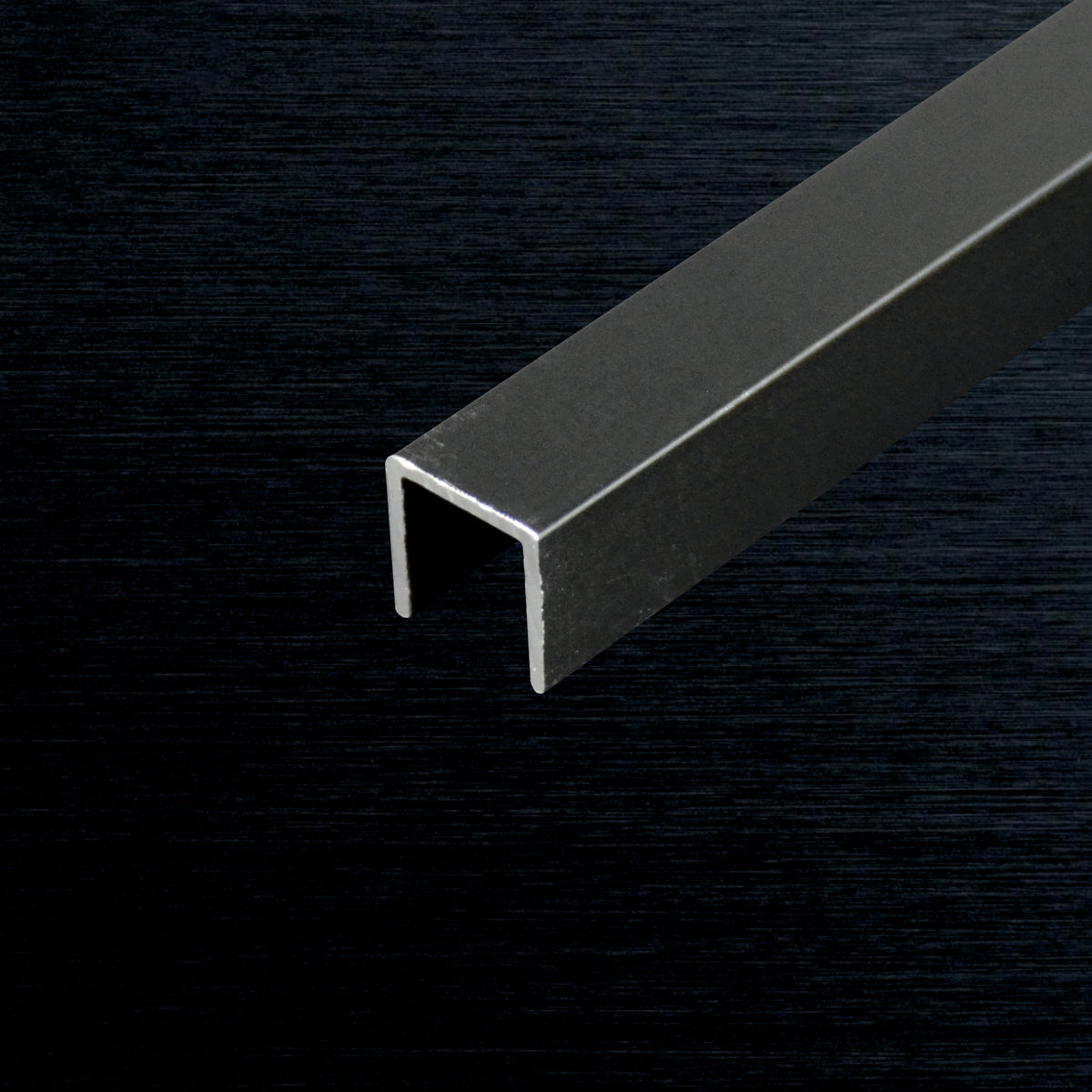

Aluminium U-channel profile engineered for glass panel framing, partition edge protection, and decorative wall detailing in both residential and commercial settings. The IDP-0130MB is precision-extruded from premium-grade aluminium and finished in a bold matte black anodized coating, delivering a clean three-sided enclosure that protects raw edges while creating sharp, contemporary architectural lines. At 10 x 10 mm and 2500 mm in length, this compact yet rigid U-channel fits seamlessly into tile transitions, glass partitions, and decorative panel joints.
| Key Features | Perfect For |
|---|---|
|
|
- Premium-Grade Extruded Aluminium Body: The IDP-0130MB is formed through high-pressure aluminium extrusion, producing a dimensionally stable, rigid U-channel that maintains its shape under load. The material resists the corrosion, moisture damage, and mechanical deformation that affect lesser ferrous or plastic edge profiles — making it a reliable long-term solution in demanding environments.
- Matte Black Anodized Surface Treatment: The anodized matte black finish is integrated into the aluminium surface rather than applied as a coating, which means it will not peel, flake, or fade under normal installation conditions. This creates a consistent, non-reflective black aesthetic that pairs with dark grout lines, black hardware, and monochromatic interior schemes.

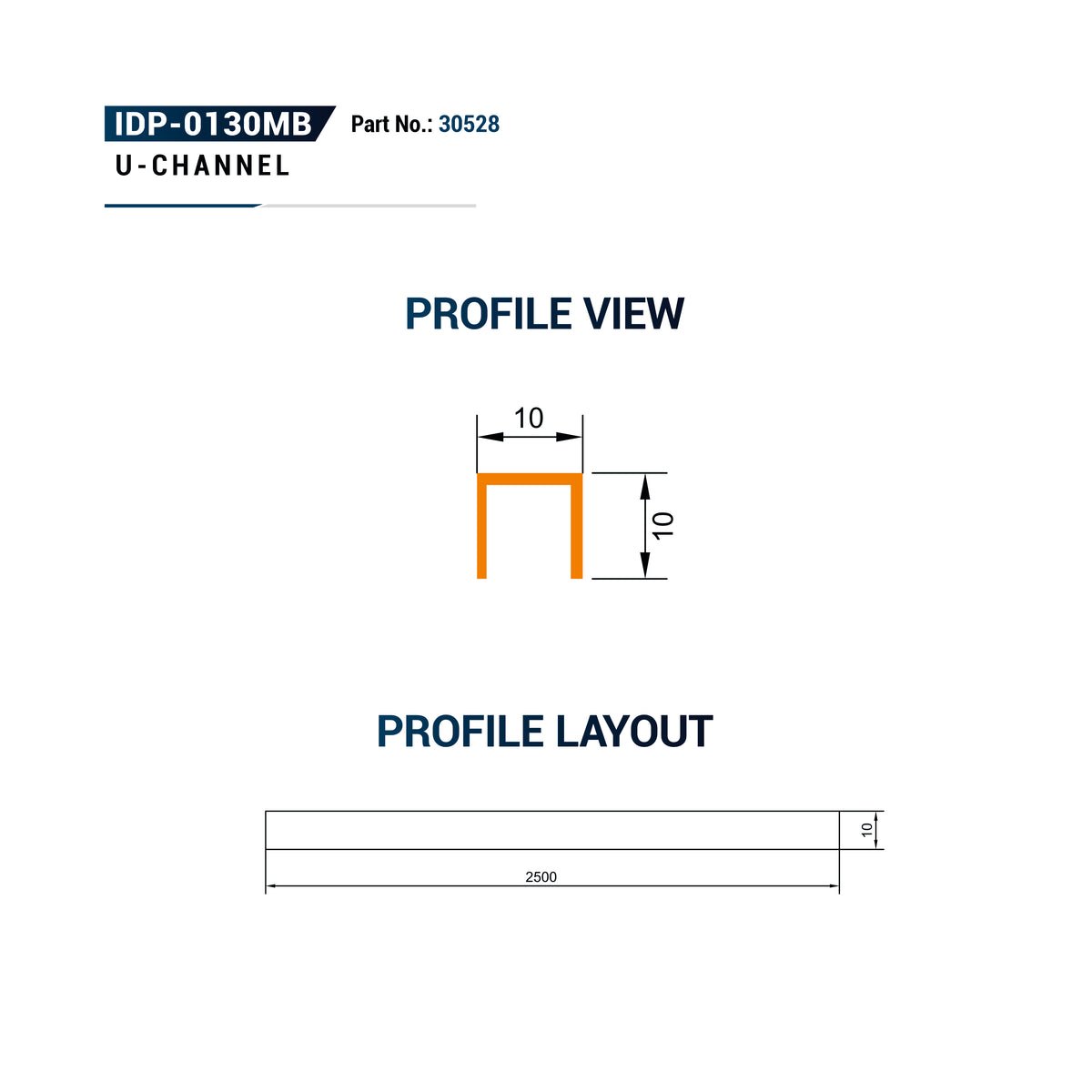

- 10 x 10 mm Three-Sided Recessed Channel: The precisely 10 x 10 mm channel geometry is designed to accept glass panels, ceramic tile edges, and composite board borders with minimal play. The three-sided enclosure distributes pressure evenly across the panel edge, protecting against chipping, cracking, and moisture ingress at vulnerable exposed perimeters.
- 2500 mm (2.5 m) Full-Length Bar: Each piece ships as a single 2.5-metre length, allowing installers to span full wall heights or long tile runs with minimal joins. The consistent cross-section throughout the bar ensures uniform framing depth and channel width from end to end, eliminating the inconsistency associated with short-length profiles.
- Flush and Recessed Installation Compatibility: The slim 10 mm profile depth is designed to sit flush within standard wall substrates, including tile adhesive beds and gypsum board joints. This allows the channel to disappear into the surface and present only the matte black rim — creating a recessed architectural accent line rather than a surface-mounted trim.
- Net Weight of 0.076 kg Per Bar: At just 76 grams per 2.5-metre length, the IDP-0130MB adds negligible load to wall assemblies and glass partition systems. Its lightweight nature simplifies handling and cutting on site while maintaining the structural rigidity required for edge protection in high-traffic commercial and residential applications.
This profile is supplied as a single IDP-0130MB U-Channel piece per unit, measuring 2500 mm in length. It carries no applied coating risk and is suitable for both interior wet and dry area installations where a durable, architecturally refined aluminium edge profile is required.
General Purchase & Comparison Queries
What makes the IDP-0130MB different from standard plastic edge trim?
Unlike standard plastic edge trim, the IDP-0130MB is extruded from premium-grade aluminium, which means it will not warp under heat, crack under mechanical stress, or degrade in wet environments. The anodized matte black finish is surface-integrated rather than painted, so it maintains its appearance over the long term without peeling or fading — making it a superior choice for both residential and commercial installations.
Is this profile suitable for both indoor and outdoor applications?
The IDP-0130MB is primarily designed and optimised for interior applications, including bathrooms, wet rooms, office partitions, and feature walls. While the anodized aluminium construction provides good resistance to moisture and humidity, prolonged direct exposure to outdoor elements such as UV radiation and rain is not recommended without additional sealing measures. For outdoor-facing installations, please consult with a qualified installer.
Can I cut this U-channel to a shorter length on site?
Yes. The IDP-0130MB is supplied as a 2500 mm (2.5 m) full-length bar and can be cut to any required shorter length using a fine-toothed metal-cutting blade or mitre saw fitted with an aluminium-rated cutting disc. For a clean, burr-free edge, use a file or deburring tool after cutting. The consistent cross-section throughout the bar ensures cut sections retain the same channel geometry and finish quality as the full-length piece.
Product-Specific and Usage Queries
What panel or tile thickness does the 10 x 10 mm channel accommodate?
The 10 x 10 mm channel dimensions are designed to accommodate panel and tile edges typically up to approximately 8–9 mm in thickness, leaving room for adhesive or sealant application along the channel walls. For glass panels, we recommend verifying the exact glass thickness with your supplier and allowing a 1–2 mm tolerance gap filled with a compatible neutral-cure silicone sealant to ensure a secure and watertight fit.
How is the IDP-0130MB installed into a wall joint?
The IDP-0130MB is installed by setting it into the tile adhesive or substrate bed before the adjacent tiles or panels are fixed in place. The channel is pressed flush into the joint, with one flange embedded in the adhesive and the open face of the channel exposed to receive the incoming panel or tile edge. A neutral-cure silicone sealant is then applied inside the channel to secure the panel, seal against moisture, and prevent movement. The slim 10 mm profile depth is designed to sit within standard adhesive bed thicknesses without requiring additional substrate build-up.
Does the matte black finish require any special maintenance?
The anodized matte black surface of the IDP-0130MB is low-maintenance by design. Routine cleaning with a soft cloth and mild, non-abrasive detergent is sufficient to maintain its appearance. Avoid using acidic cleaners, bleach-based products, or abrasive scrubbing pads, as these can damage the anodized layer over time. In bathroom and wet area environments, wiping down the profile after exposure to hard water will prevent limescale build-up on the surface.
Problem/Solution-Oriented Queries
The tile edge in my bathroom is chipping — can this channel fix it?
If your tile edge is already installed and chipping, the IDP-0130MB can serve as a protective overlay solution when used during a re-tiling or renovation project. By enclosing the raw or vulnerable tile edge within the three-sided aluminium channel, you eliminate the exposed corner that is prone to chipping and physical impact damage. For best results, plan the channel installation as part of the tiling process rather than as a surface-applied fix over existing tiles.
I need a black trim that matches my dark hardware — will this profile look consistent?
Yes. The matte black anodized finish of the IDP-0130MB is specifically formulated to deliver a uniform, non-reflective dark tone that coordinates well with matte black tapware, handles, shower fittings, and architectural hardware. Because the finish is anodized rather than painted, it avoids the sheen variation that can make paint-finished trims look inconsistent against brushed or satin-finish fixtures. We recommend viewing a physical sample alongside your existing hardware before committing to a full installation.
What if the channel does not sit perfectly flush after installation?
If the IDP-0130MB is not sitting flush after setting in the adhesive bed, the most common cause is an uneven substrate or insufficient adhesive bed depth. Before the adhesive cures, the channel can be pressed or shimmed into the correct flush position. Use a spirit level or straight edge to verify alignment before the panel or tile is inserted. If the substrate is uneven, a flexible tile adhesive that allows minor height adjustment is recommended. Once cured, the channel can be secured further with a bead of neutral-cure silicone along the internal faces.
IDP-0130MB U-Channel (1 Pcs)
