IDP-0130G U-CHANNEL [ALUMINIUM] [10 X 10MM] [POLISH GOLD] - 30527
Chat with us
Choose options
Precision-Engineered Gold Aluminium U-Channel for Flawless Edge Finishing
The IDP-0130G U-Channel Aluminium Profile in Polish Gold is a precision-extruded, three-sided aluminium edge protection channel engineered to frame, conceal, and protect exposed edges of glass panels, partition boards, tile fields, and decorative wall inserts. With a compact 10 × 10 mm cross-section and a full 2.5 m length, this recessed framing channel delivers a flush, contemporary finish across residential and commercial installations.
| Key Features | Perfect For |
|
|
- Heavy-Duty Aluminium Construction: Extruded from premium-grade aluminium, the IDP-0130G is engineered to withstand continuous wear, impact, and moisture exposure without bending, warping, or corroding — ensuring a long-lasting, structurally sound edge frame in both residential bathrooms and high-traffic commercial environments.

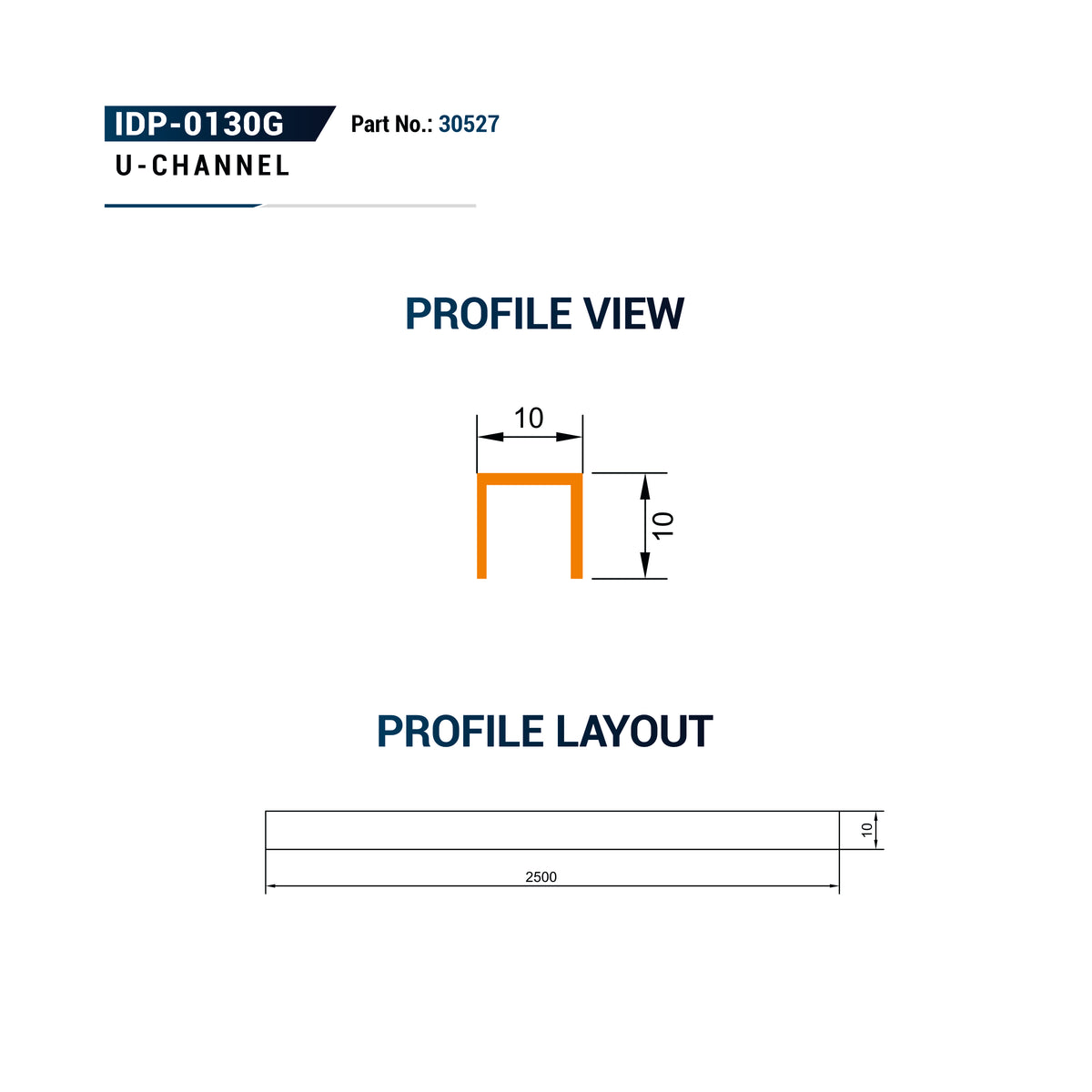

- 10 × 10 mm Recessed Channel Profile: The compact 10 mm × 10 mm cross-section is precisely sized to accommodate standard glass panels, tile edges, and partition boards, creating a snug, three-sided enclosure that shields vulnerable material borders against physical damage and moisture ingress.
- 2.5 m Full-Length Strip (Net Weight 0.076 kg): Each unit ships as a single 2,500 mm continuous profile, minimising joints and visible seams across large-format tile fields or extended wall installations — ideal for floor-to-ceiling feature walls and full-height glass partitions.

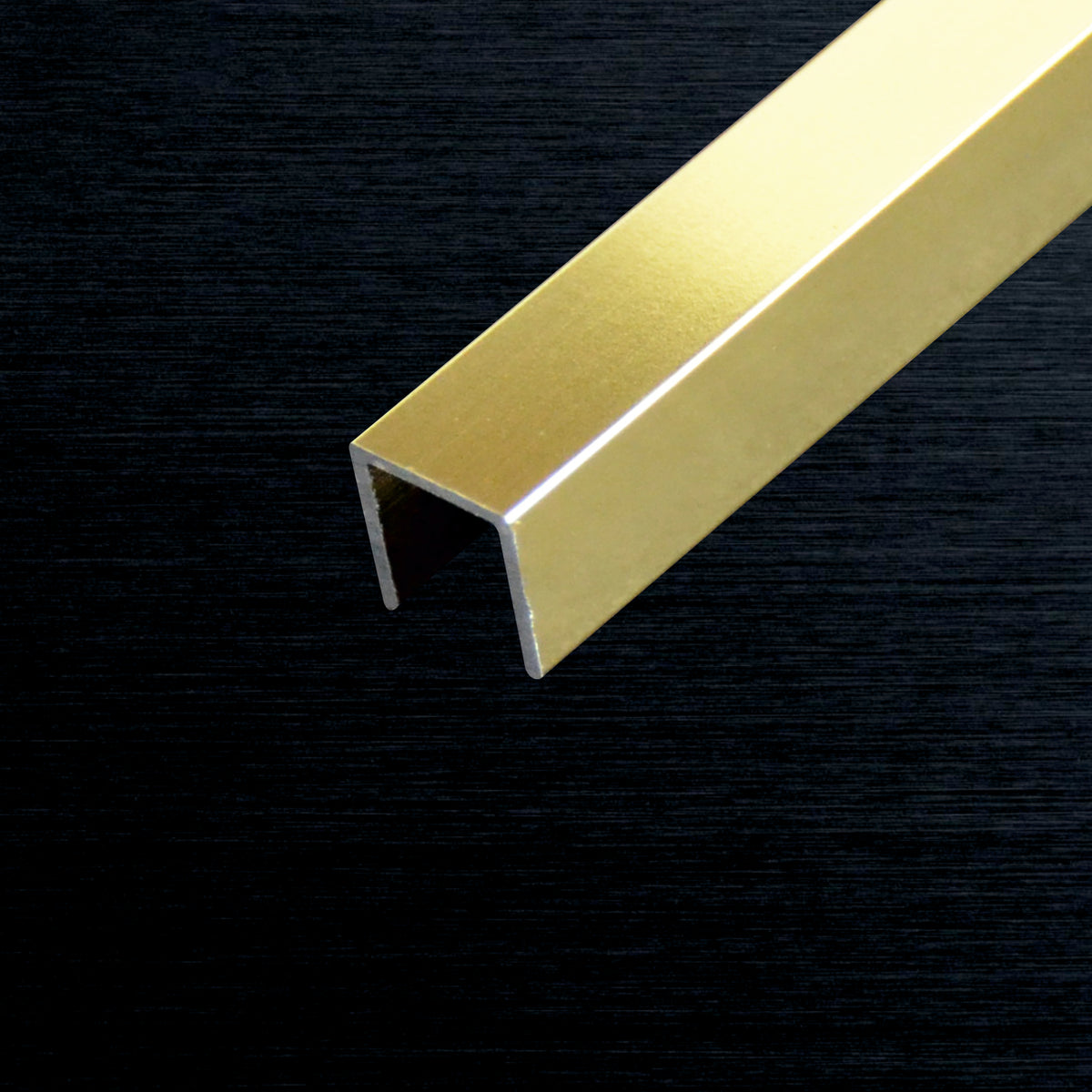

- Polished Gold Decorative Finish: The high-shine Polish Gold surface treatment adds a premium metallic accent line wherever it is applied, complementing warm interior palettes, marble-effect tiles, and luxury fitout schemes in hotels, spas, residential master bathrooms, and boutique commercial spaces.
- Flush, Recessed Architectural Fit: Designed to sit recessed into wall joints and panel transitions, the U-channel aligns flush with the surrounding surface for a clean, contemporary architectural line — eliminating the raised-edge look of surface-mounted trims and delivering a truly integrated finish.
- Versatile Edge Protection Application: Equally suited to glass panel framing, decorative wall inserts, partition board capping, and tile transition strips, this profile adapts to virtually any installation requiring a neat, durable, and visually refined edge treatment across residential, hospitality, and commercial fitout projects.
The IDP-0130G U-Channel is supplied as one piece per unit and ships ready to cut and install on-site. This product is designed and manufactured to meet the quality standards expected in professional construction and interior fitout applications.
General Purchase & Comparison Queries
What material is the IDP-0130G U-Channel made from, and how does it compare to PVC or stainless steel alternatives?
The IDP-0130G is extruded from premium-grade aluminium, which strikes the ideal balance between lightweight handling and structural rigidity. Unlike PVC trims, aluminium will not soften under heat or UV exposure, and it resists impact far better over time. Compared to stainless steel, aluminium is significantly lighter and easier to cut on-site, while the Polish Gold anodised or coated finish delivers equivalent visual impact at a more accessible price point for large-format installations.
Is the Polish Gold finish suitable for wet areas such as bathrooms and showers?
Yes. The aluminium core provides inherent corrosion resistance, making the IDP-0130G suitable for wet-area applications including bathroom walls, shower surrounds, and spa feature walls. The Polish Gold surface finish is designed to maintain its high-shine lustre in humid environments. For submerged or permanently waterlogged installations, we recommend consulting your tiler or fitout contractor to ensure correct sealant application around the channel edges.
How many pieces do I need to cover a standard feature wall, and what length does each unit come in?
Each IDP-0130G unit is supplied as a single 2,500 mm (2.5 m) continuous profile. To estimate quantity, measure the total linear metres of edge you need to frame and divide by 2.5 m, rounding up to account for mitre cuts and wastage. For a standard 2.4 m floor-to-ceiling wall panel, one length is typically sufficient per vertical edge, with off-cuts usable for shorter horizontal runs.
Product-Specific and Usage Queries
What thickness of glass panel or tile edge will the 10 × 10 mm channel accommodate?
The 10 × 10 mm internal channel profile is sized to accept panel and tile edges with a thickness that fits within the channel opening. For best results, measure the actual edge thickness of your glass, board, or tile before ordering. The channel is most commonly used with standard glass panels and tile edges in the 6–8 mm range, though exact compatibility depends on the specific material. A small amount of flexible adhesive or sealant is typically applied inside the channel to secure thinner panels in place.
Can the IDP-0130G be cut to size on-site, and what tools are recommended?
Yes, the aluminium U-channel can be cut to any required length on-site using a fine-tooth metal-cutting saw blade, an angle grinder with an aluminium-cutting disc, or a mitre saw fitted with a non-ferrous metal blade. Always deburr cut ends with a fine file before installation to achieve a clean, flush joint. For mitre corners, a 45-degree cut on each adjoining piece produces the neatest finish.
How is the U-channel fixed to the wall — does it require adhesive, screws, or both?
The IDP-0130G is typically installed using tile adhesive or construction-grade bonding adhesive applied to the back face of the channel before it is pressed into the wall joint or panel edge. For heavier applications or in areas subject to vibration, small countersunk screws through pre-drilled holes in the channel back can provide additional mechanical fixing. The recessed fit of this profile naturally locks it in place once surrounding tiles or panels are set, contributing to overall installation stability.
Problem/Solution-Oriented Queries
The Gold finish on my trim has started to dull or discolour — what could cause this and how do I restore it?
Dulling or discolouration on a Polish Gold aluminium finish is most commonly caused by prolonged contact with harsh chemical cleaners, abrasive scrubbing pads, or acidic tile grout residue left on the surface. To restore the finish, clean gently with a soft cloth and a pH-neutral, non-abrasive cleaner. Avoid bleach-based or acid-based products. For ongoing maintenance, wipe down the channel with a dry or lightly damp cloth after wet-area use to prevent mineral deposit build-up that can mask the high-shine surface.
My channel has a slight bow along its length after cutting — how do I straighten it for a flush installation?
A minor bow in an aluminium profile can occur if the piece has been stored incorrectly or subjected to uneven pressure during transit. To correct this, gently apply even hand pressure along the bowed section against a flat surface — aluminium at this gauge is malleable enough to be straightened without specialist tools. If the bow is more pronounced, lay the channel flat on a workbench and use a rubber mallet with a softwood block to apply gradual, even pressure along the affected length until it sits flush. Always check alignment against a straight edge before committing the channel to adhesive.
There is a visible gap between my channel and the tile or panel edge — how do I achieve a tighter, neater joint?
Visible gaps between the U-channel and the inserted panel or tile edge are usually the result of a size mismatch between the panel thickness and the channel opening, or insufficient adhesive coverage on installation. The most effective solution is to fill the gap with a colour-matched, flexible silicone sealant in a gold or neutral tone, which both closes the visual gap and provides a waterproof seal. For future installations, dry-fit the channel to the panel edge before applying adhesive to verify fit, and pack the channel slightly with adhesive to take up any tolerance difference.
IDP-0130G U-Channel (1 Pcs)
