Precision-Engineered Aluminium Edge Trim Built for Long-Lasting, Professional Finishes
The IDP-0113AS aluminium L-profile trim delivers a sharp, professional 90-degree edge termination for tiles, wall cladding, stone, and countertop borders. Engineered from premium-grade extruded aluminium with a 10mm anodized silver finish, this 2.5m L-shaped edge trim protects exposed material edges from chipping, cracking, and wear, ensuring a clean, durable border line across high-traffic residential and commercial surfaces.
| Key Features | Perfect For |
|
|

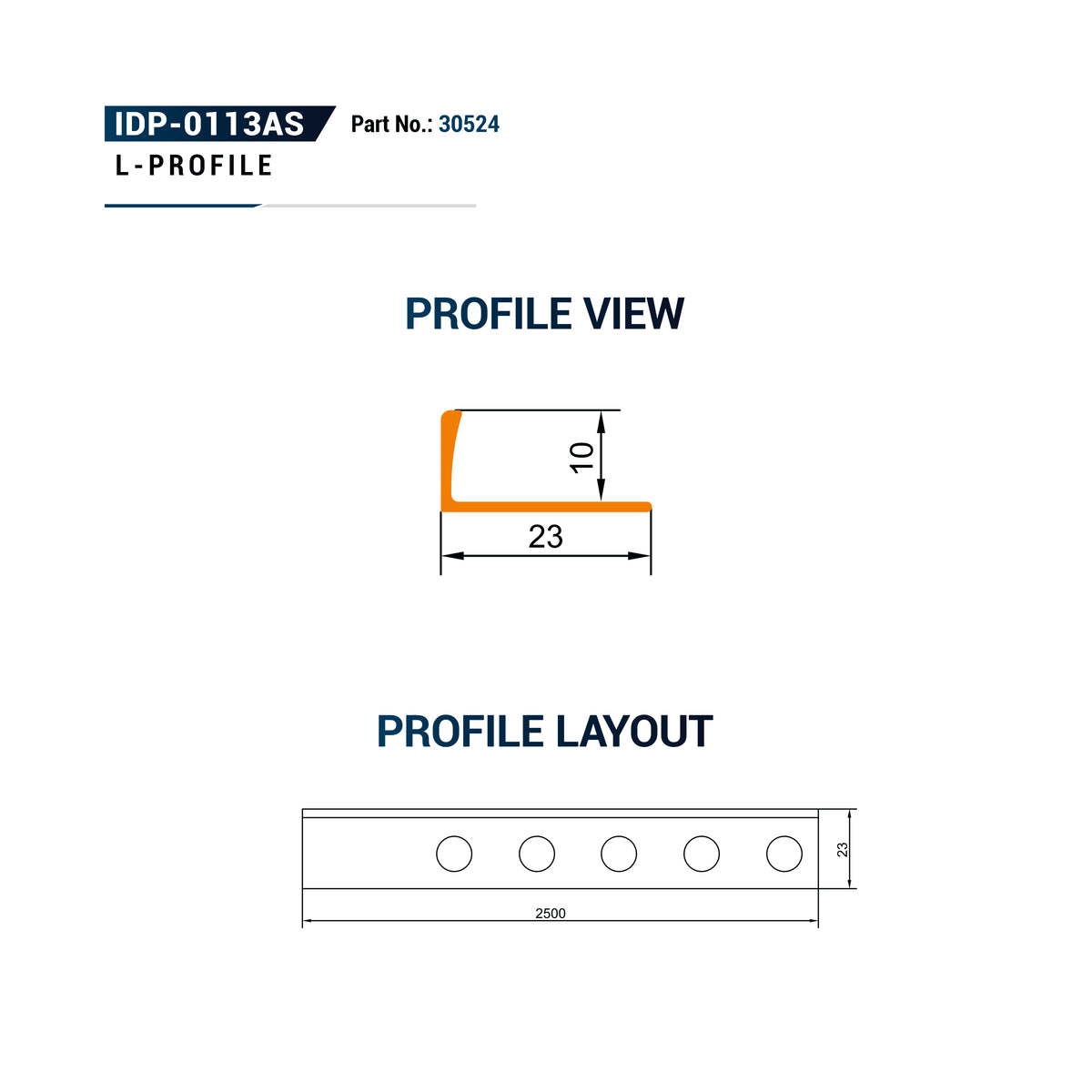

- Premium Extruded Aluminium Body (10mm x 23mm, 2.5m Length): Manufactured from high-grade extruded aluminium alloy, this L-profile measures 10mm on the vertical lip and 23mm on the horizontal base flange, spanning a full 2500mm (2.5 metres) per piece. Its rigid structure withstands high foot traffic, lateral impact, and daily wear without bending, warping, or deforming — making it a reliable long-term edge protection solution for both residential and commercial tiling projects.
- Durable Anodized Silver Finish with Superior Scratch and Oxidation Resistance: The anodized silver satin-matte coating is electrochemically bonded into the aluminium surface rather than applied as a paint layer, resulting in a finish that resists scratches, scuffs, household chemicals, and oxidation. The neutral silver tone integrates seamlessly with modern tile palettes — including grey, white, beige, and stone-effect surfaces — without overpowering the design aesthetic.
- Precision 90-Degree L-Profile for Clean, Minimal Edge Termination: The sharp 90-degree L-shape geometry creates a precise, minimal transition line at exposed tile or cladding edges. The smooth vertical lip sits flush against the tile face while the flat base flange runs beneath or beside the installation — locking raw material edges securely in place and eliminating unsightly exposed cuts, gaps, or uneven borders along walls, floors, and countertops.

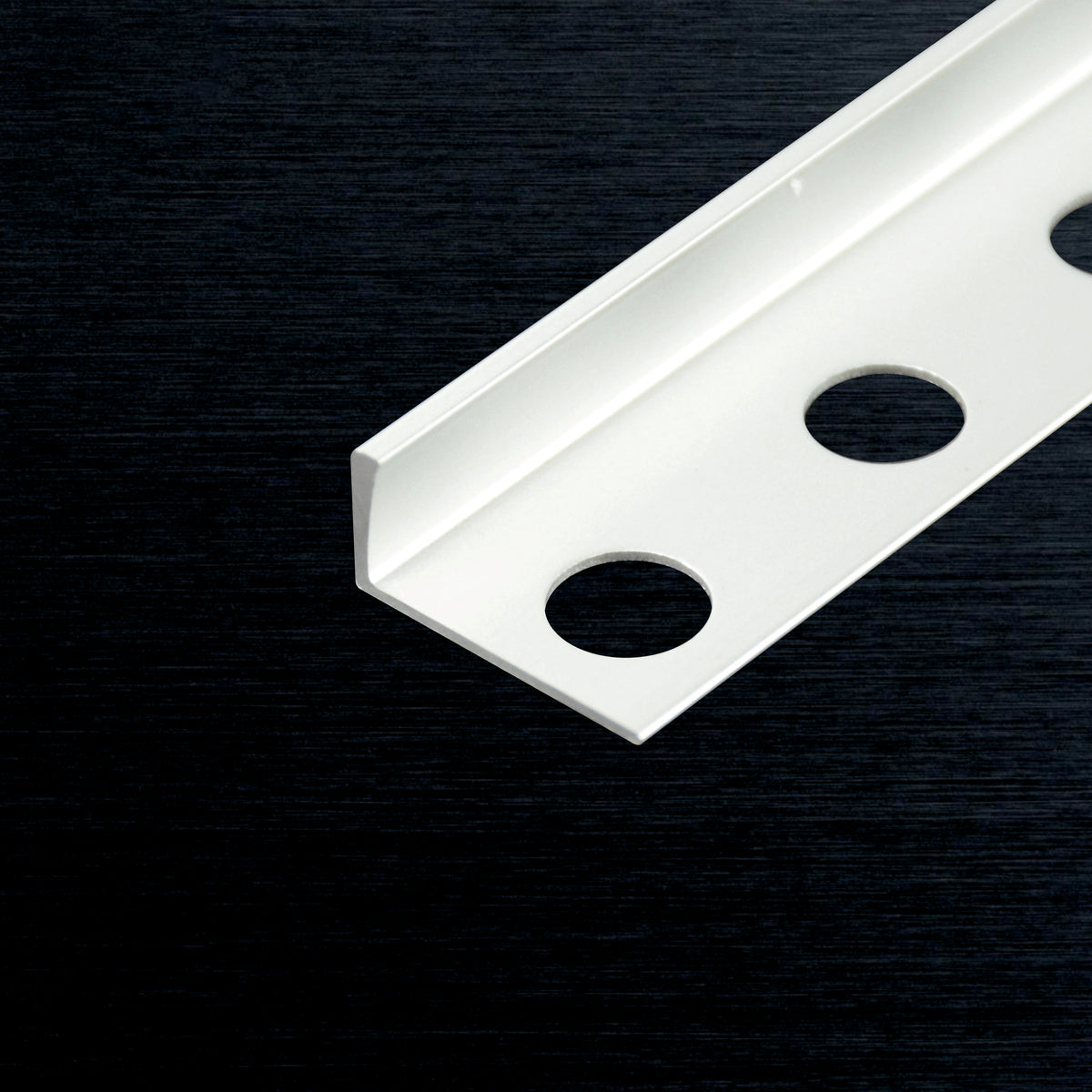

- Perforated Base Flange for Fast, Secure Adhesive Anchoring: The horizontal base flange features circular perforated mounting holes distributed along its full length to allow tile adhesive or mortar to bond through the profile directly to the substrate. This eliminates the need for additional mechanical fixings in most applications, speeds up installation significantly, and ensures the trim stays locked in position even in areas subject to thermal expansion, vibration, or moisture exposure.
- Edge and Chip Guard Protection for Tile and Stone Surfaces: By capping the exposed edge of tiles, porcelain, stone slabs, or wood-effect boards, this L-profile absorbs lateral impact stress that would otherwise cause chipping, cracking, or corner breakage at the most vulnerable point of any tiled surface. The net weight of just 0.108 kg per 2.5m piece keeps the total installed weight minimal while still delivering robust mechanical edge reinforcement.
- Versatile Application Across Residential and Commercial Interior Surfaces: Designed for broad compatibility, this aluminium L-trim is equally suited to floor tile perimeters, wall cladding borders, countertop nosing, bathroom splashback edges, and stair tread finishes. It performs consistently in dry, wet, and semi-exposed interior environments — including kitchens, bathrooms, hallways, hotel lobbies, retail spaces, and office fit-outs — where a clean and professional edge line is essential.
Each IDP-0113AS L-Profile is supplied as a single 2500mm piece of anodized silver aluminium trim, ready for immediate installation. This profile is a quality-engineered finishing component designed to meet the demands of professional tilers, interior contractors, and discerning DIY users who require consistent, repeatable results across large-format tile projects.
General Purchase & Comparison Queries
What material is the IDP-0113AS L-profile made from, and how does it compare to PVC or stainless steel edge trims?
The IDP-0113AS is manufactured from extruded aluminium — a material that strikes an optimal balance between weight, rigidity, and corrosion resistance. Compared to PVC trims, aluminium offers significantly higher impact resistance, dimensional stability under temperature change, and a far more premium aesthetic. Compared to stainless steel trims, aluminium is lighter (only 0.108 kg per 2.5m piece), easier to cut on-site, and typically more cost-effective, while still delivering excellent durability for interior applications. The anodized silver finish provides additional protection against oxidation without the risk of rust that can affect lower-grade steel alternatives.
What size tiles is the 10mm L-profile suitable for?
The 10mm vertical lip of the IDP-0113AS is designed to terminate tiles up to approximately 10mm in thickness, which covers the majority of standard ceramic, porcelain, and natural stone floor and wall tiles commonly used in residential and commercial installations. For thicker large-format slabs or stacked stone applications, a larger profile height may be required. The 23mm base flange provides ample bedding surface for adhesive bonding beneath tiles of varying formats, from small mosaic sheets to large 600mm x 600mm and 600mm x 1200mm floor tiles.
How many pieces do I need for a standard room perimeter?
Each IDP-0113AS L-profile piece measures 2500mm (2.5 metres) in length. To calculate the quantity required, measure the total linear metres of exposed tile edges in your installation — such as wall perimeters, doorway thresholds, or countertop nosing runs — and divide by 2.5. It is recommended to add a 10–15% overage to account for angled cuts, waste, and any on-site adjustments. For example, a room perimeter of 20 linear metres would require a minimum of 8 pieces plus overage.
Product-Specific and Usage Queries
How is the IDP-0113AS L-profile installed — does it require special fixings?
The IDP-0113AS is installed using standard tile adhesive or mortar, which bonds through the circular perforated holes along the base flange directly to the substrate beneath. No special mechanical fixings, screws, or clips are required for typical interior floor and wall applications. The profile should be positioned at the tile edge before the adhesive sets, pressed firmly into the bed, and held in place until the adhesive achieves initial grip. For countertop or vertical wall applications where the profile is subject to gravitational pull during installation, temporary support or masking tape can be used to hold alignment while the adhesive cures.
Can this aluminium L-profile trim be cut to length on-site?
Yes. The extruded aluminium construction of the IDP-0113AS allows it to be cleanly cut to any required length on-site using a mitre saw, angle grinder, or aluminium-rated hacksaw. For precise 45-degree mitre joints at corners, a mitre saw with a fine-tooth blade is recommended to achieve clean, burr-free cuts. The anodized surface finish remains intact at cut ends and does not flake or peel, though exposed cut edges can be lightly deburred with fine sandpaper for a polished result. Always wear appropriate PPE when cutting aluminium profiles.
Is the anodized silver finish suitable for wet areas such as bathrooms or kitchens?
The anodized silver coating on the IDP-0113AS provides strong resistance to moisture, humidity, and common household cleaning chemicals, making it well-suited for use in bathrooms, kitchen splashbacks, and utility areas where intermittent water exposure is expected. Anodizing is an electrochemical process that integrates the protective layer into the aluminium surface rather than sitting on top of it, which means it will not peel, blister, or delaminate under wet conditions. However, this profile is intended for interior use and is not recommended for fully submerged or permanently wet-zone applications such as pool surrounds or outdoor exposed installations.
Problem/Solution-Oriented Queries
My tile edges are chipping at the borders — will this L-profile fix the problem?
Yes — the IDP-0113AS aluminium L-profile is specifically engineered to address this exact problem. Exposed tile edges are the most structurally vulnerable point of any tiled surface; without edge protection, lateral impact from foot traffic, furniture, or cleaning equipment causes progressive chipping and corner breakage over time. By capping the exposed edge with a rigid aluminium lip, the profile absorbs and redirects impact stress away from the tile corner, preventing further deterioration. For new installations, fitting this profile during laying will protect edges from day one. For existing installations with minor chipping, the profile can be retrofitted using adhesive along the base flange after cleaning and preparing the substrate.
IDP-0113AS L-Profile (1 Pcs)
