IDP-0111S TILE EDGE CORNER [ALUMINIUM] [12MM] [POLISH SILVER] - 30519
Chat with us
Choose options
Professional-Grade Aluminium Corner Profile — Built to Last, Designed to Impress
The IDP-0111S Tile Edge Corner Profile is a precision-engineered aluminium tile finishing trim designed to protect and frame exposed 90-degree outer tile edges at wall corners, ledge borders, and step nosings. Manufactured from premium-grade extruded aluminium with a sleek Polish Silver anodized finish, this 12mm profile eliminates the need for fragile mitered tile cuts while delivering a clean, long-lasting, professional result across residential and commercial tiling applications.
| Key Features | Perfect For |
|
|
- Premium Extruded Aluminium Body: The IDP-0111S is fabricated from heavy-duty extruded aluminium alloy that maintains its structural integrity under high foot traffic, mechanical impact, and daily wear. Unlike plastic or thin-gauge metal trims, this profile resists bending and warping even in demanding commercial environments, ensuring the tile edge remains perfectly protected for the lifetime of the installation.
- 12mm Square Boxed Edge with Retention Lip: The crisp 12mm right-angled square face creates a bold, geometric tile termination that suits modern and contemporary interior design schemes. The inward-facing retention lip grips the tile edge firmly during and after installation, preventing the profile from shifting and ensuring consistent alignment across the full 2500mm length.

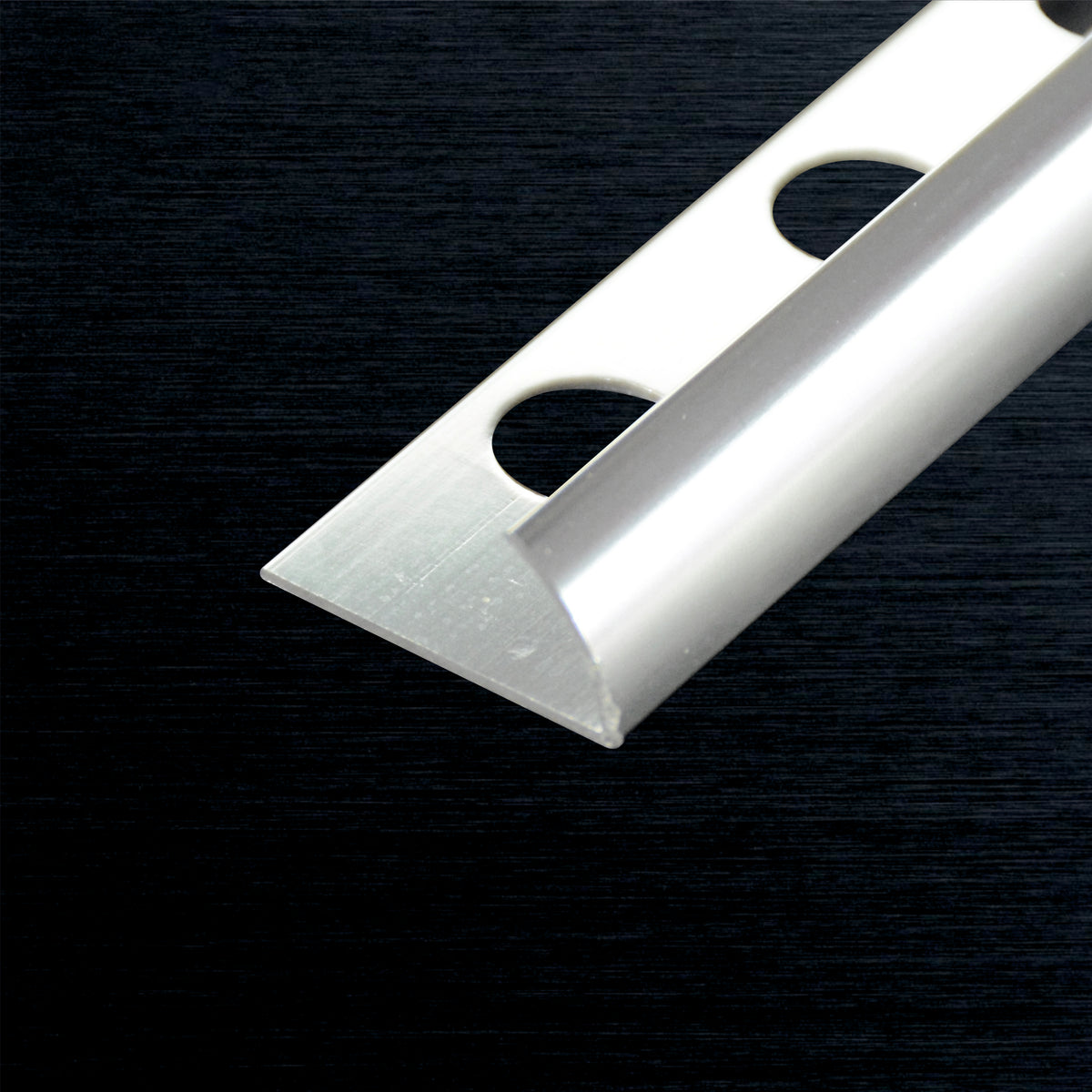

- Textured Perforated Anchoring Flange: The base flange features fine surface striations combined with circular perforated cutouts engineered specifically to maximize mechanical mortar grip. This dual-surface texture locks the profile securely into the tile adhesive bed, eliminating lifting, de-bonding, and profile movement over time — critical in wet areas and high-humidity environments.

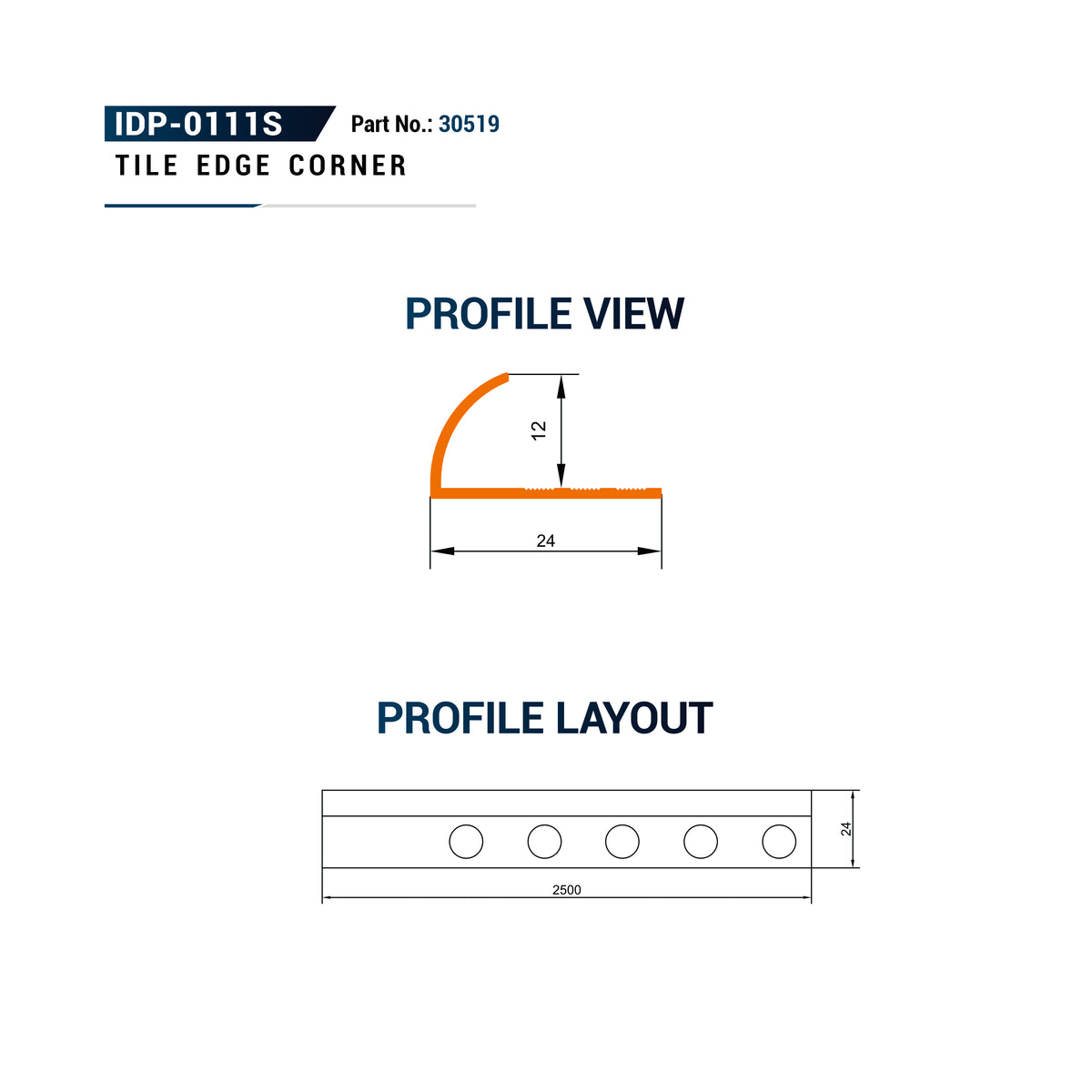

- Full 2500mm Profile Length: Each piece measures 2500mm (2.5 m) in length with overall cross-section dimensions of 12 mm height × 24 mm flange width, weighing just 0.104 kg. The full-length format minimizes the number of joints required on long runs, delivering a cleaner finish and faster on-site installation for professional tilers and contractors.
- Polish Silver Anodized Finish: The reflective Polish Silver surface finish is achieved through an anodizing process that bonds a protective oxide layer directly into the aluminium, making it highly resistant to scratching, tarnishing, and moisture ingress. This finish pairs seamlessly with chrome fixtures, stainless steel hardware, and neutral tile palettes that are standard in GCC and international residential and commercial projects.
- Impact and Chip Protection for Ceramic and Porcelain Tiles: Exposed tile edges — particularly on porcelain and large-format ceramic tiles — are highly susceptible to chipping from trolley impacts, dropped objects, and foot traffic. The IDP-0111S shields these vulnerable rims with a durable aluminium guard, eliminating the risk of costly tile replacement and maintaining a hygienic, crack-free corner finish over time.
- Versatile Decorative and Functional Application: Beyond corner protection, the IDP-0111S functions as a refined decorative accent strip or listello border between tile courses on feature walls and floors. Its clean profile geometry adds architectural definition to tiled surfaces in residential homes, boutique retail spaces, hotel lobbies, and commercial offices.
Each IDP-0111S Tile Edge Corner Profile is supplied as a single piece measuring 2500mm in length. The package includes one profile piece ready for on-site cutting and installation.
General Purchase & Comparison Queries
What makes the IDP-0111S different from a standard plastic tile trim?
Unlike standard plastic tile trims, the IDP-0111S is fabricated from heavy-duty extruded aluminium — a material that is significantly stronger, more impact-resistant, and longer-lasting. Aluminium will not crack, yellow, or become brittle over time the way PVC profiles do. Additionally, the Polish Silver anodized finish on the IDP-0111S is an integral part of the metal surface, not a painted coating, meaning it will not peel or fade even in wet or high-humidity environments.
Is the IDP-0111S suitable for both wall and floor tile applications?
Yes. The IDP-0111S is designed for versatile use across both wall and floor tiling applications. On walls, it provides a clean frame for external corners and ledge borders. On floors, it functions as a step nosing or edge protector for raised platforms and step risers. Its heavy-duty aluminium construction handles the mechanical load of foot traffic, making it equally effective in residential and commercial floor tiling projects.
What tile thickness is the 12mm IDP-0111S profile compatible with?
The 12mm profile height of the IDP-0111S is engineered to accommodate tiles installed with adhesive mortar, making it compatible with standard ceramic and porcelain tiles up to approximately 10–12mm in thickness. For thicker large-format tiles or natural stone, we recommend verifying the combined tile and adhesive bed thickness against the 12mm profile height before ordering to ensure a flush, level finish.
Product-Specific and Usage Queries
How is the IDP-0111S installed — does it require special adhesive or tools?
The IDP-0111S is installed using standard tile adhesive mortar. The textured perforated anchoring flange is embedded into the adhesive bed before the tiles are laid. The fine surface striations and circular perforations on the flange key into the mortar mechanically, providing a secure bond without the need for separate fasteners or special adhesives. For cutting the 2500mm profile to length, a standard fine-tooth metal hacksaw or aluminium-rated circular saw blade is recommended for a clean, burr-free cut.
Can the IDP-0111S be used in wet areas such as showers and bathrooms?
Yes. The extruded aluminium construction and anodized Polish Silver finish of the IDP-0111S make it highly resistant to moisture, humidity, and water ingress — all conditions common in shower enclosures, bathroom walls, and wet-room floors. The anodized surface does not corrode or tarnish when exposed to water and standard cleaning agents, making it an ideal long-term solution for wet-area tile edge finishing.
How do I achieve a neat join when two IDP-0111S profiles meet at an inside corner?
For inside corner joins, the recommended technique is to mitre-cut both profiles at a 45-degree angle using an aluminium-rated mitre saw or a manual mitre box with a fine-tooth hacksaw. Once cut, the two mitred ends are fitted into position as the tile adhesive is applied, and any fine gap at the join line can be finished with a matching silver silicone sealant to create a watertight, visually seamless internal corner joint.
Problem/Solution-Oriented Queries
My existing tile edges are chipping at the corners — can the IDP-0111S be retrofitted?
The IDP-0111S is primarily designed for new tile installations where the profile is embedded into the adhesive bed before tiling. Retrofitting onto already-laid chipping tile edges is not straightforward, as the anchoring flange requires mortar embedment for a secure bond. If tiles are still intact and only the exposed edge is damaged, the most effective solution is to carefully remove the affected tile row, bed the IDP-0111S profile into fresh adhesive, and re-lay the tiles flush against the profile face for a permanent, chip-resistant finish.
The profile seems to lift slightly at one end after installation — what could cause this?
Lifting at the ends of a tile edge profile is typically caused by insufficient adhesive mortar coverage beneath the anchoring flange, or by mortar that has skinned over before the profile was pressed into position. To prevent this, ensure the adhesive bed is freshly applied and the perforated flange is fully pressed into the mortar with firm, even pressure along the entire 2500mm length. Using a notched trowel to apply adhesive under the flange provides consistent coverage. Temporary masking tape can be used to hold the profile in alignment while the mortar cures.
The Polish Silver finish looks dull after cleaning — how do I restore and maintain it?
Dulling of the Polish Silver anodized finish after cleaning is usually caused by the use of abrasive cleaners, steel wool, or acidic cleaning agents that micro-scratch or chemically attack the anodized surface layer. To restore and maintain the finish, clean the profile with a soft cloth and a pH-neutral, non-abrasive detergent diluted in warm water. For light surface oxidation, a small amount of non-abrasive aluminium polish applied with a soft cloth will restore the reflective shine without damaging the anodized coating.

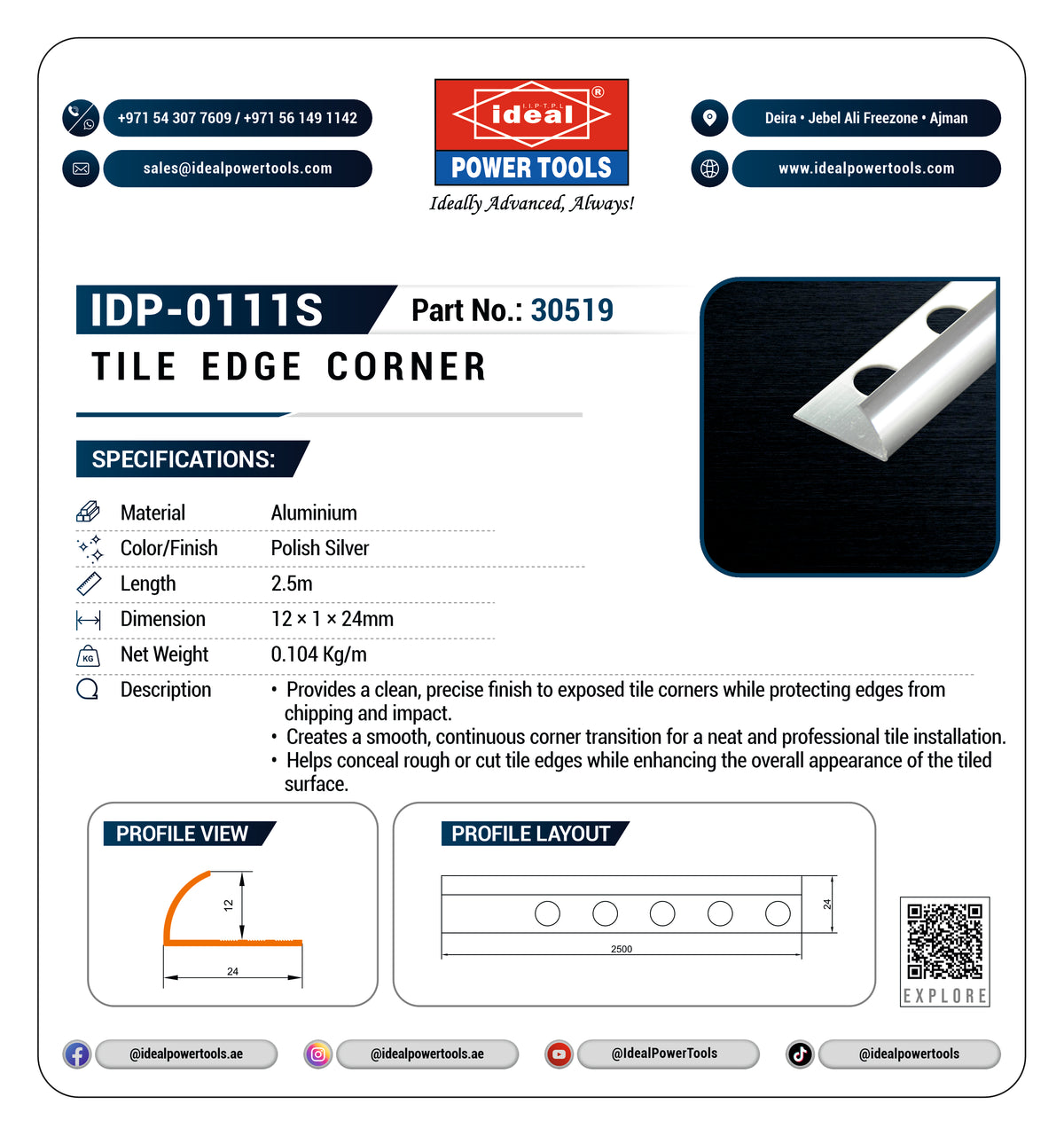

IDP-0111S Tile Edge Corner (1 Pcs)
