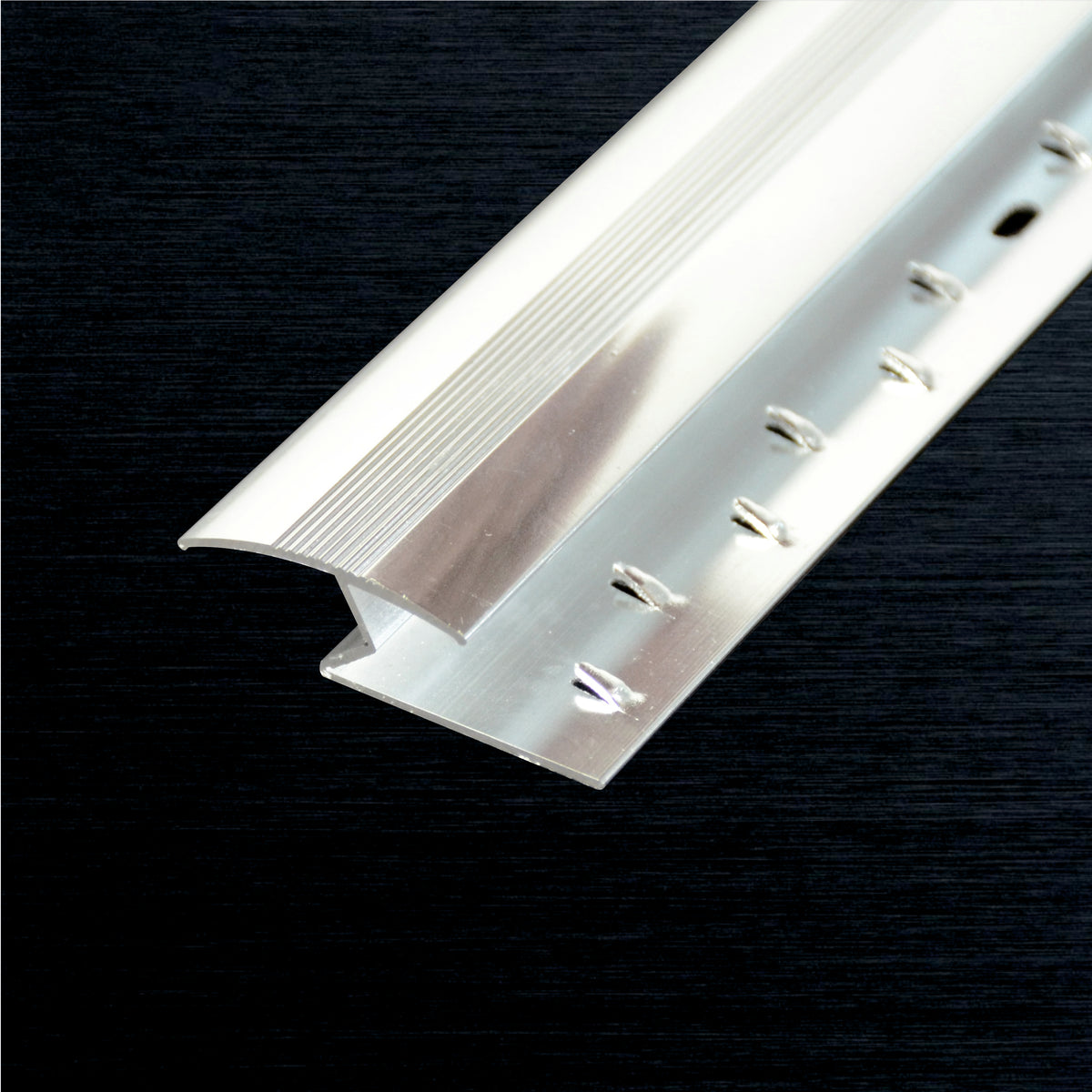

IDP-0105S Z-PROFILE [ALUMINIUM] [POLISH SILVER] - 30502

A Z-profile (also called an offset transition strip) is specifically designed to join two flooring surfaces that sit at different heights — most commonly where carpet meets a lower hard floor such as tile or vinyl. The Z-shape allows one arm to tuck beneath the carpet underlayment while the other arm clamps the carpet pile edge and overlaps the hard floor. A T-bar, by contrast, is used where both surfaces are at the same level, and a reducer is a ramp-style strip for surfaces with a slight but continuous height difference. If your carpet is sitting higher than the adjacent hard floor, the IDP-0105S Z-Profile is the correct profile choice.

The IDP-0105S Z-Profile is engineered for both residential and commercial environments. Its heavy-duty extruded aluminium construction is built to withstand high foot traffic in offices, retail spaces, hospitality venues, and public corridors without bending or losing grip over time. The pre-punched fixing slots ensure a rigid, tamper-resistant installation in demanding commercial settings, while the Polish Silver finish maintains a professional appearance consistent with contemporary commercial interior design.

Each IDP-0105S Z-Profile measures 2500 mm (2.5 metres) in length. A standard interior doorway in the GCC, UK, and EU is typically between 800 mm and 900 mm wide, meaning a single strip can cover two to three doorway transitions when cut to length. For wider openings such as open-plan room dividers or hallway thresholds, the 2.5 m length may cover the full span in one piece, eliminating the need for joints that can create weak points or alignment issues.

The directional gripper teeth are integrated into the upper lip of the Z-profile and are designed to mechanically bite into the carpet backing and pile fibres as the carpet is tucked and pressed into position. This mechanical grip is typically sufficient to hold the carpet edge securely without adhesive in standard residential installations. In high-traffic commercial areas or on polished subfloors where the base may have limited friction, applying a bead of flooring adhesive beneath the base prior to screwing down the profile is recommended for added stability. The pre-punched fixing slots provide the primary fastening, with the gripper teeth serving as a continuous anti-slip edge clamp.

Installation requires a metal-cutting saw or angle grinder to cut the profile to length, a drill or hammer for fixing, and standard floor screws or cut nails (not included) sized to suit your subfloor type — concrete subfloors will require masonry anchors or concrete nails, while timber subfloors are compatible with standard wood screws. The pre-punched fixing slots are evenly spaced along the 2500 mm base, so no additional drilling is required. A rubber mallet or carpet tucker tool is useful for pressing the carpet pile firmly into the gripper teeth for a clean, professional finish.

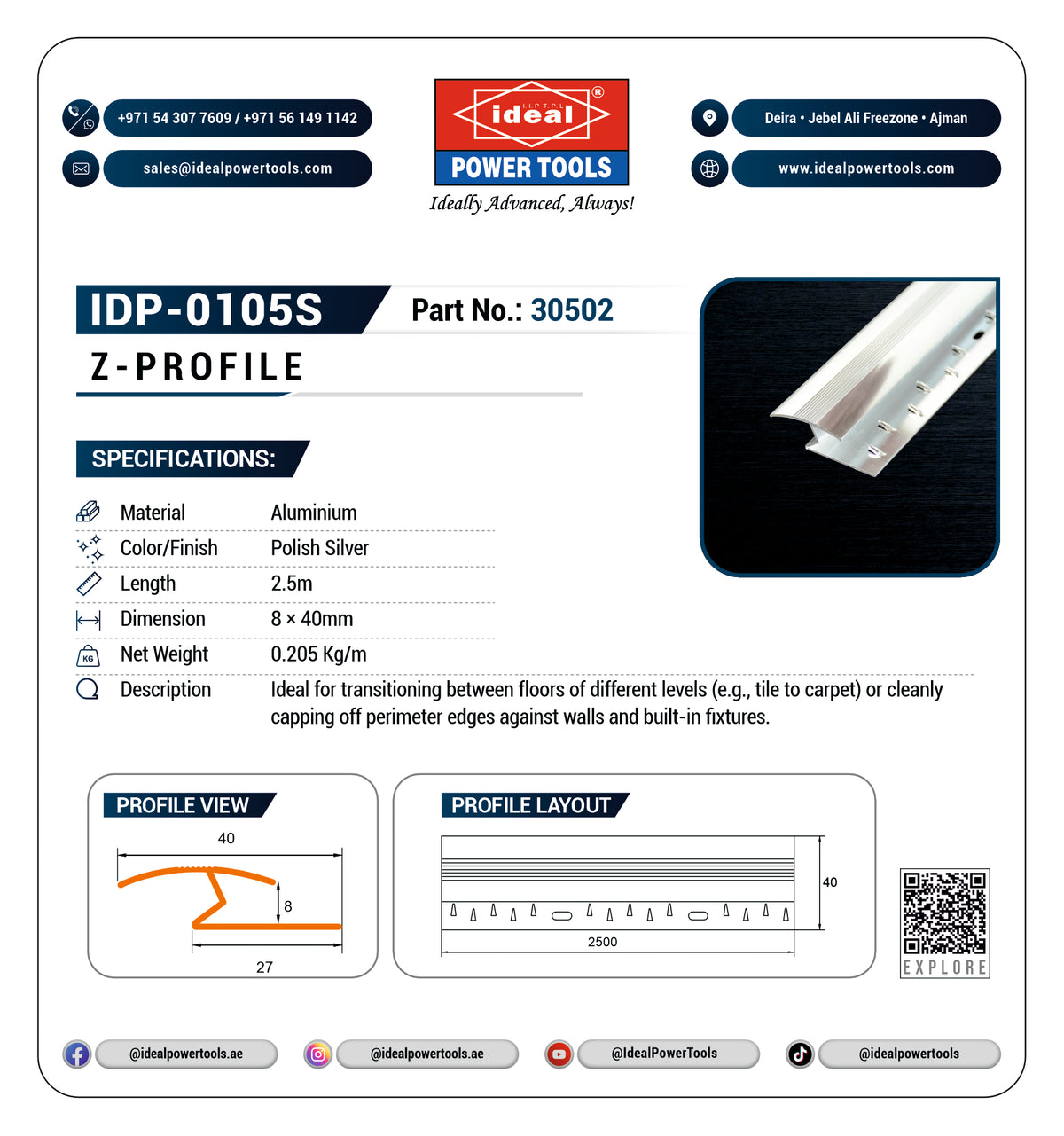

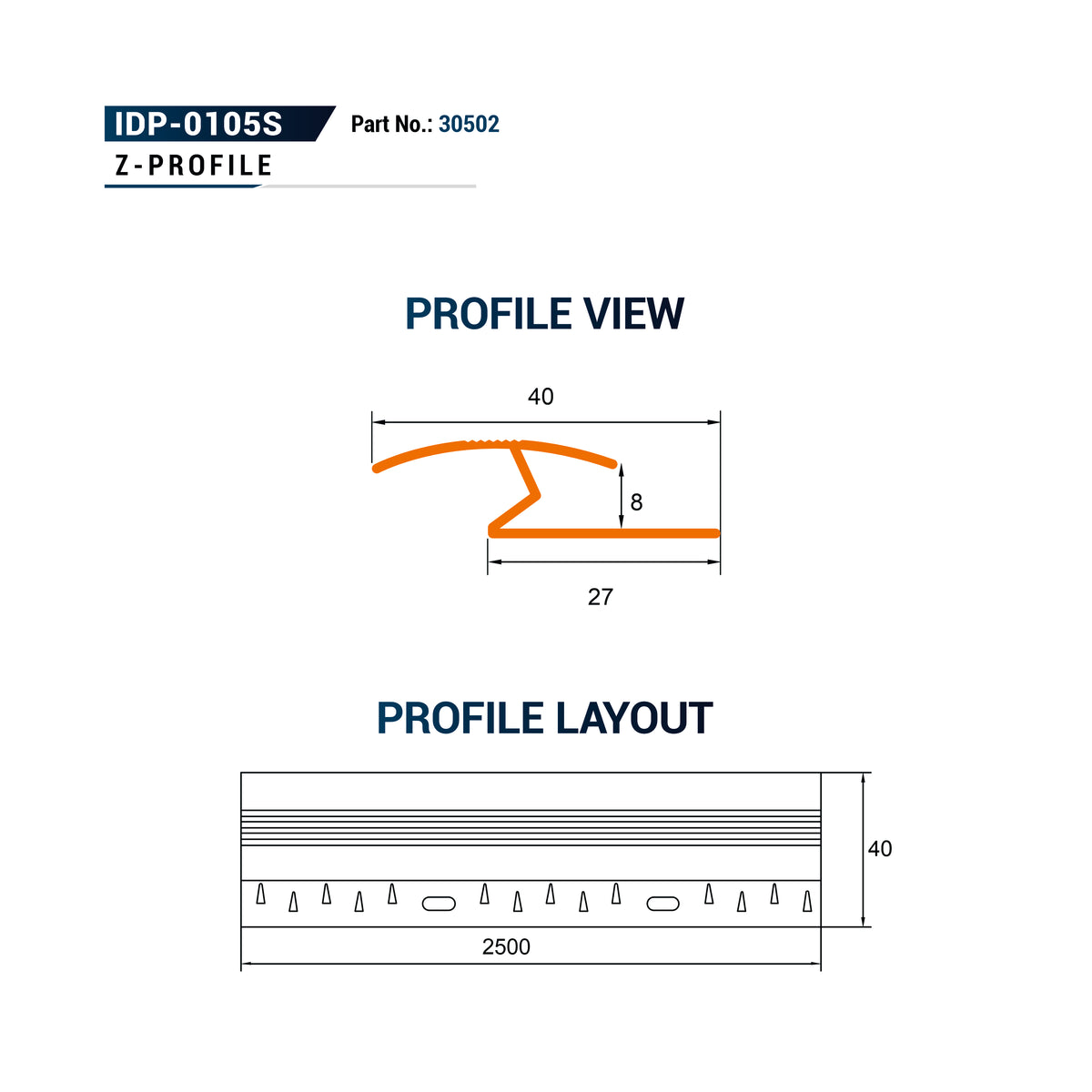

The IDP-0105S Z-Profile has a cross-section of 8 mm height x 40 mm width, designed to accommodate the typical offset between a carpeted surface (including underlayment) and an adjacent hard floor such as ceramic tile, porcelain, LVT, or vinyl plank. The effective bridging height is suited to standard carpet-and-underlayment stacks that sit 6–10 mm above the subfloor. If your height differential falls outside this range, a reducer or custom threshold profile may be more appropriate — contact our team with your exact floor height measurements for guidance.

Yes. Carpet lifting and fraying at transitions is almost always caused by an unprotected raw carpet edge that is not mechanically secured. The IDP-0105S Z-Profile solves this directly: the upper lip clamps firmly over the carpet border and the integrated gripper teeth lock the pile backing in place, preventing upward lifting and lateral movement. Once installed and screwed down through the pre-punched slots, the profile creates a rigid barrier that holds the carpet edge flat and contained indefinitely, eliminating the progressive unravelling that occurs with tape-only or unfinished edge solutions.

Profile movement is typically the result of inadequate fixing — either too few fixings, incorrect fixing type for the subfloor, or a profile without sufficient base contact area. The IDP-0105S Z-Profile addresses this through its 40 mm wide aluminium base with evenly spaced pre-punched fixing slots, which distribute the mechanical load across the full length of the strip and allow secure screwing directly into the subfloor. Using the correct fixing type for your substrate (masonry anchor for concrete, wood screw for timber) and ensuring fixings pass through every slot will result in a completely rigid installation that does not shift under foot traffic.

The Polish Silver finish on the IDP-0105S is applied to extruded aluminium, which is inherently corrosion-resistant and does not rust. In high-traffic areas, surface micro-scratches can develop over time with heavy use, which is normal for any metallic floor profile. To maintain appearance, periodic cleaning with a damp cloth and a non-abrasive cleaner is recommended. Avoid harsh chemical solvents or steel wool. The aluminium substrate ensures the profile remains structurally sound and dimensionally stable regardless of surface wear, meaning its functional performance is maintained even if the finish develops a patina from use.
