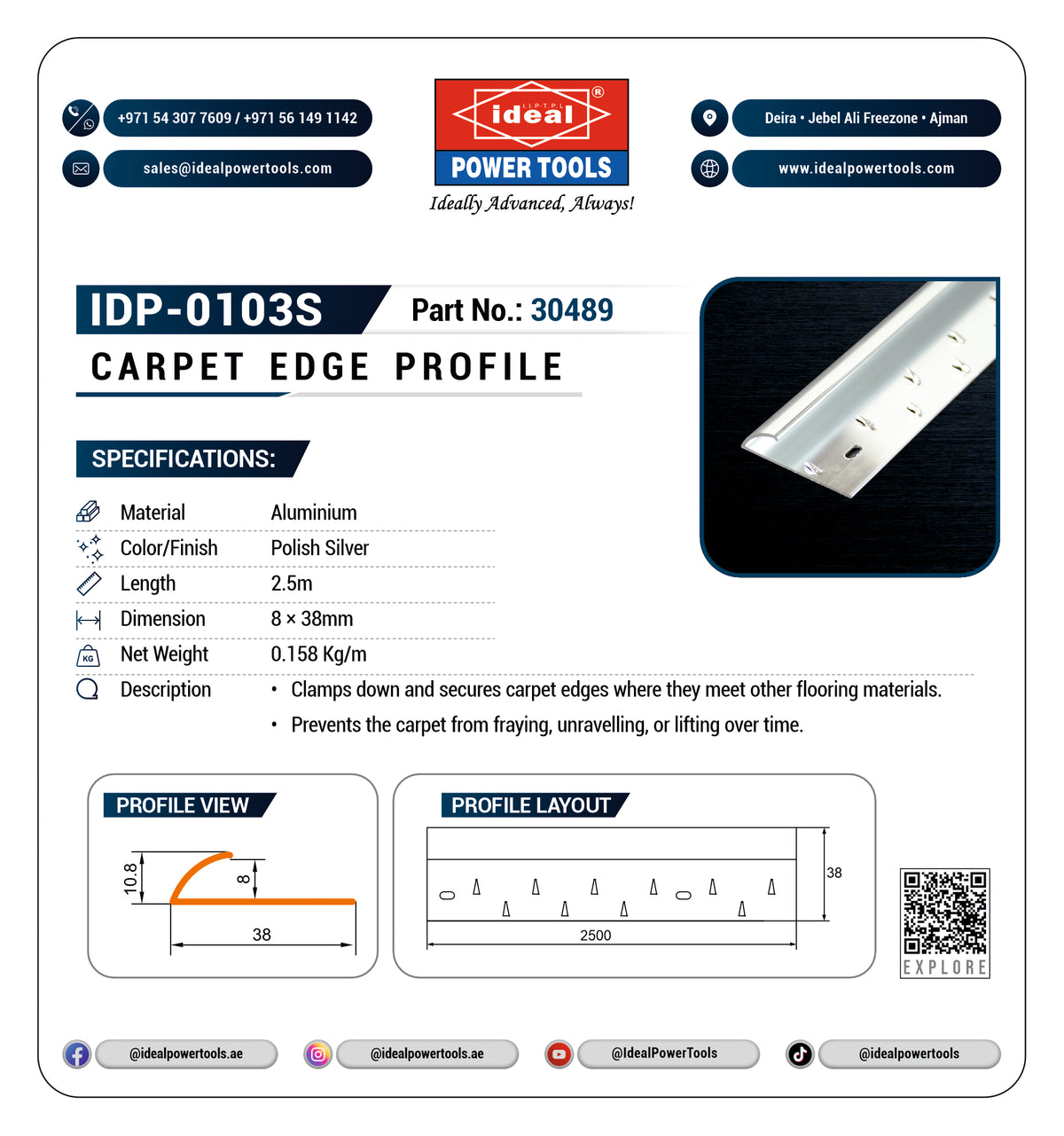

IDP-0103S CARPET EDGE PROFILE [ALUMINIUM] [POLISH SILVER] - 30489

The IDP-0103S is manufactured from extruded aluminium, which offers a superior combination of strength, corrosion resistance, and lightweight handling compared to steel or plastic alternatives. Aluminium does not rust when exposed to moisture — an important consideration near entryways or in humid environments — and it maintains its shape under sustained high foot traffic without bending or warping. The polished silver finish is an inherent surface treatment that also adds a layer of oxidation resistance, keeping the profile looking clean over years of use.

Yes. The IDP-0103S is engineered for versatility across both settings. In residential applications, it delivers a clean, professional edge finish in living rooms, bedrooms, and hallways. In commercial environments — offices, retail spaces, and high-use corridors — its heavy-duty extruded aluminium construction and integrated gripper teeth provide the durability and grip retention needed to withstand constant foot traffic. The pre-punched fixing slots also make it a practical choice for professional installers working on large-scale fit-out projects where speed and consistency matter.

Each IDP-0103S unit is supplied at a standard 2500 mm (2.5 m) length, which covers most standard doorway and room-edge installations in a single piece. Aluminium profiles of this type can be cut to length on-site using a fine-tooth metal saw or mitre saw fitted with a non-ferrous metal cutting blade. Always deburr cut ends with a file or fine sandpaper before installation to ensure a clean finish and eliminate any sharp edges. Multiple units can be butted end-to-end for longer runs.

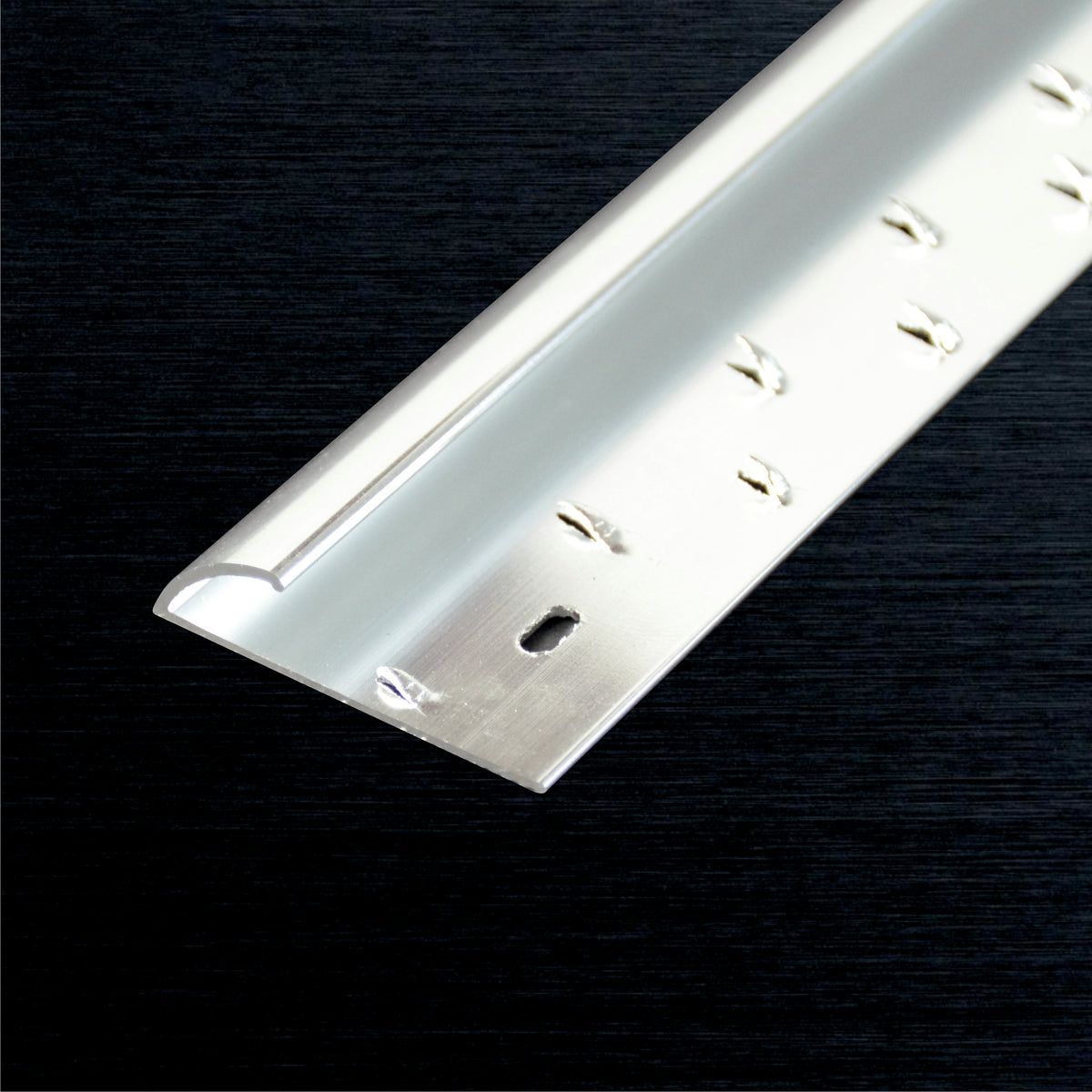

The base of the IDP-0103S features a series of directional anchor teeth that are formed during the extrusion process. When the profile is pressed and fixed down over the carpet border, these teeth angle into the carpet backing and mechanically grip the fibres and backing material. This grip prevents the carpet from migrating away from the edge over time — a common failure mode in high-traffic areas where repeated foot pressure and shear forces cause carpets to pull back from their edges. The combined action of the fixing screws through the pre-punched slots and the gripper teeth creates a two-point retention system for long-lasting edge security.

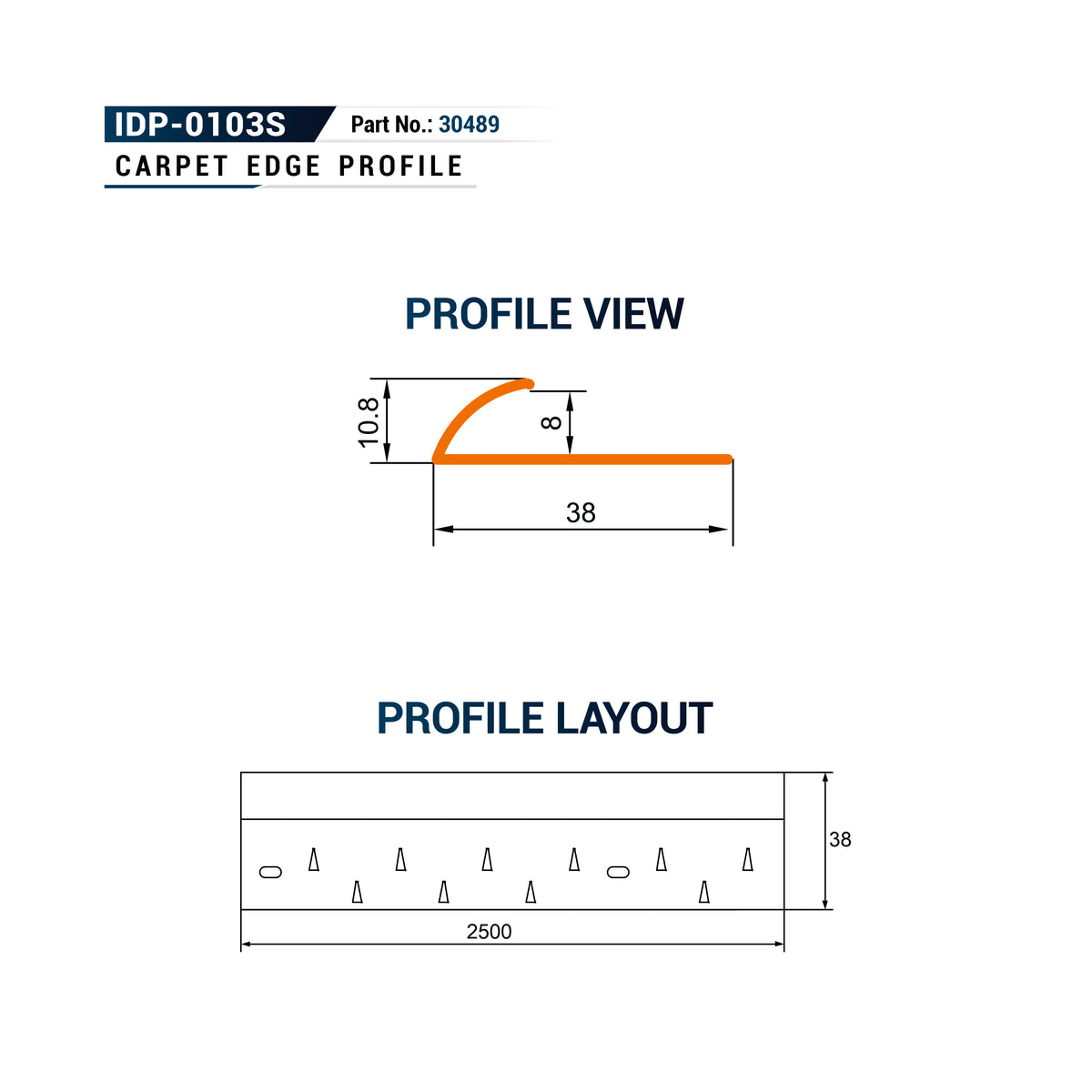

The IDP-0103S is designed to create a smooth junction between a carpeted area and virtually any hard flooring surface, including ceramic or porcelain tile, natural stone, hardwood, engineered wood, LVT (luxury vinyl tile), laminate, and vinyl sheet flooring. The low-profile 8 mm height ensures the transition ramp is gradual enough to be comfortable underfoot and compliant with general trip-hazard guidelines, making it suitable for doorways, room dividers, and corridor thresholds where two different flooring types meet.

The IDP-0103S features pre-punched fixing slots evenly spaced along the base channel, designed to accept standard floor screws or cut nails depending on your subfloor type. For timber subfloors, 35–40 mm wood screws are recommended; for concrete substrates, use appropriate masonry plugs and screws. Fixing hardware is not included with the profile and should be sourced separately. The pre-punched slots eliminate the need for field drilling and ensure consistent screw spacing for a straight, professional installation result.

Yes. Carpet edge lift and fraying at doorways is typically caused by the raw cut edge of the carpet being left exposed or inadequately secured. The IDP-0103S addresses this directly by clamping down over the carpet border, encapsulating the cut edge and compressing the fibres to prevent unraveling. The integrated gripper teeth anchor the carpet backing in position, stopping the edge from pulling back under foot traffic. Once fixed through the pre-punched slots, the profile provides a permanent mechanical solution that outlasts adhesive-only or tack-strip-only alternatives in high-use zones.

An unsecured or poorly finished carpet edge creates a raised, unstable border that is a recognised trip hazard — particularly in commercial environments subject to health and safety regulations. The IDP-0103S resolves this by providing a low-profile 8 mm ramp that smoothly bridges the height difference between the carpet pile and the adjacent hard floor surface. The profile holds the carpet flat and taut at its edge, eliminating the raised lip that causes trips. The result is a stable, flush transition that is safe for foot traffic and presents a clean, professional appearance from both a safety and aesthetic standpoint.

The polished silver finish on the IDP-0103S is a surface treatment applied to the extruded aluminium body, which is inherently corrosion-resistant. Under normal residential or commercial use, the finish is designed to retain its bright, reflective appearance over time. In very high-abrasion environments — such as heavily loaded trolley routes or industrial thresholds — surface scuffing is possible with any polished metal trim. For such applications, placing the profile in a position where it is covered by the carpet edge rather than fully exposed will significantly reduce direct abrasion contact and extend the life of the finish.
