Industrial-Grade Step Edge Protection Built to Last a Lifetime
The IDP-0063AS Stair Grip Profile is a professional-grade aluminium step edge protector engineered to deliver long-term slip resistance and stair tread protection in both residential and commercial environments. Crafted from extruded premium aluminium with a factory-applied anodized silver finish, this 2.5-metre profile combines structural durability with a clean, architectural aesthetic, making it the definitive choice for staircase safety and step edge protection wherever foot traffic is a concern.
| Key Features | Perfect For |
|
|
- Extruded Premium-Grade Aluminium Body (13 x 0.9 x 41 mm): Each profile is precision-extruded from high-grade aluminium alloy, producing a wall section of 0.9 mm thickness across a 41 mm tread width. This geometry distributes foot-traffic load evenly along the step edge, preventing the flexing, cracking, or delamination that afflicts lesser materials — making it an ideal long-term aluminium stair nosing for both light and heavy-duty applications.
- Anodized Silver Finish — Factory-Applied Corrosion Barrier: The electrochemical anodizing process integrates a hard oxide layer directly into the aluminium surface rather than coating over it, delivering a satin-matte silver finish that resists scratches, household chemicals, moisture, and UV-induced oxidation. Unlike painted finishes that chip and peel, the anodized layer remains intact under continuous foot traffic, preserving appearance and structural integrity over years of use.
- Pre-Punched Fixing Slots for Professional Installation: Evenly spaced countersunk mounting slots are pre-punched along the profile length, eliminating on-site drilling and ensuring perfectly aligned, rattle-free installation. The slots accommodate standard floor screws and are also compatible with heavy-duty construction adhesive, giving installers flexibility across concrete, timber, tile, and stone substrates.
- High-Visibility Step Edge Definition: The profile's clean rectilinear geometry and contrasting anodized silver surface draw a sharp visual boundary at each step edge, reducing misstep risk in corridors, stairwells, and areas with variable lighting. This passive safety feature is especially valuable in commercial and public-access buildings where stair safety compliance is a legal and operational priority.
- 2,500 mm Full-Length Profile — Fewer Joints, Cleaner Finish: At 2.5 metres, a single profile covers the full width of most residential and light-commercial staircases in one uninterrupted run. Fewer joints mean fewer failure points, a more professional appearance, and a significantly reduced installation time compared to short-section alternatives. Each profile weighs just 236 g, keeping handling and manoeuvring on-site effortless.
- Versatile Substrate Compatibility: Suitable for installation over concrete, ceramic tile, porcelain, natural stone, hardwood, engineered timber, and vinyl — the profile adapts to virtually any existing or new staircase finish without requiring specialist tools or adhesives. This makes the IDP-0063AS a go-to aluminium step edge profile for general contractors, fit-out specialists, and DIY renovators alike.
This package includes one IDP-0063AS Stair Grip Profile (1 piece, 2,500 mm length) in anodized silver aluminium, ready for immediate installation.
General Purchase & Comparison Queries
What is the IDP-0063AS and how is it different from a standard stair nosing?
The IDP-0063AS is a purpose-engineered aluminium stair grip profile designed specifically for step edge protection and slip prevention. Unlike basic stair nosings that simply cover the edge, this profile features a 41 mm tread width, a 0.9 mm wall thickness, and a factory-applied anodized silver finish that bonds at a molecular level with the aluminium substrate — providing superior scratch resistance, corrosion protection, and longevity compared to painted or powder-coated alternatives. It also arrives at 2,500 mm (2.5 m) length with pre-punched fixing slots, ready for immediate professional installation.
Is this profile suitable for both indoor and outdoor staircases?
Yes. The anodized aluminium construction of the IDP-0063AS makes it inherently resistant to moisture, humidity, and oxidation, meaning it performs reliably on outdoor staircases exposed to the elements as well as on indoor staircases in residential homes, offices, and commercial premises. The anodized finish does not blister, peel, or rust, making it a maintenance-free choice for exposed environments.
How many profiles do I need for a full staircase?
Each IDP-0063AS profile is 2,500 mm (2.5 m) long, which covers the full tread width of most standard residential and light-commercial staircases in a single uninterrupted piece. To calculate the quantity required, simply count the number of steps in your staircase — one profile per step. For wider staircases exceeding 2.5 m in width, two profiles per step may be required, with a neat butt joint at the centre.
Product-Specific and Usage Queries
What substrates can this stair grip profile be installed on?
The IDP-0063AS is compatible with a wide range of staircase substrates including concrete, ceramic and porcelain tile, natural stone, hardwood, engineered timber, and vinyl flooring. The pre-punched fixing slots accommodate standard floor screws for mechanical fixing, while the profile geometry is also compatible with heavy-duty construction adhesive for adhesive-only installations where screw penetration is not desirable.
What are the exact dimensions and weight of this profile?

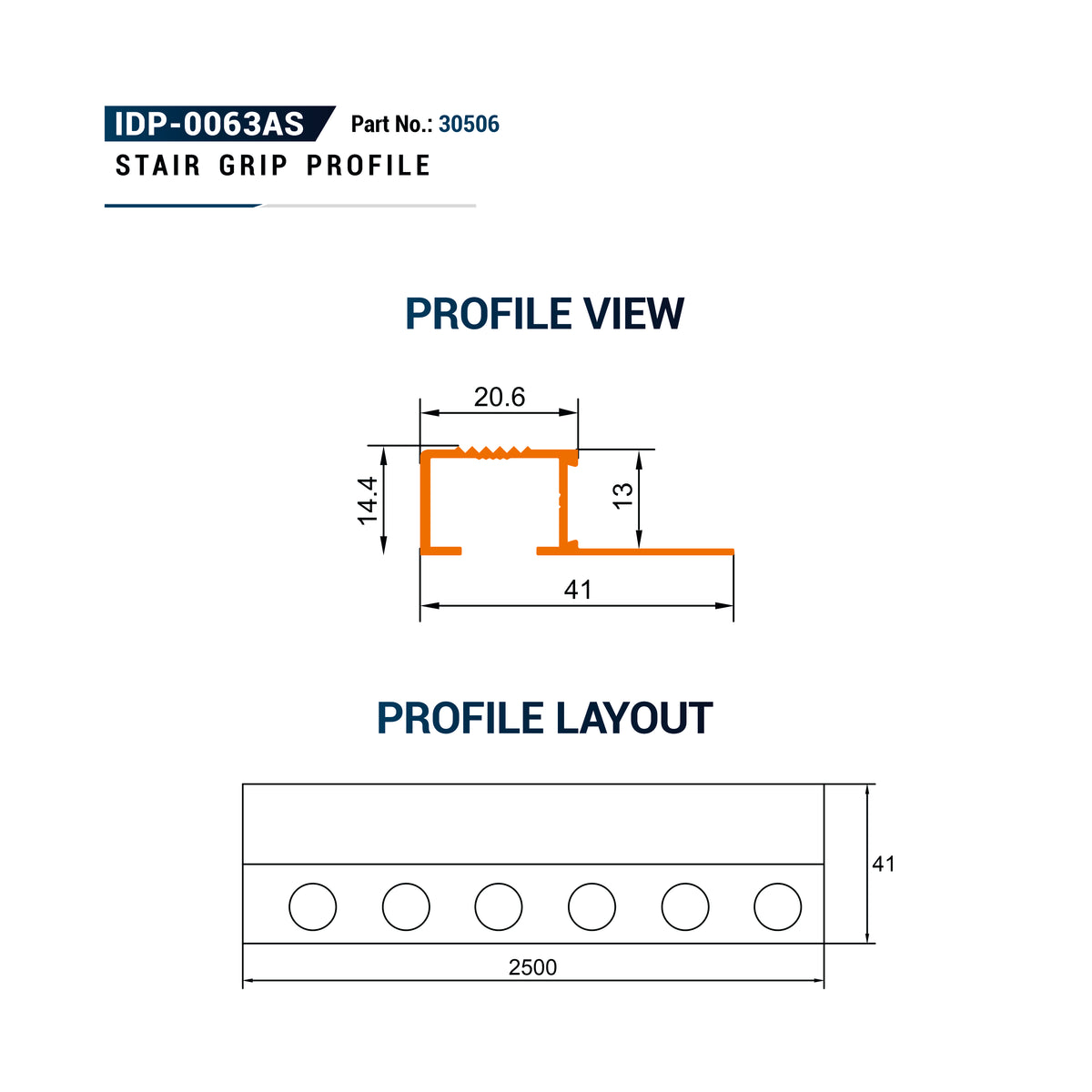

The IDP-0063AS measures 13 mm in height x 0.9 mm wall thickness x 41 mm tread width, with a total length of 2,500 mm (2.5 metres). It has a net weight of 236 g (0.236 kg) per piece, making it lightweight for easy on-site handling and cutting to length with a standard aluminium-cutting saw blade or hacksaw.
Can this profile be cut to a shorter length on site?
Yes. The extruded aluminium construction of the IDP-0063AS allows it to be cut cleanly to any required length using a mitre saw with an aluminium-cutting blade, a jigsaw with a metal-cutting blade, or a standard hacksaw. Always deburr cut ends with a fine file or sandpaper before installation to maintain a professional finish and prevent sharp edges.
Problem/Solution-Oriented Queries
My staircase step edges are chipping and cracking — will this profile fix the problem?
Yes. The IDP-0063AS is engineered precisely for this scenario. By mechanically covering and securing the vulnerable step nose with a rigid heavy-duty aluminium profile, it absorbs and redistributes the impact and abrasion loads that cause chipping and cracking in tile, stone, and timber treads. Once fitted, the profile acts as a permanent sacrificial layer that protects the underlying step structure from further deterioration, eliminating the need for costly tread replacement.
Will the anodized finish wear off or discolour over time with heavy foot traffic?
No. Unlike painted or powder-coated finishes, the anodized silver coating on the IDP-0063AS is not a surface layer — it is an electrochemically converted oxide layer that is fully integrated into the aluminium substrate. This means it cannot chip, peel, or flake under foot traffic. While high-traffic areas may develop a subtle burnished patina over many years, the structural integrity and corrosion resistance of the anodized finish remain intact for the service life of the profile.
The profile I previously used kept coming loose — how does the IDP-0063AS stay securely fixed?
Loose stair profiles are typically the result of inadequate fixing points or misaligned installation. The IDP-0063AS addresses both issues with evenly spaced, pre-punched countersunk fixing slots that distribute mechanical load along the full length of the profile rather than concentrating stress at isolated points. When installed with appropriate floor screws into a solid substrate — or combined with a bead of heavy-duty construction adhesive along the underside — the profile forms a rigid, rattle-free bond that withstands continuous foot traffic without working loose.
