Professional-Grade Aluminium T-Bar for Flawless Flooring Transitions

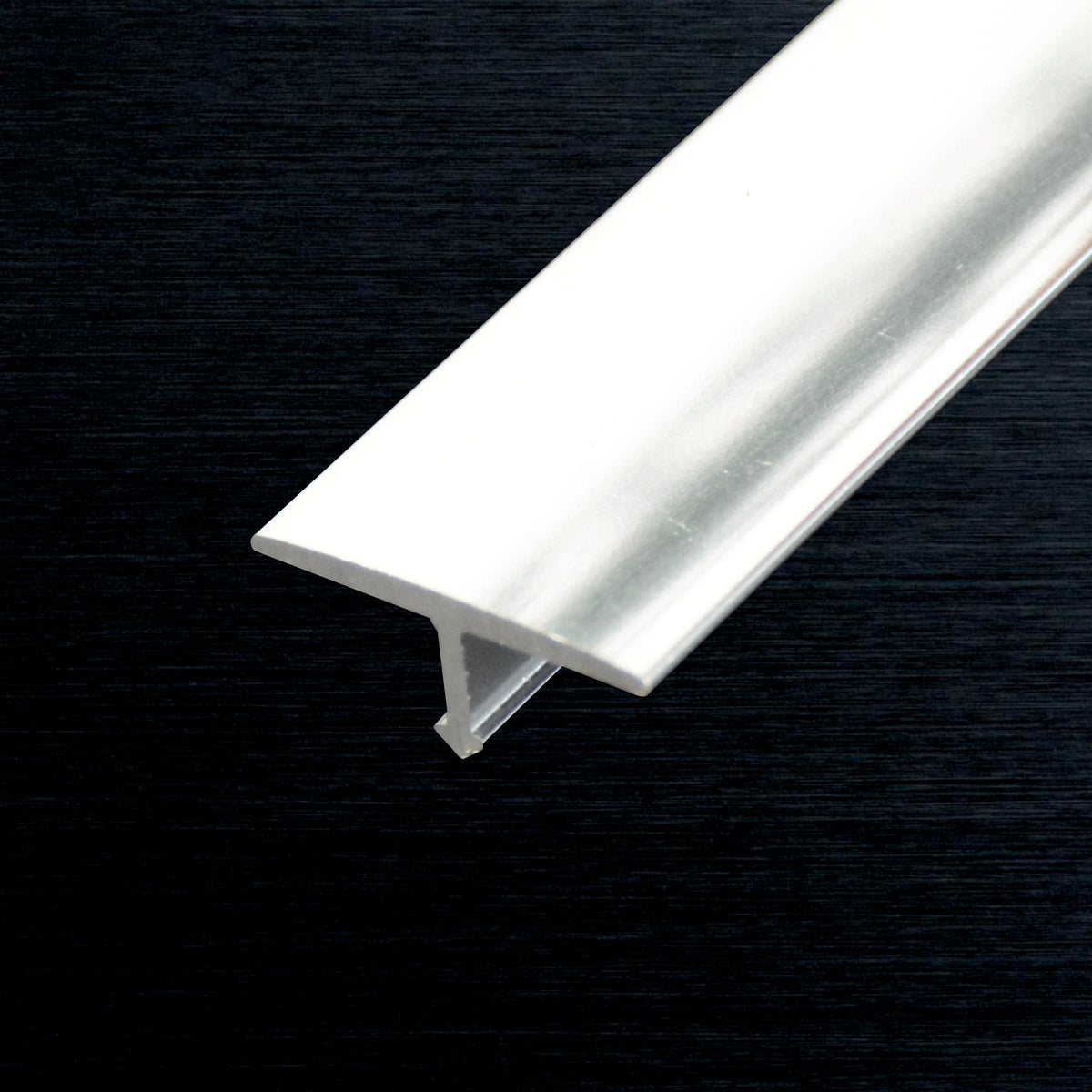

The IDP-0019S T-Profile is a 20mm aluminium T-bar transition strip in a Polish Silver finish, engineered to bridge same-level floor expansion joints between wood, tile, and laminate surfaces. Spanning 2.5 metres in length, this heavy-duty aluminium trim protects tile borders from chipping, seals open seams against moisture, and delivers a clean, architectural dividing line, purpose-built for both residential and commercial flooring installations.
| Key Features | Perfect For |
|
|
- Heavy-Duty Extruded Aluminium Body: Manufactured from premium-grade extruded aluminium, the IDP-0019S is engineered to withstand continuous high foot traffic without bending, warping, or corroding — making it a long-term solution for both domestic bathrooms and busy commercial spaces such as hotel lobbies and retail corridors.

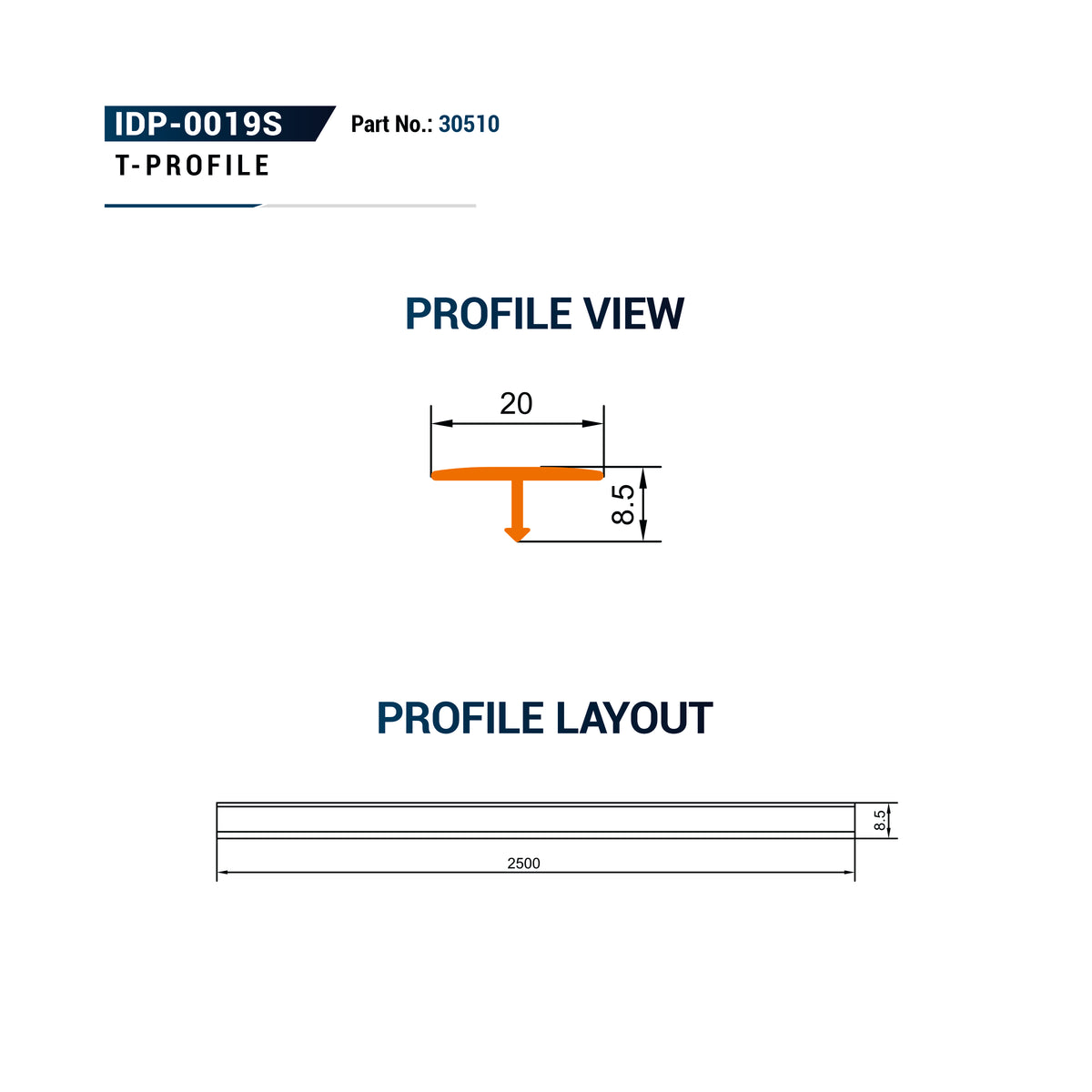

- Precise 20mm x 8.5mm T-Profile Geometry: The 20mm width and 8.5mm height create a low, flat profile that lies flush with the floor surface, minimising trip hazards and delivering a seamless visual transition between adjacent flooring materials. At 2,500mm (2.5m) in length, a single bar covers most doorway and room-divider spans without joins.
- Perforated Anchoring Leg System: The base flanges feature strategically positioned perforations that allow tile adhesive to penetrate and cure through the strip, creating a strong mechanical bond directly within the adhesive bed — eliminating the risk of the profile lifting, shifting, or rattling under load over time.
- Moisture and Dirt Seal Along Tile Borders: The T-bar fits snugly against abutting tile edges to prevent water ingress, dirt accumulation, and grime buildup within the expansion gap — particularly critical in wet areas such as bathrooms, shower rooms, and commercial kitchens where hygiene and waterproofing standards must be maintained.
- Polished Silver Decorative Finish: The Polish Silver anodised surface provides a clean, reflective aesthetic that complements contemporary interior hardware, chrome fixtures, and neutral-toned tiles. The finish is resistant to everyday surface wear and maintains its appearance without the need for special maintenance, keeping installations looking sharp for years.
- Lightweight yet Structurally Robust at 0.1kg: Weighing just 0.1kg per bar, the profile is easy to handle, cut, and install on-site without specialist equipment, while its aluminium composition ensures it does not flex or deform under the weight of furniture, appliances, or regular foot traffic.
The IDP-0019S T-Profile is supplied as one complete 2,500mm bar per pack, ready for immediate installation into a standard tile adhesive bed.
General Purchase & Comparison Queries
What makes the IDP-0019S different from a standard plastic T-bar?
Unlike plastic T-bars that can crack, discolour, or deform under heat and load, the IDP-0019S is extruded from premium-grade aluminium — a material that offers superior structural rigidity, corrosion resistance, and long-term durability. The perforated anchoring legs bond directly into the tile adhesive bed, providing a mechanical hold that plastic snap-in profiles cannot match in high-traffic environments.
Is the 2,500mm length sufficient for a standard doorway?
Yes. Standard interior doorways typically range from 800mm to 1,000mm in width, so a single 2,500mm bar can cover two to three doorway transitions after cutting. For wider openings such as open-plan room dividers or double doors, one bar will usually cover the full span in a single unjoined piece, maintaining a clean, professional appearance.
Does this profile work with both tile-to-tile and tile-to-laminate transitions?
Yes. The IDP-0019S T-Profile is designed for same-level floor expansion joints and can bridge transitions between tile and tile, tile and laminate, or tile and engineered wood — provided both surfaces sit at the same height. For height-difference transitions, a ramp or reducer profile would be the more appropriate choice.
Product-Specific and Usage Queries
How is the IDP-0019S T-Profile installed?
The profile is installed by placing the perforated anchoring base flange directly into the wet tile adhesive along the expansion joint before grouting. Once the adhesive cures, the T-bar is mechanically locked in place. No additional screws, nails, or adhesive are required for the profile itself. The bar can be cut to length with a standard hacksaw or aluminium-rated cutting disc prior to laying.
What is the purpose of the perforated base flanges?
The perforations in the anchoring legs allow tile adhesive to flow through and cure within the holes, creating a strong mechanical interlock between the profile and the adhesive bed. This prevents the T-bar from lifting, shifting sideways, or producing a hollow rattle sound underfoot — common failure points of non-perforated or surface-mounted profiles in high-traffic areas.
Can the Polish Silver finish be used in wet areas such as bathrooms?
Yes. The aluminium construction and Polish Silver anodised finish are inherently resistant to moisture, humidity, and light chemical exposure — making the IDP-0019S fully suitable for bathrooms, wet rooms, and commercial kitchens. The snug fit of the T-bar against tile edges also acts as a barrier against water penetration into the expansion gap below.
Problem/Solution-Oriented Queries
My previous T-bar keeps lifting at the edges — will this profile have the same issue?
Lifting is typically caused by insufficient bonding between the profile and the substrate. The IDP-0019S resolves this with its perforated base flange design, which allows tile adhesive to cure through the profile legs rather than simply resting on top of them. This creates a mechanical lock that resists both vertical lifting and lateral movement, even in areas with heavy rolling loads such as office chairs or trolleys.
The expansion joint between my tiles is collecting dirt and water — can this profile fix that?
Yes. The IDP-0019S T-Profile covers the open expansion joint entirely, preventing debris, water, and grime from entering the gap. The profile sits flush with the tile surface, eliminating the recessed channel that typically traps dirt in unprotected expansion joints. This is particularly beneficial in commercial kitchens, food preparation areas, and high-hygiene environments where open floor seams pose a cleanliness risk.
Will the Polish Silver finish show scratches or wear marks over time?
Aluminium profiles with an anodised Polish Silver finish are significantly more scratch-resistant than painted or PVC alternatives. While heavy abrasion from dragged furniture or sharp objects can mark any metal surface, normal foot traffic, mopping, and cleaning will not visibly degrade the finish. For areas with extreme abrasive risk, placing furniture pads under legs is recommended as a simple precautionary measure.
IDP-0019S T-Profile (1 Pcs)
