Industrial-Grade Corner Protection — Built to Last in the Most Demanding Environments
The IDP-001-12H Edge Corner Profile is a precision-engineered stainless steel tile trim designed to protect and finish exposed 90-degree wall and column corners in high-traffic commercial and industrial environments. Constructed from SS304 grade stainless steel with a refined polished finish, this 2.5-metre corner trim delivers long-term structural defense against impact, chipping, and corrosion, without compromising on aesthetics.
| Key Features | Perfect For |
|
|
- SS304 Grade Stainless Steel Body (10 × 12 × 0.6 mm, 2500 mm length): Formed from high-grade SS304 austenitic stainless steel, this edge corner profile offers exceptional resistance to rust, oxidation, and chemical exposure. At 0.6 mm wall thickness and a net weight of 0.212 kg per 2.5-metre length, it strikes the ideal balance between structural rigidity and ease of installation — suitable for both wall cladding and column edge applications.
- Polished Mirror Finish for Hygienic, Low-Maintenance Surfaces: The polished stainless steel surface not only delivers a clean, contemporary aesthetic but also resists fingerprint smudging, water spots, and surface grime. Its non-porous finish prevents bacterial build-up at corner joints — a critical requirement in food preparation areas, healthcare facilities, and wet rooms.

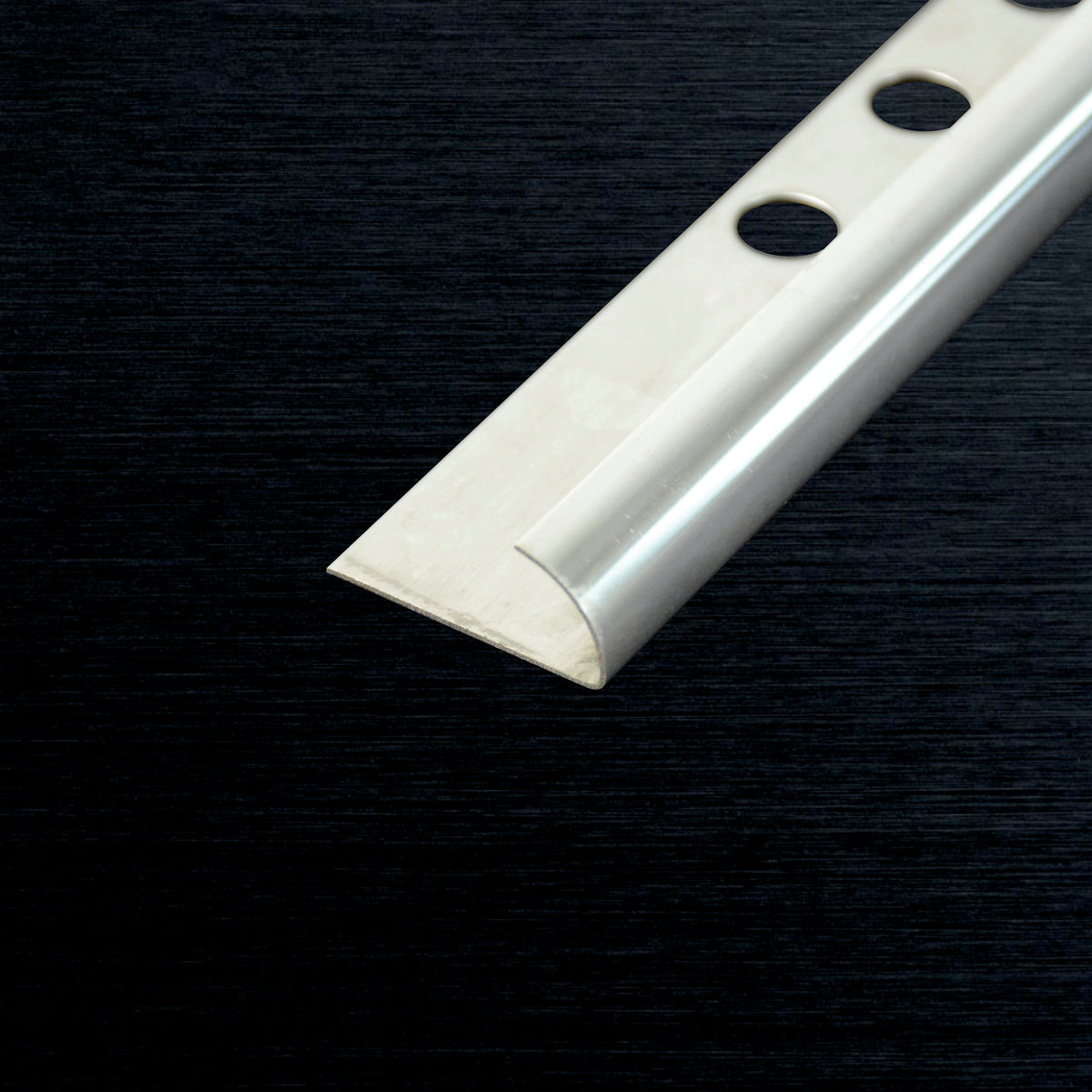

- Perforated Base Flange for Maximum Mortar Key Strength: The flat anchoring leg of the profile is engineered with circular cutout perforations along its full length, allowing thin-set mortar or tile adhesive to key directly through the flange. This mechanical lock dramatically improves pull-out resistance and prevents the trim from lifting or separating from the substrate over time — even under heavy lateral impact or substrate movement.
- Smooth Round Quadrant Arc for Safe, Snag-Free Corner Transitions: The outer edge features a gently radiused quadrant arc profile that soft-caps exposed tile corners, eliminating the sharp 90-degree hazard of unfinished tile edges. This is particularly important in corridors, loading bays, and areas with frequent trolley or cart movement, where unprotected tile corners are vulnerable to breakage and pose a safety risk.
- Hygienic Edge Seal Eliminates Dirt-Trapping Gaps: By capping the open joint between two adjacent tiled surfaces at a corner, this profile eliminates the recessed gap that typically collects grease, moisture, and debris. The result is a fully sealed, cleanable corner edge that meets the hygiene standards of commercial kitchens, hospital corridors, and cleanroom environments. The included IDP-001-12H Edge Corner piece ships as a single 2500 mm length, ready for direct installation.
General Purchase & Comparison Queries
What makes the IDP-001-12H different from a standard PVC tile trim?
Unlike PVC trims, the IDP-001-12H is made from SS304 stainless steel — a material that offers far superior impact resistance, heat tolerance, and longevity. PVC profiles can crack, discolour, and warp under UV exposure or heavy impact, whereas this stainless steel profile maintains its structural integrity and polished finish even in demanding commercial environments. It is the preferred choice for industrial, hospitality, and healthcare tiling applications where durability and hygiene are non-negotiable.
Is this trim suitable for both wall and floor corner applications?
The IDP-001-12H is primarily designed for vertical wall and column corners where tiles meet at a 90-degree external angle. Its 12 mm tile depth accommodation and perforated base flange make it well-suited for wall installations. While it can be used at floor-to-wall junctions in low-foot-traffic areas, it is not specifically rated as a heavy-duty stair nosing profile — for stair edges, a dedicated nosing profile would be recommended.
How many pieces do I need for a standard room corner installation?
Each IDP-001-12H profile covers 2,500 mm (2.5 metres) of corner length. To calculate your requirement, measure the total height of each external corner you wish to protect and divide by 2.5. For a standard 3-metre ceiling height, you would need two lengths per corner with a small cut piece. Always account for 5–10% wastage when ordering for multiple corners or complex layouts.
Product-Specific and Usage Queries
What tile thickness is this profile designed for?

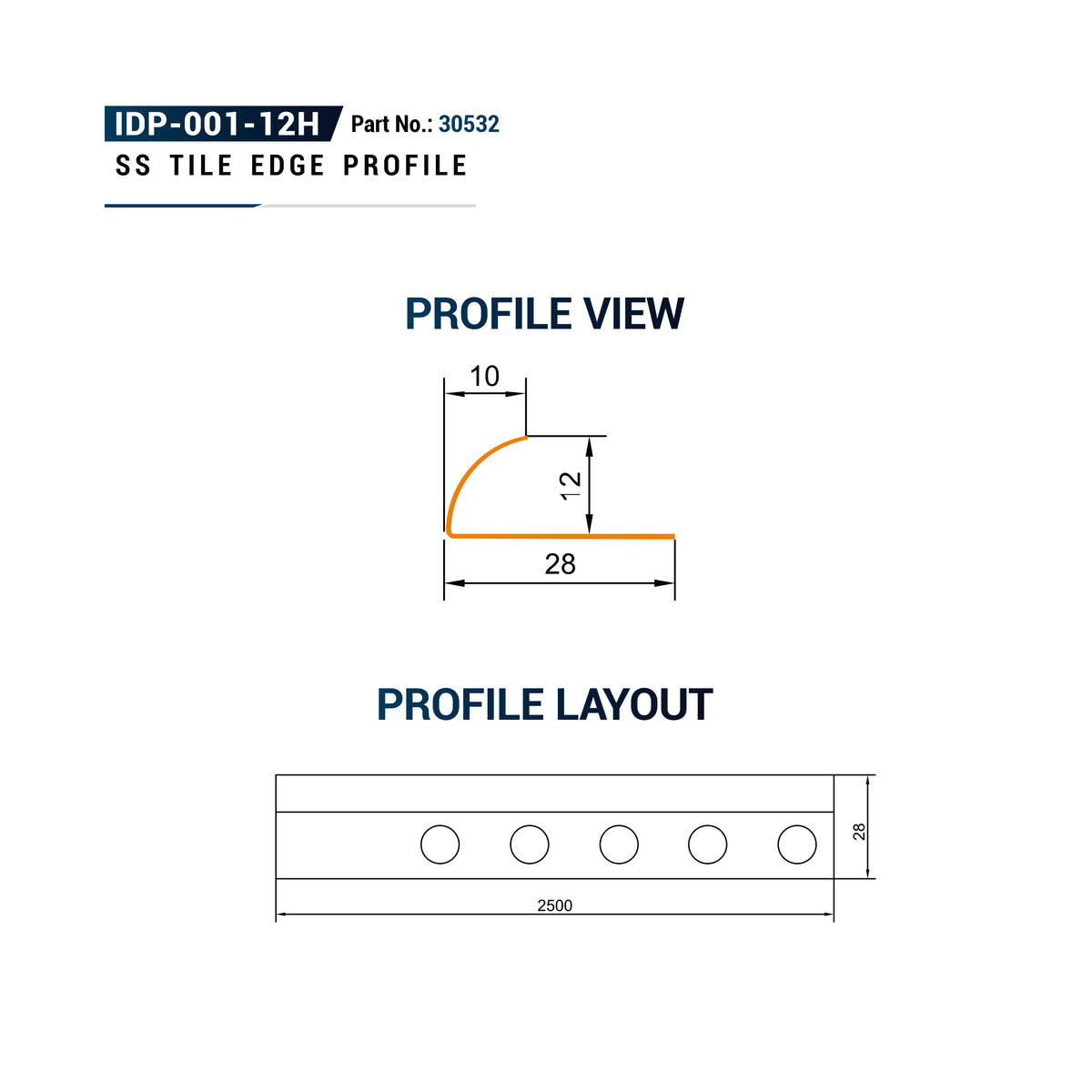

The IDP-001-12H is specifically engineered for 12 mm tile thickness, as indicated by the "12H" designation in the product code. The profile dimensions of 10 × 12 × 0.6 × 28 mm ensure a precise fit against a 12 mm tile edge, providing a flush, tight junction between the tile face and the stainless steel cap. Using this trim with significantly thinner or thicker tiles may result in an uneven or poorly sealed finish.
How is the perforated flange installed — do I need a special adhesive?
No special adhesive is required. The perforated base flange is designed to be embedded directly into the standard thin-set mortar or tile adhesive bed used during tiling. The circular perforations allow the adhesive to key through the flange, creating a mechanical bond that holds the profile firmly in place. For best results, apply the mortar bed first, press the flange into it, and then set the adjacent tiles flush against the profile's quadrant arc before the adhesive cures.
Can this profile be cut to length on site?
Yes. The IDP-001-12H can be cut to any required length on site using a metal cutting disc, angle grinder, or fine-tooth hacksaw. At 0.6 mm wall thickness, the SS304 stainless steel cuts cleanly without burring when the correct cutting tool is used. After cutting, lightly deburr the cut end with a fine metal file to maintain a safe, smooth edge before installation. Mitre cuts at 45 degrees can also be made for neat internal or external corner junctions.
Problem/Solution-Oriented Queries
My existing tile corner trims keep lifting off the wall — will this profile have the same problem?
Trim lifting is typically caused by inadequate adhesive bonding between the profile flange and the substrate. The IDP-001-12H is specifically engineered with a perforated base flange to address this exact issue. The circular cutouts allow mortar to mechanically key through the profile leg, creating a significantly stronger bond than a solid flange relying purely on surface adhesion. Provided the trim is correctly embedded into a fresh mortar bed — not surface-glued after tiling — lifting should not occur under normal conditions.
Will the polished finish show rust or staining over time in a wet bathroom environment?
The IDP-001-12H is manufactured from SS304 austenitic stainless steel, which contains a minimum of 18% chromium and 8% nickel, providing robust resistance to rust, oxidation, and common household cleaning chemicals. In standard residential bathroom or commercial wet-room environments, rust staining should not occur with routine cleaning. For highly chlorinated environments such as swimming pool surrounds, an SS316 grade profile would offer even greater chloride resistance — however, for typical bathroom and kitchen applications, SS304 is the industry-standard specification.
The grout line next to my old corner trim keeps cracking — how does this profile help?
Grout cracking at corner joints is a common result of differential substrate movement — the two tiled walls flex independently, and a rigid grout joint cannot absorb that movement. By installing the IDP-001-12H edge corner profile, you effectively eliminate the grout-filled corner joint entirely. The stainless steel cap bridges the junction, and the flexible mortar bed beneath the perforated flange allows a small degree of movement without cracking. The result is a corner that remains watertight, visually clean, and structurally sound over the long term.
