Built to Outlast — The Professional Standard in Stainless Steel Tile Edge Protection

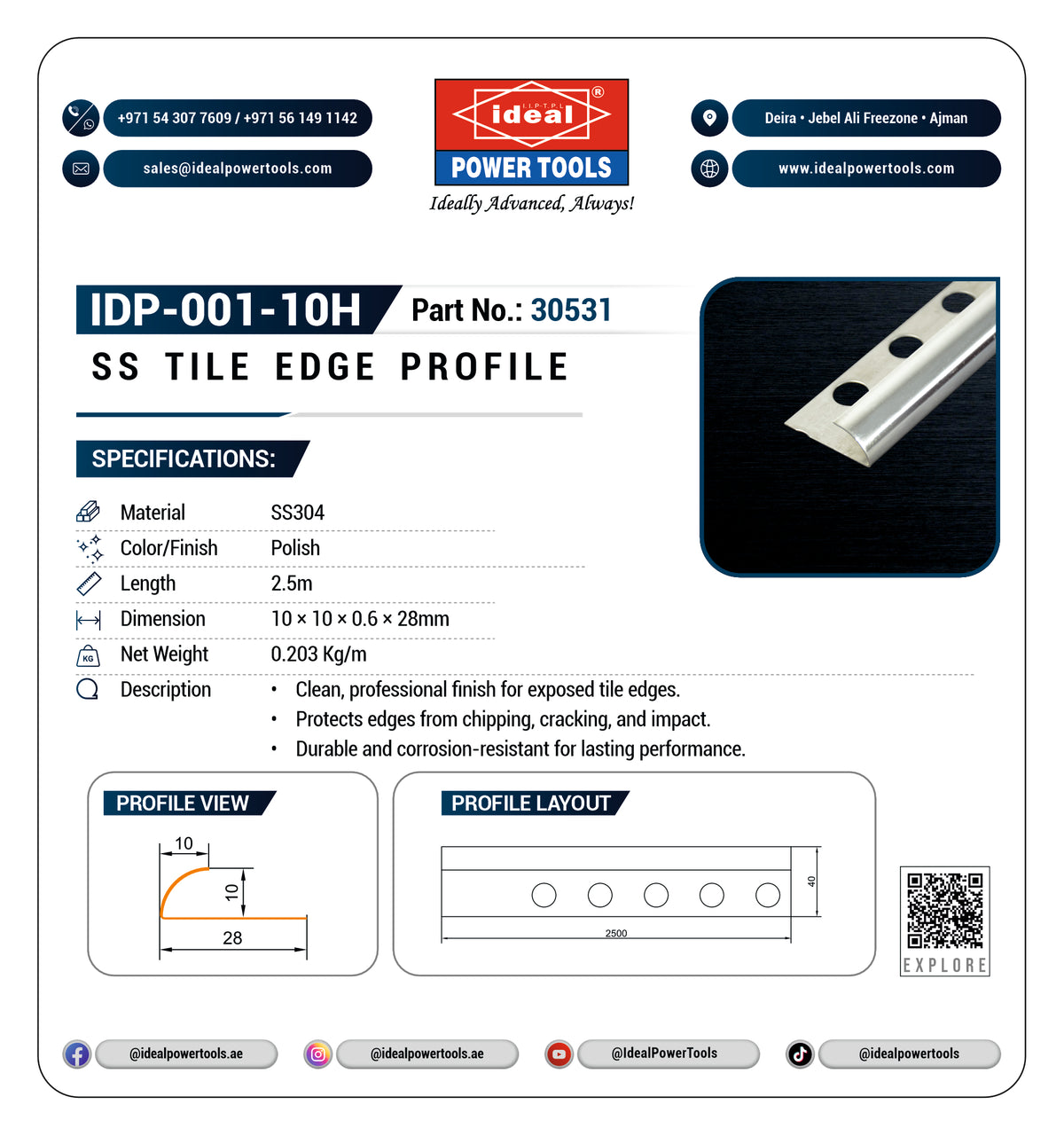

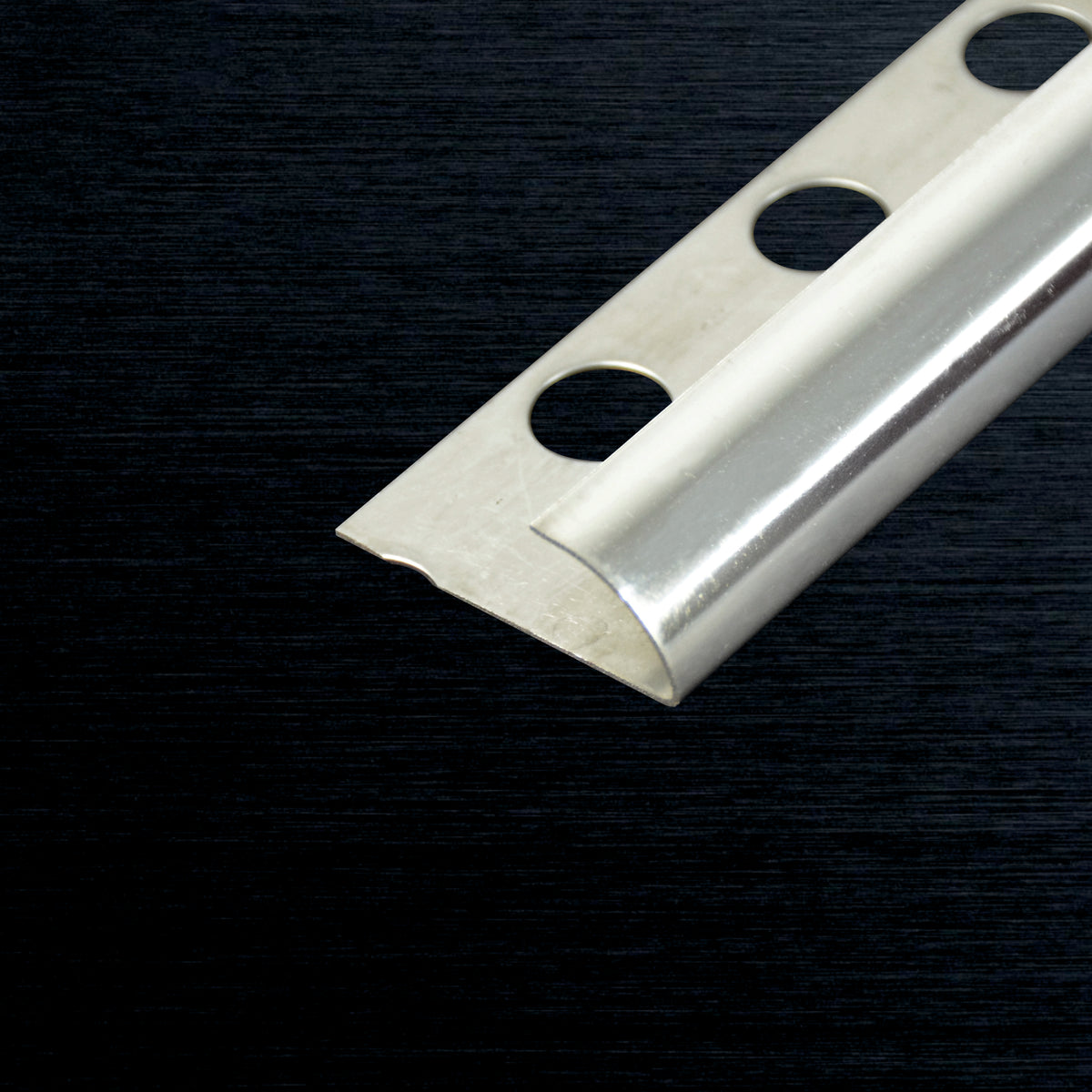

The IDP-001-10H Edge Corner SS Tile Profile is a professional-grade stainless steel tile trim engineered to protect and finish exposed 90-degree external wall and column corners. Constructed from SS304 stainless steel with a factory polished finish, this 10mm corner trim delivers long-term corrosion resistance, structural reinforcement, and a clean aesthetic, making it the definitive choice for high-traffic commercial and industrial tiling applications.
| Key Features | Perfect For |
|---|---|
|
|
- SS304 Stainless Steel Body (10 × 10 × 0.6 mm Profile): Formed from food-grade and construction-approved Grade 304 stainless steel, this trim offers exceptional resistance to oxidation, humidity, chlorine exposure, and daily cleaning chemicals — critical in wet zones such as bathrooms, hospital corridors, and commercial kitchens where inferior materials corrode and delaminate prematurely.
- High-Gloss Polished Surface Finish: The mirror-like polished finish elevates the visual quality of any tiled surface while simultaneously resisting visible fingerprint smudges, water deposits, and minor surface abrasions. The finish integrates seamlessly with porcelain, ceramic, marble, and stone tile installations, adding a premium edge detail without visual clutter.
- Perforated Base Flange for Mechanical Adhesion: The flat anchoring leg features a series of circular perforations engineered to allow thin-set mortar or tile adhesive to key through the flange and create a full mechanical bond. This eliminates edge-lifting, profile separation, and hollow spots — common failures when using solid-flange profiles on heavy-duty applications.
- Smooth Round Quadrant Arc — Safe & Hygienic Edge Transition: The gently curved outer bead soft-caps the raw tile edge with a rounded quadrant profile, eliminating sharp 90-degree ceramic corners that chip on impact and create injury hazards. The continuous smooth arc also seals the external corner joint, preventing dirt, grout haze, and moisture from accumulating in the gap — simplifying maintenance in regulated hygiene environments.
- Heavy-Duty Impact Defense at 2500 mm Length: At a full 2.5-metre run per piece and weighing 0.203 kg, this profile is sized for continuous installation along full wall heights and column wraps without mid-run joins. The rigid SS304 construction absorbs repeated lateral impacts from trolleys, equipment, and foot traffic that would crack or gouge unprotected tile corners, dramatically extending the service life of the surrounding tile work.
- Hygienic Open-Joint Elimination: By capping the external corner with a closed stainless steel profile, the IDP-001-10H removes the open grout joint at the corner — a known accumulation point for bacteria, mould, and cleaning residue. This makes the trim an ideal specification for food-safe, medical, and hospitality environments where surface hygiene standards are enforced.
This profile is supplied as a single piece per pack and is backed by compliance with relevant stainless steel material standards applicable to architectural trim and construction hardware.
General Purchase & Comparison Queries
What makes the IDP-001-10H different from standard plastic or aluminium tile trim?
Unlike plastic PVC trims that yellow, crack, and deform under impact or UV exposure, and aluminium trims that can corrode in high-moisture or saline environments, the IDP-001-10H is formed from Grade 304 stainless steel — the same material used in commercial kitchen equipment and medical fitouts. It offers superior structural rigidity, corrosion resistance, and longevity, making it a cost-effective long-term investment in any professional tiling project.
What tile thickness is this profile compatible with?

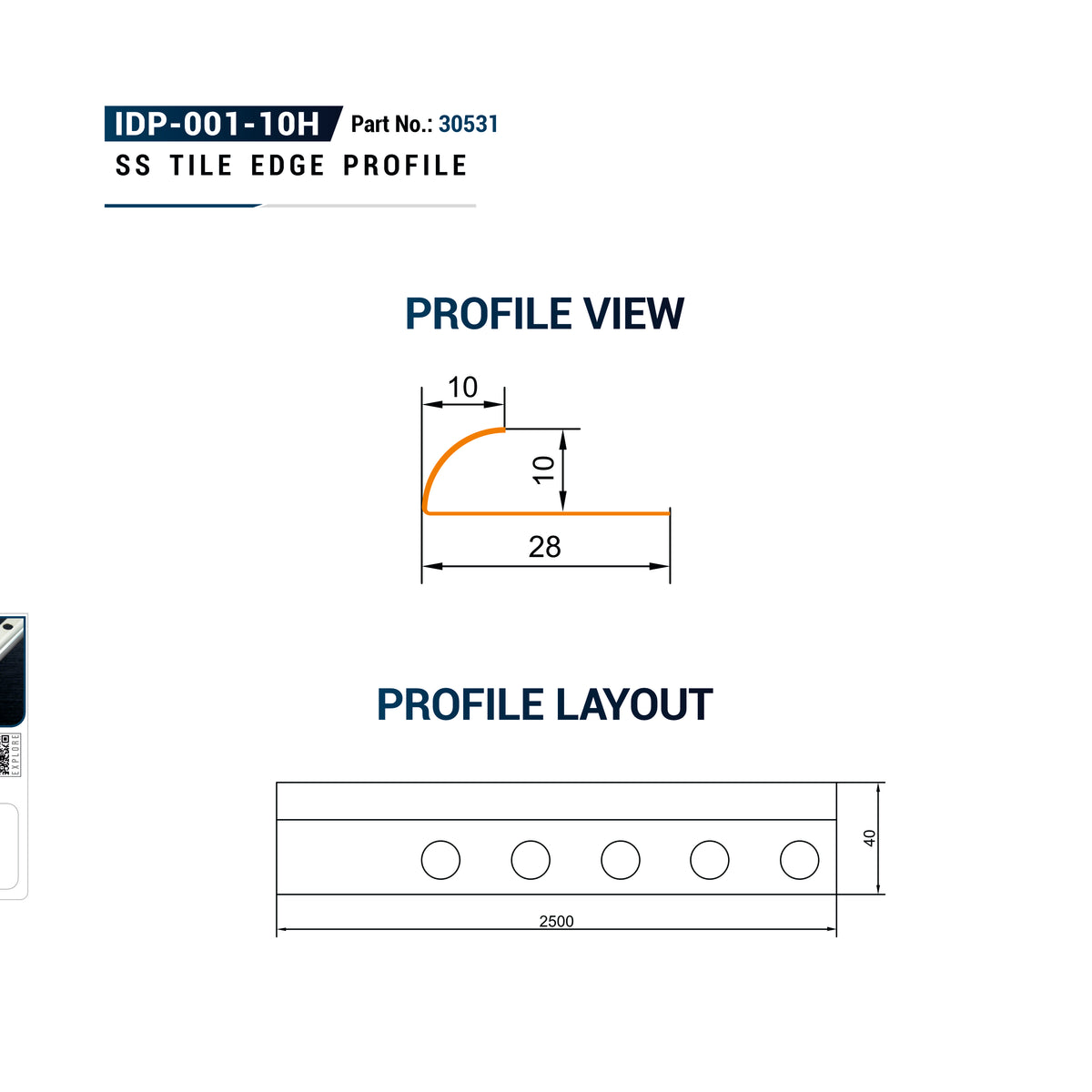

The IDP-001-10H is designed for use with 10mm tile depth, as indicated by the 10mm leg dimension in its 10 × 10 × 0.6 mm profile cross-section. This makes it compatible with standard commercial ceramic and porcelain tiles in the 8–12mm thickness range when accounting for adhesive bed depth. Always verify the total tile-plus-adhesive depth on-site before specifying.
Can this trim be used in outdoor or coastal environments?
SS304 stainless steel provides excellent resistance to atmospheric corrosion and humidity, making the IDP-001-10H suitable for covered outdoor areas, balconies, and light coastal applications. For environments with direct salt-spray exposure or permanent immersion, SS316 grade is generally recommended. Consult your project specifications for the appropriate material grade selection.
Product-Specific and Usage Queries
How is the IDP-001-10H installed on a wall corner?
The profile is embedded during the tiling process. The perforated base flange is set into the thin-set mortar or tile adhesive bed at the corner before the adjacent tiles are laid. The flange's circular perforations allow the adhesive to key through, creating a full mechanical bond. Tiles are then butted up to the rounded bead on each face. No mechanical fasteners or additional adhesives are required when installed correctly within the tile adhesive layer.
Can this profile be cut to length on-site?
Yes. The IDP-001-10H can be cut to any required length on-site using a stainless steel-rated angle grinder, metal chop saw, or fine-tooth hacksaw. It is supplied in a standard 2500mm (2.5 metre) length to minimise joins on full-height wall installations. Always de-burr cut ends before installation to maintain a clean edge finish and prevent injury during handling.
What is the net weight per piece and how many pieces are included?
Each IDP-001-10H Edge Corner profile weighs 0.203 kg and is supplied as one (1) piece per pack at a length of 2500mm. This allows accurate quantity takeoffs for large-scale commercial projects — simply divide your total linear metre requirement by 2.5 to determine the number of pieces needed.
Problem/Solution-Oriented Queries
My existing tile corners keep chipping from trolley and equipment impact — will this fix it?
Yes. Unprotected external tile corners are the most vulnerable point in any tiled wall — even a single lateral impact from a cart or equipment can cause tile cracking, spalling, or full corner breakage. The IDP-001-10H absorbs and deflects these impacts through its rigid SS304 stainless steel body, protecting the tile edges behind it. Retrofitting is possible by carefully removing the damaged corner tiles and re-tiling with the profile embedded in the new adhesive bed.
The grout at my wall corner keeps cracking and going mouldy — can this profile help?
Absolutely. Open grout joints at external corners are highly susceptible to movement cracking, water ingress, and mould growth — particularly in wet areas. The IDP-001-10H eliminates the open corner joint entirely by capping it with a continuous stainless steel arc. The sealed profile prevents moisture from tracking behind the tile layer and removes the grout joint as a breeding ground for mould and bacteria, significantly reducing maintenance and improving hygienic compliance in bathroom and kitchen environments.
Will the polished finish show scratches or marks over time in a busy commercial space?
The polished finish on the IDP-001-10H is inherently more resistant to showing fine surface marks compared to matte or brushed finishes due to its reflective surface, which diffuses minor abrasions visually. For environments with extreme abrasive contact, periodic stainless steel polish or passivation treatment can restore the surface to its original condition. The underlying SS304 substrate will not rust or corrode under normal commercial use, ensuring the profile remains structurally sound regardless of surface wear.
IDP-001-10H Edge Corner (1 Pcs)
