IDEAL SOFT START [ID GC135] GROOVE CUTTERS AND WALL CHASER SPARE PART - 30554
Chat with us
Choose options
The IDEAL Soft Start [ID GC135] is a precision-engineered replacement switch module designed exclusively for IDEAL ID GC135 groove cutters and wall chasers. Rated at 20(20)A / 250V~ and built to a 5E4 durability standard (50,000 cycles), this OEM-grade spare part restores full soft-start functionality, protects your motor, and extends the working life of your wall chaser with a direct, tool-free wiring replacement.
| Key Features | Perfect For |
|---|---|
|
|
Professional-Grade Protection, Built Into Every Switch
- Smooth Current Ramp-Up for Circuit Protection: The soft-start mechanism progressively ramps motor current from zero, preventing the high inrush spike that trips circuit breakers when a high-wattage wall chaser motor engages. This is critical on job sites with shared circuits or older electrical infrastructure.
- Elimination of Mechanical Torque Jolt: Without a soft-start switch, the ID GC135 motor reaches full torque instantaneously at trigger pull — a jolt that can cause the operator to lose positioning on concrete or brick. This replacement module restores the controlled, progressive startup that gives the operator precise blade placement from the first moment of contact.
- Motor and Gearbox Longevity: Repeated hard starts accelerate wear on armature windings, carbon brushes, and gearbox drive pinions. By limiting the mechanical shock at each startup, this switch module directly reduces stress on the most wear-prone internal components, extending the overall service interval of the tool.
- Dual-Voltage Electrical Rating (20(20)A / 250V~ | 20(20)A / 125V~): The component code BZBKJ XS-12/D6 is rated for both 250V and 125V systems, making this spare part suitable for use across GCC, UK, EU, and North American voltage standards — an important consideration for distributors and multi-market tool repair operations.
- Cast Aluminum Shell with Internal Resin Potting: The outer housing is precision-cast aluminum, providing structural rigidity and EMI shielding. The internal electronics are encapsulated in resin, which locks components in place against the constant vibration of wall chasing operations and acts as a secondary heat sink to prevent thermal runaway during extended use.

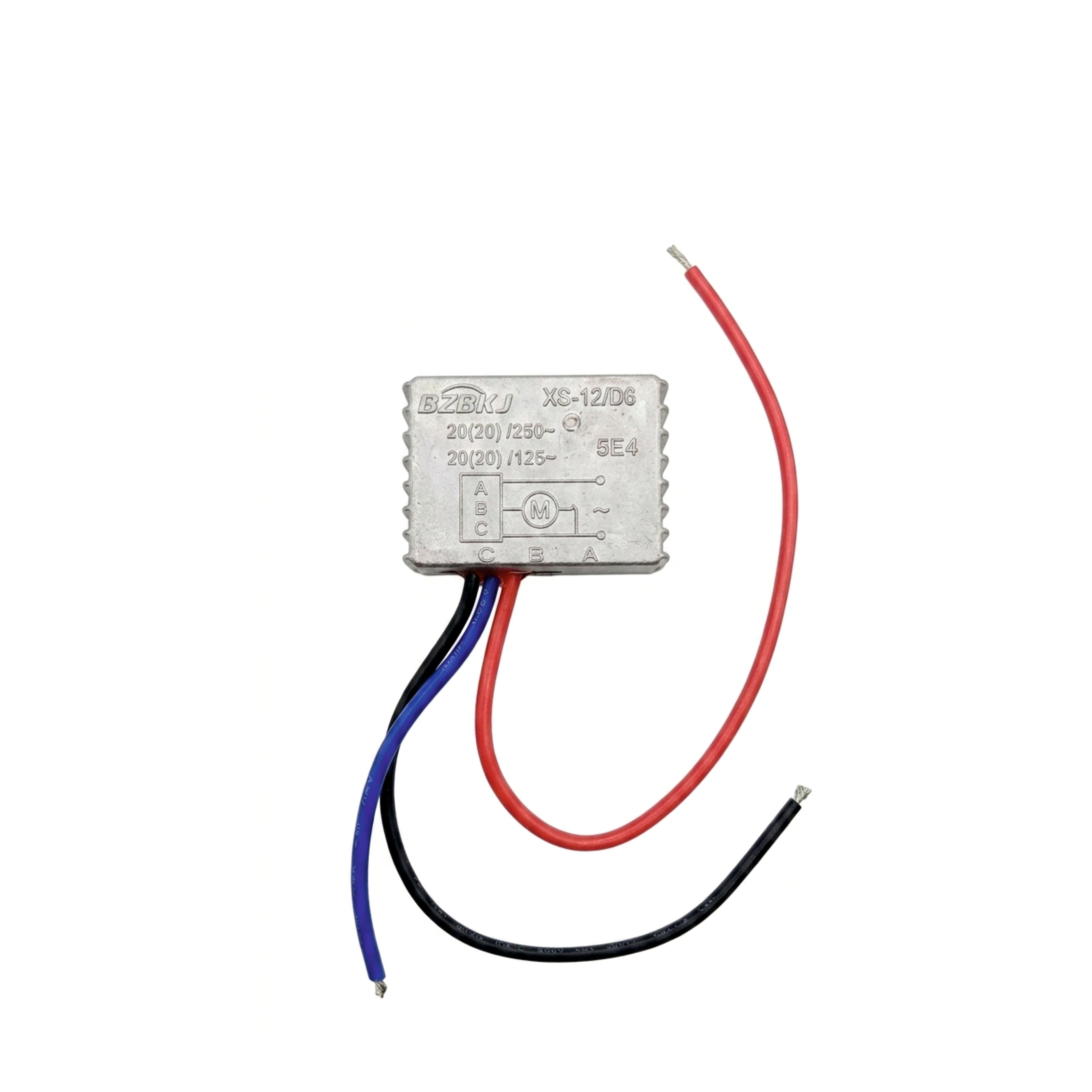

- 3-Wire Color-Coded Lead Output with Molded Wiring Schematic: The Red, Blue, and Black lead configuration follows a standardized 3-wire layout. The wiring diagram is molded directly onto the aluminum faceplate — not a sticker or printed label — ensuring the installation reference remains legible even after years of use in dusty, high-vibration environments.
This spare part carries a 5E4 electrical durability rating, confirming it has been tested to 50,000 full switching cycles under rated load conditions. It is supplied as a single unit (1 Pcs) and includes the soft-start module with pre-terminated 3-wire leads ready for direct connection to the ID GC135 wiring harness.
General Purchase & Comparison Queries
Is this the correct soft-start switch for my IDEAL ID GC135 wall chaser?
Yes. This spare part — component code BZBKJ XS-12/D6, part number 30554 — is the OEM-specified soft-start switch module for the IDEAL ID GC135 groove cutter and wall chaser. It is not a universal aftermarket part; it is engineered specifically for this tool's motor and trigger circuit. If you are unsure, cross-reference the component code printed on your existing switch against BZBKJ XS-12/D6 before ordering.
How does this soft-start switch compare to a standard on/off switch replacement?
A standard on/off switch delivers full voltage to the motor instantaneously, causing a hard torque jolt and a high inrush current spike. The IDEAL Soft Start [ID GC135] module incorporates an electronic current-ramping circuit that progressively increases motor speed over a controlled interval. This protects the armature windings, carbon brushes, and gearbox, prevents circuit breaker trips, and gives the operator better startup control — none of which a basic switch replacement provides.
Is this part compatible with both 220V and 110V power supplies?
Yes. The switch is dual-voltage rated at 20(20)A / 250V~ and 20(20)A / 125V~, covering both 220–250V systems common in the GCC, UK, and EU, as well as 110–125V systems used in North America. However, always verify that your specific ID GC135 tool model is rated for the local supply voltage before operation, as the switch rating alone does not determine overall tool compatibility.
Product-Specific and Usage Queries
What does the 5E4 durability rating mean for this switch?
The 5E4 rating is an electrical endurance classification indicating the switch has been tested to withstand 50,000 full switching cycles at its rated load of 20(20)A. In practical terms, for a professional using the wall chaser on a daily basis, this translates to years of reliable service before the switch mechanism reaches end-of-life. It is a standard benchmark used to qualify industrial-grade switching components.
Can I replace this switch myself, or does it require a qualified technician?
The switch features a 3-wire color-coded lead output (Red, Blue, Black) and a wiring diagram molded directly onto the aluminum faceplate, which simplifies field replacement significantly. However, working inside a power tool involves live electrical components and mechanical disassembly. It is strongly recommended that replacement is carried out by a qualified tool repair technician or electrician familiar with power tool servicing to ensure safety and correct terminal connections.
Why does the switch housing use cast aluminum with resin potting?
Wall chasers operate under sustained high-vibration conditions when cutting through concrete and masonry. A plastic housing would flex and fatigue over time, potentially loosening internal solder joints or terminal connections. The cast aluminum outer shell provides rigid structural support and EMI shielding, while the internal resin potting encapsulates the electronic components, locking them against vibration-induced movement and providing a secondary thermal mass to assist with heat dissipation during extended cutting sessions.
Problem/Solution-Oriented Queries
My ID GC135 trips the circuit breaker every time I start it — will this fix the issue?
A failed or degraded soft-start module is one of the most common causes of circuit breaker trips on high-wattage wall chasers. When the soft-start circuit fails, the motor draws its full locked-rotor inrush current instantaneously at trigger engagement, which can exceed the breaker's trip threshold. Replacing the switch with a new IDEAL Soft Start [ID GC135] — Part 30554 restores the controlled current ramp-up that limits inrush current and prevents nuisance tripping. If the problem persists after replacement, the issue may lie with the motor windings or the supply circuit itself.
The wall chaser jerks violently when I pull the trigger — is the soft-start switch the cause?
Yes, a hard startup jolt is the primary symptom of a failed or bypassed soft-start switch. When the soft-start module is functioning correctly, the motor accelerates smoothly from rest to operating speed, giving the operator full positional control from the moment of trigger engagement. A violent jerk at startup indicates the electronic ramp-up circuit is no longer functioning, and the motor is receiving full voltage instantaneously. Replacing the switch with this OEM soft-start module (BZBKJ XS-12/D6) will restore smooth, controlled startup behavior.
How do I know if my soft-start switch has failed rather than another component?
Common indicators of soft-start switch failure include: hard torque jolt at startup (motor reaches full speed instantly), circuit breaker trips on trigger engagement, intermittent power or the tool cutting out under load, and visible burn marks or melting on the switch housing. A qualified technician can confirm switch failure using a multimeter to test continuity and resistance across the switch terminals at rest and under simulated load. If the switch tests open-circuit or shows erratic resistance, replacement with Part 30554 is the correct course of action.
