IDEAL [ID HPT25] [2.5 TON] TROLLEY - 27962
Chat with us
Choose options
Industrial-Grade Lifting Power, Built for the Demands of the Worksite

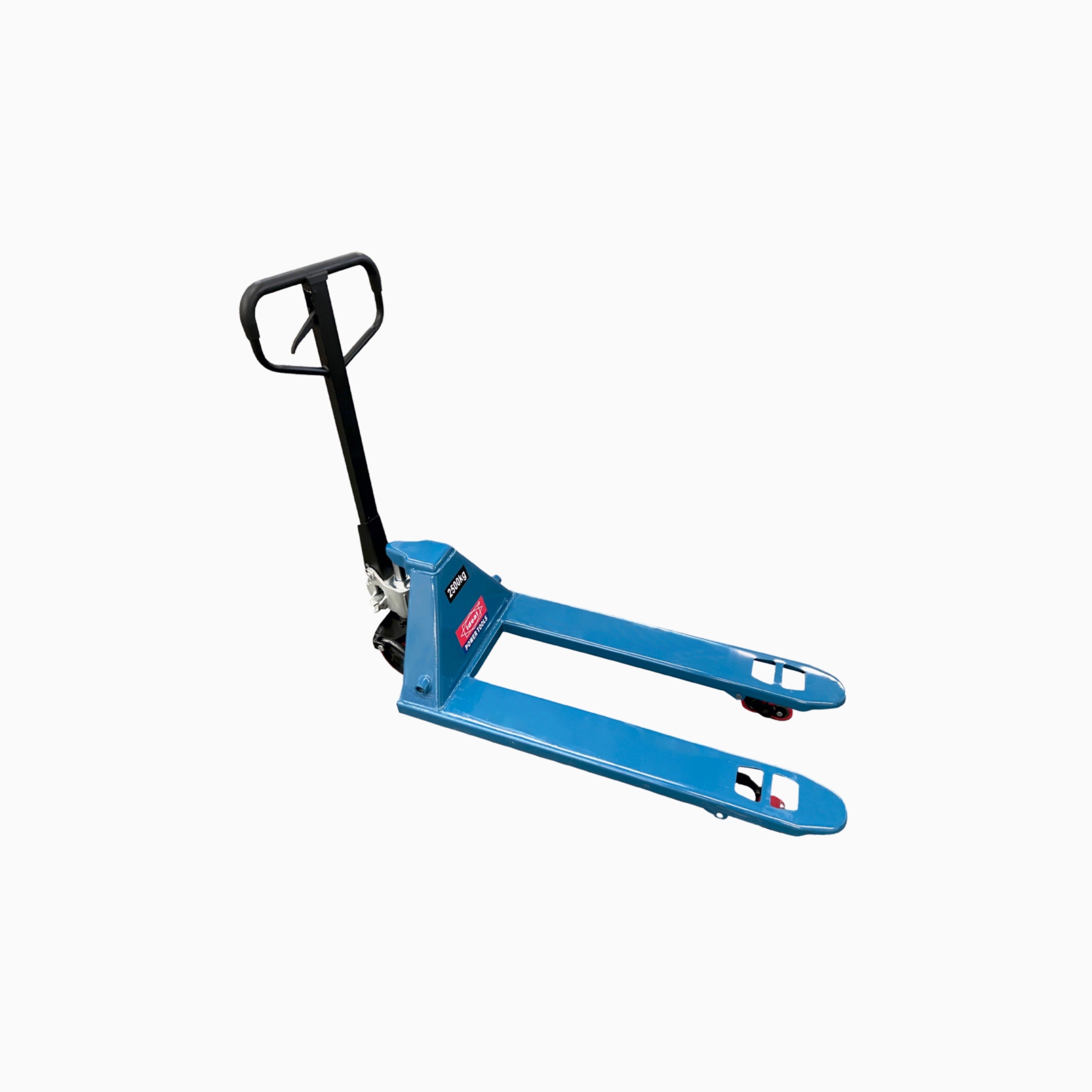

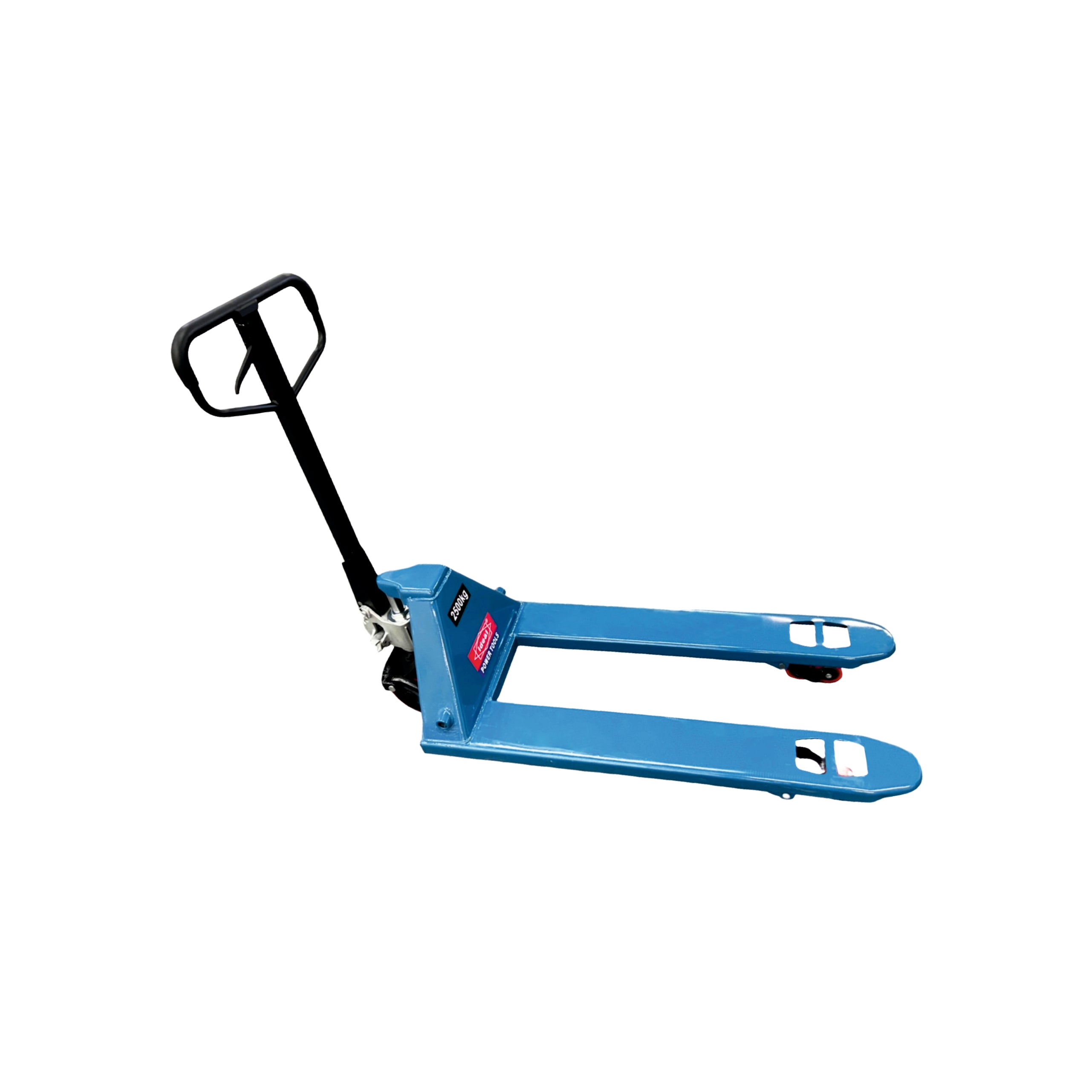

The ID HPT25 2.5 Ton Pallet Trolley is a professional-grade hydraulic hand pallet truck engineered for demanding industrial environments. Built from a 4mm thick heavy-duty iron plate and fitted with a precision hydraulic pump, it delivers a 2,500 kg load capacity with a smooth, controlled lift. Whether you are managing a busy warehouse, a fabrication workshop, or a construction site, this heavy-duty pallet jack combines structural rigidity with effortless maneuverability, making it the reliable workhorse your operation demands.
| Key Features | Perfect For |
|---|---|
|
|
- 2,500 kg rated load capacity — The HPT25 is engineered to handle palletized loads up to 2,500 kilograms, making it suitable for steel components, machinery parts, bulk raw materials, and heavy construction supplies without compromising structural integrity or operator safety.
- 4mm thick heavy-duty iron plate chassis — The fork arms and main frame are fabricated from 4mm iron plate, providing exceptional rigidity and resistance to bending or deformation under sustained heavy loads, a critical factor in high-cycle warehouse and industrial environments.
- 195mm hydraulic lifting height with precision pump control — The hydraulic pump system delivers a controlled lift range of up to 195mm, allowing precise pallet positioning for loading onto racking, trucks, or conveyor systems. The pump has been tested under heavy-load conditions to ensure consistent, leak-free performance over extended service life.
- 180° full-rotation PU steering wheels — The front steering wheels rotate a full 180 degrees, enabling the operator to navigate narrow aisles, tight corners, and congested workspaces with minimal effort. The polyurethane (PU) wheel compound is non-marking and floor-safe, protecting epoxy-coated, tiled, or polished concrete surfaces from scuffing and damage.
- Ergonomic rubber-sleeved draw-bar handle with three-position control — The telescoping draw-bar is fitted with a contoured rubber sleeve that reduces operator fatigue during extended use. The handle provides three functional positions- lift, neutral, and lower, giving the operator precise hydraulic control at all times, improving both safety and workflow efficiency.
- Comprehensive operator documentation included — Each unit ships with a detailed guide book covering safe operating procedures, load limits, maintenance intervals, and hydraulic fluid specifications, ensuring operators can deploy the trolley correctly from day one and maintain it for long-term reliability.
General Purchase & Comparison Queries
What is the maximum load capacity of the ID HPT25 Pallet Trolley?
The ID HPT25 Pallet Trolley has a rated maximum load capacity of 2,500 kg (2.5 tonnes). This makes it suitable for moving heavy palletized goods, including steel, machinery components, bulk construction materials, and industrial equipment. Always ensure the load is evenly distributed across both fork arms and does not exceed the rated capacity to maintain safe operation.
How does the HPT25 compare to standard 2-tonne pallet trolleys?
The HPT25 offers a 25% higher load capacity than a standard 2-tonne pallet jack, rated at 2,500 kg versus the typical 2,000 kg. Beyond capacity, the HPT25 features a 4mm thick iron plate chassis — heavier gauge than many entry-level trolleys — and heavy-duty PU wheels that protect flooring while handling greater loads. The 180° steering wheel rotation also provides superior maneuverability in confined spaces compared to fixed-axle alternatives.
Is the ID HPT25 suitable for outdoor or construction site use?
Yes. The HPT25 is well-suited for construction sites and outdoor hardstand areas with smooth or semi-smooth surfaces. Its heavy-duty PU wheels and robust 4mm iron plate frame are built to withstand the rigors of industrial and construction environments. For rough, uneven, or unpaved terrain, a rough-terrain pallet mover would be more appropriate. On concrete slabs, loading docks, and warehouse floors, the HPT25 performs reliably.
Product-Specific and Usage Queries
What is the lifting height of the HPT25, and how is it controlled?
The HPT25 lifts to a maximum height of 195mm from the lowered position. Lifting is controlled via the ergonomic draw-bar handle, which features a three-position control mechanism: lift, neutral, and lower. Pumping the handle in the lift position activates the hydraulic pump to raise the forks. Switching to the lower position releases hydraulic pressure in a controlled manner, gently lowering the load. This gives the operator precise, safe control throughout the lift cycle.
Will the PU wheels damage my warehouse or workshop floor?
No. The polyurethane (PU) wheels on the HPT25 are specifically chosen for their non-marking properties. Unlike rubber or hard nylon wheels, PU wheels will not leave black scuff marks or scratches on epoxy-coated, tiled, polished concrete, or painted warehouse floors. They also provide a smoother, quieter roll compared to hard nylon alternatives, reducing operator fatigue during extended use.
How does the 180° wheel rotation benefit day-to-day operation?
The 180° full-rotation steering wheels allow the operator to change the direction of travel without needing a wide turning radius. This is particularly valuable in narrow warehouse aisles, tight loading bays, and congested workshop floors where space is limited. The operator can pivot the trolley on the spot, reducing the time and effort required to reposition loaded pallets and improving overall workflow efficiency.
Problem/Solution-Oriented Queries
The hydraulic pump is not lifting the load — what should I check?
If the hydraulic pump is not lifting, the most common causes are: (1) Low hydraulic fluid level — check and top up with the correct hydraulic oil as specified in the included guide book. (2) The release valve is not fully closed — ensure the handle is in the lift position and the valve is fully seated before pumping. (3) Air in the hydraulic system — bleed the system by pumping the handle several times with no load. If the issue persists after these checks, contact your supplier for service support.
The trolley is difficult to steer under a heavy load — how can I improve control?
Difficulty steering under load is usually caused by uneven load distribution or operating on an uneven surface. Ensure the load is centered and balanced across both fork arms and that the pallet is fully engaged before lifting. On smooth, level floors, the 180° PU steering wheels should allow easy directional changes. If the wheels feel stiff, inspect them for debris or damage and clean or replace as needed. The rubber-sleeved draw-bar handle is designed to reduce grip fatigue — ensure you are using the handle correctly as described in the guide book.
How do I maintain the HPT25 to ensure a long service life?
Regular maintenance of the HPT25 includes: checking and topping up hydraulic fluid at intervals specified in the guide book, inspecting the fork arms and chassis for cracks or deformation after heavy use, lubricating the wheel axles and pivot points to ensure smooth rotation, and cleaning the PU wheels to remove debris that could cause uneven wear. Store the trolley in the lowered position when not in use to relieve pressure on the hydraulic seals. Following the maintenance schedule in the included guide book will maximize the operational lifespan of the unit.
Pallet Trolley (1 Pcs), Guide Book (1 Pcs)
