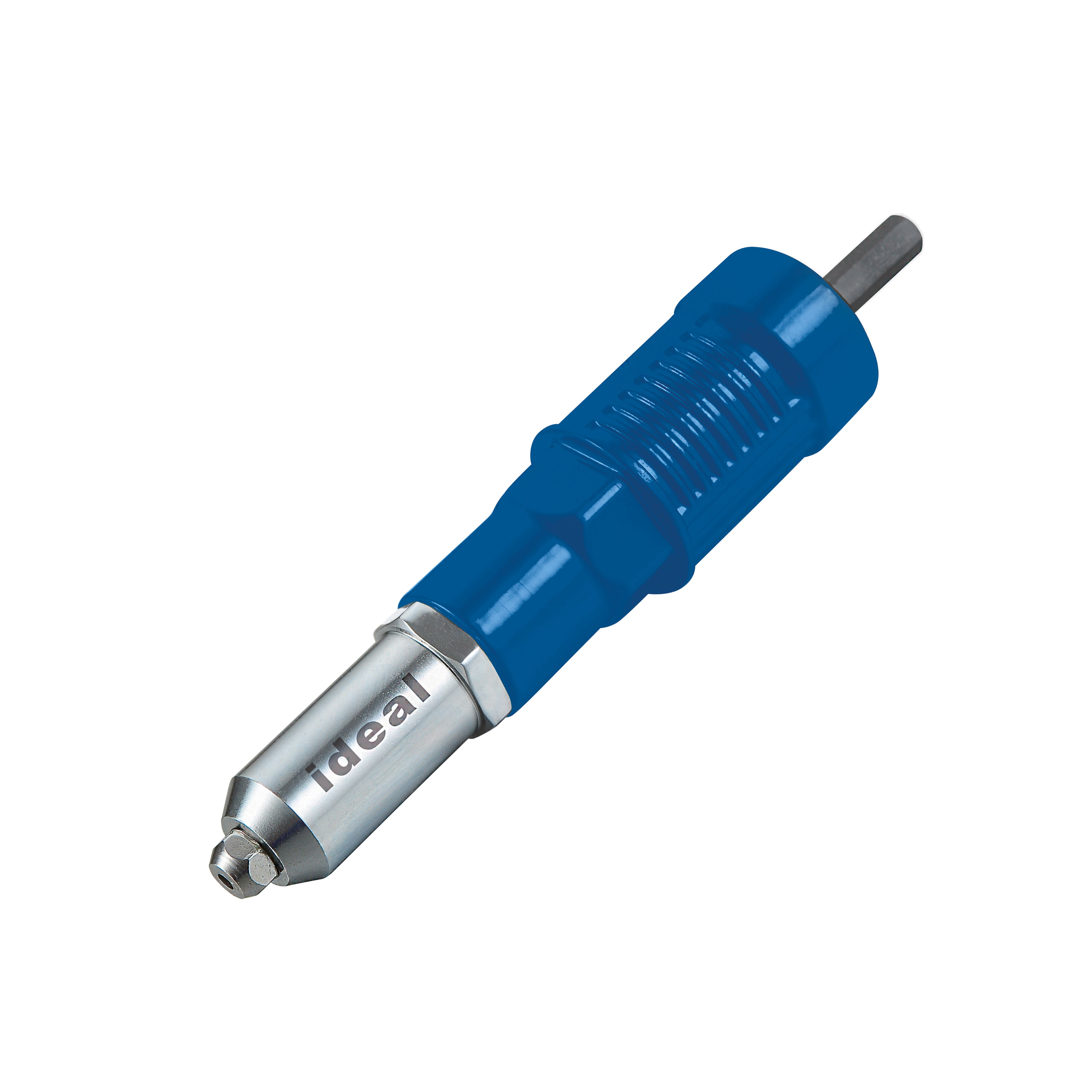

IDEAL ELECTRIC TO RIVETER CONVERSION CONNECTOR [ID ERC52] DRILL ACCESSORY - 25992

The Ideal ERC52 Electric-to-Riveter Conversion Connector is an accessory that attaches to the chuck of any standard electric or cordless drill and converts it into a functional blind rivet gun. Instead of purchasing a dedicated riveting tool, the ERC52 allows you to use your existing drill to set rivets across four standard sizes — 2.4 mm, 3.2 mm, 4.0 mm, and 4.8 mm — making it a highly cost-effective solution for both professional tradespeople and workshop users.

A standalone electric rivet gun is a dedicated, single-purpose tool, whereas the ERC52 conversion connector leverages the power of a drill you already own. The ERC52 is significantly more affordable, lighter at just 0.5 kg, and more portable. For users who rivet intermittently rather than continuously, the ERC52 delivers comparable results at a fraction of the cost and storage footprint. For very high-volume production riveting, a dedicated tool may offer faster cycle times, but for most construction, maintenance, and fabrication tasks, the ERC52 is an excellent and practical alternative.

The ERC52 is designed to meet the demands of both professional tradespeople and serious DIY users. Its forged alloy steel nozzle tips, high-strength connecting rod, and reinforced nylon body are built for durability and repeated use on active job sites. It is well-suited for HVAC installation, automotive body repair, sheet metal fabrication, and general construction maintenance — all common professional applications.

The ERC52 kit includes four forged alloy steel nozzle tips covering the most common standard blind rivet diameters: 2.4 mm, 3.2 mm, 4.0 mm, and 4.8 mm. These sizes correspond to the most widely used pop rivets in construction, automotive, and sheet metal work. Changing tips is straightforward using the included spanner, allowing you to switch between rivet sizes quickly on the job.

The ERC52 connects directly to the standard chuck of any electric or cordless drill. Simply insert the connector's shank into the drill chuck and tighten as you would with any drill bit or accessory. Select the appropriate nozzle tip for your rivet size using the included spanner, load your rivet, position it on the workpiece, and squeeze the drill trigger to set the rivet. The removable handle can be attached for added stability or removed for use in tighter spaces.

Yes. The ERC52 features a removable ergonomic handle that can be detached entirely or repositioned to suit the task at hand. This is particularly useful when working in confined spaces such as inside ductwork, behind panels, or in tight automotive cavities where a fixed handle would obstruct access. When working in open areas, the handle provides additional grip and control during high-volume riveting.

Absolutely. That is precisely what the ERC52 is designed for. Rather than investing in a separate rivet gun, the ERC52 converts your existing electric or cordless drill into a fully functional riveting tool. The complete kit — including the conversion connector, four nozzle tips, spanner, and removable handle — provides everything you need to begin riveting immediately, with no additional purchases required.

Yes. The ERC52 uses a modular nozzle tip system with four interchangeable forged alloy steel tips (2.4 mm, 3.2 mm, 4.0 mm, 4.8 mm) that can be swapped using the included spanner. If a tip becomes worn through extended use, replacement nozzle tips compatible with the ERC52 can be sourced separately. Using worn tips can result in incomplete rivet setting or mandrel slippage, so replacing damaged tips promptly ensures consistent, reliable performance.

Incomplete or unclean rivet setting is typically caused by one of three issues: (1) Incorrect nozzle tip size — ensure the tip diameter matches the rivet shank diameter exactly (2.4, 3.2, 4.0, or 4.8 mm). (2) Insufficient drill speed or torque — the ERC52 requires adequate RPM and torque from the host drill to generate the pulling force needed to set the rivet fully; check your drill's speed settings. (3) Worn or damaged nozzle tip — a tip that has lost its grip geometry will fail to pull the mandrel cleanly. Replace the tip using the included spanner and retry. Ensuring the rivet is fully seated in the pre-drilled hole before triggering the drill will also improve setting consistency.
