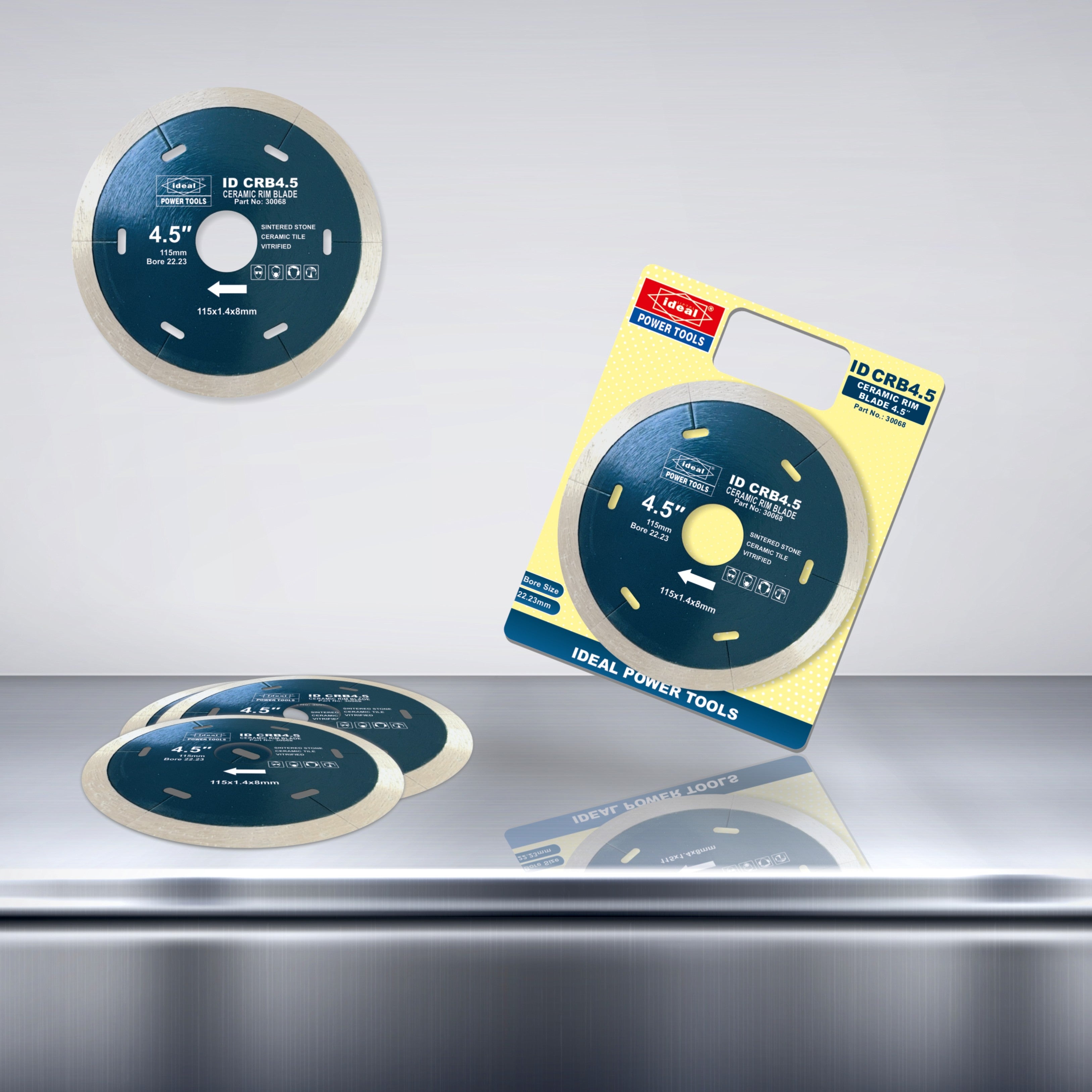

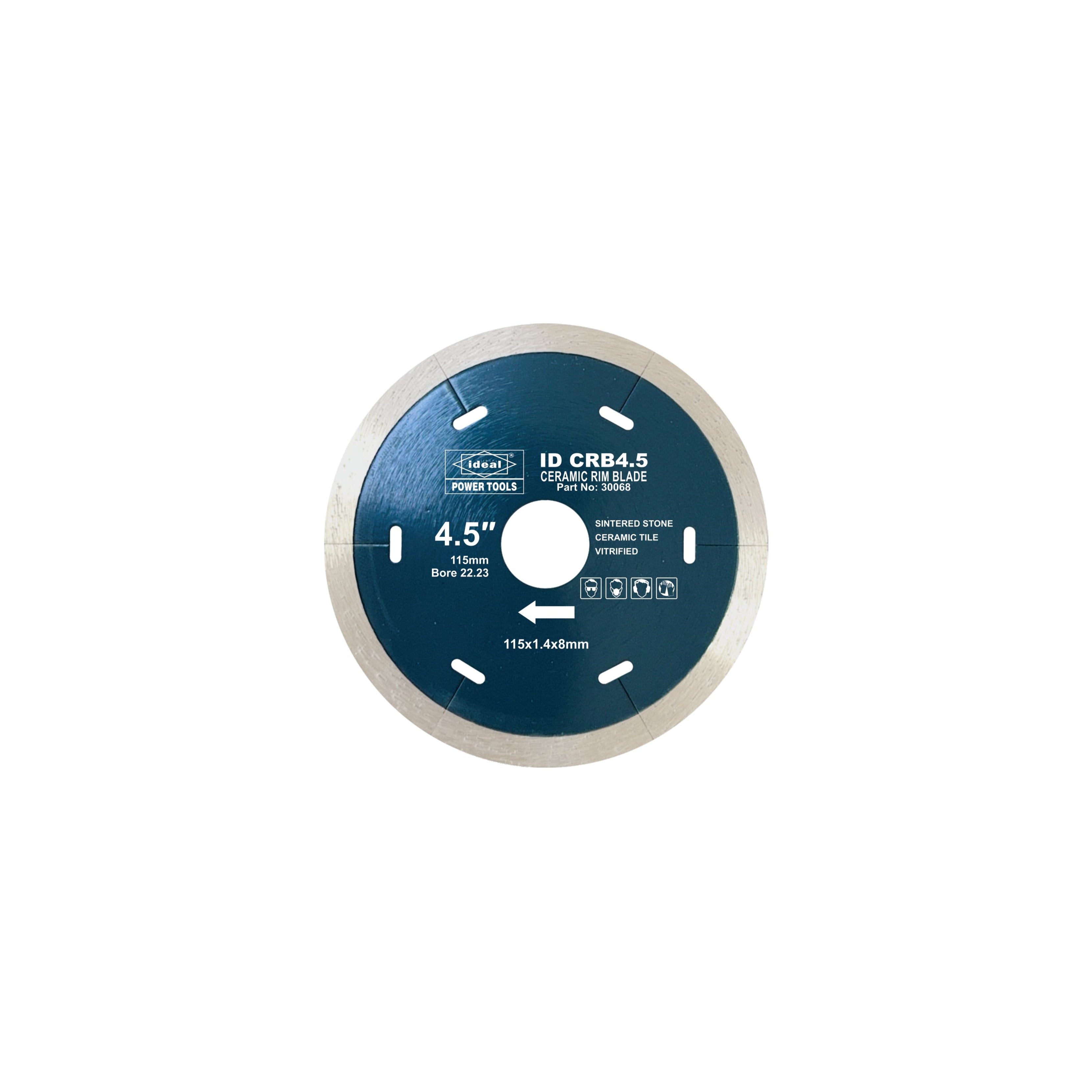

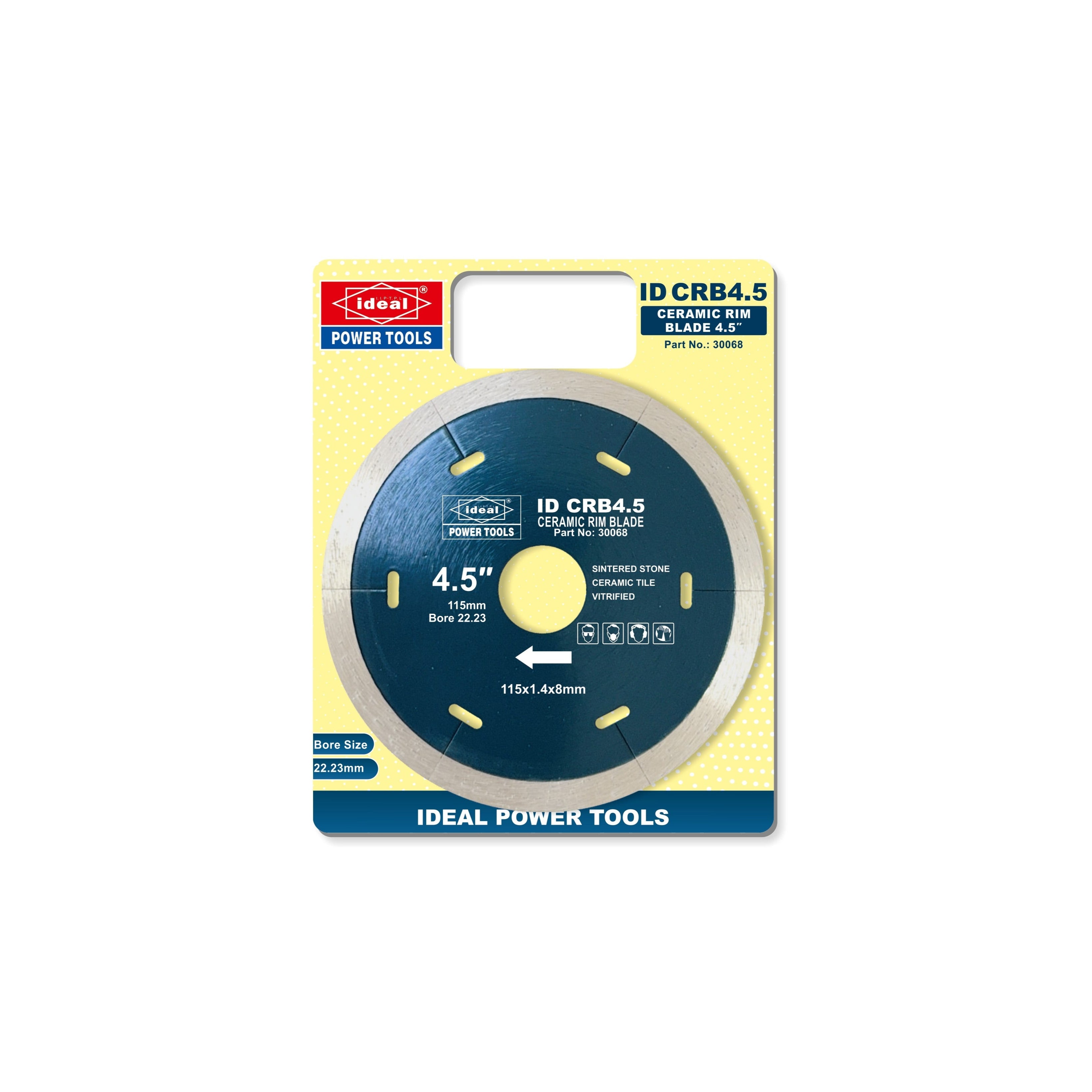

IDEAL CERAMIC RIM BLADE [ID CRB4.5] [4.5"] [115 X 1.4 X 8MM] MARBLE CUTTER ACCESSORY - 30068

Standard diamond discs often use a segmented rim designed for general masonry — concrete, brick, and block. The IDEAL CRB4.5 uses a continuous (uninterrupted) rim specifically engineered for hard, brittle materials like ceramic tile, porcelain, and sintered stone. The continuous rim eliminates the micro-chipping that segmented blades cause on glazed surfaces, producing a clean, polished edge that requires little to no finishing. The vitrified bond also provides superior wear resistance compared to resin-bonded alternatives, meaning you get more cuts per blade.

Yes. The ID CRB4.5 is designed with a 22.23mm universal bore and a 115mm (4.5") diameter — the global standard for compact angle grinders. It is compatible with tools from Bosch, Makita, DeWalt, Metabo, Milwaukee, Hitachi/HiKoki, and most other major brands. Always confirm your grinder's maximum disc diameter and RPM rating before use. This blade is rated for dry cutting and should be used at the RPM specified on the blade label.

The ID CRB4.5 is rated for dry cutting with an angle grinder. While the 115mm diameter and 22.23mm bore are common dimensions, tile saws and wet cutters typically use larger diameter blades (200mm–300mm) with different arbor sizes and are designed for wet operation. Using this blade on a wet saw is not recommended as it may affect the vitrified bond integrity and void any applicable product warranty. For best results, use this blade with a 4.5" angle grinder in dry cutting conditions.

The ID CRB4.5 is optimised for cutting hard, dense, and brittle ceramic-based materials, including: glazed and unglazed ceramic tiles, full-body porcelain (including PEI 4 and PEI 5 rated tiles), sintered stone slabs such as Dekton, Neolith, and Lapitec, as well as natural stone tiles like marble and granite in thinner formats. It is not intended for cutting concrete, reinforced masonry, metal, or wood.

For optimal performance: use consistent, moderate forward pressure — do not force the blade through the material. Allow the diamond rim to do the work. Avoid lateral (sideways) pressure as this can cause premature rim wear or blade warping. For long cuts on large-format tiles, use a straight edge guide to maintain accuracy. Periodically dress the blade on a soft abrasive material (such as a sandstone block) if you notice reduced cutting speed, as this re-exposes fresh diamond particles. Always ensure the blade is securely fastened and the grinder guard is in place before operation.

With a 115mm total diameter and accounting for the grinder's guard and flange, the effective cutting depth is approximately 25mm–30mm depending on your specific angle grinder model. This is sufficient for standard ceramic wall tiles (6mm–10mm), porcelain floor tiles (up to 20mm), and most sintered stone panels used in residential and commercial fit-out applications. For thicker slabs exceeding 20mm, multiple passes may be required.

Chipping during tile cutting is almost always caused by one of three factors: using a segmented blade (designed for masonry, not tile), a worn or glazed diamond rim, or excessive cutting speed and pressure. The ID CRB4.5's continuous rim design eliminates the impact chipping caused by segmented blades. If you are already using a continuous rim blade and still experiencing chipping, check that the blade is not glazed over (dress it on a soft abrasive) and reduce your feed rate. Scoring the glaze surface with a light first pass before the full-depth cut can also significantly reduce edge chipping on highly glazed tiles.

Slow cutting speed combined with surface burning or discolouration is a classic sign of a glazed diamond blade — the bond matrix has worn flush with the diamond particles, preventing them from engaging the material. The solution is to dress the blade by making several passes through a soft abrasive material such as a sandstone block or an old red brick. This abrades the bond surface and re-exposes sharp diamond particles, restoring cutting performance. If dressing does not restore speed, the blade has reached the end of its service life and should be replaced. Never continue using a blade that produces excessive heat, as this risks thermal cracking of the tile and potential blade failure.

Excessive vibration is rarely a blade defect and is most commonly caused by an improperly tightened flange nut, a worn or damaged grinder spindle, or using the blade on a grinder with a bent or damaged arbor. First, ensure the blade is mounted correctly with the flange nut torqued firmly. Inspect the grinder's spindle flange for damage or debris. If vibration persists after confirming correct installation, discontinue use immediately and inspect the blade for visible warping or rim damage. A warped blade should be removed from service and not used further, as it presents a safety risk. Contact IDEAL Power Tools support if you believe the blade arrived damaged.
