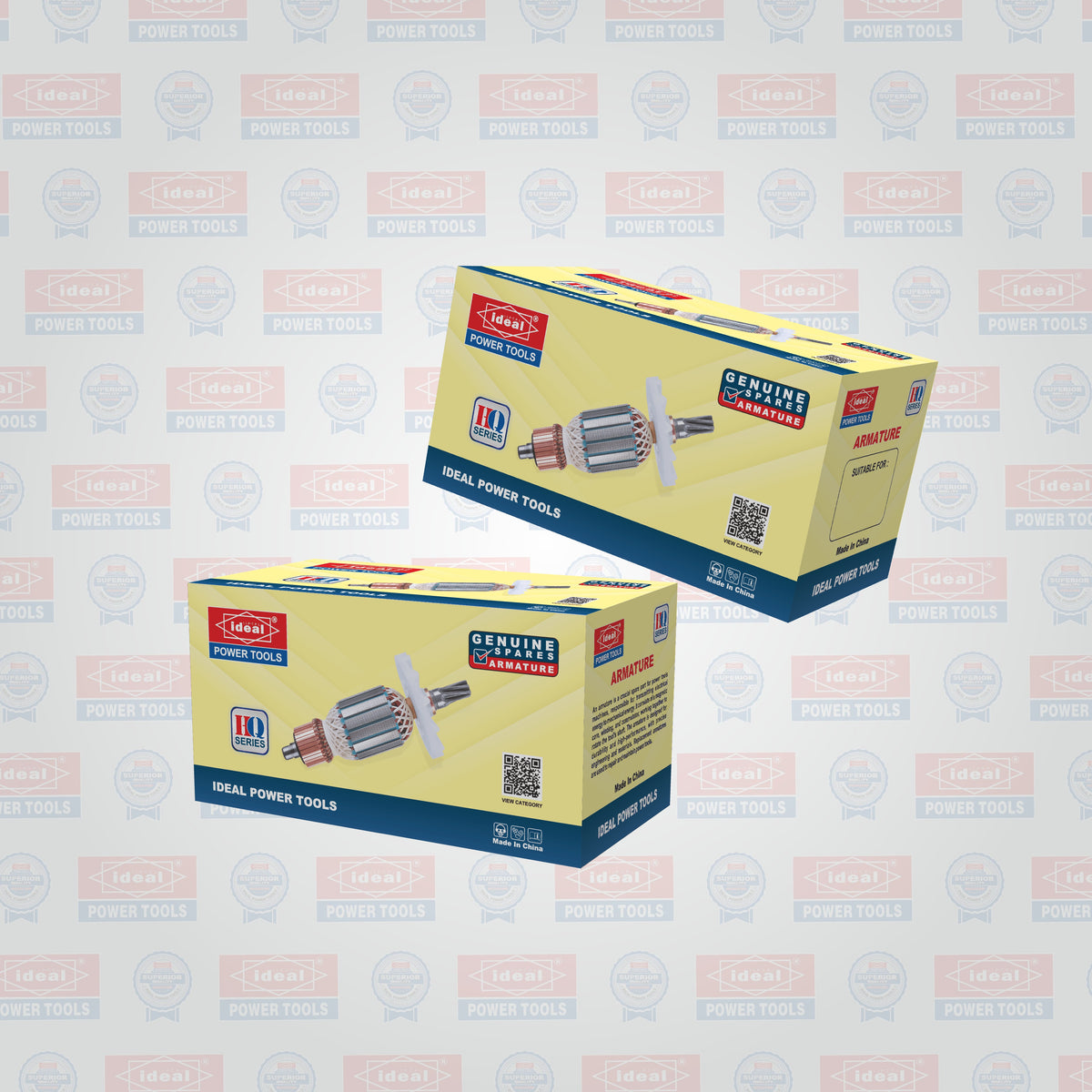

ID HQ SERIES ARMATURE [2414NB] [14"] CUT-OFF SAW SPARE PART [Hitachi Type] - 29012

Yes. The ID HQ Series Armature [2414NB] is specifically designed as a direct replacement for Makita-type 2414NB 14-inch cut-off saws. The shaft dimensions, commutator configuration, and winding specification are matched to the original OEM part, ensuring a drop-in fit without any modification. If you are unsure whether your saw model is compatible, please contact us with your tool's model number before ordering.

The ID HQ Series Armature is engineered to OEM specification using high-grade copper windings and a precision-machined commutator, delivering performance equivalent to the original Makita armature. It carries CE machine certification, confirming it meets the same essential safety and performance standards. For most repair and maintenance applications, it provides a cost-effective alternative to sourcing a direct Makita OEM part, with no compromise on fit or function.

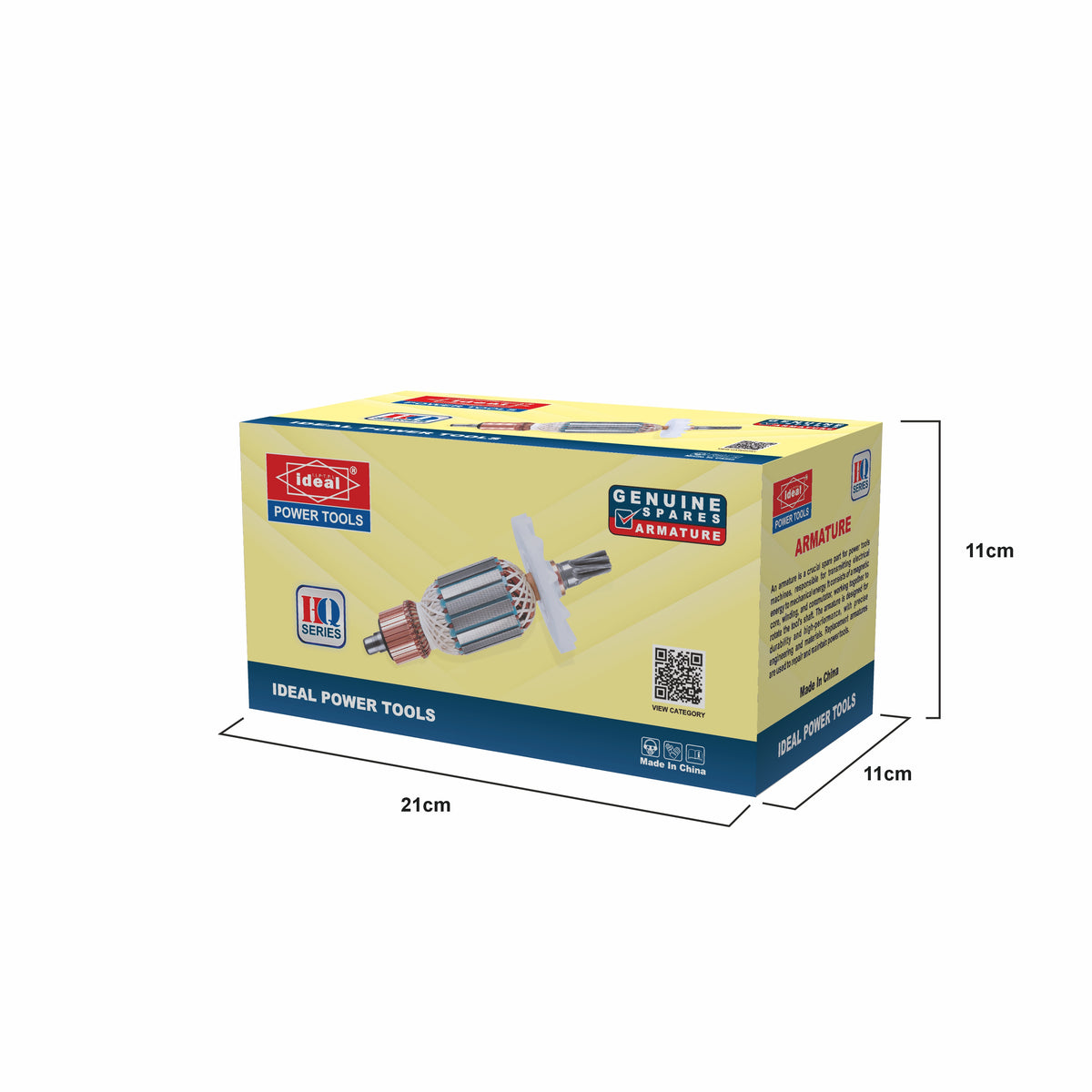

Each order includes one (1) armature unit. The part is supplied with CE machine test certification, confirming compliance with applicable machinery safety directives. No additional components such as brushes or bearings are included — this listing covers the armature only, which is the primary rotating component of the motor assembly.

The armature is the core rotating component of the electric motor inside your cut-off saw. It converts electrical energy into mechanical rotational energy by interacting with the stator's magnetic field. The armature consists of a laminated magnetic core, copper windings, and a commutator — together, these components generate the torque that drives the cutting disc. When the armature fails (typically due to burnt windings, commutator wear, or physical damage), the tool will lose power, overheat, or stop functioning entirely.

Armature replacement requires disassembly of the motor housing, removal of the carbon brushes, and careful extraction of the original armature from the bearing seats. While an experienced DIY user with the correct tools can perform this repair, we recommend having the replacement carried out by a qualified power tool repair technician to ensure correct reassembly, proper brush seating, and safe operation after the repair. Incorrect installation can damage the new armature or create a safety hazard.

Common signs of a failed or failing armature include: the tool not starting or cutting out under load; excessive sparking at the brush contact area; a burning smell during operation; visible discolouration or burnt windings on the armature itself; or the commutator showing deep grooves, flat spots, or carbon tracking between segments. A multimeter continuity test across the commutator segments can confirm a winding fault. If any of these symptoms are present, replacing the armature is typically the most cost-effective repair.

A burning smell combined with power loss is one of the most reliable indicators of armature winding failure. When the copper windings overheat — typically due to prolonged overloading, blocked ventilation, or worn carbon brushes causing excessive arcing — the insulation breaks down and the winding shorts internally. Replacing the armature with the ID HQ Series [2414NB] will restore full motor function, provided the stator, brushes, and bearings are also in serviceable condition. We recommend inspecting those components at the same time to avoid a repeat failure.

Heavy sparking at the brush contact zone can be caused by a worn or damaged commutator, a shorted armature winding, or worn-out carbon brushes. Start by inspecting and replacing the carbon brushes first, as these are a lower-cost consumable. If sparking persists after fitting new brushes, the commutator surface should be inspected for grooves, high mica, or inter-segment carbon tracking — all of which indicate armature replacement is required. The ID HQ Series Armature [2414NB] features a precision-machined commutator that provides a clean, even brush contact surface from the outset.

In most cases, replacing the armature is significantly more cost-effective than purchasing a new cut-off saw, particularly for a quality Makita-type 2414NB machine. The armature is the most commonly replaced motor component, and with the rest of the tool in good condition — including the gearbox, guard, and handle assembly — a new ID HQ Series Armature can restore the saw to full working order at a fraction of the cost of a replacement unit. This approach also reduces waste and downtime, making it the preferred choice for professional workshops and site maintenance teams.
