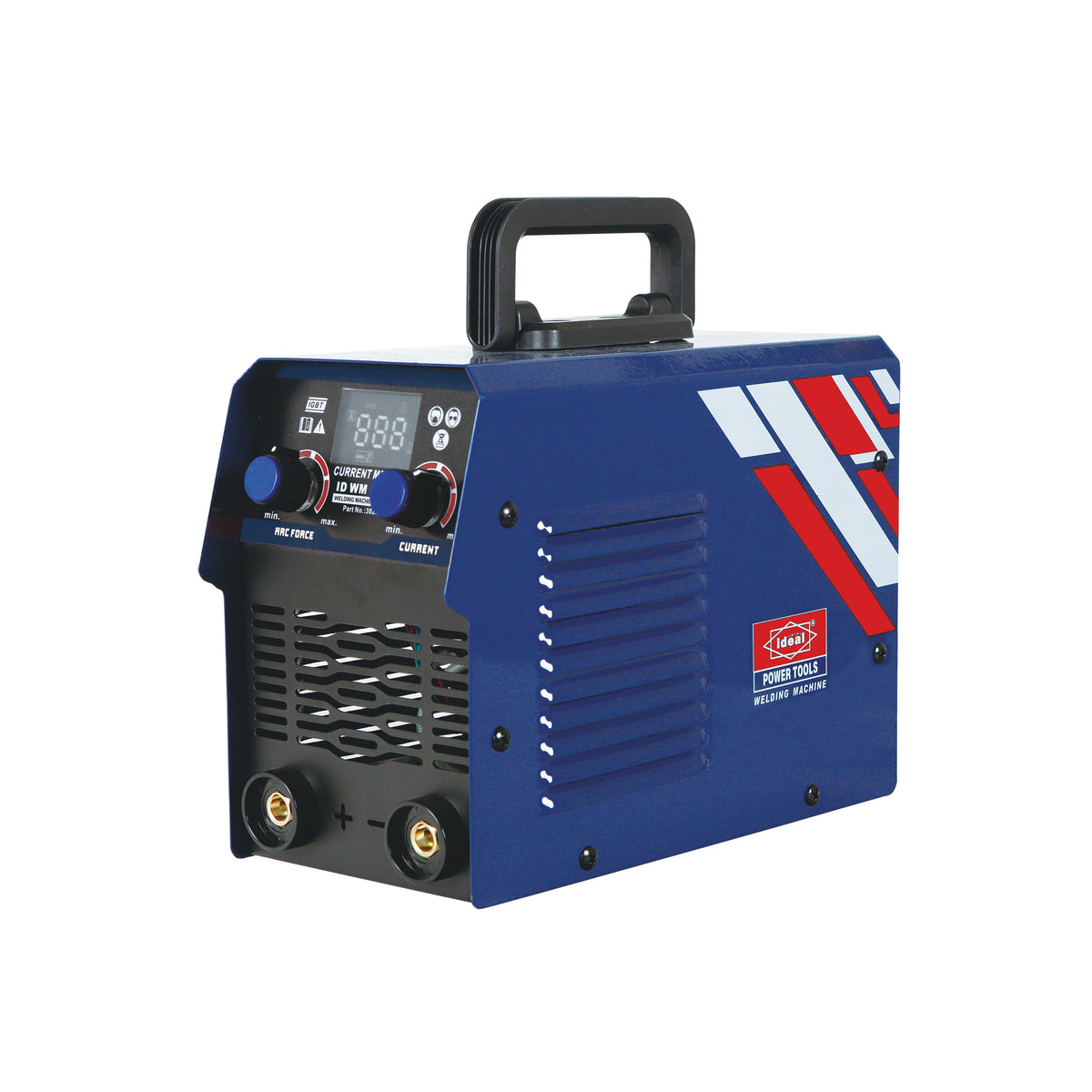

ID WM650E [1M EARTH CLAMP | 1.5M HOLDER | MASK | BRUSH] ELECTRIC WELDING MACHINE [G-240V] - 30292

High-Power Inverter Welding for Demanding Metalwork

The ID WM650E 650A electric welding machine is a heavy-duty single-phase inverter welder designed for demanding fabrication, repair, maintenance, and metalworking applications. With a wide 40–650A current range, stable 60V no-load voltage, advanced inverter technology, anti-stick performance, and forced wind cooling, this machine delivers reliable arc control for welding electrodes from 2.5mm to 4.0mm. It operates on AC220V ±15% and is supplied with a British Type G 3-pin plug, 1m earth clamp, 1.5m electrode holder, welding mask, and brush.

• 650A welding output for demanding applications: The ID WM650E provides an adjustable welding current range of 40A to 650A, giving operators the flexibility to work on a wide variety of metal sections and welding tasks. Its high-current capability is suited to heavy-duty fabrication, equipment repair, structural maintenance, and intensive workshop use.
• Advanced DC inverter technology: Professional-grade inverter technology delivers a more consistent welding arc compared with basic conventional welding systems. The controlled DC output helps support smoother operation, dependable arc stability, and efficient energy use for industrial-standard welding results.
• Fast arc ignition with 60V no-load voltage: The machine maintains a 60V open-circuit voltage to assist with quick and reliable arc starting. This helps reduce ignition difficulties and supports cleaner starts when working with compatible welding electrodes.
• Anti-stick electrode control: The integrated anti-stick function helps minimise the inconvenience of an electrode sticking to the workpiece. When sticking occurs, the electrode can be detached more easily, helping reduce interruptions and supporting a smoother welding workflow.
• Designed for demanding work cycles: With a specified 50% rated duty cycle, the ID WM650E is built for productive heavy-duty welding when operated according to the recommended work and cooling intervals. This makes it suitable for workshops and job sites where dependable welding performance is required over extended working periods.
• Wide voltage tolerance: The machine is designed to operate on a single-phase AC220V supply with ±15% voltage tolerance. This helps it remain practical for demanding work environments where minor input voltage variation may occur.
• Compatibility with common electrode sizes: The ID WM650E supports electrode diameters from 2.5mm to 4.0mm, allowing users to select a suitable electrode size for the material thickness, welding position, and application requirements.
• Forced wind cooling system: An integrated high-velocity fan circulates air through the machine to help manage internal temperatures during operation. The cooling system supports component protection and reliable performance during intensive welding work.
• Rugged IP21S housing: The IP21S-rated enclosure is designed to help protect the internal electrical components from vertical water droplets and common job-site debris. The robust housing makes the machine suitable for controlled workshop and suitable construction-site environments.
• Double-insulated electrical design: Double insulation helps separate the electrical components from the outer casing, adding an extra layer of protection during normal operation. Users should always follow proper welding safety procedures and use suitable protective equipment.
• Ready-to-use welding package: The machine is supplied with a 1m earth clamp, 1.5m electrode holder, welding mask, and brush, providing essential accessories for getting started with compatible welding work. It is fitted with a Type G British 3-pin plug.

Technical Specifications

Included components: The package includes one ID WM650E welding machine, one guide book, one 1m earth clamp, one 1.5m electrode holder, one welding mask, and one brush. The machine conforms to CE machine testing requirements and is manufactured under an ISO 9001:2015 Quality Management System.

• Heavy Duty: This product is powered by innovative technology and is engineered to outlast.
• Double Insulation: This product is designed in such a way that the electrical parts can never come into contact with the outer casing.
• Anti-Stick: Anti-Stick allows the stick welding electrode to be easily detached if it begins to stick to the job.
• Continuous Welding: This product enables continuous wire welding in which the protection of the weld pool is ensured by a covering gas, flowing from the torch onto the piece to be welded.
• Advanced Inverter Technology: Engineered with professional-grade D.C. welding inverter technology to provide a highly stable arc and exceptional energy efficiency for industrial-standard results.
• 650A Ultra-High Output: Delivers a massive, top-tier current output range from 40A up to 650A, offering supreme power handling for heavy-duty, thick-gauge metal fabrication.
• 60% Industrial Duty Cycle: Built for high-volume productivity, supporting a sustained 60% duty cycle at full 650A power and an impressive 503A output at a continuous 100% duty cycle.
• ±15% Voltage Tolerance: Features built-in circuit protection that easily handles voltage fluctuations within a ±15% range on a single-phase AC 220V industrial line supply.
• Instant Arc Ignition (60V No-load): Maintains a stable 60V open-circuit voltage to guarantee rapid, clean arc starting and significantly minimize electrode sticking.
• Rugged IP21S Housing: Encased in a heavy-duty, weather-resistant IP21S-rated housing designed to protect internal electrical components from vertical water droplets and harsh job-site debris.
• Forced Wind Cooling System: Equipped with an integrated, high-velocity forced wind fan system to optimize airflow, stabilize internal temperatures, and safeguard components during intense workloads.

Rated Input Voltage: AC220V | ±15%
Phase: 1 Phase
No-load Voltage (V): 60
Current Range (A): 40-650
Rated Frequency (Hz): 50/60
Rated Duty (%): 50
Input Capacity (kVA): 25.2
Class of Insulation: F
Electrode Diameter (mm): 2.5-4.0
Housing Type: IP21S
Cooling Way: Wind

Machine (1 Pcs), Guide Book (1 Pcs), 1m Earth Clamp (1 Pcs), 1.5m Electrode Holder (1 Pcs), Welding Mask (1 Pcs), Brush (1 Pcs)
