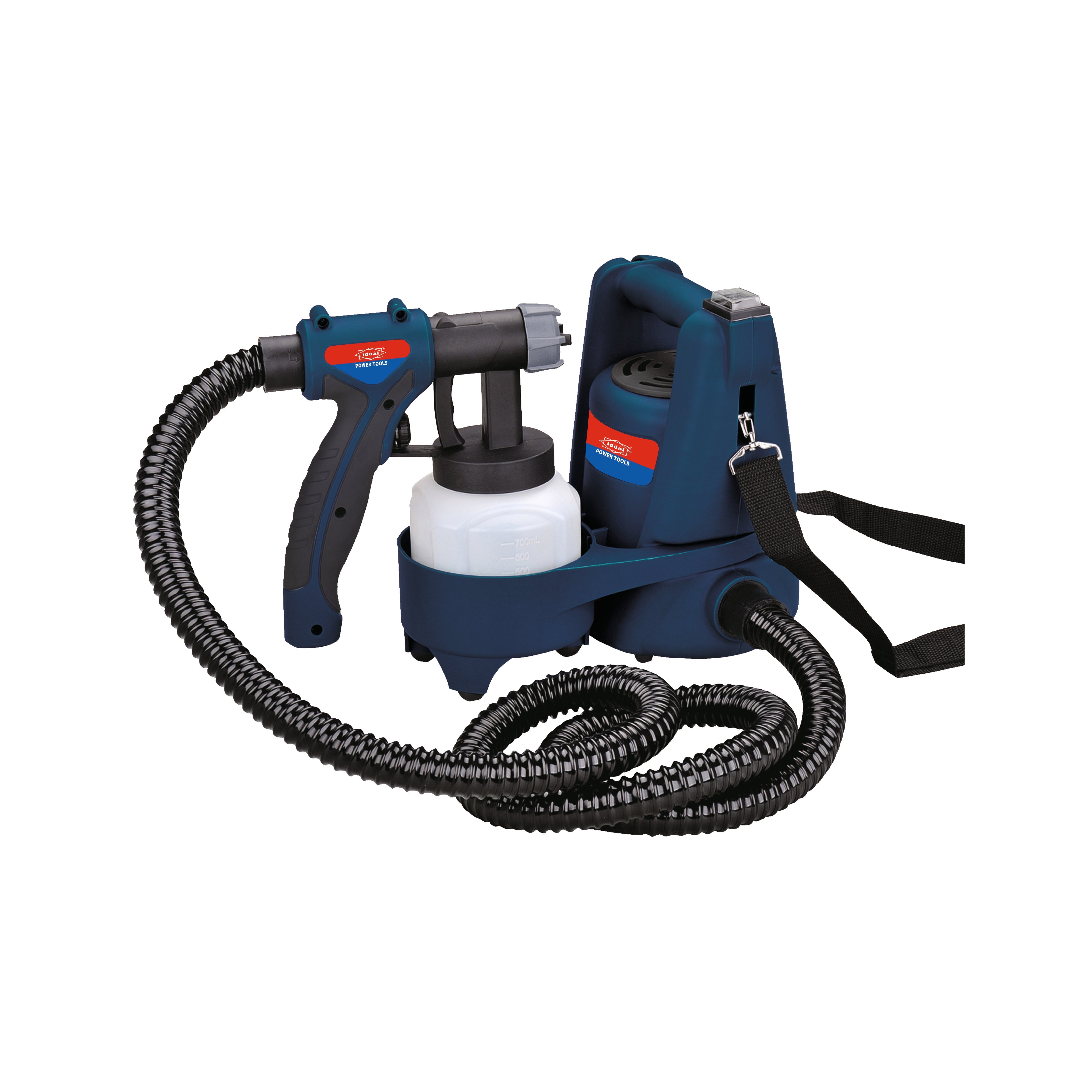

ID SG500E ELECTRIC SPRAY GUN MACHINE [G-240V] - 26631

The ID SG500E Electric Spray Gun comes fitted with a Type G British 3-Pin plug, which is the standard plug type used across the UAE, UK, and several other markets. It is fully compatible with standard UAE wall sockets and requires no adapter for use in the region.

Unlike a brush or roller, the SG500E electric spray gun atomizes paint into a fine mist, producing a smooth, factory-quality finish free of brush marks, roller texture, or lap lines. With a flow rate of 800 ml/min and an adjustable spray pattern, it covers surfaces significantly faster and more evenly — making it the preferred choice for furniture, cabinetry, and detailed woodwork.

The SG500E is engineered for both professional tradespeople and advanced DIY users. Its 500W heavy-duty motor, double insulation safety construction, and CE-certified build quality make it robust enough for regular workshop and on-site use, while its straightforward controls and included accessories make it accessible for experienced home users tackling larger painting projects.

The SG500E is compatible with a wide range of liquid coatings up to a maximum viscosity of 60 DIN/s. This includes water-based paints, primers, varnishes, lacquers, and wood stains. Thicker materials such as masonry paint or undiluted gloss may need to be thinned to fall within the recommended viscosity range before spraying. Always use the included viscosity cup to check consistency before loading the tank.

Coverage depends on the coating type, dilution ratio, and spray pattern setting. With a 700ml tank capacity and a flow rate of up to 800 ml/min, a single fill is typically sufficient to coat 3 to 5 square metres of surface at standard application thickness. For larger projects, the tank can be quickly refilled, and the 1.8m hose allows you to keep the machine stationary while you continue working across a broad area.

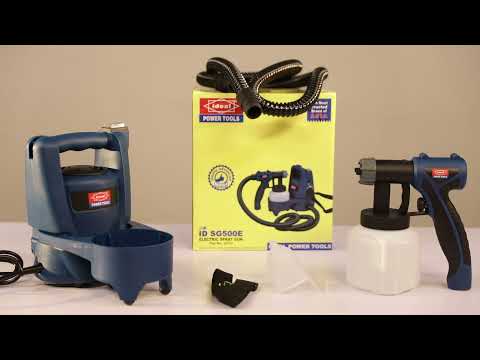

The ID SG500E ships as a complete ready-to-use kit. In the box you will find the spray gun machine, a guide book for setup and operation, a cleaning needle hook for nozzle maintenance, a viscosity cup for checking paint consistency, a belt for carrying or hanging the unit, and a 1.5m hose pipe — all the essentials needed to begin spraying immediately after unboxing.

An uneven or spitting spray pattern is most commonly caused by paint that is too thick for the nozzle. Use the included viscosity cup to verify your coating is within the 60 DIN/s maximum viscosity limit and thin it with the appropriate solvent if needed. Also check that the 2.5mm nozzle is clean and free of dried paint — use the included cleaning needle hook to clear any blockage. Ensure the tank is properly sealed and the hose connection is secure to rule out air leaks affecting pressure.

After each use, empty any remaining paint from the 700ml tank and fill it with the appropriate cleaning solvent — water for water-based coatings, mineral spirits for oil-based products. Run the machine briefly to flush the hose and nozzle, then use the included cleaning needle hook to clear the nozzle tip of any residual material. Wipe down the exterior of the machine and store it in a dry location. Regular cleaning after every session is the most effective way to maintain consistent spray performance and extend the life of the nozzle.

Yes. The ID SG500E is built with a double insulation system, meaning all live electrical components are fully enclosed and isolated from the outer casing. Even if the exterior housing is touched during operation, there is no risk of electric shock from the casing itself. This design meets the requirements of the CE Machine Test certification, confirming the unit has been independently tested and verified to comply with European electrical safety standards.
