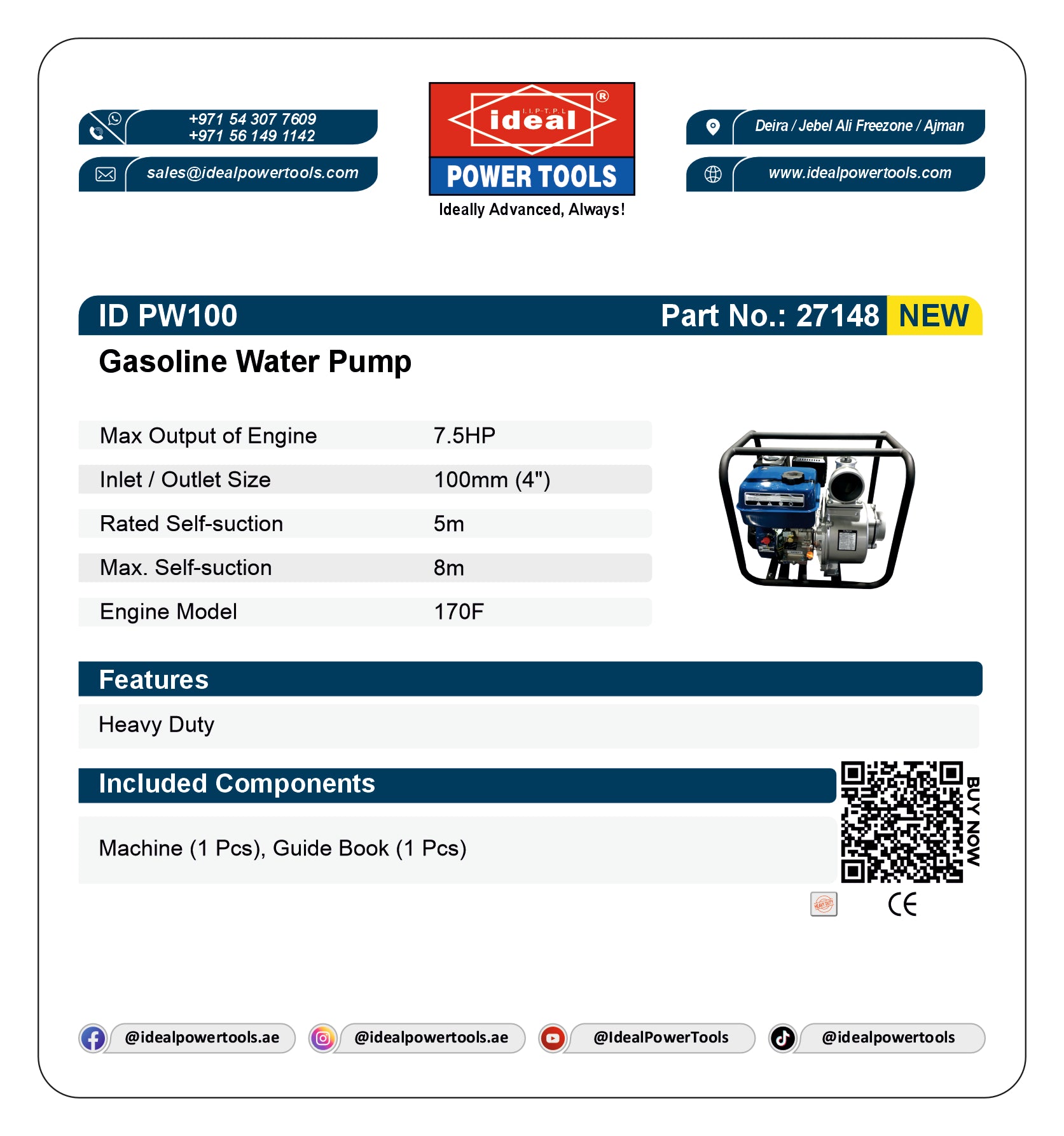

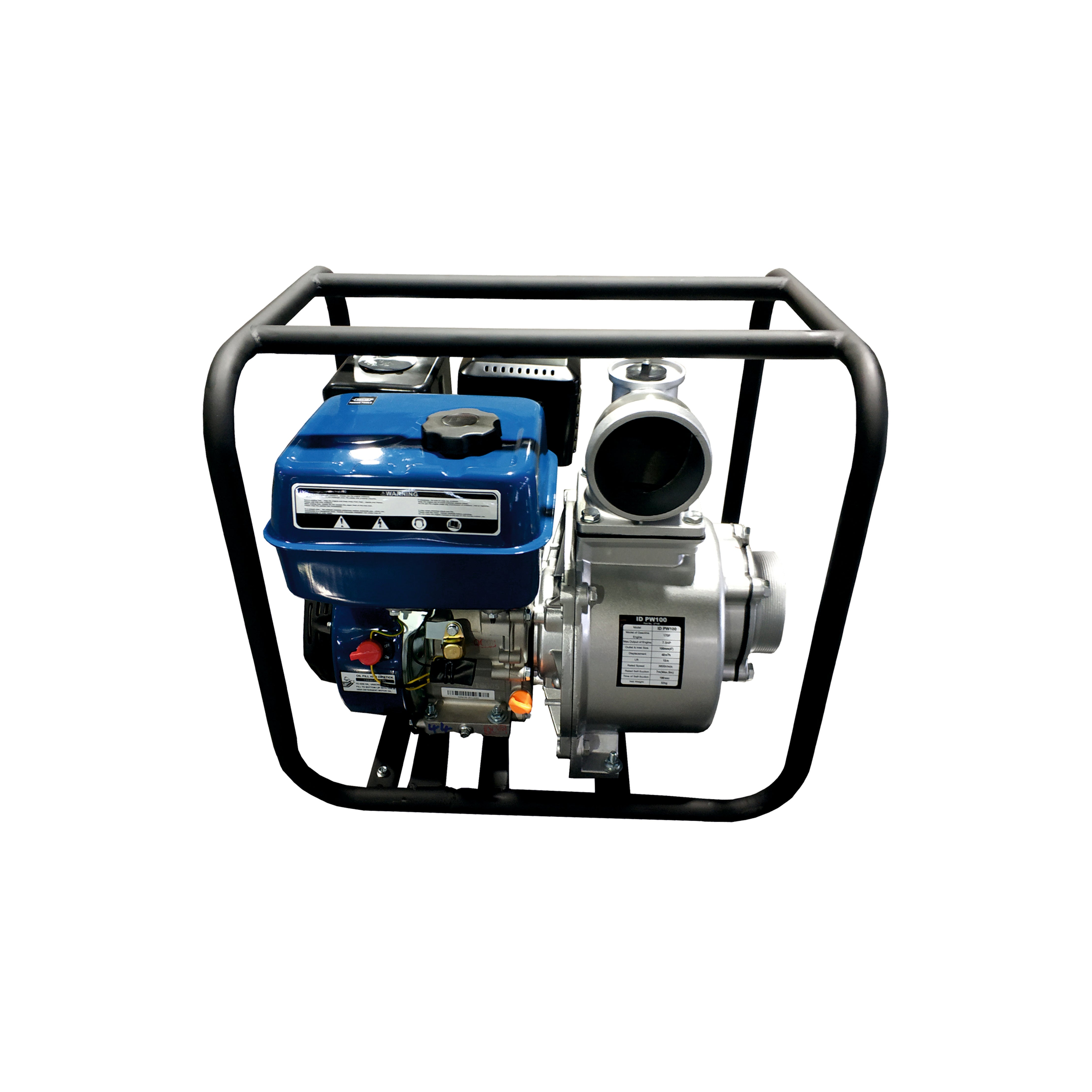

ID PW100 [4"] GASOLINE WATER PUMP MACHINE [GASOLINE] - 27148

The ID PW100 features a 4" (100mm) inlet and outlet, which allows it to move significantly larger volumes of water per minute compared to 2" or 3" pumps. While smaller pumps are suited for domestic garden use or light irrigation, the PW100 is engineered for high-volume industrial, agricultural, and emergency applications where rapid water transfer is essential. Its 7.5 HP F170 gasoline engine further sets it apart by delivering the sustained power output required for continuous heavy-duty operation.

Yes. The ID PW100 is specifically designed for professional and commercial-grade applications. It carries CE Machine Test certification, confirming compliance with international safety and performance standards. Its heavy-duty construction, large-bore 4" ports, and high-output 7.5 HP engine make it a preferred choice for contractors, agricultural operators, municipal services, and emergency response teams who require dependable, high-capacity water pumping in the field.

Each ID PW100 unit ships complete with the water pump machine (1 unit) and a comprehensive guide book (1 copy) to support correct setup, operation, and maintenance from day one. The machine is CE-certified under Machine Test standards, giving buyers confidence in its build quality and regulatory compliance right out of the box.

The ID PW100 runs on gasoline (petrol) and is powered by the F170 engine model, which delivers a maximum output of 7.5 horsepower. This makes it fully independent of electrical infrastructure, allowing deployment in remote agricultural fields, construction sites, and off-grid locations. The F170 is a proven engine platform known for its reliability, ease of starting, and consistent power delivery under sustained load.

The ID PW100 has a rated self-priming depth of 5 metres with a maximum suction lift of 8 metres. Self-priming means the pump can draw water upward from a source below its own level without requiring manual filling of the pump casing before each use. In practice, this translates to faster deployment, reduced operator effort, and reliable startup even when the water source — such as a well, canal, or flooded basement — is located significantly below the pump's position.

Absolutely. The ID PW100 is well-suited for flood relief and emergency water removal scenarios. Its 4" large-bore ports enable rapid evacuation of large water volumes, while the gasoline-powered engine ensures operation in areas without electricity — exactly the conditions encountered during flood events. The self-priming capability up to 8m further supports quick deployment without complex setup, making it a reliable tool for emergency services and disaster response teams.

If the ID PW100 is not priming correctly, first verify that the suction lift does not exceed 8 metres — the maximum self-priming depth of this unit. Ensure all inlet hose connections are airtight and free of leaks, as even minor air ingress can prevent priming. Check that the inlet strainer or foot valve is not blocked by debris. If the pump has been stored, manually add a small amount of water to the pump casing to assist initial priming. Refer to the included guide book for the full priming procedure and troubleshooting steps specific to the F170 engine model.

Reduced flow from the ID PW100 is most commonly caused by a blocked inlet strainer or foot valve restricting water intake. Other causes include a kinked or collapsed suction hose, an air leak in the inlet line reducing suction efficiency, or the pump operating at a suction depth approaching its 8-metre maximum limit. On the engine side, ensure the fuel supply is adequate and the engine is running at its rated speed to deliver full 7.5 HP output. Regular inspection of hoses, connections, and the strainer will maintain optimal pumping performance.

The ID PW100 is designed with field serviceability in mind. The F170 gasoline engine is a widely used platform with readily available spare parts and service support in most markets. Routine maintenance — including air filter cleaning, oil checks, spark plug inspection, and fuel system care — follows standard small-engine procedures and is covered in the included guide book. For more complex servicing, we recommend consulting an authorised service centre familiar with the F170 engine. The machine's CE certification also ensures it was manufactured to consistent quality standards, reducing the likelihood of premature component failure.
