Restore Peak Performance — The OEM-Grade Armature Built for ID Polisher Professionals

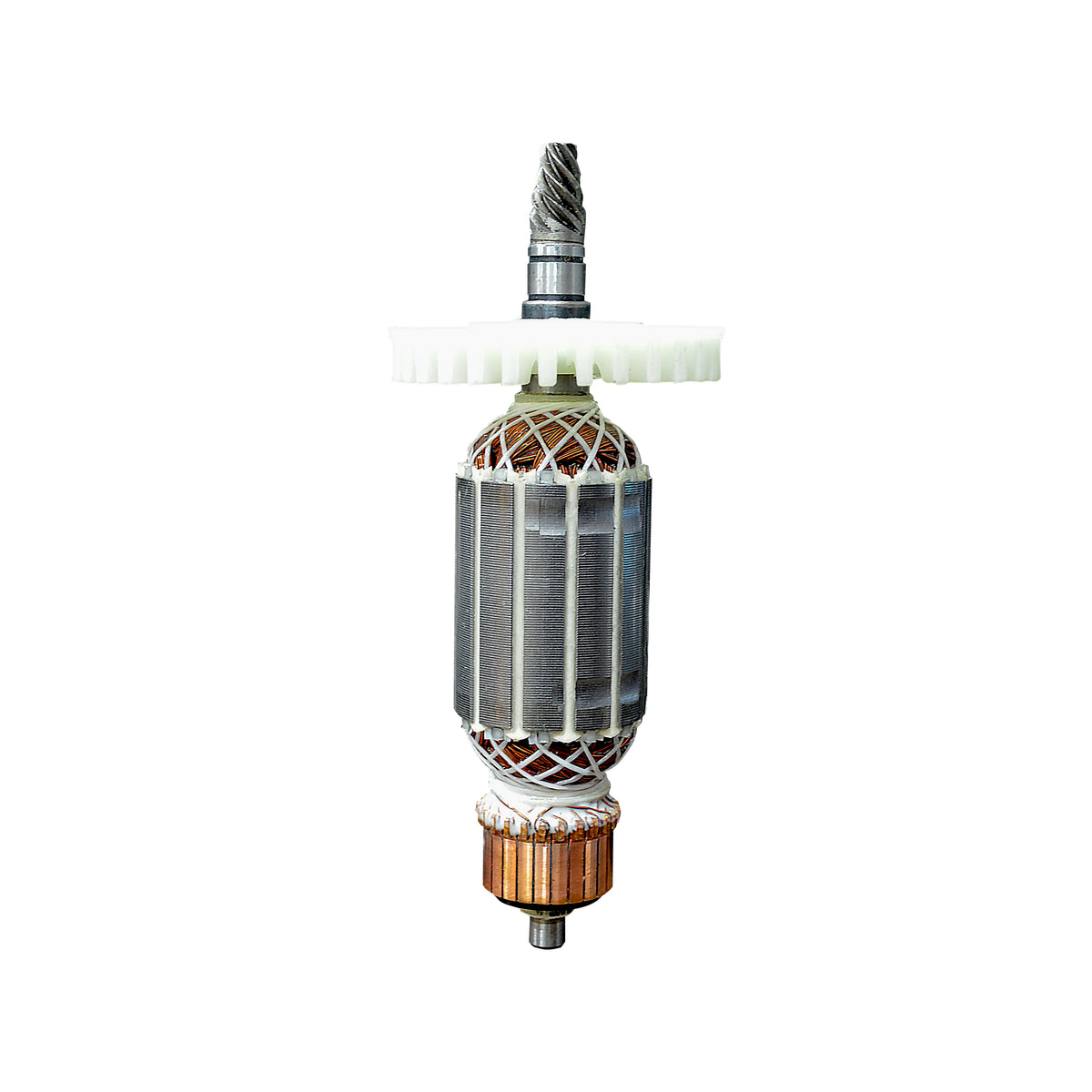

The ID PRO Armature (Part No. 26414) is a precision-engineered power tool spare part designed exclusively for the ID SP18C and ID SP180FC polisher models. As the core electromechanical component of any rotary power tool, this replacement armature converts electrical energy into rotational mechanical force, restoring your polisher to full factory performance. Built with a high-grade magnetic core, copper winding, and precision-machined commutator, this OEM-compatible armature delivers consistent torque output and extended service life for professional and trade users.
| Key Features | Perfect For |
|
|
- Exact-Fit OEM Compatibility (ID SP18C & ID SP180FC): This armature is engineered to precise dimensional tolerances matching the original factory specifications of the ID SP18C and ID SP180FC polisher platforms. The shaft diameter, core length, commutator segment count, and winding configuration are all matched to OEM standards, ensuring a direct drop-in replacement with no modification required during installation.
- High-Efficiency Copper Winding for Maximum Torque Output: The armature features tightly wound copper coils wrapped around a laminated magnetic core, designed to minimize resistive losses and maximize the conversion of electrical energy into mechanical rotational force. This translates to consistent RPM delivery, reduced heat build-up during extended polishing sessions, and a tool that performs at rated output from the moment it is repaired.
- Precision-Machined Commutator for Extended Brush Life: The commutator is machined to a fine surface finish, ensuring uniform and low-friction contact with the carbon brushes. A well-finished commutator reduces brush wear, minimizes electrical arcing, and prevents premature commutator grooving — all of which are common failure points in substandard replacement armatures.
- Laminated Magnetic Core for Reduced Eddy Current Losses: The core is constructed from individually insulated lamination sheets rather than a solid iron block. This laminated architecture significantly reduces eddy current losses at operating frequencies, resulting in lower core temperature, better energy efficiency, and a longer service interval between maintenance cycles — critical for workshop environments where tools operate daily.
- Cost-Effective Repair Over Full Tool Replacement: Rather than replacing the entire ID SP18C or SP180FC polisher unit, substituting a worn or burnt armature with this precision spare part restores the tool to full operational condition at a fraction of the cost. The package includes a Guide Book (1 Pcs) to assist technicians through the disassembly, inspection, and reassembly process safely and accurately.
General Purchase & Comparison Queries
Is this armature compatible with both the ID SP18C and ID SP180FC polisher models?
Yes. The ID PRO Armature (Part No. 26414) is specifically engineered to be a direct-fit replacement for both the ID SP18C and the ID SP180FC polisher models. The shaft dimensions, commutator layout, and winding configuration match the original factory armature for both variants, allowing a straightforward installation without any machining or adaptation.
Is it better to replace the armature or buy a new polisher?
In most cases, replacing the armature is significantly more cost-effective than purchasing an entirely new polisher unit. The armature is one of the highest-wear components in a rotary power tool — if the rest of the tool body, gear housing, and bearings are in good condition, installing a new armature will restore the tool to full rated performance. This approach is standard practice in professional power tool repair workshops and reduces both downtime and expenditure.
Does this part come with any documentation to assist with installation?
Yes. The package includes a Guide Book (1 Pcs) that walks technicians through the proper procedure for disassembling the polisher, removing the worn armature, fitting the replacement, and reassembling the tool correctly. Following the guide ensures safe handling of the electrical windings and proper seating of the commutator within the brush assembly.
Product-Specific and Usage Queries
What does an armature do inside a polisher?
The armature is the rotating core of the electric motor inside your polisher. It consists of a laminated magnetic core, copper windings, and a commutator. When electrical current flows through the windings, it interacts with the magnetic field produced by the field coil (stator), generating a rotational force that drives the tool's output shaft. In short, the armature is responsible for converting electrical energy into the mechanical rotation that spins the polishing pad.
How do I know if the armature in my ID polisher needs to be replaced?
Common signs of a failing armature include excessive sparking at the brush area, a burning smell during operation, significant loss of power or inconsistent RPM, unusual vibration, or the tool failing to start altogether. A qualified technician can confirm armature failure using a growler tester or multimeter to check for open circuits, short circuits between windings, or ground faults. If any of these symptoms are present, replacing the armature with Part No. 26414 is the recommended corrective action.
Can this armature be installed by an end-user, or does it require a certified technician?
While the included Guide Book provides step-by-step installation instructions, armature replacement involves working with internal electrical components and requires the use of appropriate tools including a bearing puller, soldering equipment, and insulation testing devices. It is strongly recommended that the replacement be carried out by a qualified power tool repair technician to ensure correct installation, safe electrical connections, and to avoid voiding any remaining tool warranty.
Problem/Solution-Oriented Queries
My ID SP18C polisher has lost power and sparks heavily — will replacing the armature fix this?
Heavy sparking combined with power loss is one of the most reliable indicators of armature failure — typically caused by shorted windings, a burnt commutator surface, or open-circuit coils. Replacing the armature with Part No. 26414 will restore normal motor function provided the carbon brushes, field coil, and bearings are still serviceable. A thorough inspection of these ancillary components at the time of armature replacement is advisable to ensure a complete and lasting repair.
The polisher runs but gets unusually hot very quickly — could the armature be at fault?
Yes. Abnormal heat generation during operation is frequently linked to shorted armature windings, which cause excessive current draw and resistive heating within the motor. A degraded commutator surface can also increase contact resistance with the brushes, further contributing to heat build-up. Replacing the armature with this precision-wound OEM-grade spare part eliminates these root causes and returns the motor's thermal performance to within its designed operating parameters.
I cannot find the original armature part number for my ID SP180FC — is Part No. 26414 the correct replacement?
Yes. Part No. 26414 is the confirmed replacement armature for both the ID SP18C and ID SP180FC polisher models. If you are uncertain, cross-reference the model number printed on the tool's nameplate or rating label with the compatibility information provided. Should you require additional verification, our team can confirm fitment based on your tool's serial number and production batch.
