Restore Full Power. Zero Compromise. Genuine OEM Armature for the ID ID13RF.

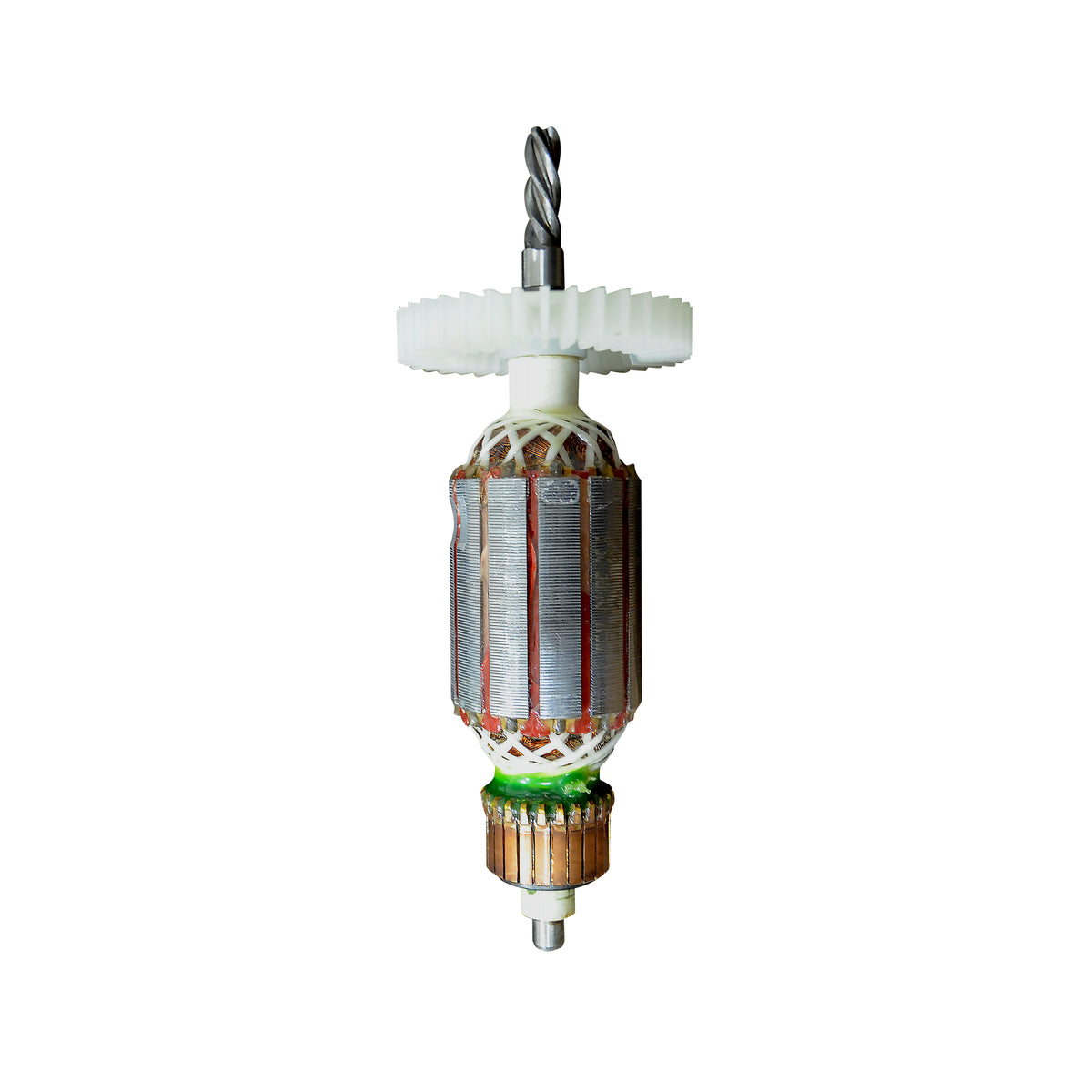

The ID PRO Armature for the ID ID13RF Impact Drill (Part No. 26716) is a precision-engineered OEM-grade replacement armature designed to restore your impact drill to full factory performance. Built with a high-grade laminated magnetic core, precision-wound copper coils, and a precision-machined commutator, this armature converts electrical energy into the mechanical rotational force that drives your tool. Whether you are tackling heavy-duty drilling in concrete, masonry, or steel, this genuine spare part ensures your ID ID13RF operates at peak efficiency with zero compromise on power output or longevity.
| Key Features | Perfect For |
|
|
- OEM-Specified Fit for the ID ID13RF Impact Drill: Engineered as a direct replacement armature (Part No. 26716) for the ID ID13RF impact drill, this component matches the exact dimensional tolerances, shaft diameter, winding specification, and commutator geometry of the original factory-installed part — ensuring seamless installation and restoring full operational performance without any machining or adaptation.
- Laminated Magnetic Core for Maximum Energy Efficiency: The armature features a multi-layer, precision-stacked laminated silicon steel core that minimizes eddy current losses and reduces internal heat generation during sustained high-load drilling operations. This design translates directly into stronger, more consistent torque output and a cooler-running motor assembly.
- Precision Copper Winding for Consistent Torque Delivery: The armature coils are wound with high-purity copper wire to exacting tension and turn-count specifications, maintaining uniform electromagnetic field strength across all RPM ranges. This ensures the tool delivers rated torque consistently whether drilling at low speed in masonry or high-speed in steel.
- Precision-Machined Commutator for Long-Term Brush Compatibility: The commutator segments are machined to tight roundness and surface finish tolerances, ensuring even brush contact pressure and minimal arcing. This directly extends the service life of both the commutator and the carbon brushes, reducing the overall frequency of maintenance interventions.
- Includes Operator Guide Book for Installation Reference: Each armature unit ships complete with a Guide Book (1 piece) providing installation reference information, ensuring correct fitment procedure is followed and reducing the risk of installation errors that could damage the new component or surrounding motor assembly.
- Designed for High-Duty-Cycle Repair and Maintenance Workflows: Built to withstand the thermal and mechanical stresses of professional impact drilling applications, this armature is suitable for use in tools that operate in continuous or near-continuous duty cycles across construction, demolition, fabrication, and maintenance environments.
General Purchase & Comparison Queries
Is this armature a genuine OEM part for the ID ID13RF impact drill?
Yes. The ID PRO Armature (Part No. 26716) is an OEM-specified replacement component engineered exclusively for the ID ID13RF impact drill. It is manufactured to the same dimensional tolerances, winding specifications, and commutator geometry as the original factory-installed armature, ensuring a direct drop-in fit with no modification required.
How does this armature compare to generic aftermarket alternatives?
Generic aftermarket armatures are often produced to looser tolerances and may use lower-grade copper windings or thinner lamination stacks, leading to accelerated heat build-up, reduced torque output, and shorter service life. The ID PRO Armature 26716 is built to OEM specifications with a precision laminated magnetic core and high-purity copper windings, delivering factory-level performance and durability that generic parts cannot reliably match.
What is included with the armature when I purchase it?
Each unit includes the ID PRO Armature (Part No. 26716) along with a Guide Book (1 piece) that provides installation reference information to ensure correct fitment and safe assembly within the ID ID13RF motor housing.
Product-Specific and Usage Queries
Which specific tool model is this armature compatible with?
This armature is designed and specified exclusively for the ID ID13RF Impact Drill. Before purchasing, verify your tool's model number on the nameplate or rating label. Using this armature in a different model — even within the same product family — may result in incorrect fit, reduced performance, or damage to the motor assembly.
What role does the armature play in my impact drill's operation?
The armature is the rotating core of the electric motor inside your impact drill. It consists of a laminated magnetic core, precision copper windings, and a commutator. When electrical current passes through the windings, the resulting electromagnetic force causes the armature to rotate, converting electrical energy into the mechanical rotational force that ultimately drives the chuck and drill bit. A worn or damaged armature directly results in power loss, overheating, or complete motor failure.
Can I install this armature myself, or does it require a professional technician?
Armature replacement involves disassembling the motor housing and handling precision components. While the ID PRO Armature 26716 is a direct drop-in replacement requiring no modification, the procedure is recommended for qualified service technicians or experienced power tool repair professionals. The included Guide Book provides installation reference, but if you are unfamiliar with motor disassembly, engaging an authorized service center is advised to avoid damaging the commutator, brush assemblies, or field windings during reassembly.
Problem/Solution-Oriented Queries
My ID ID13RF impact drill has lost power and runs roughly. Could the armature be the cause?
Yes. Power loss, rough running, excessive sparking at the brush contact area, or a burning smell are all classic symptoms of armature failure. Worn or shorted windings reduce the electromagnetic force the motor can generate, while a damaged commutator creates uneven brush contact that further degrades performance. Replacing the armature with a genuine ID PRO Armature (Part No. 26716) will restore the motor to its rated output and eliminate these symptoms, provided the field coil and brush assemblies are also in serviceable condition.
How do I know if it is the armature that needs replacing rather than the carbon brushes?
Carbon brush failure typically presents as intermittent power loss or the tool cutting out under load, and brushes are visible and relatively straightforward to inspect and replace. Armature failure, by contrast, often produces sustained power reduction, overheating, a burning electrical odor, or visible scoring and discoloration on the commutator segments. A reliable diagnostic approach is to first inspect and replace the brushes if worn; if the tool still underperforms or overheats after brush replacement, the armature is the likely fault and should be replaced with the ID PRO Armature 26716.
Will installing a new armature fully restore my drill's performance to factory specifications?
In most cases, yes — provided the field coil, carbon brushes, bearings, and gear assembly are all in good condition. The armature is the primary rotating component responsible for power generation within the motor, and replacing a worn unit with a genuine OEM-spec ID PRO Armature (Part No. 26716) will restore the motor's rated torque and RPM output. However, if ancillary components such as the brushes or bearings are also worn, these should be inspected and replaced at the same time to ensure a complete and lasting repair.
