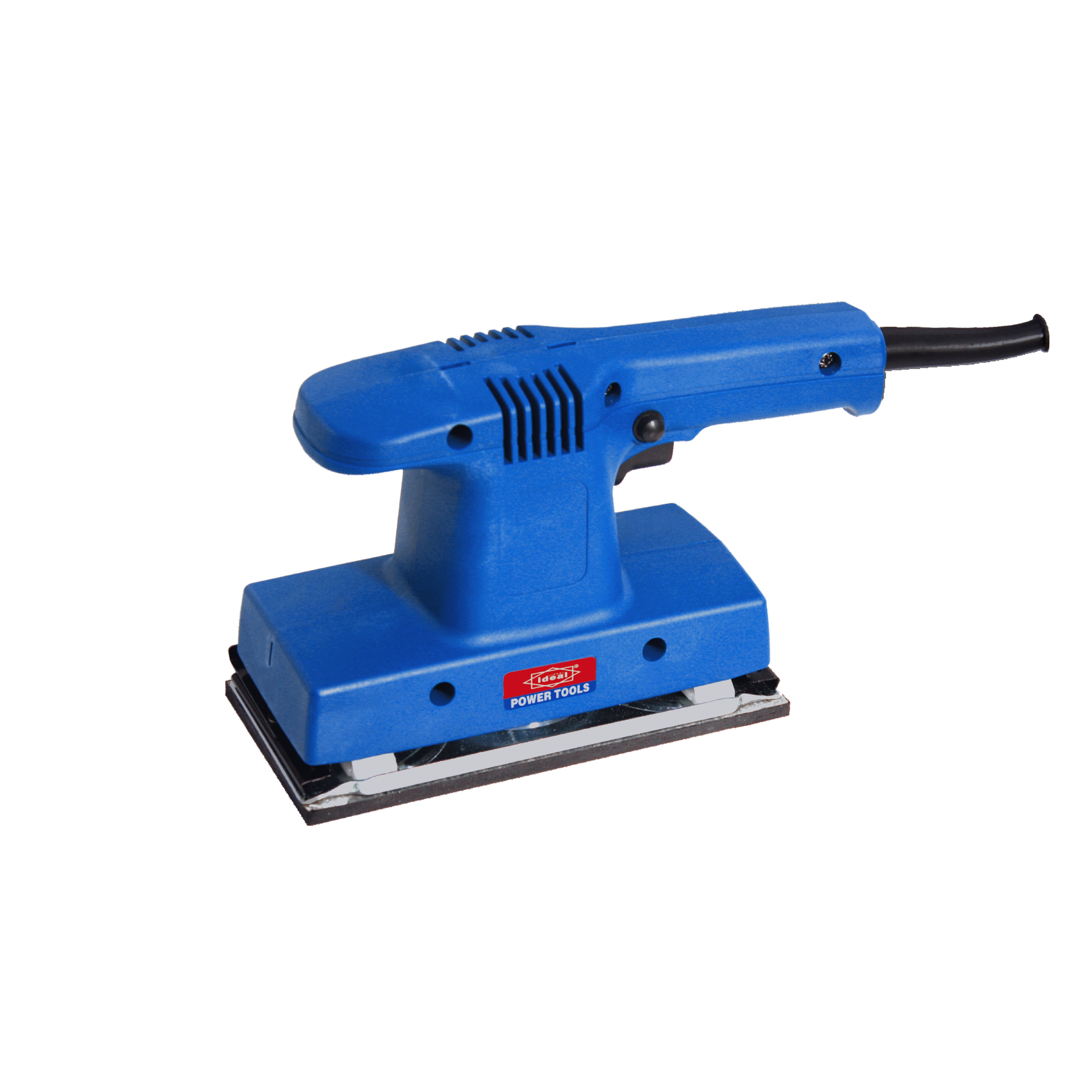

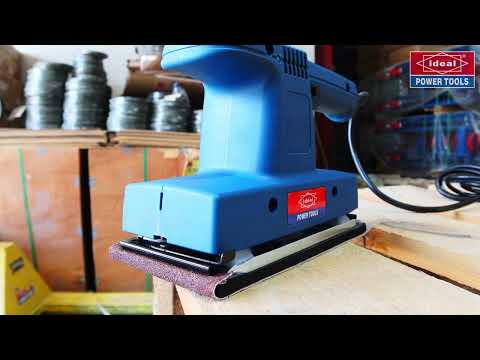

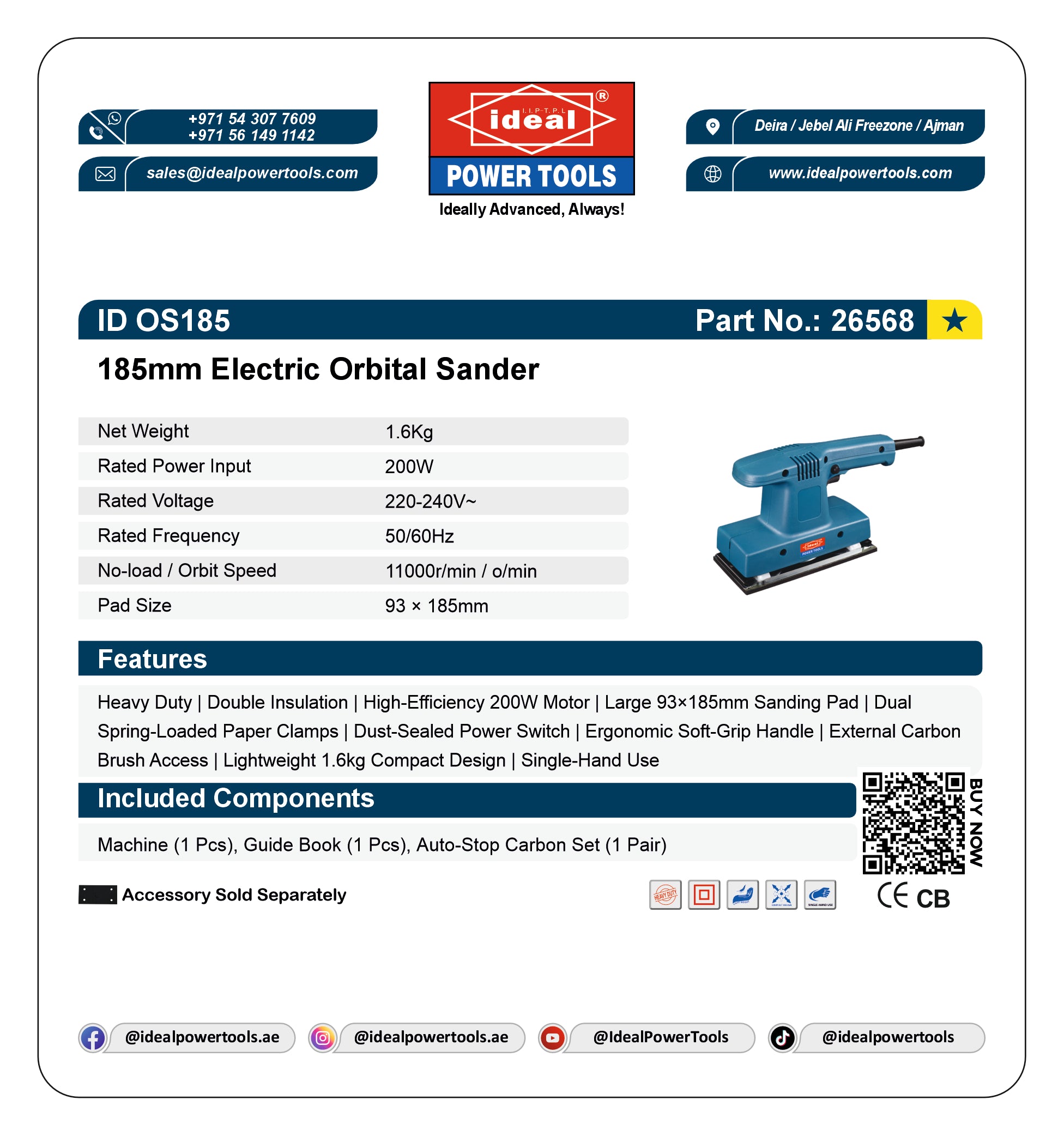

ID OS185 ELECTRIC ORBITAL SANDER MACHINE [G-240V] - 26568

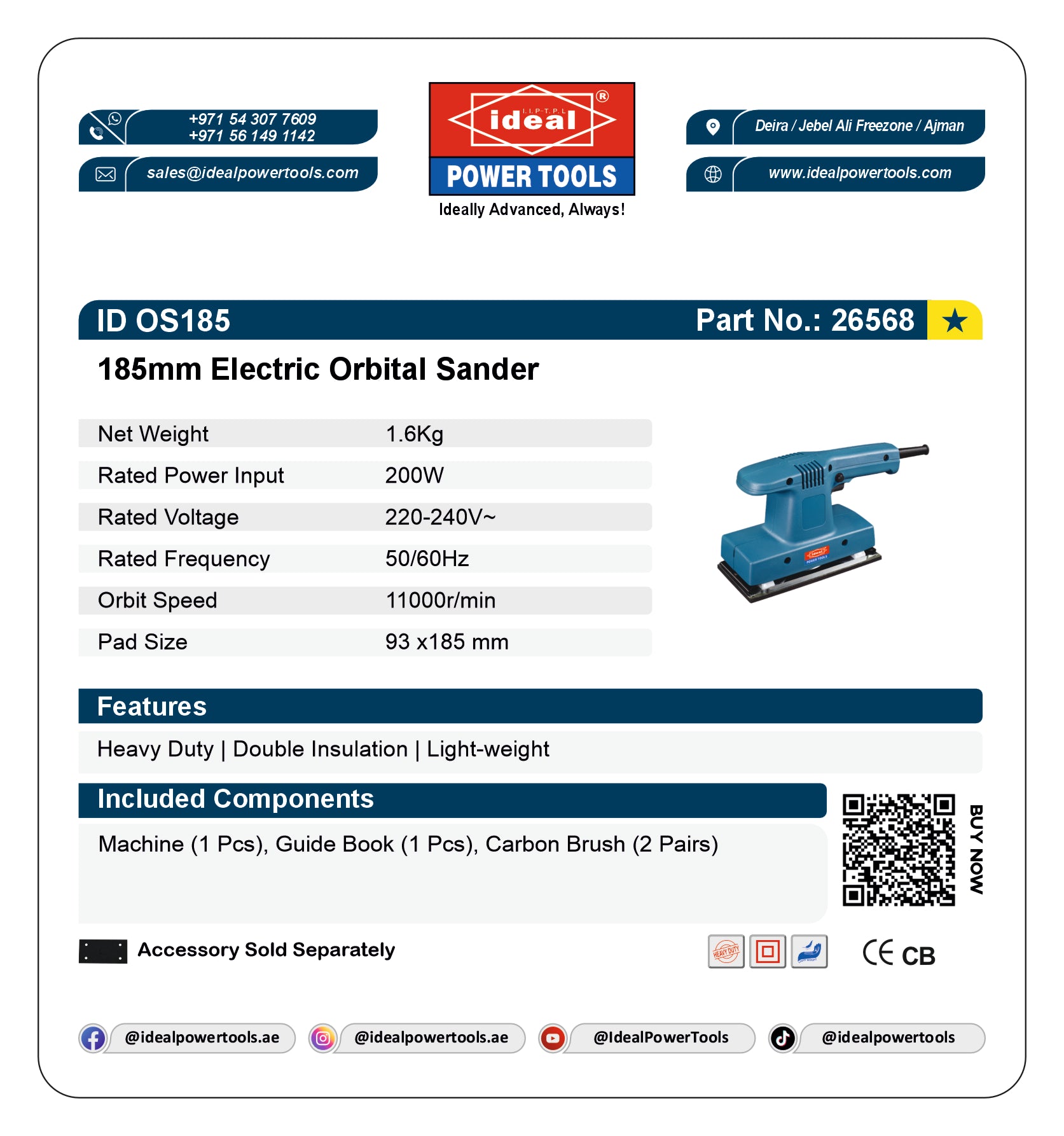

The ID OS185 comes fitted with a Type G British 3-Pin plug, which is the standard plug used in the UAE, UK, and many GCC and Asian countries. The machine operates on 220–240V at 50/60Hz, making it compatible with standard mains power in these regions. If you are in a country that uses a different plug type, a simple plug adapter will allow you to use the machine without any modification to the power supply.

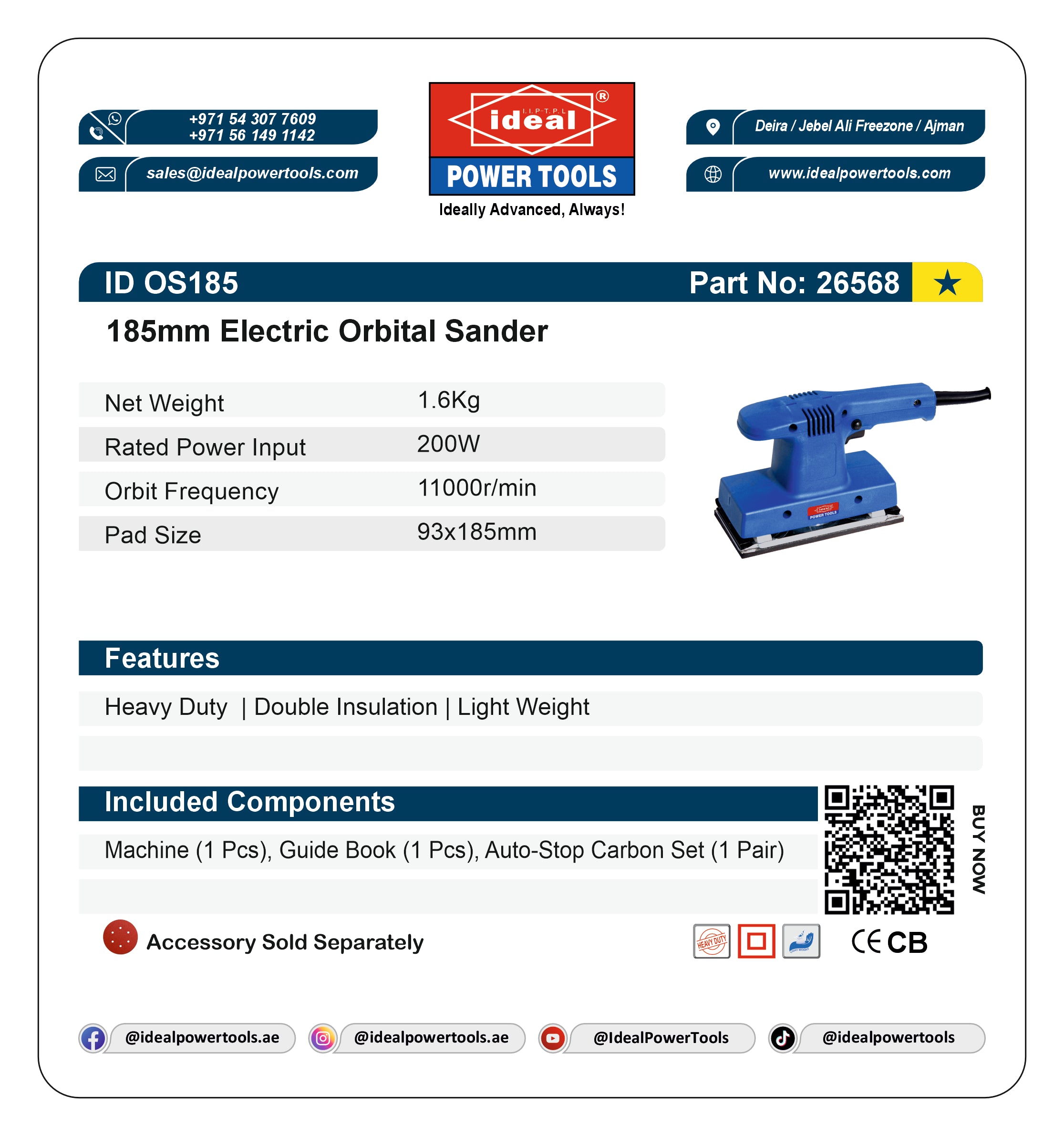

The OS185 offers a significantly larger 93x185mm sanding pad compared to a standard 1/4-sheet palm sander (typically around 93x93mm), meaning it covers roughly twice the surface area per pass. Combined with its 200W motor and 11,000 impacts per minute, it is considerably more productive for large flat surfaces such as tabletops, cabinet panels, and automotive body sections. For detailed or tight-corner work, a smaller palm sander may complement it, but for general professional finishing, the OS185 is the more capable and efficient choice.

Yes. While the OS185 is engineered to meet the demands of professional woodworking, automotive, and furniture manufacturing environments, its 1.6kg lightweight body and straightforward operation make it equally accessible for serious DIY users. The inclusion of an auto-stop carbon brush set and its CE and CB certified construction ensure it is built for durability and safety in both settings. It is a long-term investment that will not need to be replaced as your skill level or project scale grows.

The OS185 uses standard 93x185mm sanding sheets, which are one of the most widely available sizes in the market. They are compatible with hook-and-loop (Velcro) or clamp-style attachment depending on the pad configuration. You can source replacement sheets from most hardware stores, power tool suppliers, and online retailers. For best results, use aluminium oxide or silicon carbide abrasive sheets in grits ranging from 60 (coarse material removal) to 240 (fine finishing) depending on your application.

The OS185 is a versatile multi-surface orbital sander suitable for wood, metal, plastic, and composite materials. For metal polishing and surface preparation, use appropriate abrasive sheets rated for metal (typically aluminium oxide or zirconia alumina). The 11,000 imp/min orbital action is effective at removing rust, old paint, and surface oxidation from metal panels, making it a popular choice in automotive bodywork and fabrication workshops. Always ensure adequate dust extraction or ventilation when sanding metal.

The auto-stop carbon brush set is a motor protection feature built into the OS185. Carbon brushes conduct electrical current to the motor's rotating armature. As they wear down through normal use, the auto-stop mechanism automatically cuts power to the motor before the brushes are fully depleted — preventing costly motor damage from brush failure. The included pair of brushes is pre-installed and ready to use. Replacement is typically required after extended heavy use, and replacement brush sets are available as a standard spare part. Regularly inspecting the brushes as part of routine maintenance will maximise the machine's operational lifespan.

Swirl marks are most commonly caused by skipping grit steps during the sanding process. Always progress through grits incrementally (e.g., 80 → 120 → 180 → 240) rather than jumping from a coarse to a very fine grit. Additionally, ensure you are not applying excessive downward pressure — the OS185's 200W motor and 11,000 imp/min orbital action are designed to do the work; let the machine move freely across the surface. Using a worn or clogged sanding sheet can also cause uneven abrasion, so replace sheets regularly. Finally, always finish your final passes with the grain on wood surfaces for the cleanest result.

If the OS185 stops unexpectedly during operation, the most likely cause is that the auto-stop carbon brushes have reached the end of their service life and have triggered the automatic cutoff to protect the motor. Check the carbon brushes first and replace them if worn. Other causes to investigate include a tripped circuit breaker at the mains supply, a damaged power cable, or overheating from prolonged continuous use — allow the machine to cool for 10–15 minutes before restarting. If the machine still does not operate after these checks, refer to the included guide book or contact your authorised service centre.

Some vibration is inherent to all orbital sanders due to the eccentric pad motion that creates the random orbital pattern. However, excessive vibration is usually caused by an unevenly attached or torn sanding sheet — ensure the sheet is flat, fully seated, and securely clamped or adhered to the pad. A damaged or warped sanding pad can also cause abnormal vibration; inspect the pad for wear and replace if necessary. Additionally, operating the sander on an uneven or unsupported workpiece can amplify vibration — always secure your workpiece firmly before sanding. If vibration persists after these checks, have the machine inspected by a qualified technician.
