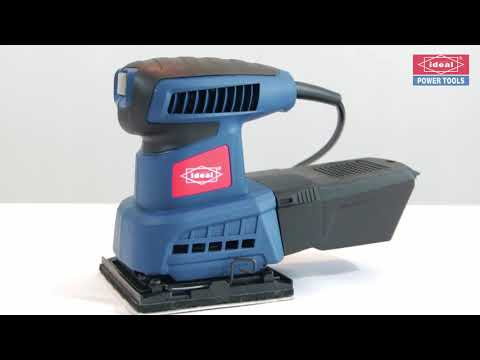

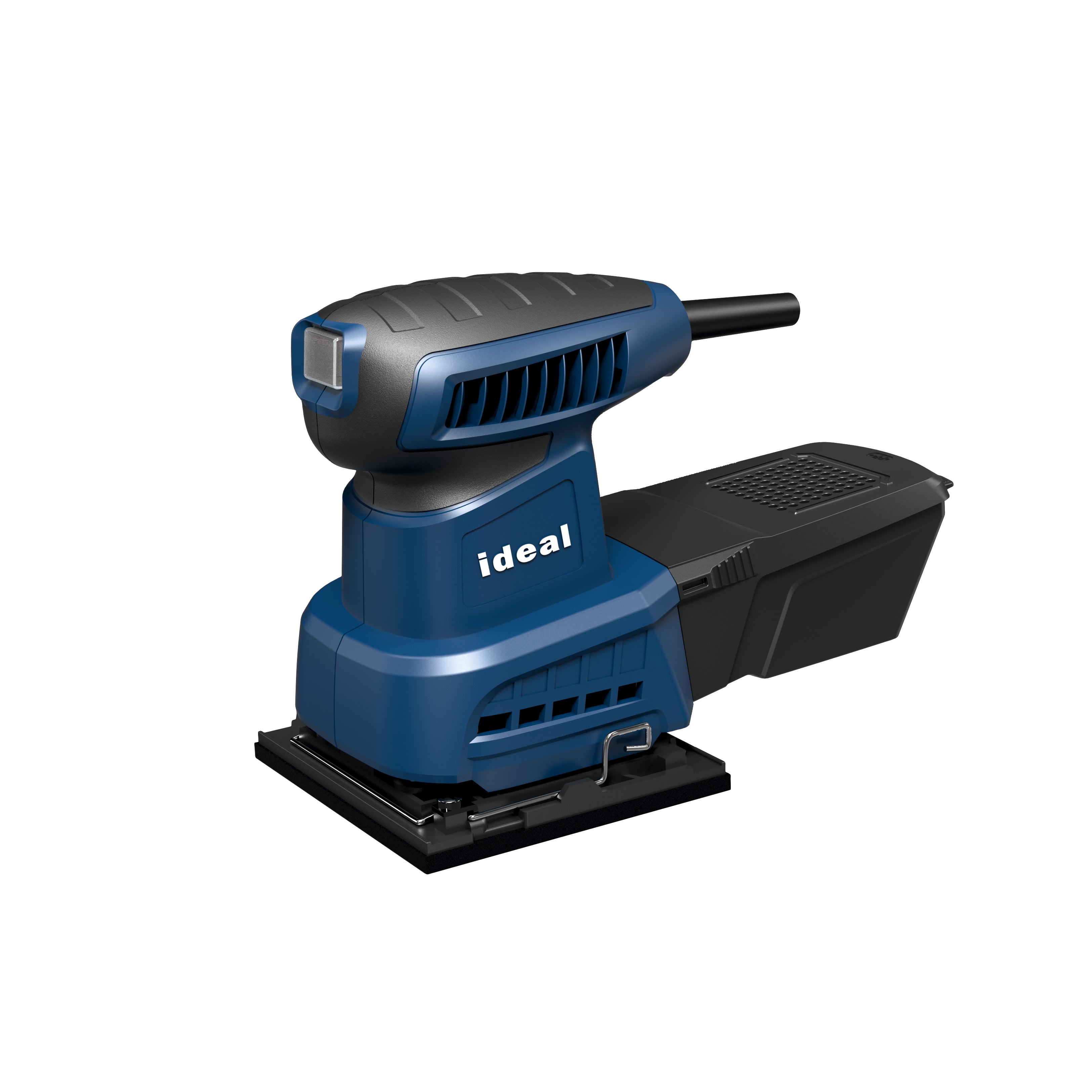

The ID OS110 N Series Sheet Sander is a professional-grade electric orbital sander machine engineered for precision surface finishing across wood, metal, and composite materials. Powered by a 240W motor spinning at 15,000 RPM, this compact sheet sander delivers swirl-free results with a 100x110mm rectangular sanding pad, purpose-built to reach flush 90° inside corners that round orbital sanders cannot access. Supplied with a Type G (British 3-Pin) plug and rated at 220–240V / 50–60Hz, it is ready for professional use across GCC, UK, and EU markets.
| Key Features | Perfect For |
|
|
Professional Precision in Every Pass — The Sheet Sander Built for Demanding Trades
- High-Velocity 240W Motor at 15,000 RPM: The balanced 240W rated power input drives the sanding pad at a sustained 15,000 RPM no-load speed, maintaining maximum surface tracking velocity across hardwoods, softwoods, MDF, and composite panels. This ensures uniform, swirl-free finishes and aggressive stock removal without burning or gouging the workpiece surface.
- Industrial Easy-Clamp Abrasive Locking System: Heavy-duty mechanical paper tension bars grip standard sanding sheets firmly at both ends of the 100x110mm pad, eliminating abrasive slippage and premature tearing mid-task. Compatible with universally available standard cut sheet abrasives, reducing consumable costs compared to hook-and-loop proprietary pads.
- Integrated Fan-Driven Dust Extraction: An internal fan channels fine wood and material particulate directly through perforated pad holes into a rigid, detachable dust collection box, keeping the work surface visible and the workspace cleaner. The system captures dust at the source, reducing airborne particles for safer, healthier operation — critical for prolonged indoor finishing work.
- Hermetically Sealed Dust-Proof Power Switch: A transparent rubber boot encapsulates the on/off trigger, forming a hermetic seal that blocks airborne micro-dust from penetrating the contact terminals. This significantly extends switch service life in high-particulate environments such as cabinet shops, site finishing, and automotive bodywork bays.
- Ultra-Compact Corner-Profiling Pad Geometry: The precisely shaped 100x110mm rectangular pad squares directly into flush 90° inside corners, tight architectural spaces, window frames, and skirting board joints — areas completely inaccessible to random orbit sanders. Combined with the 1.36kg lightweight body and ergonomic rubberized palm grip, the tool enables effortless single-handed control with minimal micro-vibration transfer, reducing operator fatigue during extended finishing sessions.
- Double Insulation Safety Construction: Engineered with Class II double insulation, the electrical components are fully isolated from the outer housing, eliminating the risk of electric shock even without an earth connection. The extra-long 2.5m attached power cord provides generous reach across large workpieces or workbenches without extension leads, while the included extra auto-stop carbon brush pair ensures the motor self-protects against brush wear damage.
The ID OS110 N Series is supplied complete with the machine, a guide book, two 100x110mm Velcro sanding papers, a dust collection box, and an extra pair of auto-stop carbon brushes, all connected via an extra-long 2.5m power cord. It carries CE (Machine Test), CB (Comprehensive Machine Test), and RoHS (Raw Materials Test) certifications, confirming full compliance with European safety, electromagnetic compatibility, and hazardous substance directives.
General Purchase & Comparison Queries
What is the difference between a sheet sander and a random orbital sander?
A sheet sander like the ID OS110 uses a rectangular 100x110mm pad that moves in a fixed orbital pattern, making it ideal for flat surface finishing and tight corner access. A random orbital sander uses a round pad with a combined spin-and-orbit motion for faster material removal on open surfaces. The OS110's rectangular pad can sand directly into flush 90° inside corners — something a round pad physically cannot do — making it the preferred choice for furniture, cabinetry, and interior joinery work.
Is the ID OS110 compatible with standard sanding sheets available locally?
Yes. The OS110 uses a standard 100x110mm cut sheet format secured by the industrial easy-clamp tension bar system. This size is widely available from most abrasive suppliers and hardware stores, meaning you are not locked into proprietary consumables. The included two Velcro sanding papers allow you to start work immediately upon unboxing.
Which markets and plug standards is the ID OS110 compatible with?
The ID OS110 is rated at 220–240V / 50–60Hz and supplied with a Type G (British 3-Pin) plug, making it directly compatible with the UAE, UK, and most GCC and EU markets that operate on 220–240V mains supply. No voltage converter is required for standard use in these regions.
Product-Specific and Usage Queries
How does the dust collection system work on the OS110?
The OS110 features an integrated fan-driven dust extraction system that draws fine particulate through perforated holes in the sanding pad and channels it directly into a rigid, detachable dust collection box. This captures dust at the source during sanding, maintaining clear visibility of the work surface and significantly reducing airborne dust — important for both operator health and finish quality. The dust box detaches easily for emptying without tools.
Can the OS110 be used for metal polishing and automotive bodywork?
Yes. The 15,000 RPM motor and 240W power input provide sufficient speed and torque for metal surface preparation, rust removal, and automotive bodywork finishing when paired with appropriate metal-grade abrasive sheets. The hermetically sealed dust-proof power switch is particularly valuable in metal sanding environments where fine metallic particulate could otherwise damage the switch contacts.
What does the auto-stop carbon brush do and why is a spare pair included?
Carbon brushes are the wear components that transfer electrical current to the motor's rotating armature. The OS110 includes auto-stop carbon brushes that automatically cut power to the motor when the brushes wear down to a safe minimum length, preventing armature damage. A spare pair of auto-stop carbon brushes is included in the box so you can replace them and restore full operation without sourcing parts separately — extending the working life of the machine significantly.
Problem/Solution-Oriented Queries
The sanding sheet keeps slipping off during use — what should I do?
The OS110 uses an industrial easy-clamp mechanical tension bar system to lock sanding sheets in place. If the sheet is slipping, ensure the sheet is fully seated under both tension bars before clamping and that the bars are firmly engaged. Using the correct 100x110mm sheet size is essential — undersized sheets will not clamp securely. Avoid pulling the sheet laterally during operation, as this can overcome the clamp force on worn abrasives.
The machine is producing more dust than usual and the dust box fills quickly — is this normal?
Rapid dust box filling is normal when sanding softwoods, MDF, or heavily coated surfaces that generate high volumes of fine particulate. Empty the detachable dust box regularly to maintain extraction efficiency — a full box reduces airflow through the perforated pad and degrades dust capture performance. Ensure the pad holes are not clogged with compacted dust, and check that the sanding sheet's own perforations (if using pre-punched sheets) are aligned with the pad holes for maximum extraction.
The machine stopped working mid-use — what could be the cause?
If the OS110 stops unexpectedly, the most likely cause is auto-stop carbon brush activation — the brushes have worn to their minimum safe length and the auto-stop mechanism has cut power to protect the motor armature. Replace the brushes with the included spare auto-stop carbon brush pair to restore operation. If the machine does not restart after brush replacement, check that the 2.5m power cord and plug connections are secure and that the mains supply is live. If the issue persists, do not attempt to open the double-insulated housing — contact your authorised service centre.

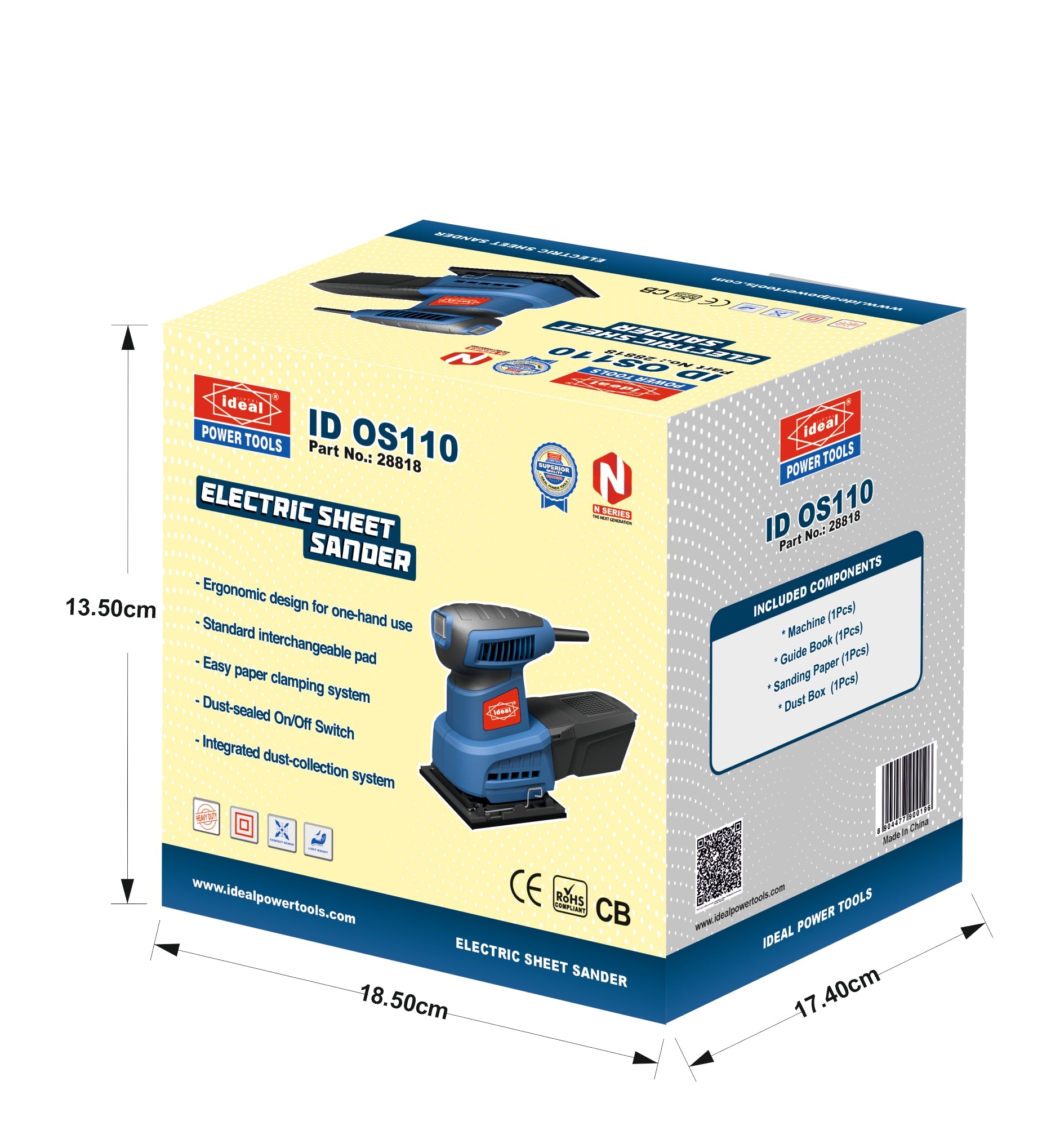

Machine (1 Pcs), Guide Book (1 Pcs), 100 x 110mm Velcro Sanding Paper (2 Pcs), Dust Box (1 Pcs), Extra Auto-stop Carbon Brush (1 Pair), Extra-long 2.5m Power Cord Attached
