ID MSM255 10" ELECTRIC MITRE SAW MACHINE [G-240V] [Makita Type] - 26566
Chat with us
Choose options
The MSM255 10-inch Electric Mitre Saw Machine is a heavy-duty 1650W precision cutting tool engineered for demanding woodworking, carpentry, and aluminium fabrication tasks. Featuring a 4600 RPM no-load speed, double insulation safety design, and an adjustable mitre and bevel cutting table, this machine delivers accurate, repeatable results on job sites and in professional workshops. Supplied with a Type G British 3-Pin plug, it is ready for use across GCC, UK, and EU 220-240V power networks.
| Key Features | Perfect For |
|
|
Professional-Grade Precision Cutting — Built for the Workshop, Ready for the Site
- Powerful 1650W Motor with Constant-Speed Electronics: The high-performance motor delivers consistent 4600 RPM no-load blade speed, and the constant-speed control system maintains cutting velocity even under heavy load — ensuring clean, burn-free cuts through hardwood, softwood, and aluminium profiles without stalling or slowing.
- Wide Mitre and Bevel Cutting Range: The adjustable mitre table rotates 0-45° left and right for precise crosscuts and angled mitre joints, while the bevel function tilts the blade head 0-45° to the left for inclined edge cuts. Combined, these produce compound cuts up to 49 x 67mm, making complex joinery straightforward.
- Generous Maximum Cutting Capacities: At a straight 0° cut, the machine handles workpieces up to 93 x 95mm or 69 x 135mm. At a 45° mitre, capacity reaches 93 x 67mm or 69 x 95mm, and at a 45° bevel, up to 53 x 95mm or 35 x 135mm — covering the majority of standard timber and moulding profiles used in construction and interior fit-out.
- Double Insulation and CE/CB Certified Safety Construction: The tool is built with double insulation to prevent any electrical contact between internal components and the outer housing, eliminating the need for an earth connection. It carries both CE (Machine Test) and CB (Comprehensive Machine Test) certifications, confirming compliance with international safety and electromagnetic standards.
- Integrated Blade Lock, Arbor Washer Lock, and Extended Base Support: The integrated spindle lock immobilises the blade assembly for safer, tool-assisted blade swaps using the included socket wrench, while the arbor washer lock holds the blade collar firmly during operation. The extended base support arms accommodate longer workpieces, reducing tip risk and improving cut accuracy on boards and trim sections.
- Dust Collection System with Included Dust Bag: The onboard dust-extracting port and included dust bag capture sawdust at the source, keeping the cutting line visible and the workspace cleaner — a critical advantage for indoor joinery and precision marking tasks where debris obscures cut lines.
- Complete Ready-to-Use Kit Included: Each machine ships with a guide book, a pair of auto-stop carbon brushes, a dust bag, a socket wrench for blade changes, a triangular ruler for angle setting, a vertical vice for workpiece clamping, and two holder assemblies for extended support — everything needed to begin cutting straight from the box.
General Purchase & Comparison Queries
Is this mitre saw compatible with UK and GCC power supplies?
Yes. The MSM255 operates on 220-240V at 50/60Hz, making it fully compatible with standard UK, GCC, and EU mains power. It also comes fitted with a Type G British 3-Pin plug as standard, so no adapter is required for use in the UAE, Saudi Arabia, UK, and other Type G socket markets.
How does the MSM255 compare to other 10-inch mitre saws in its class?
The MSM255 delivers 1650W of input power at 4600 RPM with a full compound cutting capability — mitre up to 45° and bevel up to 45° — placing it firmly in the professional segment. Its double insulation construction, CE and CB certifications, and comprehensive accessory kit (vertical vice, dust bag, auto-stop carbon set, triangular ruler) offer significant value over bare-tool alternatives at a comparable price point.
What blade size does this machine use and where can I find replacements?
The MSM255 accepts a maximum blade diameter of 255mm (10 inches) with a 25.4mm arbor hole — a widely standardised size compatible with the vast majority of 10-inch TCT (tungsten carbide tipped) circular saw blades available from major tool suppliers. Replacement blades for wood, aluminium, and multi-material cutting are readily available through our store and standard industrial tool distributors.
Product-Specific and Usage Queries
What are the maximum cutting dimensions for straight, mitre, bevel, and compound cuts?

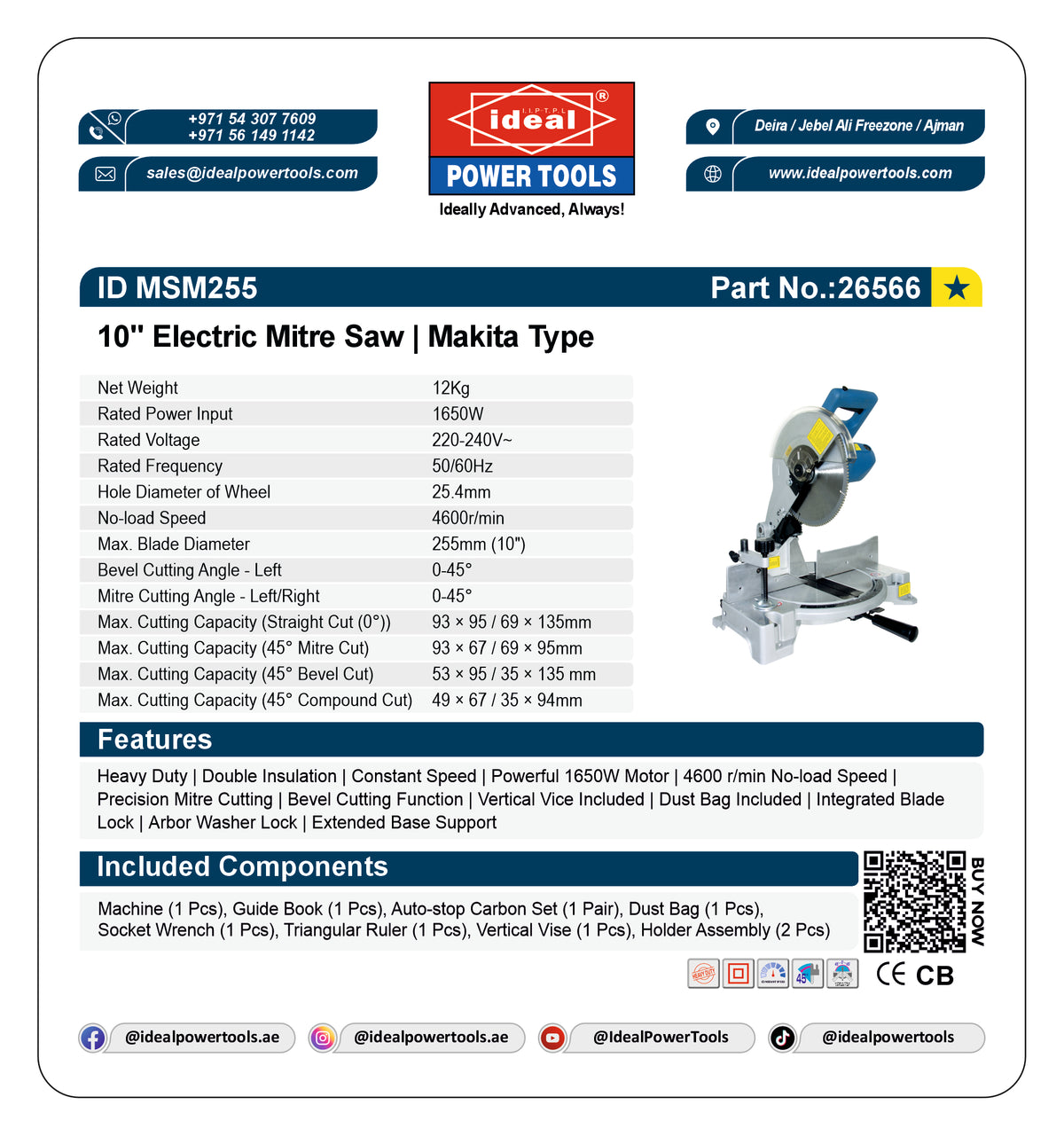

The MSM255 offers the following maximum cutting capacities: Straight cut (0°): 93 x 95mm or 69 x 135mm. 45° Mitre cut: 93 x 67mm or 69 x 95mm. 45° Bevel cut: 53 x 95mm or 35 x 135mm. 45° Compound cut (mitre + bevel simultaneously): 49 x 67mm or 35 x 94mm. These capacities cover standard structural timbers, mouldings, skirting boards, and aluminium extrusions commonly used in construction and interior fit-out.
How do I change the blade safely on the MSM255?
Blade changes are straightforward and safe thanks to the integrated blade lock (spindle lock), which immobilises the spindle so it cannot rotate during the process. Use the included socket wrench to loosen the arbor bolt, remove the blade, fit the replacement, and retighten. The arbor washer lock holds the collar assembly securely in position during operation. Always disconnect the machine from the power supply before performing any blade change.
Can this saw cut aluminium as well as wood?
Yes. The MSM255 is designed for cutting both wood and aluminium sections. For aluminium cutting, fit a suitable non-ferrous metal TCT blade (255mm x 25.4mm arbor) and ensure the workpiece is clamped securely using the included vertical vice. The constant-speed electronics help maintain consistent blade speed through denser materials, reducing the risk of blade deflection or chatter during aluminium profile cuts.
Problem/Solution-Oriented Queries
The saw is producing excessive sawdust — how do I manage this?
The MSM255 includes an onboard dust collection port and a dust bag that capture the majority of sawdust at the source during cutting. Ensure the dust bag is properly attached and emptied regularly for best results. For workshop environments requiring near-zero dust, the dust port is compatible with standard vacuum extraction hoses, allowing connection to an external dust extractor or workshop vacuum for enhanced collection efficiency.
The blade speed seems to drop when cutting through dense hardwood — is this normal?
A slight speed variation in underpowered tools is common, but the MSM255 is specifically equipped with constant-speed electronics that actively compensate to maintain blade RPM under load. If you notice significant speed drop, first check that the blade is sharp and appropriate for the material — a dull or incorrect blade increases resistance substantially. Also verify that the auto-stop carbon brushes (included as a spare pair) are in good condition, as worn brushes can reduce motor efficiency.
How do I ensure my mitre angles are accurate and repeatable?
The MSM255 features an adjustable mitre table with positive stops at common angles for quick, repeatable settings. Use the included triangular ruler to verify the blade is perfectly square to the table before beginning a cut sequence. For critical joinery work, always make a test cut on scrap material first and confirm the angle with a precision square. The vertical vice should be used to clamp the workpiece firmly against the fence, preventing movement that could introduce angular error during the cut.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Dust Bag (1 Pcs), Socket Wrench (1 Pcs), Triangular Ruler (1 Pcs), Vertical Wise (1 Pcs), Holder Assembly (2 Pcs)
