ID MS305 12" ELECTRIC MITRE SAW MACHINE [G-240V] - 20268

The ID MS305 features a 305mm (12") maximum blade diameter, compared to the 254mm (10") found on standard mitre saws. This larger blade capacity allows you to crosscut significantly wider boards and thicker timber sections in a single pass, making it far more capable for heavy-duty carpentry, construction framing, and large-section aluminium cutting. Combined with its 1800W motor, it handles demanding materials that would stall a smaller machine.

Yes. The ID MS305 12" Electric Mitre Saw is designed for both wood and aluminium cutting. Its 5000 RPM rated speed and powerful 1800W motor provide the torque and blade velocity needed to cut aluminium profiles, extrusions, and trim cleanly. For best results with aluminium, use a dedicated non-ferrous metal cutting blade with the appropriate tooth geometry and cutting lubricant.

Yes. The ID MS305 is supplied with a Type G British 3-Pin plug, which is the standard plug type used across the UAE, Saudi Arabia, Qatar, Bahrain, and the UK. It is rated at 220–240V / 50–60Hz, meaning it requires no adapter, voltage converter, or rewiring — simply plug it in and it is ready to operate.

The ID MS305 supports a maximum blade diameter of 305mm (12"). This is the largest blade size in the standard mitre saw category and enables wide crosscuts across large timber boards, thick beams, and wide aluminium sections. Always ensure any replacement blade matches the arbor size and RPM rating of the machine before use.

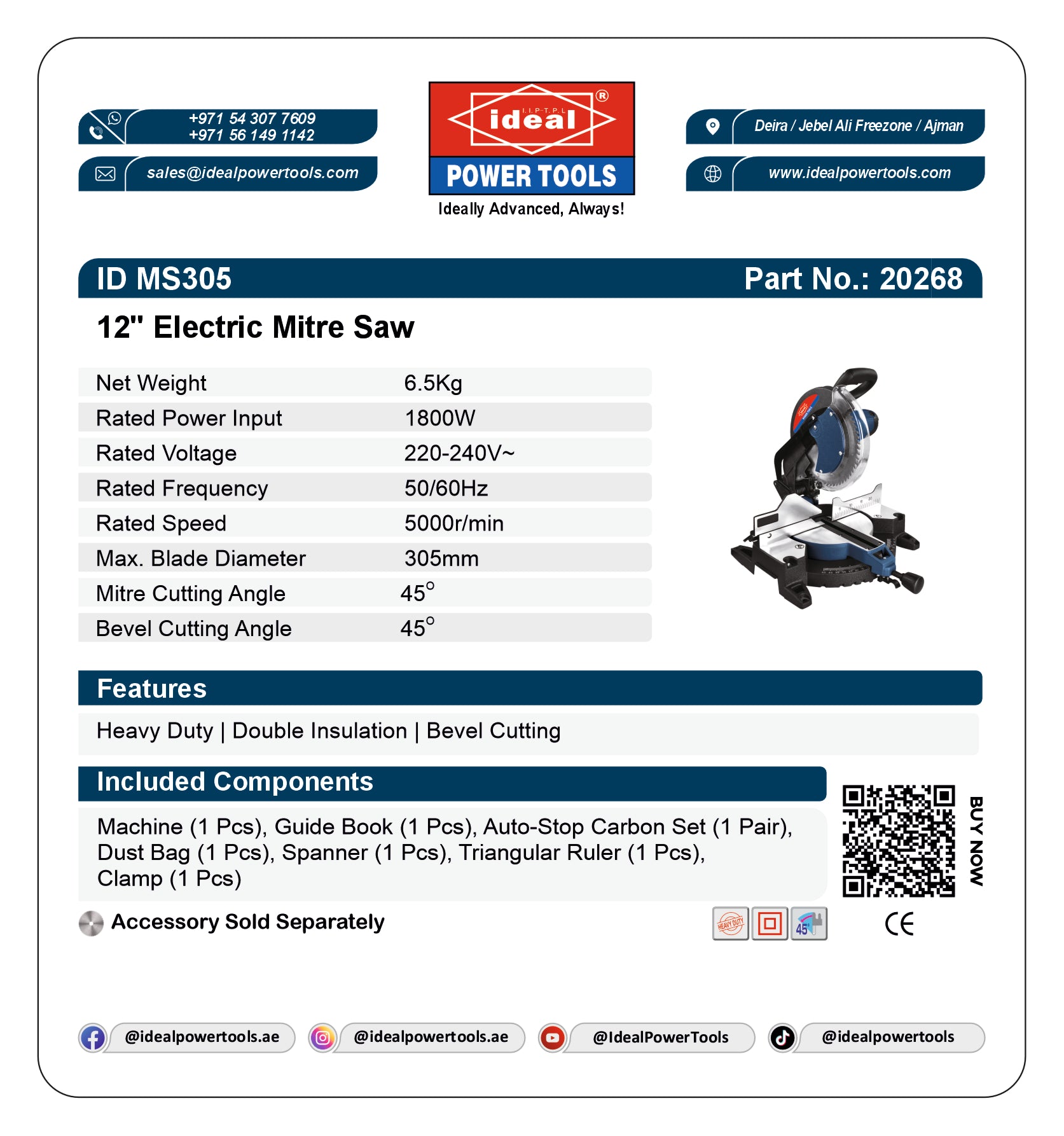

The ID MS305 ships as a complete ready-to-use kit. Included in the box are the main mitre saw unit, a printed guide book, an auto-stop carbon brush set (1 pair) for motor maintenance, a dust collection bag to keep your workspace clean, a spanner for blade changes, a triangular ruler for angle reference, and a work clamp to secure your workpiece during cutting.

Double insulation is an electrical safety design where all live internal components are separated from the outer casing by two independent layers of insulation. This means that even if the primary insulation fails, the secondary layer prevents the outer body of the tool from becoming live. For professionals using power tools on construction sites, in workshops, or in wet environments, double insulation provides a critical additional layer of protection against electric shock without requiring an earth connection.

Rough cut finish is most commonly caused by a worn or incorrect blade. Ensure you are using a sharp blade with the correct tooth count for your material — higher tooth count blades (60–80T) produce finer finishes on wood and aluminium, while lower tooth count blades (24–40T) are suited for fast ripping cuts. Also check that the workpiece is firmly clamped using the included clamp to prevent vibration, and that the blade is correctly tensioned and seated on the arbor.

The ID MS305 includes an auto-stop carbon brush set (1 pair) in the box. Carbon brushes are wear components that transfer electrical current to the motor's commutator. When the brushes wear down to their minimum length, the auto-stop feature automatically cuts power to the motor to prevent damage. To replace them, disconnect the machine from the power supply, access the brush caps on the motor housing, remove the worn brushes, and insert the new pair from the included set. Regular inspection every 50–100 hours of use is recommended.

If your mitre cuts are not coming out at the intended angle, the mitre table may need recalibration. Use the triangular ruler included in the box as a reference square to verify the blade is perpendicular to the table at 0 degrees. Most mitre saws have an adjustment screw or detent mechanism at the 0° and 45° stops — consult the included guide book for the specific calibration procedure for the MS305. Always perform a test cut on scrap material and measure with a reliable square before cutting finished workpieces.
