ID MD50HQ ELECTRIC MAGNETIC CORE DRILL MACHINE [G-240V] - 26956

ID MD50HQ ELECTRIC MAGNETIC CORE DRILL MACHINE [G-240V] - 26956

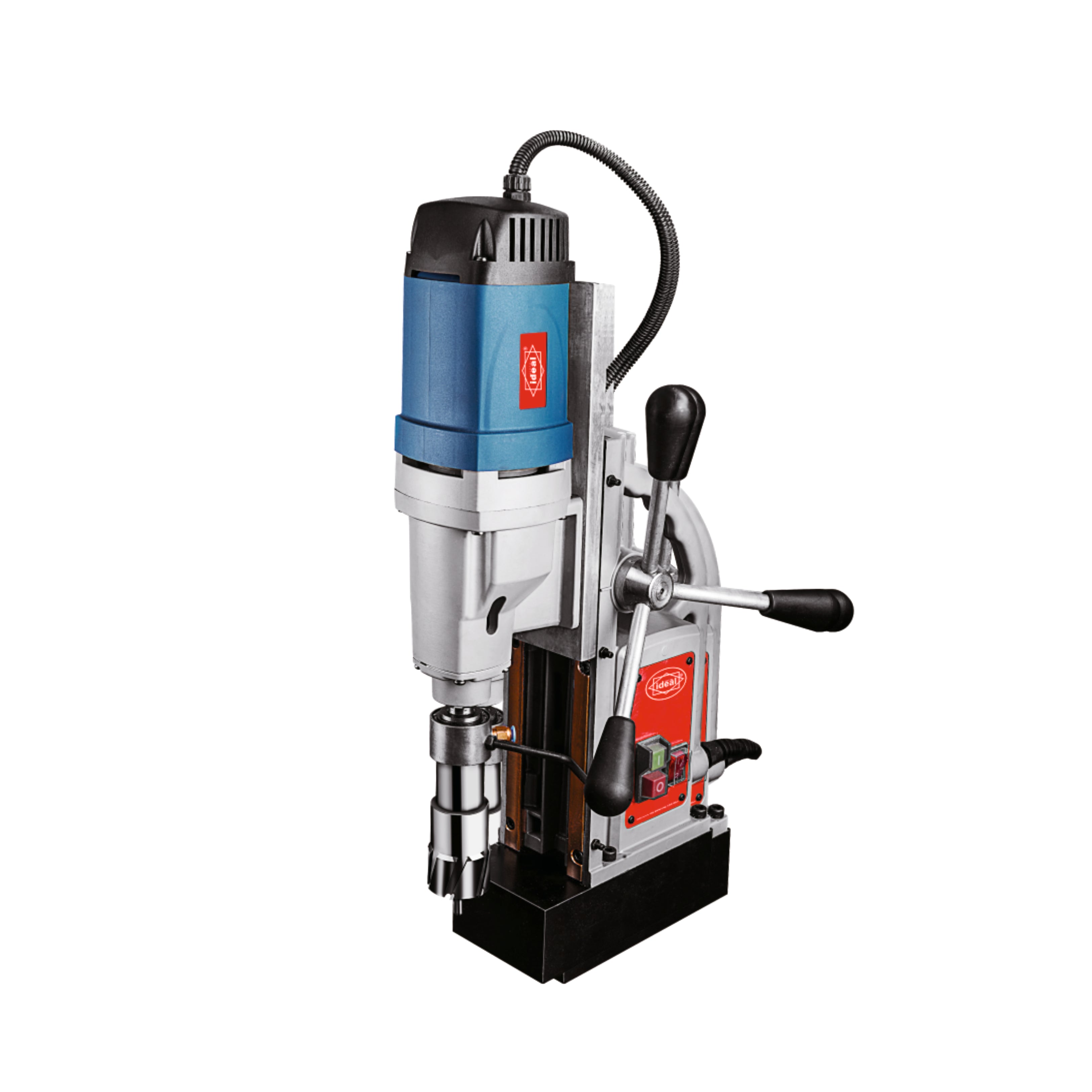

A magnetic core drill machine is a specialized tool used for drilling precise, large-diameter holes in metal. It features a magnetic base, drill motor, and annular cutter. The machine uses magnetic force to secure itself to the workpiece, enabling stable, accurate drilling. Used in industries like construction, manufacturing, and plumbing for drilling holes for pipes, anchors, and fittings.

This machine comes with a Type G Plug [British 3-Pin].

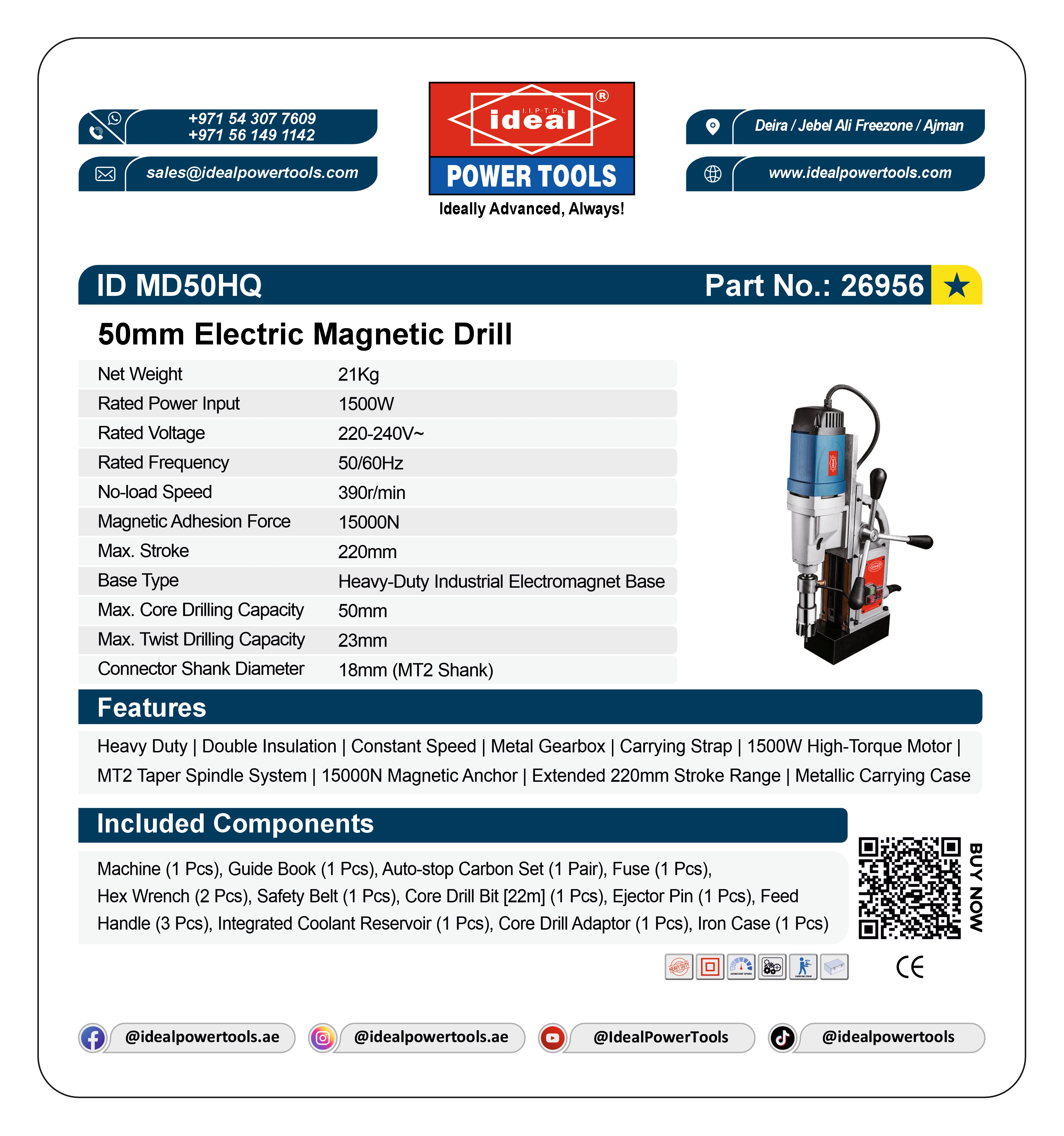

Specifications:
Net Weight (Kg): 21
Rated Power Input (W): 1500
Rated Voltage (V): 220-240~
Rated Frequency (Hz): 50/60
No-load Speed (r/min): 390
Magnetic Adhesion Force (N): 15000
Max. Stroke (mm): 220
Base Type: Heavy-Duty Industrial Electromagnet Base
Max. Core Drilling Capacity (mm): 50
Max. Twist Drilling Capacity (mm): 23
Connector Shank Diameter (mm): 18 (MT2 Shank)

Features:
- Heavy Duty: This product is powered by innovative technology and is engineered to outlast.

- Double Insulation: This product is designed in such a way that the electrical parts can never come into contact with the outer casing.

- Constant Speed: This machine has constant electronics for constant speeds even under load for particularly fast drilling progress.

- Metal Gear Box: Enhances durability and reliability with a robust metal gearbox. Provides smooth and efficient power transmission for optimal performance

- Carrying Strap: Integrated heavy-duty tool strap and metal belt clip, providing a secure grip and effortless handheld portability while transporting or operating the tool on the job site.

- Ultra-Powerful 1500W High-Torque Motor: Driven by a robust motor optimized to run at a steady 390 RPM. This provides massive twisting force while drastically reducing tool vibration when eating through large-diameter steel panels.

- Industrial MT2 Taper Spindle System: Built with an MT2 (Morse Taper 2) connector mechanism. This heavy-duty system allows you to easily switch between large standard twist drills (up to 23mm) and industrial broach/annular core cutters (up to 50mm).

- Extreme 15000N Magnetic Anchor: Features an upgraded, commercial-grade electromagnetic base that clamps onto ferrous metals with a massive 15000 Newtons of gripping force, completely ensuring zero frame slippage or shifting.

- Extended 220mm Stroke Range: Designed with a massive 220mm maximum vertical sliding travel distance. This extended travel track accommodates longer cutting bits and extra-thick block materials with ease.

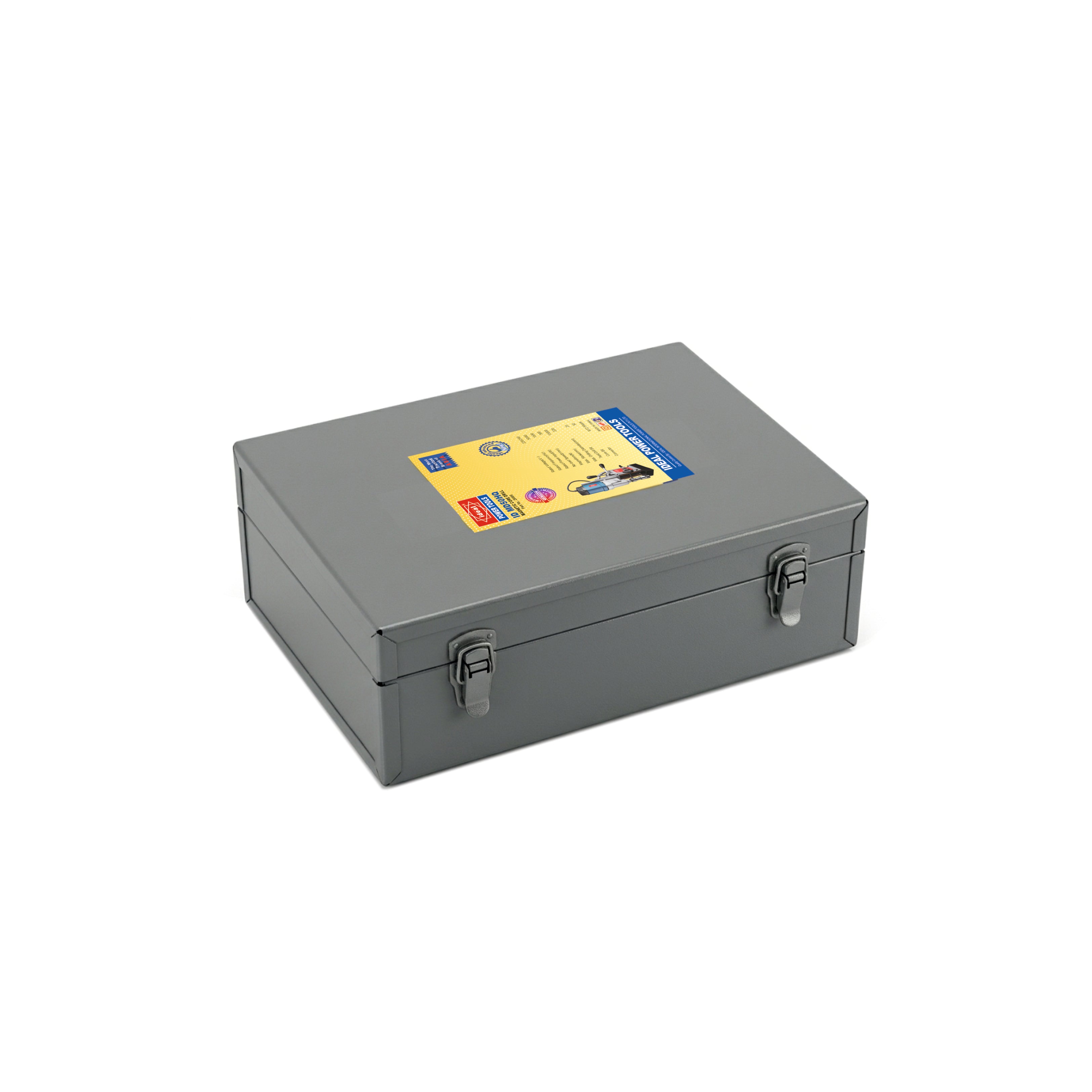

- Metallic Carrying Case: This product comes with a secure metal carrying case for your convenience, product protection, and storage.

Included Components:
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Fuse (1 Pcs), Hex Wrench (2 Pcs), Safety Belt (1 Pcs), Core Drill Bit [22m] (1 Pcs), Ejector Pin (1 Pcs), Feed Handle (3 Pcs), Integrated Coolant Reservoir (1 Pcs), Core Drill Adaptor (1 Pcs), Iron Case (1 Pcs)

Conformity Certificates:
CE (Machine Test)

• Heavy Duty: This product is powered by innovative technology and is engineered to outlast. Double Insulation: This product is designed in such a way that the electrical parts can never come into contact with the outer casing.
• Double Insulation: This product is designed in such a way that the electrical parts can never come into contact with the outer casing.
• Constant Speed: This machine has constant electronics for constant speeds even under load for particularly fast drilling progress.
• Metal Gear Box: Enhances durability and reliability with a robust metal gearbox. Provides smooth and efficient power transmission for optimal & performance.
• Ultra-Powerful 1500W High-Torque Motor: Driven by a robust motor optimized to run at a steady 390 RPM. This provides massive twisting force while drastically reducing tool vibration when eating through large-diameter steel panels.
• Industrial MT2 Taper Spindle System: Built with an MT2 (Morse Taper 2) connector mechanism. This heavy-duty system allows you to easily switch between large standard twist drills (up to 23mm) and industrial broach/annular core cutters (up to 50mm).
• Extreme 15000N Magnetic Anchor: Features an upgraded, commercial-grade electromagnetic base that clamps onto ferrous metals with a massive 15000 Newtons of gripping force, completely ensuring zero frame slippage or shifting.
• Extended 220mm Stroke Range: Designed with a massive 220mm maximum vertical sliding travel distance. This extended travel track accommodates longer cutting bits and extra-thick block materials with ease.
• Carrying Strap: Integrated heavy-duty tool strap and metal belt clip, providing a secure grip and effortless handheld portability while transporting or operating the tool on the job site.
• Metallic Carrying Case: This product comes with a secure metal carrying case for your convenience, product protection, and storage.

Net Weight (Kg): 21
Rated Power Input (W): 1500
Rated Voltage (V): 220-240~
Rated Frequency (Hz): 50/60
No-load Speed (r/min): 390
Magnetic Adhesion Force (N): 15000
Max. Stroke (mm): 220
Base Type: Heavy-Duty Industrial Electromagnet Base
Max. Core Drilling Capacity (mm): 50
Max. Twist Drilling Capacity (mm): 23
Connector Shank Diameter (mm): 18 (MT2 Shank)

Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Fuse (1 Pcs), Hex Wrench (2 Pcs), Safety Belt (1 Pcs), Core Drill Bit [22m] (1 Pcs), Ejector Pin (1 Pcs), Feed Handle (3 Pcs), Integrated Coolant Reservoir (1 Pcs), Core Drill Adaptor (1 Pcs), Iron Case (1 Pcs)
