ID MD50HQ ELECTRIC MAGNETIC CORE DRILL MACHINE [G-240V] - 26956
Chat with us
Choose options

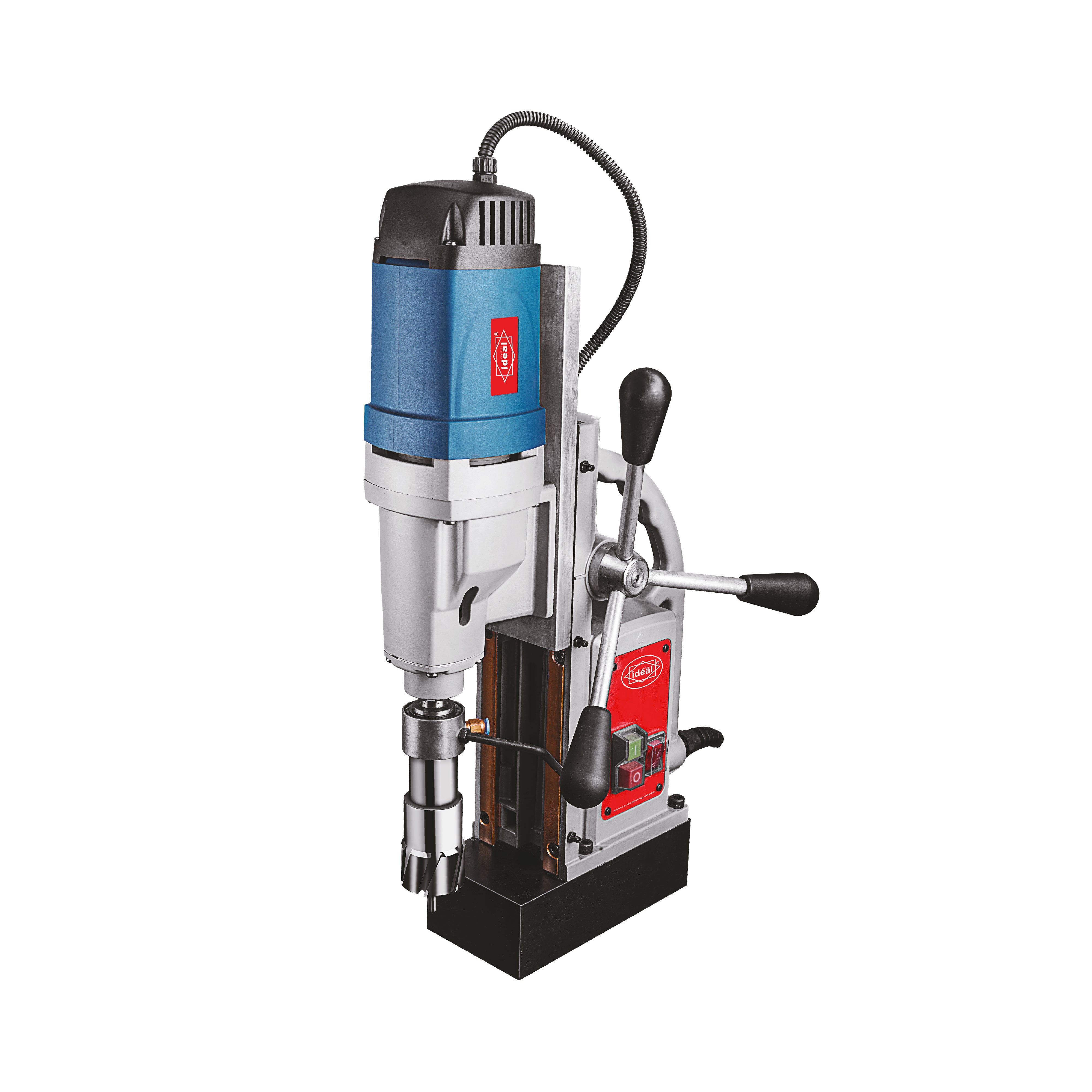

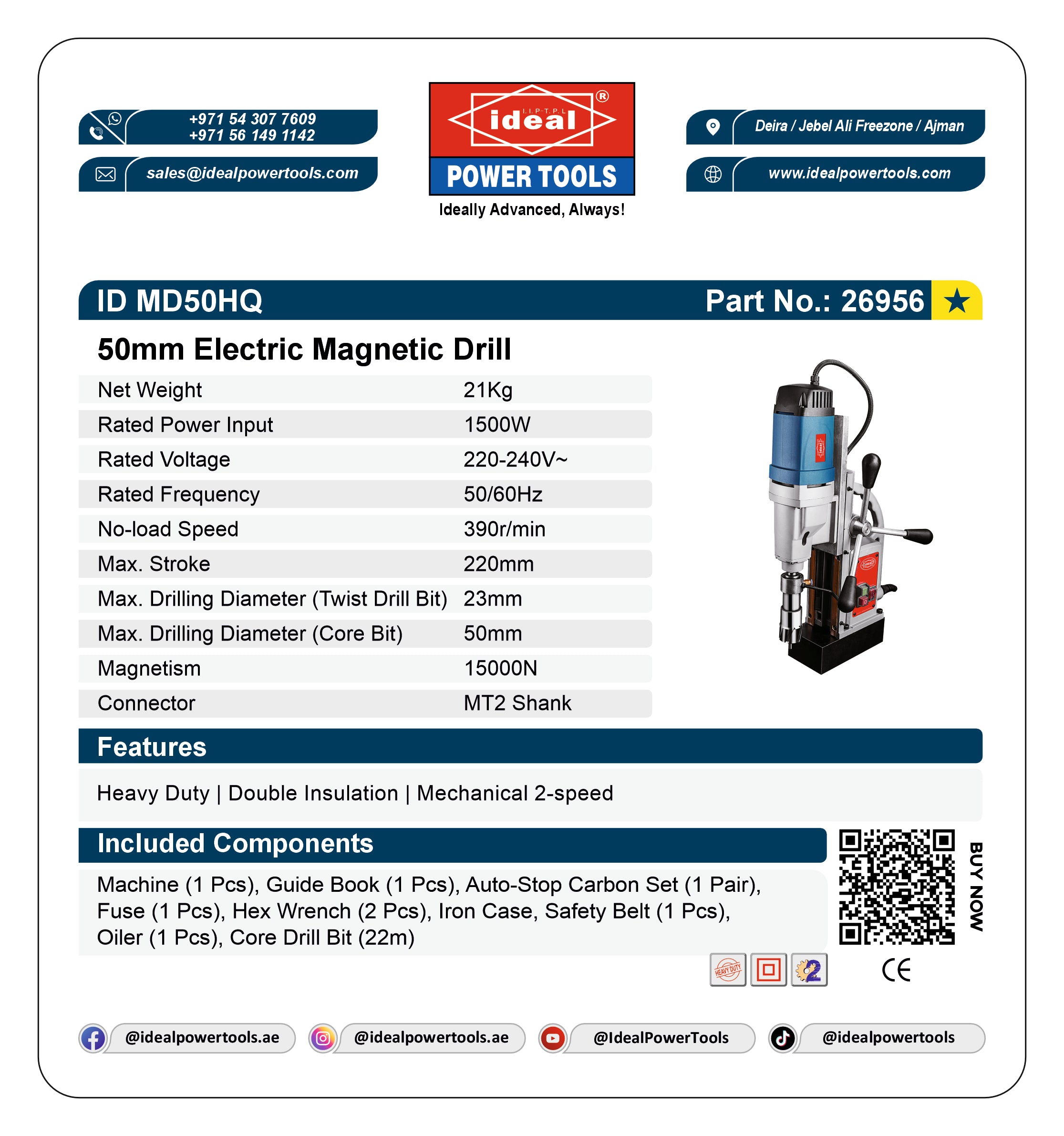

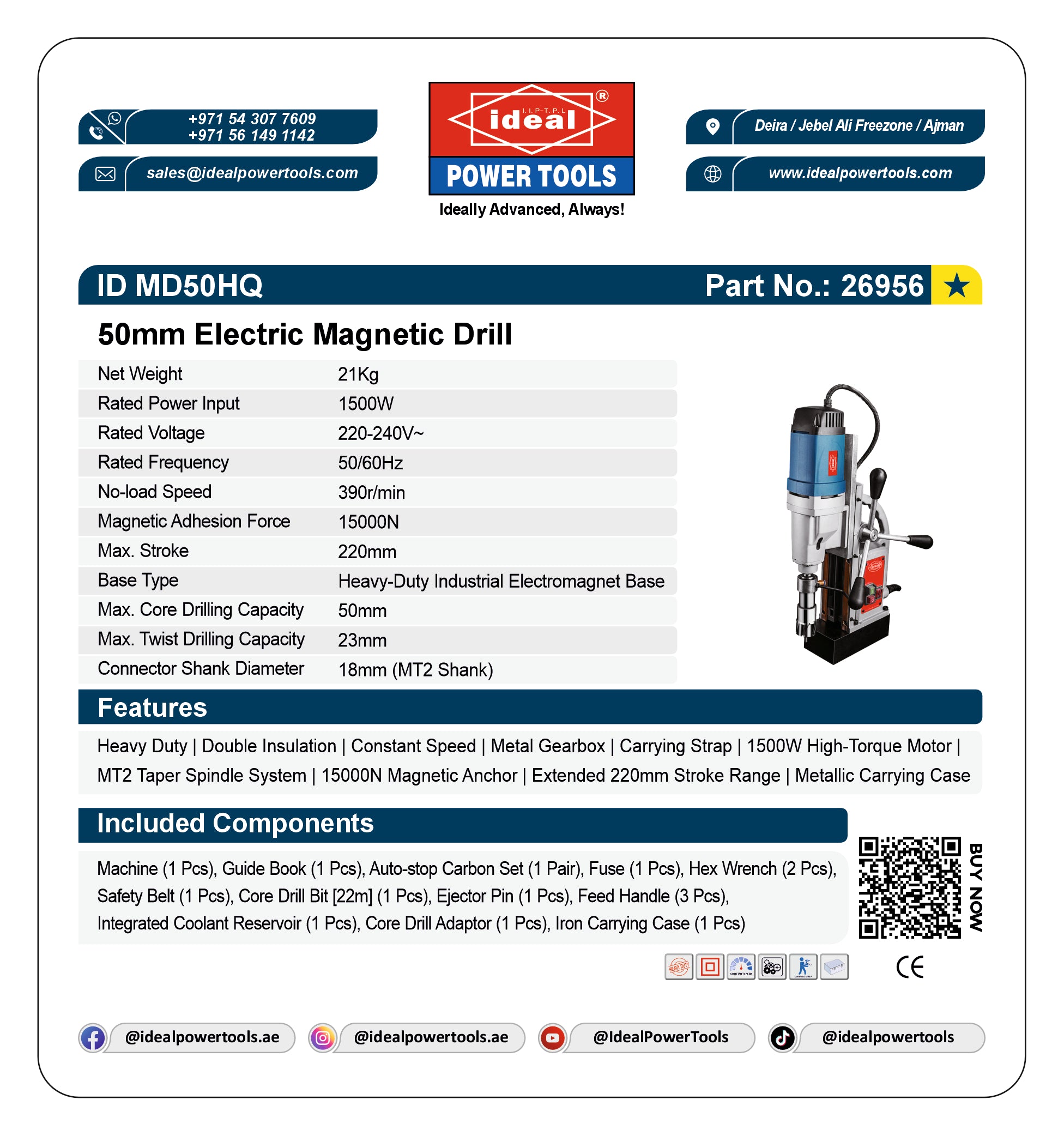

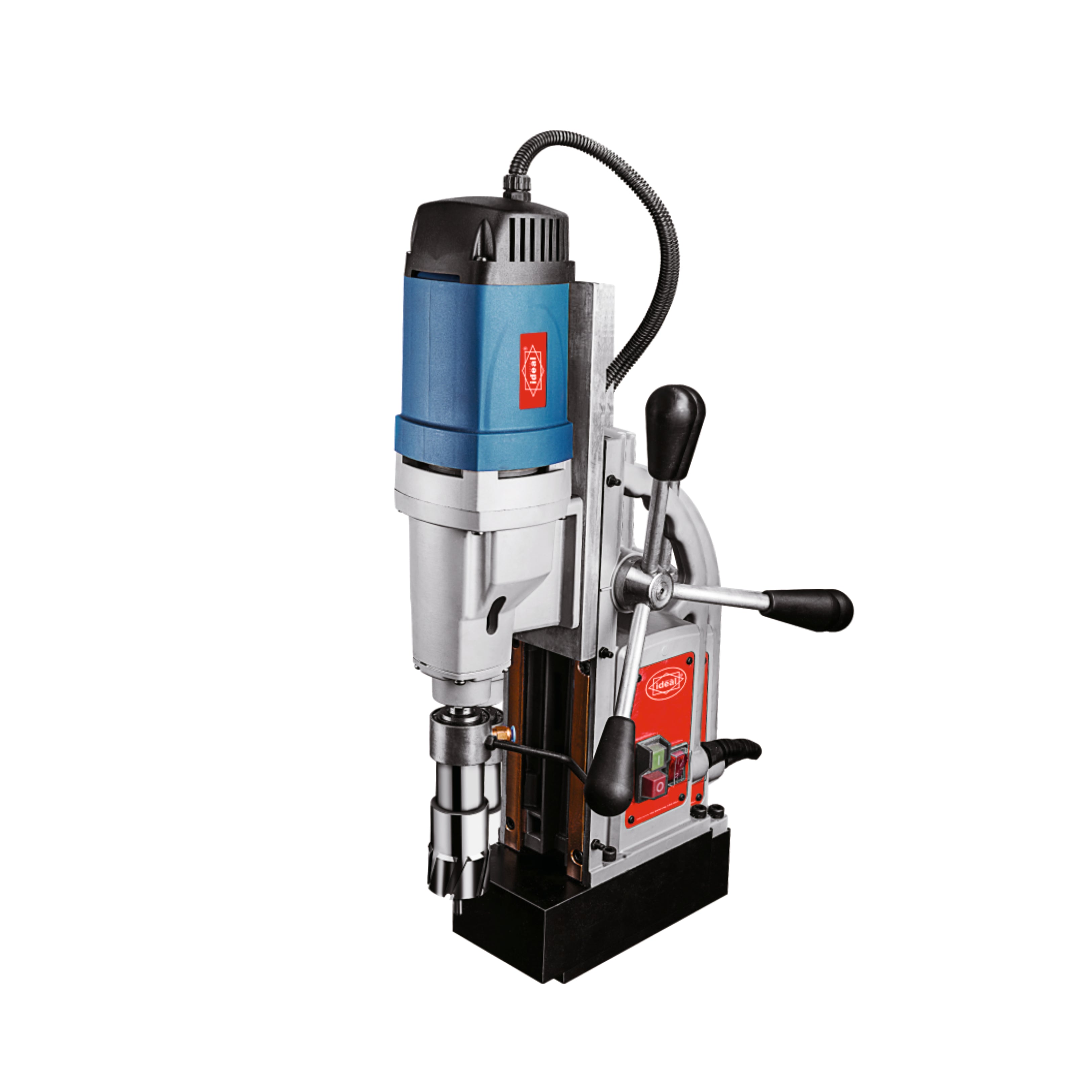

The ID MD50HQ Electric Magnetic Core Drill Machine is a professional-grade magnetic core drill engineered for precision large-diameter hole drilling in ferrous metals. Powered by a 1500W high-torque motor running at a steady 390 RPM, it combines an industrial MT2 taper spindle, a 15000N electromagnetic base, and a 220mm stroke range to deliver unmatched stability and drilling capacity on construction sites, fabrication shops, and industrial facilities. Supplied with a Type G (British 3-Pin) plug for direct use across GCC, UK, and compatible markets.
| Key Features | Perfect For |
|---|---|
|
|
Industrial Magnetic Core Drilling — Built for the Demands of the Job Site
- Ultra-Powerful 1500W High-Torque Motor with Constant Speed Electronics: The MD50HQ is driven by a robust 1500W motor optimized to maintain a steady 390 RPM no-load speed even under heavy cutting load. The integrated constant-speed electronics automatically compensate for resistance, ensuring consistent drilling progress through thick steel panels, structural beams, and dense ferrous materials without stalling or speed drop-off.
- Extreme 15000N Industrial Electromagnetic Base — Zero Slippage Guaranteed: The machine features a commercial-grade heavy-duty electromagnet base generating a massive 15,000 Newtons (approx. 1,530 kgf) of magnetic adhesion force. This locks the drill frame completely rigid against any ferrous workpiece, eliminating frame shift, vibration-induced drift, or operator fatigue from holding the tool in position — critical for maintaining hole accuracy in large-diameter core drilling applications.
- Industrial MT2 Taper Spindle System — Dual-Capacity Tooling: Built around an MT2 (Morse Taper 2) connector shank (18mm diameter), the spindle system provides a universally compatible, heavy-duty interface for both annular/broach core cutters up to 50mm diameter and standard twist drills up to 23mm diameter. Tool changes are fast and secure, making the MD50HQ a versatile single-machine solution for varied hole sizes on the same job.
- Extended 220mm Stroke Range with Integrated Coolant Reservoir: The 220mm maximum vertical stroke accommodates longer annular cutters and allows drilling through extra-thick block materials in a single pass. The machine ships with an integrated coolant reservoir that feeds cutting fluid directly to the bit during operation, reducing heat build-up, extending cutter life, and improving chip evacuation for cleaner, faster holes.

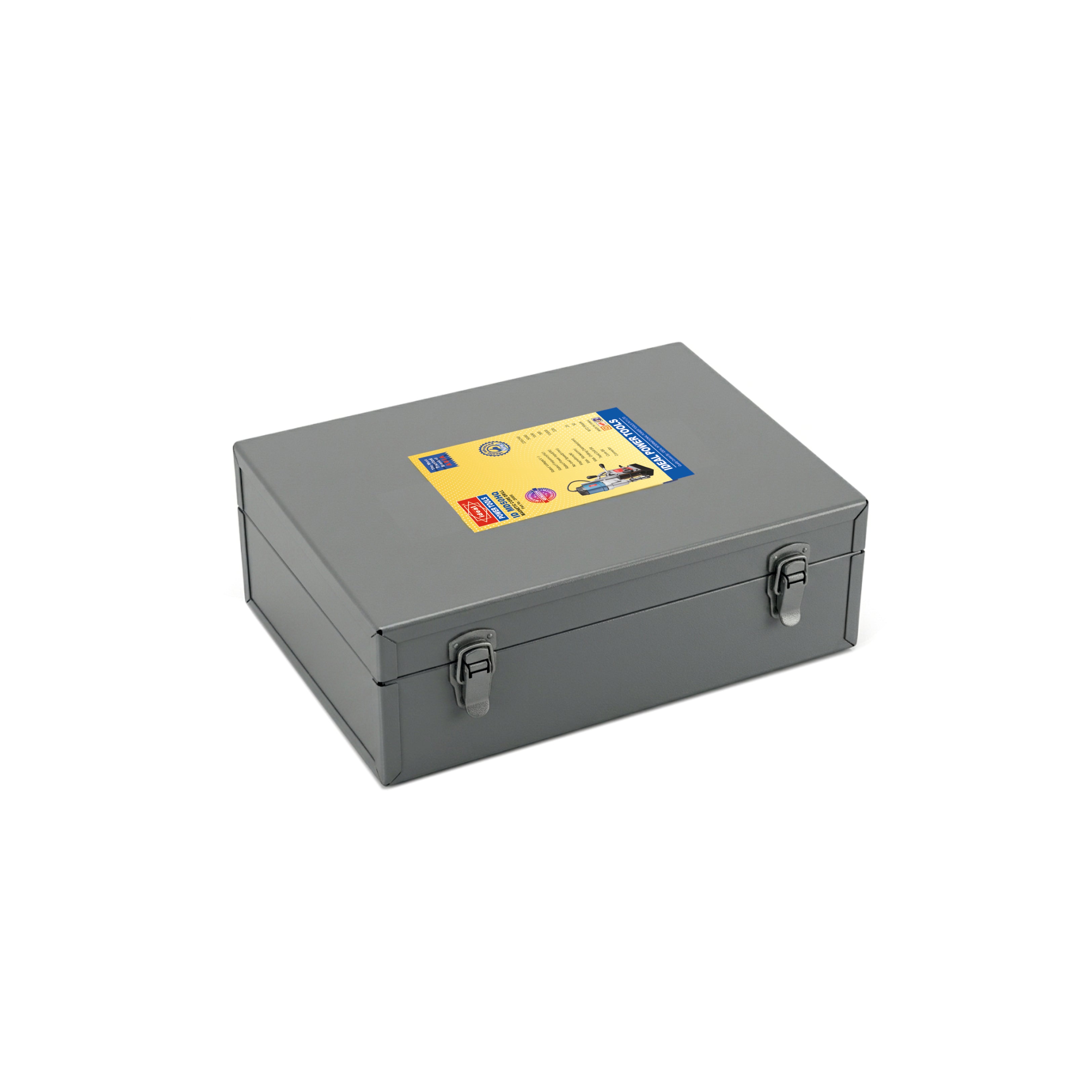

- Double Insulation, Metal Gearbox & Metallic Carrying Case — Professional-Grade Build Quality: The double-insulated construction ensures electrical components are fully isolated from the outer casing, providing a critical safety layer in wet or conductive environments. The robust metal gearbox delivers smooth, efficient power transmission with long-term durability under continuous industrial use. The machine is supplied in a secure iron carrying case with a heavy-duty safety belt for protected transport and organized storage of all included accessories on site.
- Complete Ready-to-Drill Package with Type G Plug: The MD50HQ ships as a fully equipped kit including the machine, a 22mm core drill bit, ejector pin, three feed handles, hex wrenches, auto-stop carbon set, fuse, core drill adaptor, integrated coolant reservoir, safety belt, and iron carrying case — everything required to begin drilling immediately upon delivery. The Type G (British 3-Pin) plug ensures direct compatibility with UAE, UK, and GCC power outlets at 220–240V / 50–60Hz. The machine carries a CE (Machine Test) conformity certificate, confirming compliance with European safety and performance directives.
General Purchase & Comparison Queries
What makes the ID MD50HQ different from a standard rotary hammer or drill?
The ID MD50HQ is a magnetic core drill machine, which is a fundamentally different tool from a rotary hammer or standard drill. Rather than relying on operator grip strength, it uses a 15000N industrial electromagnet base to lock itself rigidly onto any ferrous metal surface. This allows it to drill large-diameter holes up to 50mm using annular core cutters with far greater precision, speed, and safety than a handheld drill could achieve. It is designed specifically for structural metalwork, pipe fitting, and industrial fabrication — applications where a standard drill would be inadequate.
Is this machine compatible with power outlets in the UAE and GCC region?
Yes. The MD50HQ operates on 220–240V / 50–60Hz and is supplied with a Type G (British 3-Pin) plug, which is the standard plug type used across the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman, and the UK. No adaptor is required for direct use in these markets.
Does the MD50HQ come with a certification or quality compliance mark?
Yes. The ID MD50HQ carries a CE (Machine Test) conformity certificate, confirming that it has been independently tested and meets the safety, health, and environmental protection standards required by European directives. This certification provides assurance of build quality and electrical safety for professional and industrial use.
Product-Specific and Usage Queries
What is the maximum hole size this machine can drill, and what cutter types does it accept?
The MD50HQ can drill holes up to 50mm diameter using annular/broach core cutters and up to 23mm diameter using standard twist drills. Both cutter types are mounted via the MT2 (Morse Taper 2) spindle system with an 18mm shank diameter, which is a widely used industrial standard ensuring broad compatibility with third-party tooling. A 22mm core drill bit is included in the kit to get you started immediately.
How does the coolant system work, and is it necessary to use it?
The machine ships with an integrated coolant reservoir that delivers cutting fluid directly to the annular cutter during operation. Using coolant is strongly recommended when core drilling metal, as it reduces heat build-up at the cutting edge, significantly extends the life of your core drill bits, improves chip evacuation, and results in cleaner, faster holes. Drilling dry — especially at larger diameters — will cause premature cutter wear and can damage the workpiece surface.
Can this machine be used on non-horizontal or vertical surfaces?
Yes. The heavy-duty industrial electromagnet base with 15000N of magnetic adhesion force allows the MD50HQ to be mounted and operated on vertical, overhead, and angled ferrous metal surfaces, provided the surface is ferrous (magnetic) and sufficiently flat for the base to achieve full contact. This makes it highly versatile for structural steel column drilling, beam work, and ship or tank fabrication where horizontal positioning is not always possible.
Problem/Solution-Oriented Queries
What should I do if the magnetic base is not holding firmly to the workpiece?
Weak magnetic adhesion is almost always caused by one of three factors: surface contamination (paint, rust, scale, or oil between the base and the workpiece), insufficient material thickness (the workpiece must be thick enough to allow full magnetic flux), or a non-ferrous material (the electromagnet only works on steel and iron — it will not adhere to aluminium, stainless steel grades with low iron content, or non-metals). Clean the workpiece surface thoroughly, ensure the material is ferrous, and confirm the base plate is making full flat contact before energising the magnet.
The machine is drilling slowly or the motor seems to be struggling — what could be the cause?
Slow drilling progress or motor strain is typically caused by excessive feed pressure, a worn or blunt core cutter, or insufficient coolant flow. The MD50HQ's constant-speed electronics are designed to maintain 390 RPM under load, but they cannot compensate for a dull bit or a blocked coolant line. Reduce feed pressure to allow the cutter to work at its optimal chip load, check that coolant is flowing freely to the cutting zone, and inspect the core drill bit for wear. Replacing a worn cutter will immediately restore drilling speed and motor efficiency.
What happens if the power is cut while the machine is in use?
The MD50HQ includes an auto-stop carbon set in the kit, which is part of the motor's brush system and contributes to controlled shutdown behaviour. In the event of a power interruption, the electromagnetic base will also de-energise, releasing its grip on the workpiece — so it is important to always secure the machine with the included safety belt as a secondary retention measure, particularly when working on vertical or overhead surfaces. This prevents the machine from falling if magnetic adhesion is lost unexpectedly.

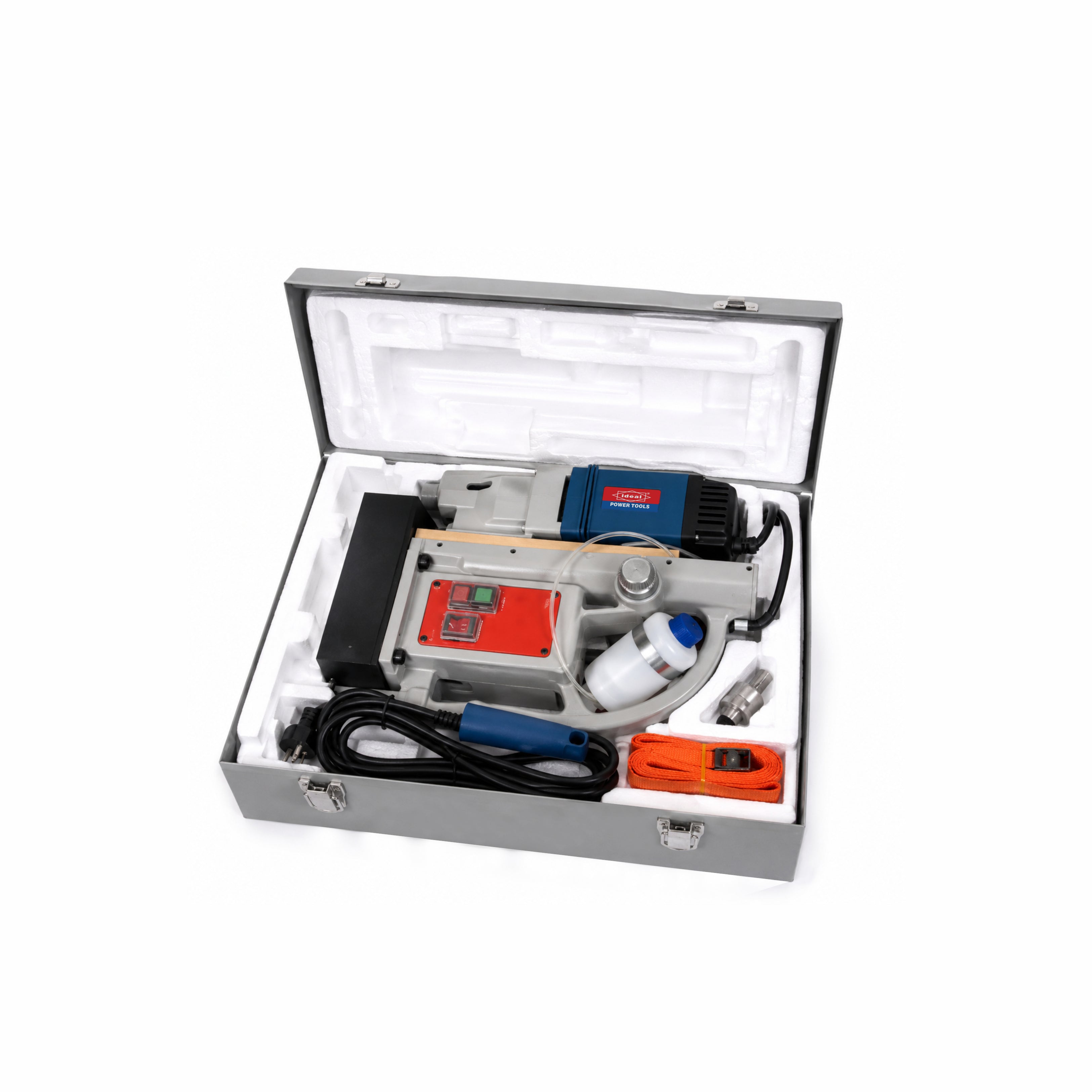

Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Fuse (1 Pcs), Hex Wrench (2 Pcs), Safety Belt (1 Pcs), Core Drill Bit [22m] (1 Pcs), Ejector Pin (1 Pcs), Feed Handle (3 Pcs), Integrated Coolant Reservoir (1 Pcs), Core Drill Adaptor (1 Pcs), Iron Carrying Case (1 Pcs)
