ID MC02-110HQ 4" ELECTRIC MARBLE CUTTER MACHINE [G-240V] [Hitachi Type] - 27958
Chat with us
Choose options
Professional Wet Cutting Power — Built for Stone, Engineered to Last

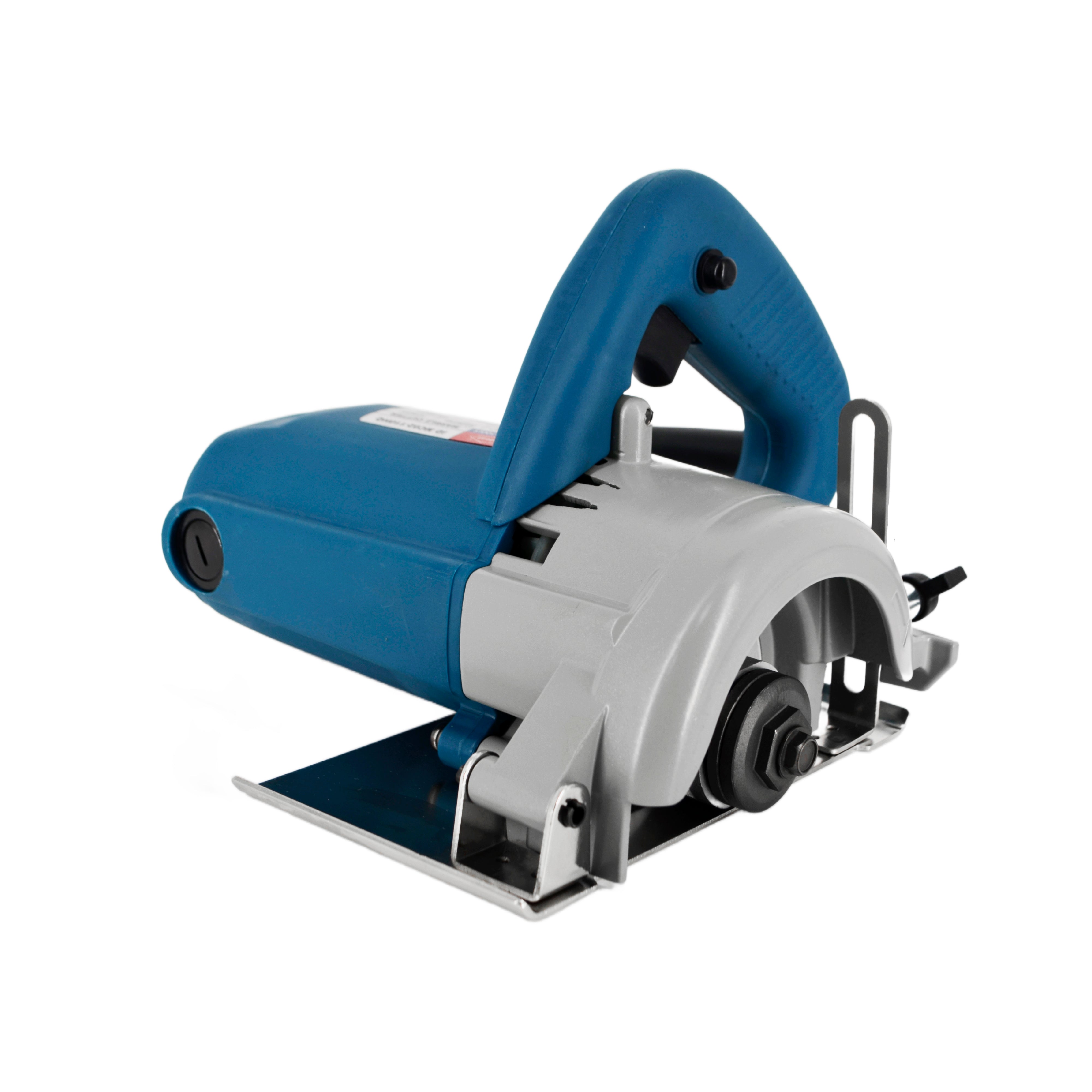

The ID MC02-110HQ Electric Marble Cutter Machine is a professional-grade 110mm wet marble cutter engineered for precision stone cutting in demanding construction and fabrication environments. Powered by a robust 1250W motor delivering 13,000 RPM, this Hitachi-type marble cutter handles marble, granite, ceramic tile, and natural stone with exceptional accuracy. Rated at 220–240V / 50–60Hz and fitted with a Type G British 3-Pin plug, it is ready for immediate use across GCC, UK, and European markets. With a maximum cutting depth of 30mm and an integrated water cooling system, it delivers clean, chip-free cuts while extending blade life and reducing dust.
| Key Features | Perfect For |
|---|---|
|
|
- 1250W rated power input at 220–240V / 50–60Hz — this machine draws consistent, high-output power from standard single-phase supplies, making it suitable for both workshop and on-site use without the need for a dedicated power circuit. The motor is wound for long-duration operation, resisting thermal overload during extended cutting sessions on dense stone materials.
- 13,000 RPM no-load speed with 110mm maximum blade diameter — the high rotational speed combined with a compact 110mm blade diameter delivers a precise, controlled cutting arc ideal for detailed stone work. The maximum cutting capacity of 30mm accommodates standard marble tiles, countertop edges, and architectural stone panels in a single clean pass.
- Double insulation construction (Class II tool) — the machine is engineered so that no live electrical component can make contact with the outer housing under any fault condition. This eliminates the need for a grounded supply and provides an additional layer of protection for operators working in wet cutting environments where water is actively used during operation.
- Integrated water input and water pipe system — the included water input fitting and water pipe connect directly to a standard water supply, delivering a continuous flow of cooling water to the blade during cutting. This wet-cutting method dramatically reduces airborne silica dust, keeps the diamond blade at optimal operating temperature, and produces smoother, chip-free cut edges on polished marble and granite surfaces.
- Auto-stop carbon brush set with socket wrench and guide book included — the auto-stop carbon brushes are a critical maintenance feature: when the brushes reach the end of their service life, the motor automatically shuts off before committing damage to the armature windings. The package includes a socket wrench for blade changes, a wrench for maintenance tasks, a water input fitting, a water pipe, and a comprehensive guide book — everything required to begin productive cutting immediately out of the box. Net weight of 3.15 kg ensures the tool remains manageable for overhead or angled cuts without excessive operator fatigue.
General Purchase & Comparison Queries
Is the ID MC02-110HQ compatible with standard power outlets in the UAE, UK, and Europe?
Yes. The ID MC02-110HQ is rated at 220–240V / 50–60Hz, which is compatible with standard mains power in the UAE (220V/50Hz), the UK (230V/50Hz), and across Europe (230V/50Hz). The machine is supplied with a Type G British 3-Pin plug, making it plug-and-play ready in the UAE and UK without any adapter. European users will require a Type G to Type F/E adapter.
How does this marble cutter compare to angle grinders for stone cutting?
Unlike a standard angle grinder, the ID MC02-110HQ is a dedicated wet marble cutter with an integrated water cooling system. This means it actively suppresses silica dust during cutting — a critical safety and quality advantage. The water flow also keeps the diamond blade cooler, extending its service life significantly. Angle grinders used dry on stone generate excessive heat, produce hazardous dust, and wear blades far faster. For professional marble and granite work, a dedicated wet cutter like the MC02-110HQ is the correct tool.
What is included in the box with the ID MC02-110HQ?
The ID MC02-110HQ ships as a complete ready-to-use kit. The package includes the marble cutter machine itself, a guide book for safe operation and maintenance, an auto-stop carbon brush set (one pair) for motor protection, a socket wrench and a wrench for blade changes and servicing, plus a water input fitting and water pipe for connecting the integrated wet-cutting cooling system.
Product-Specific and Usage Queries
What is the maximum cutting depth of the ID MC02-110HQ?
The ID MC02-110HQ has a maximum cutting capacity of 30mm using its 110mm diameter blade. This is sufficient for cutting standard marble tiles, granite slabs up to 30mm thick, porcelain panels, and countertop edges. For thicker stone requiring cuts beyond 30mm, multiple passes or a larger-capacity machine would be required.
Does the machine require a water supply to operate?
The ID MC02-110HQ is designed as a wet cutter and includes a water input fitting and water pipe for this purpose. While the machine can physically run without water, operating it dry on stone is strongly discouraged — it will overheat the blade, reduce cut quality, shorten blade life dramatically, and generate hazardous silica dust. For safe, professional results, always connect the water supply before cutting marble, granite, or any natural stone material.
What does the auto-stop carbon brush set do?
The auto-stop carbon brushes are a built-in motor protection feature. Carbon brushes are wear components inside the motor that transfer electrical current to the rotating armature. As they wear down through normal use, the auto-stop design automatically cuts power to the motor the moment the brushes reach the end of their service life. This prevents the motor armature from being damaged by brush-less operation — a failure mode that would otherwise require costly motor rewinding or full machine replacement. A replacement pair is included in the box.
Problem/Solution-Oriented Queries
The machine stopped working mid-cut — what should I check first?
If the ID MC02-110HQ stops unexpectedly during operation, the most common cause is that the auto-stop carbon brushes have reached the end of their service life and have triggered the automatic motor shutoff. Check the carbon brushes first — if they are worn down, replace them with the spare pair included in the box. Other causes to check include a tripped circuit breaker due to overload, a loose power connection, or the blade being jammed in the cut. Always disconnect from the power supply before inspecting any internal components.
My cuts are chipping or cracking the marble edge — how do I fix this?
Chipping and edge cracking during marble cutting are typically caused by one of three issues: cutting too fast (forcing the blade through the material rather than letting it cut at its own pace), a worn or incorrect diamond blade not suited for wet marble cutting, or insufficient water flow causing the blade to overheat and lose its cutting efficiency. Ensure the water supply is connected and flowing freely, use a quality continuous-rim diamond blade rated for wet marble cutting, and apply steady, moderate forward pressure — allowing the 13,000 RPM blade speed to do the work.
Can I use this machine to cut ceramic tiles as well as marble?
Yes. The ID MC02-110HQ is suitable for cutting ceramic tiles, porcelain tiles, marble, granite, and other natural stone materials up to 30mm in thickness. The key requirement is using the correct diamond blade for the material — a continuous-rim wet-cut diamond blade is recommended for polished marble and porcelain to achieve clean, chip-free edges. The integrated water cooling system benefits all of these materials by controlling heat and dust regardless of the specific stone or tile type being cut.
Machine (1 Pcs), Guide Book (1 Pcs), A/B Washer (1 Set), Auto-stop Carbon Set (1 Pair), Pipe Connector (1 Pcs), Socket Wrench (1 Pcs), Water Input (1 Pcs), Water Pipe (1 Pcs), Wrench (1 Pcs), 4" Saw Blade (1 Pcs)
