Built to Perform — The Coil That Keeps Your Demolition Hammer Alive

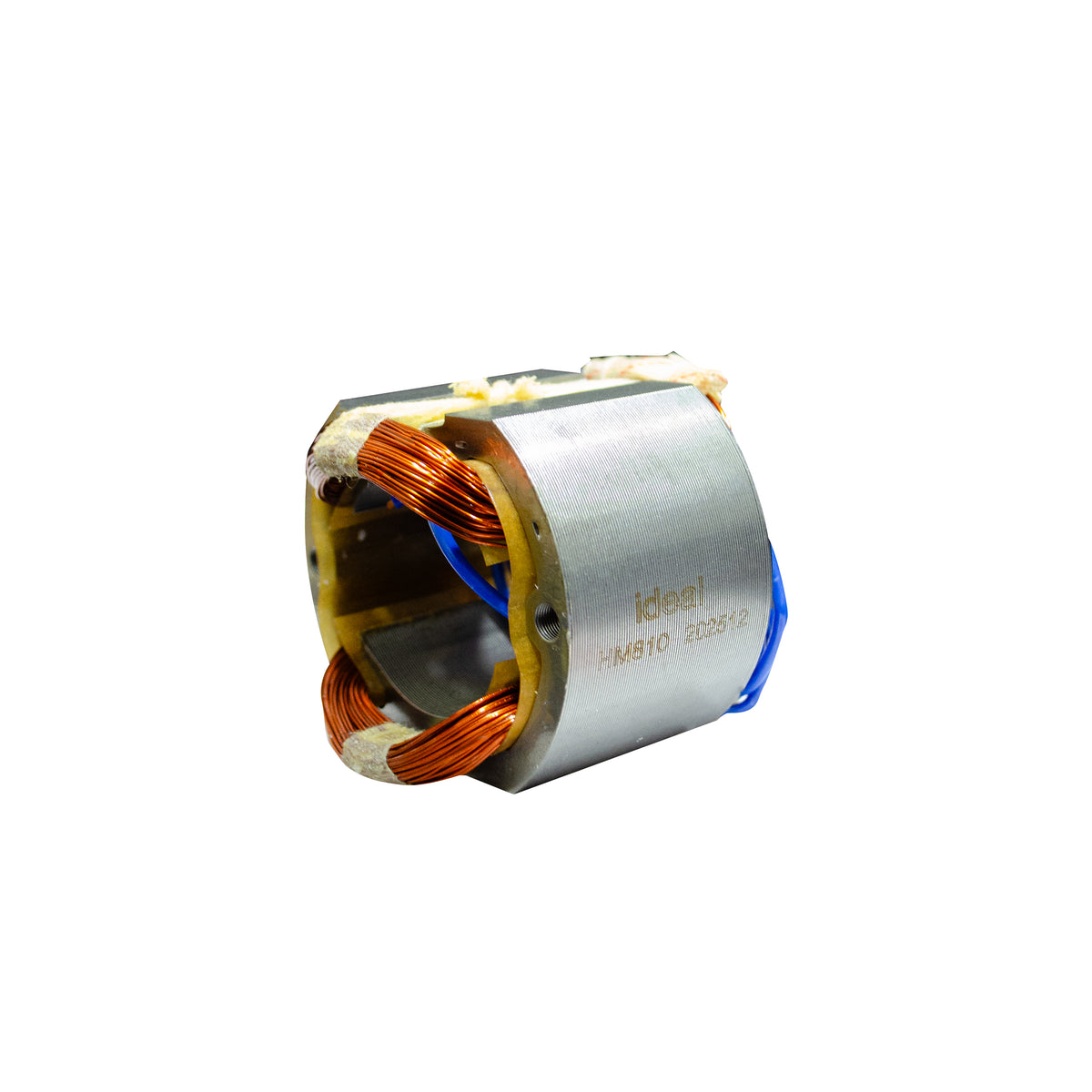

The ID HQ Series Coil (Part No. 30132) is a precision-engineered demolition hammer spare part compatible with Hitachi-type models ID HM810T and ID HM820T. Constructed with high-grade copper wire windings wound around a laminated magnetic core, this coil delivers reliable electromagnetic energy conversion to keep your power tool running at peak performance. Designed for high-temperature resistance and efficient energy transfer, it is the trusted replacement choice for professional tradespeople and maintenance teams.
| Key Features | Perfect For |
|
|
- Precision Electromagnetic Design: The coil's tightly wound copper wire configuration generates a consistent and powerful electromagnetic field, directly powering the reciprocating mechanism of the HM810T and HM820T. This translates to full impact energy delivery and no loss of hammering performance after replacement.
- Thermal Resistance for Continuous Use: Wrapped in high-temperature-rated insulation material, the coil maintains electrical integrity even under prolonged, heavy-duty demolition cycles. This prevents premature failure caused by overheating — a common issue with substandard aftermarket alternatives.
- Efficient Energy Conversion: The laminated core construction minimises eddy current and hysteresis losses, ensuring that the maximum amount of electrical energy drawn from the power supply is converted into usable mechanical energy, improving overall tool efficiency and reducing unnecessary heat build-up.
- Compatible Part No. 30132 — Hitachi-Type Fit: Catalogued under Part Number 30132 and engineered to Hitachi-type tolerances, this coil integrates seamlessly into the stator housing of both the ID HM810T and ID HM820T without the need for any machining, shimming, or adapter components — saving workshop time and labour costs.
- Restores Full Tool Functionality: A worn or failed coil manifests as loss of power, overheating, or complete tool shutdown. Replacing with this genuine-specification coil fully restores the motor's electromagnetic output, bringing the demolition hammer back to its original rated performance and extending the overall service life of the machine.
This spare part is supplied as a single replacement coil assembly (Part No. 30132) for the ID HM810T and ID HM820T demolition hammers. It meets Hitachi-type specifications and is suitable for use in authorised service and self-repair applications.
General Purchase & Comparison Queries
Which demolition hammer models is this coil compatible with?
This coil (Part No. 30132) is specifically designed for Hitachi-type demolition hammers ID HM810T and ID HM820T. It is engineered to Hitachi-type tolerances and fits directly into the stator housing of these two models without any modification. If you are unsure of your model, check the label on the body of your demolition hammer before ordering.
Is this an original OEM part or an aftermarket replacement?
This is a Hitachi-type compatible replacement coil engineered to OEM specifications. It uses high-grade copper windings and a laminated magnetic core to match the original part's electromagnetic output and thermal performance. It is supplied under Part No. 30132 and is suitable for both authorised service centres and professional self-repair applications.
Is it more cost-effective to replace the coil or buy a new demolition hammer?
In most cases, replacing a failed coil is significantly more cost-effective than purchasing a new demolition hammer. The coil is one of the most common wear components in electric demolition hammers. A direct-fit replacement like Part No. 30132 fully restores the tool to its original rated performance at a fraction of the cost of a new machine — making it the preferred choice for contractors and fleet maintenance teams.
Product-Specific and Usage Queries
What is the function of the coil inside a demolition hammer?
The coil is the core electromagnetic component of a demolition hammer's motor. It consists of copper wire windings wound around a laminated magnetic core and is responsible for converting electrical energy into a rotating magnetic field, which in turn drives the mechanical reciprocating action of the hammer. Without a functioning coil, the tool will not generate any impact force.
Can I install this coil myself, or do I need a professional technician?
This is a direct-fit replacement part designed for drop-in installation with no modifications required. Experienced power tool users with basic electrical knowledge can perform the replacement. However, if you are not familiar with motor disassembly and reassembly, we recommend having the coil replaced by a qualified power tool technician or authorised service centre to ensure safe and correct installation.
How do I know if my demolition hammer's coil has failed?
Common signs of a failed or failing coil include: the tool not powering on at all, significant loss of impact power, excessive heat coming from the motor housing, a burning smell during operation, or visible scorch marks on the coil windings when the tool is opened. If you observe any of these symptoms on your ID HM810T or ID HM820T, a coil replacement is the most likely solution.
Problem/Solution-Oriented Queries
My demolition hammer is overheating — could the coil be the cause?
Yes, a degraded or partially failed coil is a common cause of motor overheating in demolition hammers. When the coil's insulation breaks down or the windings develop shorts, electrical resistance increases, causing the motor to draw more current and generate excess heat. Replacing the coil with Part No. 30132 — which features high-temperature-rated insulation — resolves this issue and prevents further thermal damage to the motor assembly.
The tool powers on but has lost most of its hammering force — will a new coil fix this?
A partial coil failure — where some but not all windings are damaged — can cause the motor to run at reduced electromagnetic output, resulting in noticeably weaker impact performance. Installing a new ID HQ Series Coil (Part No. 30132) restores the motor to its full electromagnetic output, recovering the original rated impact energy of the HM810T or HM820T. Always also inspect the carbon brushes and switch while the tool is open.
I smell burning from my demolition hammer — is it safe to keep using it?
No — stop using the tool immediately. A burning smell from a demolition hammer is a strong indicator of coil insulation breakdown or winding failure. Continuing to operate the tool risks further damage to the motor, the switch assembly, and the armature, as well as creating a fire or electric shock hazard. Disconnect the tool from the power source, allow it to cool, and have it inspected. Replacing the coil with Part No. 30132 as soon as possible is strongly recommended.
