ID HQ SERIES ARMATURE [LW1401] [14"] CUT-OFF SAW SPARE PART - 30298
Chat with us
Choose options
Genuine Power, Precisely Restored — Keep Your Cut-Off Saw Running at Full Strength

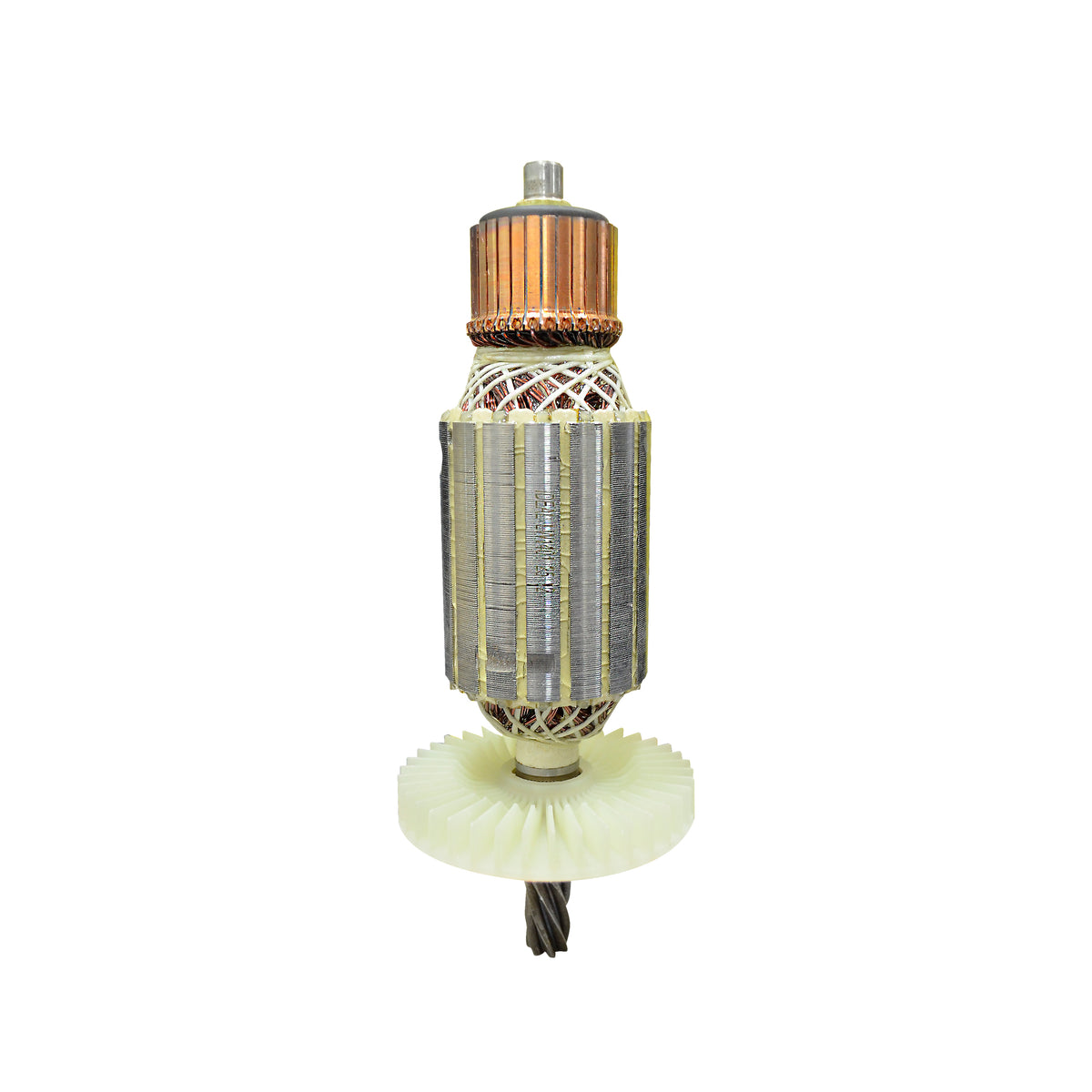

The ID HQ Series Armature (Part No. 30298) is a precision-engineered OEM-grade replacement armature designed specifically for the LW1401 14" cut-off saw. Engineered to restore full motor performance, this power tool spare part converts electrical energy into mechanical rotation with exceptional efficiency, ensuring your ID HQ Series cut-off saw operates at peak cutting power. Built with a high-grade magnetic core, precision copper winding, and a machined commutator, it delivers the reliability and longevity demanded by professional tradespeople and serious workshop users.
| Key Features | Perfect For |
|---|---|
|
|
- OEM-Grade Compatibility: The armature carries part number 30298 and is manufactured to the exact dimensional and electrical specifications of the original component fitted to the ID HQ Series LW1401 14" Cut-Off Saw, guaranteeing a direct, no-modification replacement that restores factory performance immediately upon installation.
- High-Efficiency Electromagnetic Core: The laminated magnetic core is engineered to reduce eddy current losses and maximise the conversion of electrical energy into rotational mechanical force, delivering the full rated torque output your cut-off saw requires to power through steel, rebar, and masonry cutting discs consistently.
- Precision Copper Winding for Thermal Stability: The armature winding uses high-purity copper wire wound to precise coil specifications, which significantly reduces resistive heat generation during extended heavy-duty cutting sessions — a critical factor in extending the service life of both the armature itself and the surrounding motor components.
- Machined Commutator for Smooth Brush Contact: The precision-machined commutator maintains consistent, even contact with the carbon brushes throughout the armature's rotation, preventing arcing, brush wear acceleration, and voltage drop — common failure modes when a worn armature is left in service too long.
- Designed for High-RPM, High-Load Operation: Balanced and engineered to operate at the rated motor speed of the LW1401, this armature handles the rotational stresses of continuous-duty cutting tasks without vibration imbalance, ensuring operator comfort and precise cut quality even during prolonged use on construction sites or in fabrication workshops.
- Cost-Effective Tool Restoration: Replacing a failed armature (Part No. 30298) is significantly more economical than replacing the entire cut-off saw motor or unit, making it the preferred solution for professional repair technicians and facilities managers looking to maximise the return on their ID HQ Series power tool investment.
This replacement armature is supplied as a genuine ID HQ Series spare part under part number 30298, specifically engineered for the LW1401 model. The component is packaged to ensure safe transit and arrives ready for installation by a qualified technician.
General Purchase & Comparison Queries
Is this armature compatible with my LW1401 14" Cut-Off Saw?
Yes. The ID HQ Series Armature (Part No. 30298) is engineered exclusively for the LW1401 14" Cut-Off Saw within the ID HQ Series range. It is a direct OEM-specification replacement, meaning it fits without any modification. Always verify your saw's model number on the rating plate before ordering to ensure compatibility.
Why should I choose a genuine ID HQ Series armature over a generic aftermarket part?
Genuine ID HQ Series spare parts are manufactured to the exact electrical and dimensional tolerances of the original components. Generic aftermarket armatures may use lower-grade copper windings or unbalanced cores, leading to reduced motor efficiency, increased heat, premature brush wear, and potential motor failure. Choosing Part No. 30298 ensures your saw performs to its original rated specifications and protects the surrounding motor components.
Is it more cost-effective to replace the armature or buy a new cut-off saw?
In most cases, replacing the armature (Part No. 30298) is significantly more economical than purchasing a new unit. The armature is one of the most common wear components in a cut-off saw's motor, and a direct replacement restores full cutting performance at a fraction of the cost. This is the approach preferred by professional repair technicians and facilities managers looking to maximise the lifespan of their ID HQ Series tools.
Product-Specific and Usage Queries
What does the armature do in my cut-off saw?
The armature is the rotating core of the electric motor inside your LW1401 cut-off saw. It consists of a laminated magnetic core, precision copper winding, and a machined commutator. When electrical current passes through the windings, it interacts with the motor's magnetic field to generate rotational force — this is what drives the cutting disc. Without a functioning armature, the motor cannot generate the torque or speed required for cutting.
Does this armature require professional installation?
While experienced power tool users may be comfortable replacing an armature, it is strongly recommended that armature replacement be carried out by a qualified repair technician. The process involves disassembling the motor housing, correctly seating the armature within the field coil, and ensuring the commutator is properly aligned with the carbon brushes. Incorrect installation can result in motor damage, imbalance, or electrical faults. Always disconnect the tool from the power supply before any maintenance work.
How long should a replacement armature last in the LW1401?
The service life of an armature depends largely on usage intensity, maintenance practices, and operating conditions. Under normal professional use, a quality OEM armature like Part No. 30298 should provide extended service comparable to the original component. To maximise lifespan, ensure carbon brushes are inspected and replaced regularly, the saw is not operated under sustained overload conditions, and the motor vents are kept clear to prevent heat build-up.
Problem/Solution-Oriented Queries
My LW1401 cut-off saw is sparking excessively — could the armature be the cause?
Excessive sparking at the motor brushes is one of the most common signs of a worn or damaged armature. This typically occurs when the commutator surface becomes grooved, burnt, or uneven, causing inconsistent brush contact. Other symptoms include reduced cutting power, motor overheating, and unusual noise during operation. If brush replacement does not resolve the sparking, inspecting and replacing the armature with Part No. 30298 is the recommended next step.
My cut-off saw runs but has lost significant power — can a new armature fix this?
Yes, a loss of cutting power is often linked to a degraded armature. When the copper windings develop shorts or breaks, or when the commutator wears unevenly, the motor's ability to convert electrical energy into rotational force is compromised. Replacing the armature with the OEM-grade Part No. 30298 restores the full electrical and mechanical efficiency of the motor, returning the saw to its original rated power output.
The motor gets very hot during use — is this an armature issue?
Excessive motor heat can be caused by several factors, including a failing armature with shorted windings, which draws higher-than-normal current and generates significant heat. It can also result from worn brushes causing arcing on the commutator, or from operating the saw under continuous overload. If the motor runs hot even under light loads, have the armature tested for winding continuity and commutator condition. If a fault is found, replacing with Part No. 30298 will resolve the issue and prevent further motor damage.
