Restore Full Cutting Power — Genuine HQ Series Engineering in Every Winding

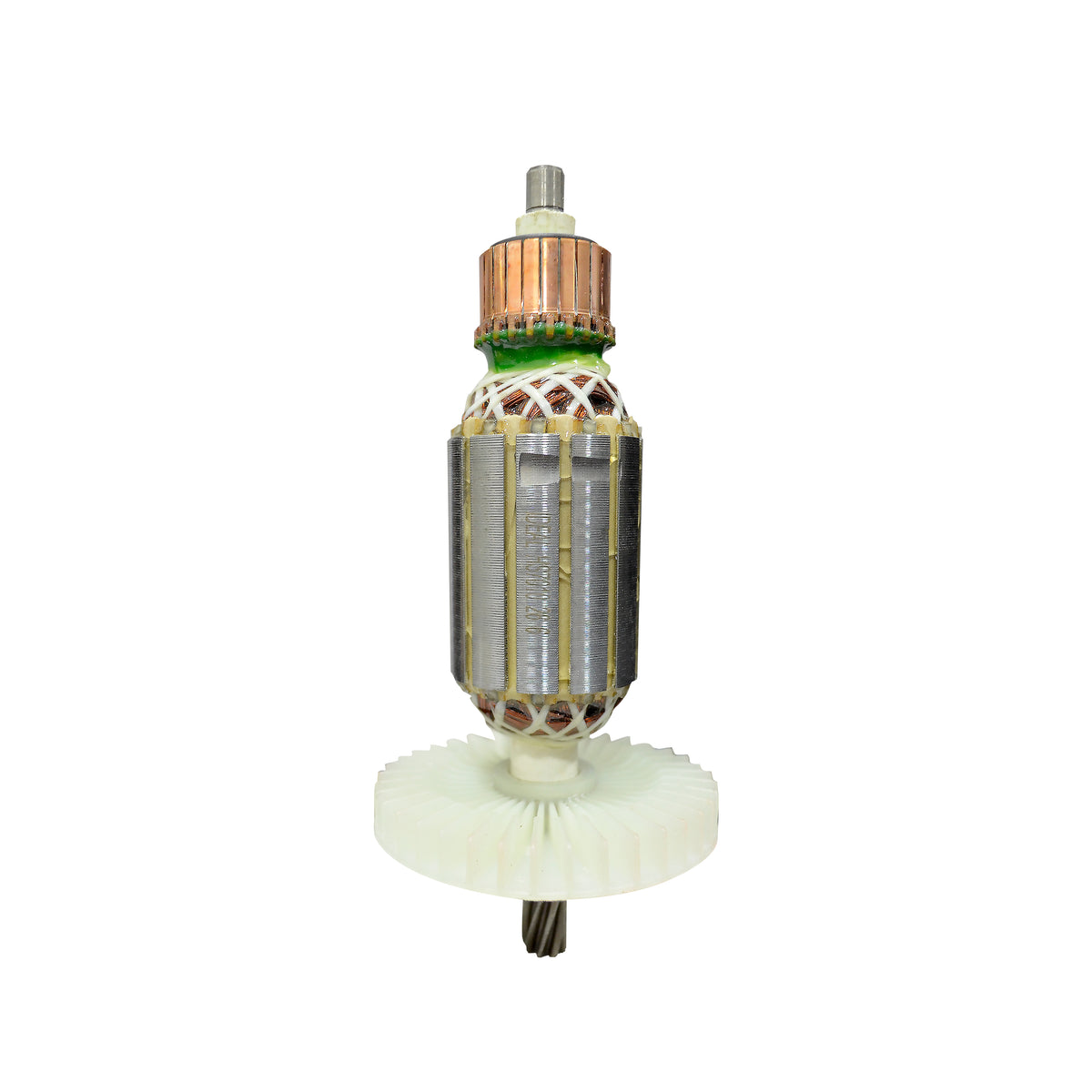

The ID HQ Series Armature for the HS7010 9-inch Circular Saw is a premium-grade replacement spare part engineered to restore full performance to your power tool. Designed as a Hitachi-type compatible armature (Part No. 30370), this component converts electrical energy into mechanical rotational force through its precision-wound magnetic core, copper winding, and commutator assembly, delivering the reliable shaft rotation your circular saw depends on for demanding cutting tasks.
| Key Features | Perfect For |
|
|
- Hitachi HS7010 Direct Compatibility (Part No. 30370): This armature is purpose-built as a Hitachi-type replacement for the HS7010 9-inch circular saw, ensuring a precise dimensional fit with the motor housing, brush holders, and bearing seats — no modification or adapting required during installation.
- Precision Magnetic Core Construction: The laminated magnetic core is stacked from high-permeability silicon steel laminations to minimise eddy current losses, reduce heat build-up during sustained cutting, and maintain strong, consistent magnetic flux that drives reliable shaft rotation under load.
- High-Grade Copper Winding: Wound with high-conductivity copper wire to exacting specifications, the armature coils deliver efficient current flow and maximum torque output, ensuring your HS7010 saw reaches and sustains its rated no-load speed for clean, controlled cuts through hardwood, softwood, and sheet materials.
- Robust Commutator Assembly: The precision-machined commutator features uniform copper segments with tight concentricity tolerances, promoting smooth carbon brush contact, reducing electrical arcing, and extending the service life of both the armature and the brushes for longer intervals between maintenance.
- HQ Series Durability Standards: Manufactured under the ID HQ Series quality benchmark, this armature undergoes rigorous dimensional and electrical checks to confirm winding resistance, insulation integrity, and balance — so you can trust it to perform at the same standard as the original factory-fitted component.
- Cost-Effective Repair Solution: Replacing only the failed armature rather than the entire motor or the complete tool significantly reduces repair costs while giving the HS7010 a second life — a smart choice for workshops, hire fleets, and professional tradespeople who rely on this saw day-to-day.
General Purchase & Comparison Queries
Is this armature compatible with my Hitachi HS7010 circular saw?
Yes. This armature is specifically designed as a Hitachi-type compatible replacement for the HS7010 9-inch circular saw (ID Part No. 30370). It is engineered to match the original dimensional specifications of the motor housing, bearing seats, and brush holders, allowing for a direct drop-in installation without any modification.
Why should I replace the armature instead of buying a new circular saw?
Replacing the armature alone is significantly more cost-effective than purchasing an entirely new tool. The armature is the most common motor component to fail due to wear, overheating, or electrical faults, and once replaced, the HS7010 typically returns to full factory performance. This approach also reduces waste and is the preferred method for professional workshops and hire fleets looking to maximise tool longevity.
How does the ID HQ Series armature compare to generic alternatives?
The ID HQ Series armature is manufactured to stricter dimensional and electrical tolerances than most generic alternatives. Each unit is checked for winding resistance, insulation integrity, and rotational balance, which directly impacts motor efficiency, heat management, and service life. Generic armatures may fit but often use lower-grade copper windings and looser commutator tolerances, leading to faster brush wear and reduced performance over time.
Product-Specific and Usage Queries
What does the armature actually do inside my circular saw?
The armature is the rotating core of the electric motor. It consists of a laminated magnetic core wound with copper wire coils and fitted with a commutator at one end. When electrical current flows through the winding, it generates a magnetic field that interacts with the stator's permanent magnets, creating the rotational force that spins the saw blade shaft. Without a functioning armature, the motor cannot generate torque and the tool will not operate.
What are the signs that my HS7010 armature needs replacing?
Common indicators of a failed or failing armature include: the saw not starting at all, significant loss of cutting power or speed under load, excessive sparking visible from the brush area during operation, a burning smell coming from the motor housing, or the motor humming without the shaft rotating. If carbon brush replacement does not resolve these symptoms, the armature is the likely cause and should be inspected and replaced.
Do I need any special tools to install this armature?
Installation typically requires standard hand tools: a set of screwdrivers, a bearing puller (to remove the existing bearings from the old armature shaft for transfer, if applicable), and a soft mallet. It is recommended to have the armature installed by a qualified power tool technician if you are not experienced with motor disassembly, as improper installation can damage the commutator surface or the brush holders.
Problem/Solution-Oriented Queries
My HS7010 has power but the blade won't spin — can a new armature fix this?
This is one of the most common symptoms of a seized or open-circuit armature winding. If the motor receives power (you can hear a faint hum or feel heat from the housing) but the shaft does not rotate, the armature coils may have burnt out or the commutator may be severely worn, preventing current from flowing through the windings. Replacing the armature with this HQ Series unit (Part No. 30370) will restore full motor function, provided the stator, brushes, and switch are in working order.
My saw is overheating and losing power during cutting — is the armature the cause?
Overheating combined with power loss under load is often a sign of shorted armature windings or degraded insulation between winding layers. When windings short internally, the motor draws excessive current, generates abnormal heat, and loses torque efficiency. A new HQ Series armature with fresh, properly insulated copper windings will eliminate this issue and restore the tool's rated performance, assuming the saw is also used within its designed load capacity.
I replaced the carbon brushes but my HS7010 still sparks excessively — what next?
If new carbon brushes did not resolve excessive sparking, the commutator surface on the existing armature is very likely the root cause. A worn, grooved, or out-of-round commutator prevents the brushes from making smooth, consistent contact, causing arcing. Replacing the armature with this Part No. 30370 HQ Series unit provides a fresh, precision-machined commutator with uniform copper segments, eliminating the arcing and protecting the new brushes from premature wear.
