Genuine Performance Restored — The Right Armature for the HM1201

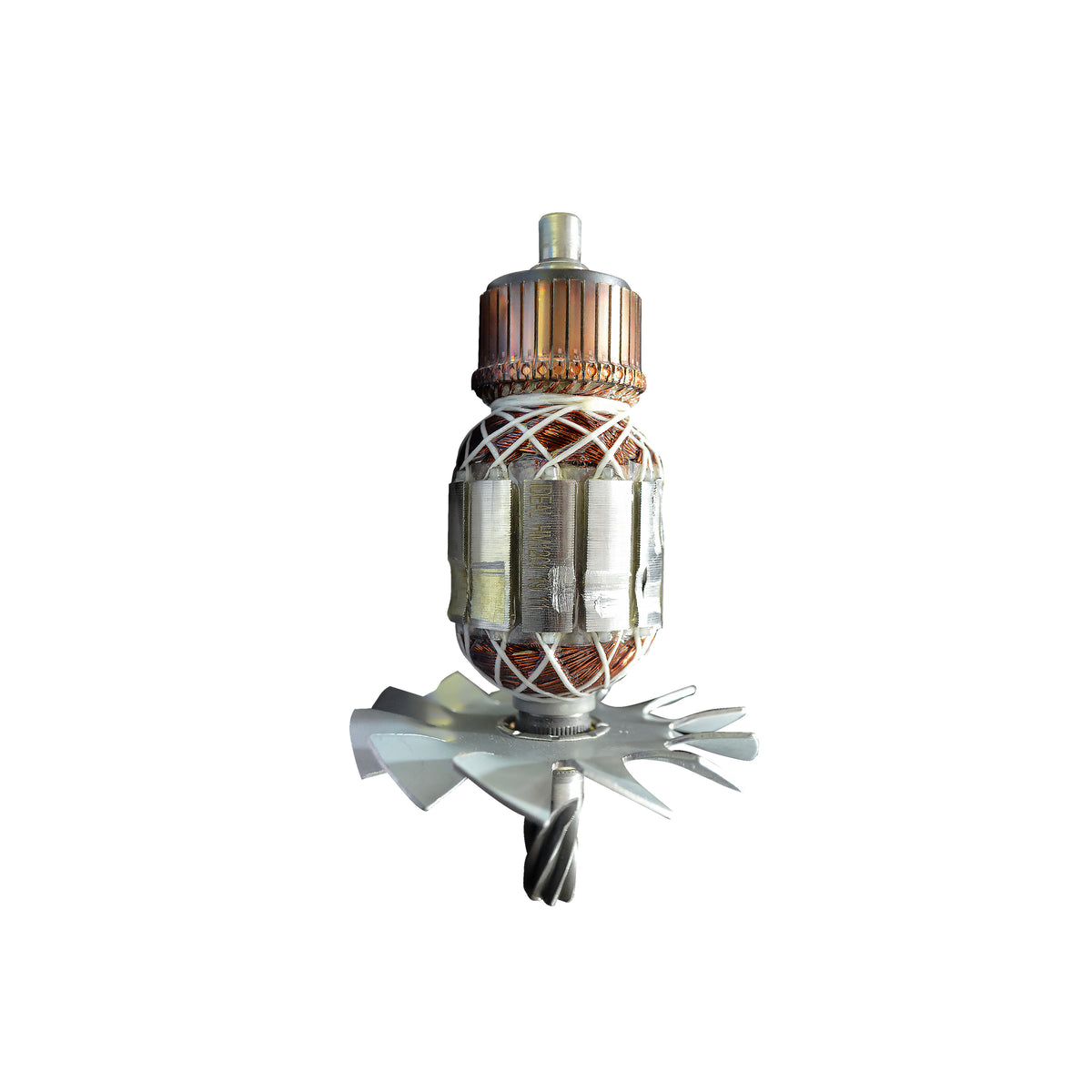

The ID HQ Series Armature for the HM1201 Demolition Hammer (Spare Part No. 30369) is a precision-engineered replacement armature designed to restore full performance to your heavy-duty demolition hammer. Built with a high-grade magnetic core, precision copper winding, and a durable commutator, this armature efficiently converts electrical energy into powerful mechanical energy, driving the tool's shaft with consistent, reliable force. Whether you're carrying out a scheduled power tool repair or responding to unexpected motor failure, this genuine-spec replacement delivers the longevity and performance your professional workload demands.
| Key Features | Perfect For |
|
|
- Exact-Match Compatibility with the HM1201: This armature is purpose-built as a direct replacement spare part (Part No. 30369) for the Makita HM1201 Demolition Hammer, ensuring a precise mechanical and electrical fit without modification or adaptation, reducing downtime and eliminating guesswork during repair.
- High-Efficiency Copper Winding for Superior Power Transfer: The armature features tightly wound copper coils engineered to minimise resistance and maximise the transfer of electrical energy into rotational mechanical force, sustaining the high-impact output required for demanding concrete breaking, chiselling, and demolition tasks.
- Robust Magnetic Core for Consistent Torque: Constructed with a laminated magnetic core, this armature reduces eddy current losses and heat build-up during prolonged use, maintaining stable torque output and protecting surrounding motor components from thermal damage — critical in continuous-duty demolition applications.
- Hardened Commutator for Extended Service Life: The precision-machined commutator maintains consistent contact with the carbon brushes, ensuring smooth current transfer throughout the motor's operating cycle. Its hardened surface resists wear and grooving, extending the interval between successive service events.
- OEM-Grade Materials and Engineering Standards: Manufactured to original equipment specification tolerances, this armature restores the HM1201 to factory performance levels. The combination of insulation-grade coil wire, balanced rotor design, and quality commutator materials ensures both electrical safety and mechanical reliability under heavy professional use.
This spare part is supplied as a replacement armature assembly (Part No. 30369) compatible with the Makita HM1201 Demolition Hammer. It is engineered to meet original equipment manufacturer specifications and is suited for use by trained service technicians. The part number 30369 is the definitive reference for sourcing and fitment confirmation.
General Purchase & Comparison Queries
Is this armature a genuine OEM part for the Makita HM1201?
This armature is manufactured to OEM specification and is a direct-fit replacement for the Makita HM1201 Demolition Hammer under Part No. 30369. It meets the original engineering tolerances for winding resistance, commutator dimensions, and shaft fit, ensuring your hammer performs as intended after the repair.
How does this armature compare to a generic aftermarket alternative?
Unlike generic aftermarket armatures, this part is engineered specifically for the HM1201 platform, using insulation-grade copper winding wire, a laminated magnetic core, and a precision-machined commutator that meet the same tolerances as the original assembly. Generic parts often use lower-grade winding wire and non-balanced rotors, which can lead to premature wear, overheating, and accelerate brush degradation.
Can I use this armature in other Makita demolition hammer models?
This armature (Part No. 30369) is specifically designed and validated for the Makita HM1201 Demolition Hammer. While some armature assemblies share dimensions across related models, fitment in any other model is not guaranteed and may result in improper shaft engagement or electrical mismatch. Always confirm the part number against your tool's service manual before installation.
Product-Specific and Usage Queries
What is the role of the armature in a demolition hammer?
The armature is the rotating core of the electric motor inside the demolition hammer. It consists of a magnetic core, copper winding, and commutator that work together to convert incoming electrical energy from the power supply into rotational mechanical energy. This rotation drives the hammer's internal mechanism, producing the high-impact blows needed for concrete breaking, chiselling, and demolition work.
How do I know when the armature on my HM1201 needs to be replaced?
Common signs that the armature requires replacement include significant loss of power output, excessive sparking at the brush contact area, unusual heat generation, burning smell from the motor housing, or the tool failing to start despite the power supply being confirmed as functional. A qualified technician can perform a continuity and resistance test on the armature windings to confirm failure before replacement.
Should the carbon brushes be replaced at the same time as the armature?
Yes, it is strongly recommended to inspect and replace the carbon brushes whenever the armature is replaced. Worn brushes are frequently a contributing factor to armature failure, as they create uneven contact across the commutator surface, leading to arcing and localised winding damage. Installing a new armature against worn brushes will accelerate wear on the new commutator surface.
Problem/Solution-Oriented Queries
My HM1201 is losing power during use — could the armature be the cause?
Yes, a failing armature is one of the most common causes of progressive power loss in a demolition hammer. As the winding insulation degrades or the commutator surface becomes grooved from brush wear, the motor's ability to sustain peak current draw diminishes, resulting in noticeably reduced impact energy. Replacing the armature with Part No. 30369 will restore the motor to its original rated power output.
The tool sparks heavily near the motor — is this an armature issue?
Excessive sparking at the brush-commutator interface is a strong indicator of armature damage, particularly burnt or shorted winding segments, commutator surface irregularities, or mica insulation that has not been undercut correctly. While some minor sparking is normal during motor operation, heavy or asymmetric sparking that persists or worsens typically warrants armature replacement. Have the tool inspected by a qualified technician promptly to avoid secondary damage to the field coil or brush holders.
Can a damaged armature cause damage to other motor components?
Yes. A shorted or open-circuit armature winding causes abnormal current draw that generates excessive heat, which can damage the field coil insulation, carbon brush holders, and bearing assemblies. Additionally, a mechanically unbalanced or worn commutator will accelerate carbon brush consumption. Replacing a failed armature promptly with a quality part like Part No. 30369 protects the rest of the motor assembly and prevents a more costly full motor replacement.
