ID HQ SERIES ARMATURE [HM0870C] DEMOLITION HAMMER SPARE PART [Bosch Type] - 30307
Chat with us
Choose options
Restore Peak Impact Power — Built to Bosch HM0870C Specifications

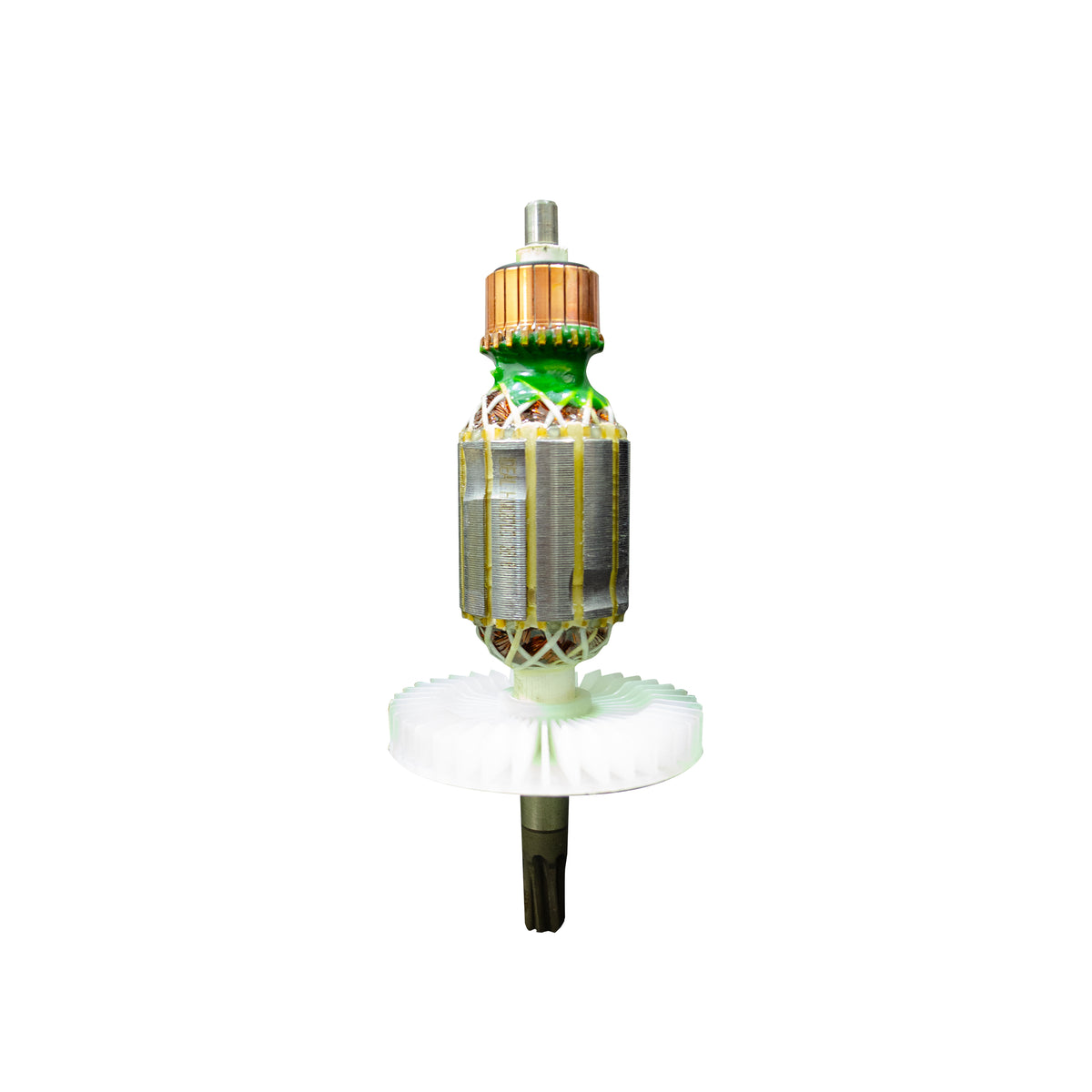

The ID HQ Series Armature for the HM0870C Demolition Hammer (Bosch Type, Part No. 30307) is a precision-engineered power tool spare part designed to restore your demolition hammer to full working capacity. Featuring a high-grade magnetic core, optimised copper winding, and a precision-machined commutator, this replacement armature converts electrical energy into reliable rotational force, delivering the sustained impact performance your heavy-duty tool demands.
| Key Features | Perfect For |
|
|
- Direct OEM-Compatible Fitment (Part No. 30307): Engineered specifically as a drop-in replacement for the Bosch HM0870C demolition hammer armature, this spare part eliminates guesswork during installation. The precise shaft diameter, lamination stack length, and commutator segment count are matched to original factory specifications, ensuring proper alignment with the field coil assembly and gear housing without requiring modification.
- High-Efficiency Copper Winding for Sustained Performance: The armature winding uses high-purity copper wire wound to an exact turn count and pitch, minimising resistive losses and heat generation under prolonged load. This is critical in demolition applications where the tool operates continuously — poor winding quality leads to rapid insulation breakdown and premature failure, which this HQ Series component is designed to prevent.
- Robust Magnetic Core Construction: The laminated silicon-steel magnetic core reduces eddy current losses, maintaining strong and consistent magnetic flux even during high-impact, high-vibration operation. The tight lamination bonding resists loosening caused by the cyclical mechanical stress inherent to SDS-max and chisel demolition work.
- Precision-Machined Commutator for Reliable Brush Interface: The machined copper commutator segments are undercut to the correct depth, ensuring clean carbon brush contact that minimises sparking and brush wear. A rough or out-of-round commutator is a leading cause of repeated armature failure — the HQ Series component addresses this with tight roundness tolerances that extend the service life of both the armature and the brushes.
- Balanced Rotor Assembly for Low-Vibration Operation: Each armature undergoes dynamic balancing to reduce the vibration transferred through the tool body. In a heavy-duty demolition hammer, an unbalanced armature accelerates bearing wear and reduces operator comfort during extended use. The balanced rotor contributes to longer bearing life and a more controlled tool feel on site.
- Heat-Resistant Insulation Class: The winding insulation is rated for high operating temperatures, protecting the copper conductors during demanding demolition tasks such as concrete breaking, tile removal, and masonry chiselling. The insulation system prevents inter-winding shorts that are a common failure mode in lower-quality replacement armatures.
This spare part is supplied with the armature assembly ready for installation. It is compatible with Bosch HM0870C demolition hammers and is verified against OEM part number 30307 for reference during procurement and workshop ordering.
General Purchase & Comparison Queries
Is this armature compatible with the Bosch HM0870C demolition hammer?
Yes. The ID HQ Series Armature (Part No. 30307) is engineered specifically as a direct replacement for the Bosch HM0870C demolition hammer. The shaft diameter, commutator dimensions, and lamination stack are matched to OEM specifications for a fit-and-function replacement without modification.
How does this aftermarket armature compare to the original Bosch part?
The ID HQ Series armature is manufactured to OEM-equivalent tolerances, using high-purity copper winding, a precision-machined commutator, and a balanced rotor assembly. While it is an aftermarket component, it is designed to meet or match the performance and service life of the original part — at a significantly lower cost, making it the preferred choice for repair workshops and professional technicians.
Can I use this armature for other Bosch demolition hammer models?
This armature is validated specifically for the Bosch HM0870C and is referenced under part number 30307. While some Bosch-type demolition hammers share similar internals, we recommend confirming compatibility against your tool's model number and part reference before ordering. Using an incorrectly matched armature can result in fitment issues or accelerated wear.
Product-Specific and Usage Queries
What is the role of the armature in a demolition hammer?
The armature is the rotating component of the electric motor inside the demolition hammer. It consists of a laminated magnetic core, copper winding, and commutator. When electrical current flows through the winding, the magnetic interaction with the field coil causes the armature to rotate, transmitting mechanical energy to the hammer's impact mechanism. A damaged or failed armature results in loss of power, overheating, or complete tool failure.
How do I know if my HM0870C armature needs replacing?
Common signs of a failing HM0870C armature include excessive sparking at the brush contact area, loss of power or intermittent operation, a burning smell during use, visible damage to the commutator segments, or the tool failing to start entirely. If your tool shows any of these symptoms after ruling out a carbon brush issue, the armature is likely the faulty component and should be replaced.
Do I need to replace the carbon brushes when fitting a new armature?
It is strongly recommended to inspect and replace the carbon brushes whenever a new armature is installed. Worn or damaged brushes that caused the original armature failure will rapidly wear the commutator surface of the new part. Fitting fresh brushes alongside the replacement armature ensures a clean mating surface and maximises the service life of the HQ Series armature.
Problem/Solution-Oriented Queries
My HM0870C is losing power mid-use — will replacing the armature fix this?
Intermittent power loss in a Bosch HM0870C is frequently caused by a failing armature, particularly when the copper winding insulation degrades due to heat or the commutator becomes worn or pitted. Installing a new ID HQ Series Armature (Part No. 30307) will restore full motor output — provided the field coil, carbon brushes, and power switch are also in serviceable condition. A complete diagnostic check of all motor components is recommended before and after the repair.
The demolition hammer is sparking heavily inside — is this an armature issue?
Heavy sparking at the brush area of your demolition hammer is a strong indicator of commutator damage or winding failure within the armature. A scored, eccentric, or shorted commutator disrupts the clean electrical contact between brushes and armature, causing excessive arcing. Replacing the armature with the HQ Series unit — which features a precision-machined, correctly undercut commutator — will eliminate this issue and prevent further damage to the carbon brushes and field coil.
Is it cost-effective to repair my HM0870C with a replacement armature rather than buying a new tool?
In most cases, yes. Demolition hammers are high-value tools, and armature failure is one of the most common and repairable faults. The ID HQ Series Armature (Part No. 30307) offers a cost-efficient repair path that restores the tool to full operational performance at a fraction of the cost of a new machine. For professional contractors and service workshops managing multiple tools, maintaining a stock of critical spare parts like this armature significantly reduces downtime and total cost of ownership.
