Engineered for Power, Built to Last — Keep Your Demolition Hammer Running at Peak Performance

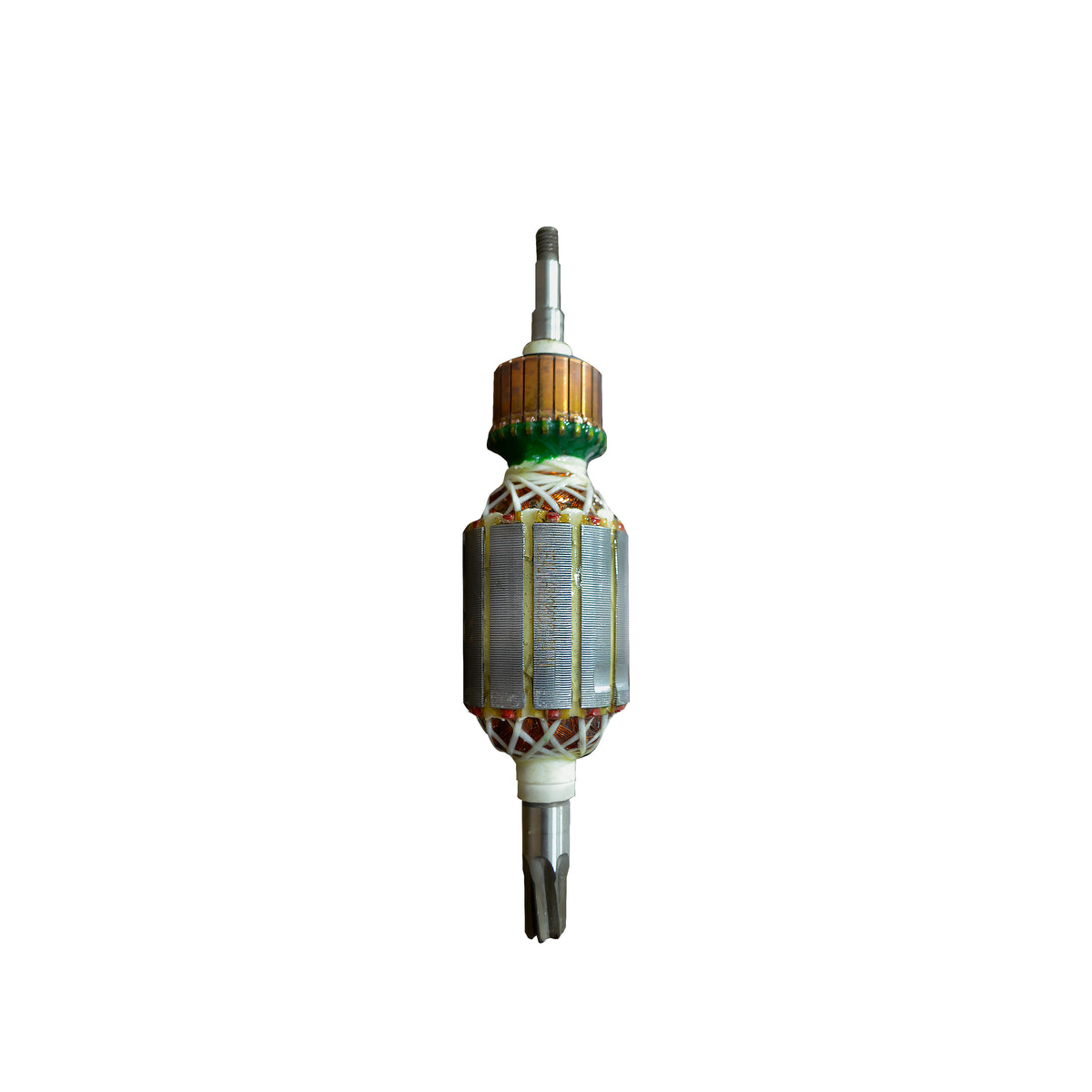

The ID HQ Series Armature for the HM0860C Demolition Hammer (Part No. 30368) is a precision-engineered OEM-grade replacement spare part designed to restore your demolition hammer to full operational power. Built with a high-grade magnetic core, precision copper windings, and a machined commutator, this armature efficiently converts electrical energy into the rotational mechanical force your tool demands, delivering reliable, high-performance output with every use.
| Key Features | Perfect For |
|---|---|
|
|
- OEM-Compatible Fitment (Part No. 30368): This armature is designed as a direct replacement for the Makita HM0860C demolition hammer, matching original factory dimensions and electrical specifications so installation requires no modifications — simply drop it in and restore full hammer power.
- High-Efficiency Copper Winding Construction: The armature features tightly wound, high-purity copper coils that maximise electrical conductivity, reduce resistive heat loss, and ensure that maximum torque is delivered to the tool's output shaft during demanding demolition tasks.
- Precision-Machined Commutator for Long Brush Life: The machined copper commutator provides a smooth, uniform contact surface for the carbon brushes, reducing arcing and wear — a key factor in extending the overall service interval of your demolition hammer.
- Balanced Magnetic Core for Reduced Vibration: The laminated silicon steel magnetic core is precision-balanced to minimise rotational vibration, protecting both the tool's internal bearings and the operator from excessive fatigue during prolonged use on concrete, masonry, and stone surfaces.
- Cost-Effective Alternative to Full Tool Replacement: Replacing a worn or damaged armature with Part No. 30368 extends the working life of your HM0860C at a fraction of the cost of a new machine — making it the smart choice for professional contractors and repair shops looking to maximise tool ROI.
- Durable Insulation for High-Temperature Operation: The winding insulation is rated to withstand the elevated operating temperatures generated during continuous heavy-duty chiselling and demolition, ensuring the armature maintains performance integrity even under sustained high-load conditions.
This replacement armature (Part No. 30368) is backed by quality assurance standards applicable to precision power tool components and is supplied complete with the armature assembly ready for installation. It is compatible exclusively with the Makita HM0860C demolition hammer and is intended for use by qualified technicians familiar with power tool servicing procedures.
General Purchase & Comparison Queries
Is this armature compatible with my Makita HM0860C demolition hammer?
Yes. The ID HQ Series Armature (Part No. 30368) is engineered specifically for the Makita HM0860C demolition hammer. It is manufactured to OEM-equivalent dimensional and electrical tolerances, making it a direct drop-in replacement. Always verify your tool's model number before ordering to ensure full compatibility.
How does this armature compare to buying a brand-new demolition hammer?
Replacing the armature (Part No. 30368) is a highly cost-effective solution compared to purchasing a new HM0860C. A worn or failed armature is one of the most common causes of power loss in demolition hammers, and replacing it restores the tool to full operational performance at a fraction of the cost of a complete tool replacement — making it the preferred choice for professional contractors and service centres.
What does "HQ Series" mean for this spare part?
The HQ Series designation indicates that this armature is manufactured to high-quality standards, using premium materials including high-purity copper windings, a precision-laminated magnetic core, and a machined commutator. HQ Series parts are engineered to meet or exceed the performance and durability of original manufacturer components.
Product-Specific and Usage Queries
What is the function of the armature in the HM0860C demolition hammer?
The armature is the rotating core of the electric motor inside the HM0860C. It consists of a laminated magnetic core, copper windings, and a commutator. When electrical current flows through the windings, the resulting electromagnetic force causes the armature to rotate, converting electrical energy into the mechanical rotational energy that drives the hammer's piston and chisel mechanism.
Can I install this armature myself or do I need a professional technician?
Armature replacement on a demolition hammer involves disassembling the tool's motor housing and requires familiarity with power tool servicing procedures. While experienced users with the right tools can undertake the repair, it is strongly recommended to have the armature installed by a qualified repair technician or authorised service centre to ensure correct fitment, safe reassembly, and preservation of the tool's warranty or service record.
What are the signs that the armature in my HM0860C needs replacing?
Common indicators of a failing or burnt armature include a noticeable reduction in tool power, excessive sparking at the brush contact area, a burning smell during operation, unusual vibration, or the tool failing to start altogether. If your HM0860C displays any of these symptoms, inspecting and replacing the armature (Part No. 30368) should be the first diagnostic step before considering full tool replacement.
Problem/Solution-Oriented Queries
My HM0860C has lost power and runs weakly — will replacing the armature fix this?
A worn or damaged armature is a leading cause of power loss in demolition hammers. Degraded copper windings or a pitted commutator reduce the efficiency of energy transfer within the motor. Replacing the armature with a fresh HQ Series unit (Part No. 30368) restores the motor's electromagnetic efficiency, returning the tool to its rated impact performance for concrete breaking and chiselling work.
There is heavy sparking inside my demolition hammer — is the armature the cause?
Excessive sparking is typically caused by an uneven or worn commutator surface creating poor contact with the carbon brushes — a direct symptom of armature wear. While carbon brushes should also be inspected simultaneously, fitting a new armature (Part No. 30368) with a clean, precision-machined commutator will eliminate this issue and prevent further accelerated brush and motor wear.
How do I extend the life of my new replacement armature?
To maximise the service life of your replacement armature (Part No. 30368), ensure that the carbon brushes are also inspected and replaced if worn at the time of armature installation, as worn brushes accelerate commutator wear. Avoid operating the HM0860C under continuous overload conditions, allow the tool to cool during extended use sessions, and keep the motor housing vents clear of dust and debris to maintain adequate airflow and thermal management.
