Restore Peak Cutting Power — Genuine HQ Series Performance, Rebuilt from the Core

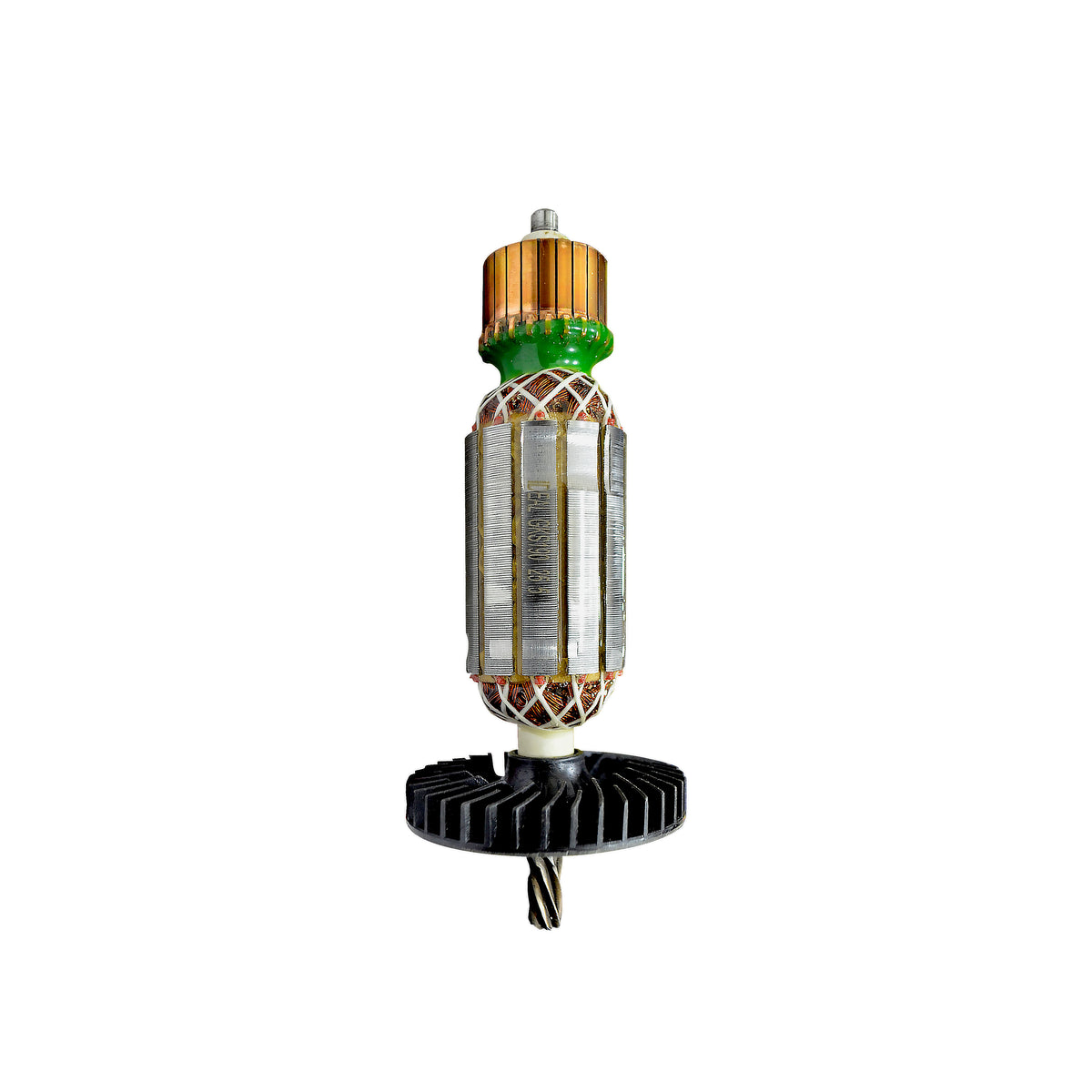

The ID HQ Series Armature for the GKS190 7" Circular Saw (Part No. 30367) is a premium-grade OEM-compatible replacement armature engineered to restore full power and performance to your circular saw. Precision-wound with a high-quality magnetic core, copper winding, and balanced commutator, this armature delivers reliable electromechanical energy conversion with minimal heat build-up and extended service life.
| Key Features | Perfect For |
|
|
- OEM-Matched Compatibility with the Bosch GKS190: Designed as a direct-fit replacement for the GKS190 7" circular saw, this armature (Part No. 30367) slots in without additional machining or adaptation. The shaft dimensions, core length, and commutator diameter are precisely matched to factory tolerances, ensuring the motor reassembles cleanly and performs identically to the original specification.
- High-Conductivity Copper Winding for Maximum Efficiency: The armature winding uses high-grade copper wire wound to exacting turn counts, delivering optimal magnetic flux generation. This translates directly to strong, consistent torque output at the blade — critical when cutting through hardwood, sheet metal, or composite materials where motor load fluctuates rapidly.
- Precision-Balanced Commutator for Smooth, Reliable Operation: The commutator segments are machined and balanced to minimise vibration at high RPM. A balanced commutator dramatically reduces arcing between the brushes and contact surfaces, which extends both brush life and commutator life — lowering total maintenance frequency for busy workshops and job sites.
- Laminated Magnetic Core to Reduce Heat and Energy Loss: The armature core is constructed from stacked silicon-steel laminations that significantly reduce eddy current losses during operation. This keeps the motor running cooler under sustained load, protecting the insulation on the windings and prolonging the overall lifespan of both the armature and the surrounding motor components.
- Durable Construction for Professional-Grade Workloads: Built to withstand the thermal cycling, mechanical vibration, and current demands of daily professional use, this HQ Series armature is rated for the full power draw of the GKS190 motor. Whether used on a construction site or in a dedicated workshop, it maintains consistent performance across thousands of duty cycles without premature failure.
The ID HQ Series Armature for the GKS190 (Part No. 30367) is supplied as a complete armature assembly ready for installation. This spare part is compatible with the Bosch GKS190 7" circular saw and is intended for use by qualified technicians or experienced users comfortable with power tool disassembly and motor servicing.
General Purchase & Comparison Queries
Is this armature compatible with my Bosch GKS190 circular saw?
Yes. The ID HQ Series Armature (Part No. 30367) is specifically engineered as a direct-fit replacement for the Bosch GKS190 7" circular saw. The shaft dimensions, core profile, and commutator diameter are matched to OEM factory tolerances, meaning no additional modification or machining is required during installation. Always verify your saw's model number before ordering.
How does the ID HQ Series armature compare to the original Bosch armature?
The HQ Series armature is built to match or exceed OEM specifications. It uses high-conductivity copper winding and precision-laminated silicon-steel core construction, which mirrors the engineering standard of the original Bosch part. For most repair and maintenance applications, it delivers equivalent performance at a competitive price point — making it a practical choice for both workshop technicians and individual users.
Can I install this armature myself, or do I need a technician?
Armature replacement involves full motor disassembly, including the removal of the brush assembly, end cap, and rotor from the field housing. While experienced DIY users with appropriate tools can perform this repair, it is recommended that the installation be carried out by a qualified power tool technician to ensure safe reassembly and correct brush seating. Improper installation can result in premature failure or motor damage.
Product-Specific and Usage Queries
What does the armature do inside the GKS190 circular saw motor?
The armature is the rotating component at the heart of the electric motor. It consists of a magnetic core, copper winding, and commutator that work together to convert electrical energy into the mechanical rotation that drives the saw blade. When current flows through the windings via the carbon brushes and commutator, it generates a magnetic field that interacts with the stator, causing the armature — and thus the blade shaft — to spin at high speed.
What is Part No. 30367 and how do I confirm it matches my tool?
Part No. 30367 is the ID reference for this HQ Series armature, corresponding to the motor armature used in the Bosch GKS190 7" circular saw. To confirm compatibility, check the model number printed on the nameplate of your saw (usually found on the motor housing). If your saw is listed as GKS190 or GKS 190, this armature is the correct replacement. If you are uncertain, contact us with your full model and serial number before purchasing.
Should I replace the carbon brushes at the same time as the armature?
Yes — it is strongly recommended. When an armature fails, the carbon brushes are often worn down significantly or may be damaged from arcing. Installing a new armature with worn brushes accelerates wear on the fresh commutator surface and can lead to premature failure. Replacing both the armature and the carbon brush set simultaneously ensures the best contact, optimal performance, and maximum service life from your repair.
Problem/Solution-Oriented Queries
My GKS190 has lost power and smells burnt — is the armature the problem?
A burnt smell, loss of power, or complete motor failure in a circular saw are common indicators of a failed armature. Over time, excessive load, overheating, or worn brushes can cause the copper winding insulation to break down, resulting in a shorted or open-circuit armature. If your saw no longer starts, runs erratically, or produces a burning odour, inspect the armature for visible burn marks or discolouration. Replacing the armature with the ID HQ Series Part No. 30367 will restore full motor function.
The saw vibrates excessively at high speed — could this be an armature issue?
Excessive vibration or wobble at speed can indicate an out-of-balance or physically damaged armature. If the armature core or shaft has been bent due to a drop or impact, or if the commutator has developed flat spots from brush arcing, the motor will run unevenly. The precision-balanced commutator on the ID HQ Series armature is machined to minimise rotational imbalance, restoring smooth, stable operation once installed correctly.
How can I extend the life of my new armature after installation?
To maximise the service life of your replacement armature, follow these key practices: always replace carbon brushes when fitting a new armature; avoid prolonged operation at full load without rest periods to prevent overheating; keep the ventilation slots on the motor housing clear of dust and debris; and use the correct blade type for the material being cut to avoid stalling the motor under load. Periodic inspection of the brush condition every few months will also help catch wear before it damages the commutator surface.
